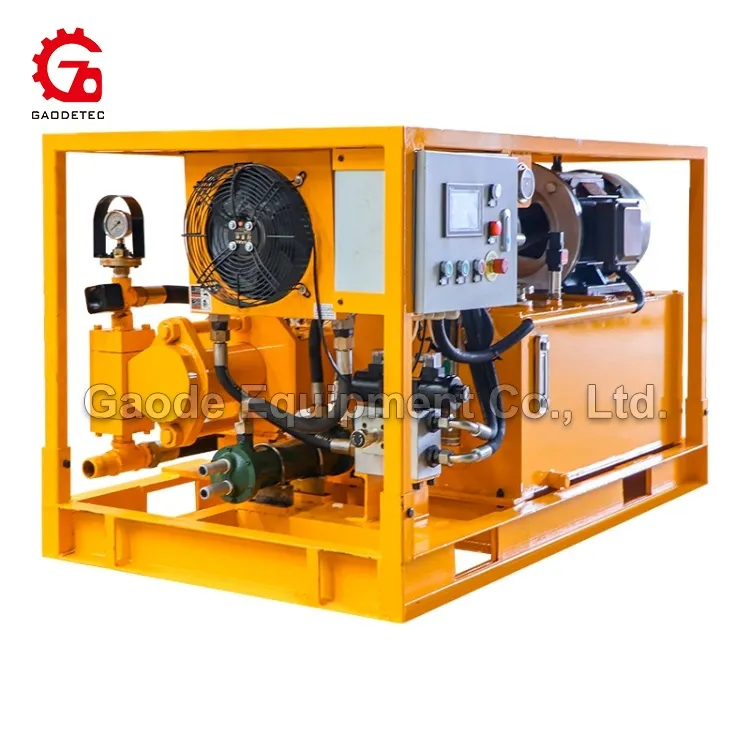

Gaodetec GGP120/30PI-E Injection grout pump



GGP120/30PI-E
Specs & Compare
Details
Specifications
- Weight:740.000kg
- Type:GGP120/30PI-E
- Driven way:Electricity
- Hydraulic system:10MPa
- Displacement @ pressure:120L/min@3MPa
- Motor Power:15kW
- Motor Voltage:3 phase,380V/415V/440V,50Hz
- Overall Dimension(L×W×H):1700×945×920mm
- Weight:740kg
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
Description
GGP120/30PI-E Injection grout pump is driven by electric motor, which is the power for hydraulic system. The symmetrically designed piston pump realizes the continuity of suction and discharge through reciprocating movement of hydraulic cylinder. At the same time, the closed cavity can generate high pressure, so that the mud can be injected with a certain pressure to complete the shotcrete action.

The features and advantages of this machine are as follows:
1. Double cylinders piston pump to ensure the continuous slurry flowing (small pulse) and not easily leaking compared with the double acting piston pump.
2. Hydraulic system is equipped with oil temperature protection system.
3. Both hydraulic air and water cooler.
4. Grouting pressure and displacement can be adjusted steplessly.
2. Hydraulic system is equipped with oil temperature protection system.
3. Both hydraulic air and water cooler.
4. Grouting pressure and displacement can be adjusted steplessly.
5. PLC and HMI control.
6. Solid State Relay.
Parameters

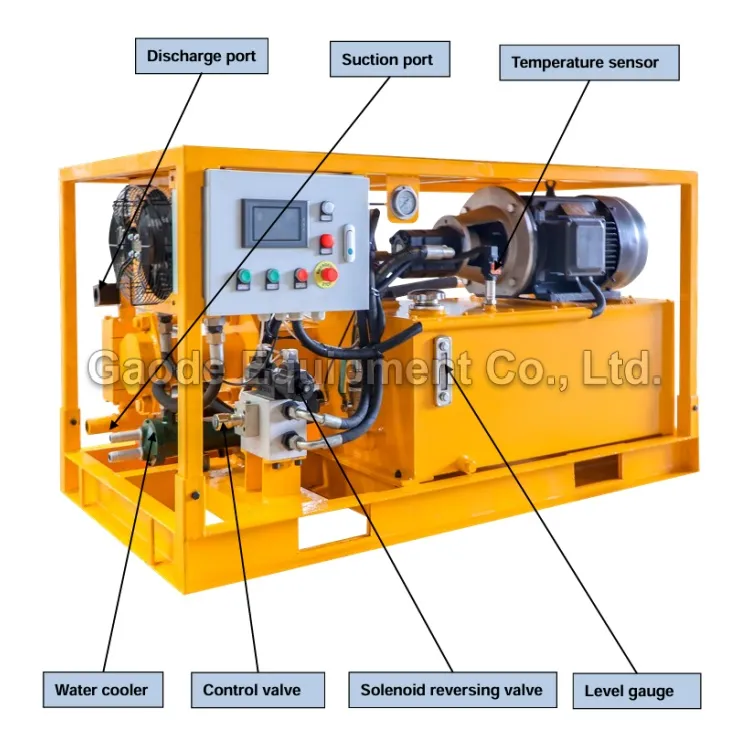

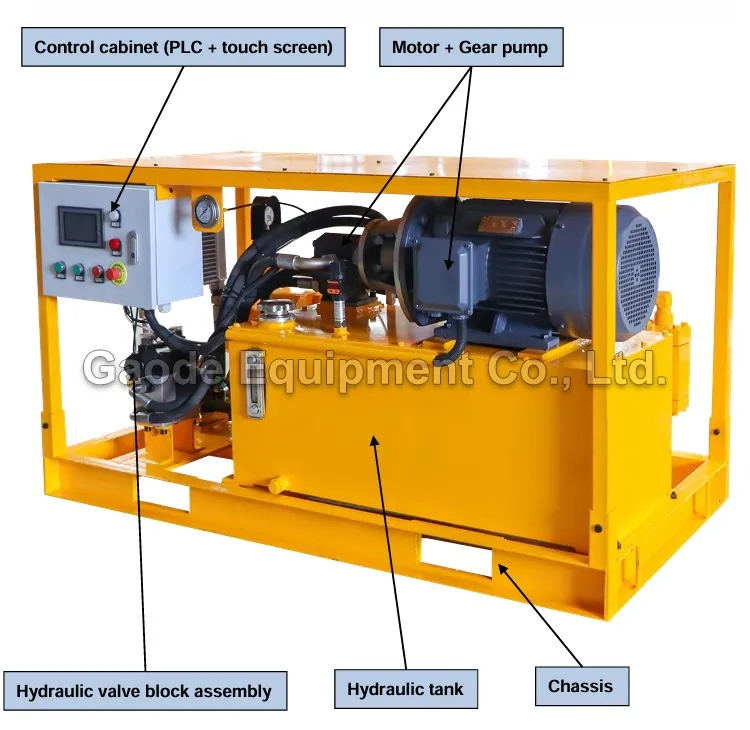

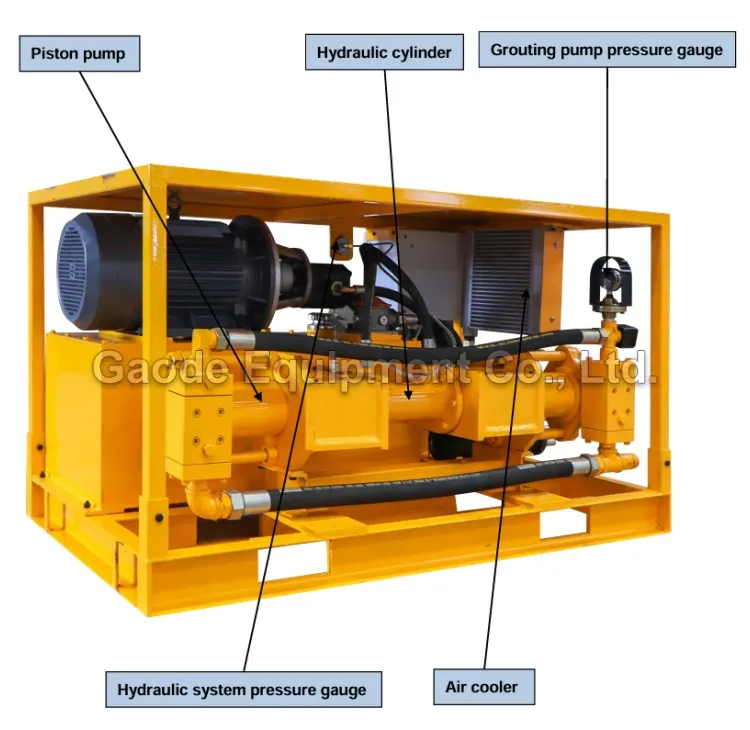

Details Images
.jpg.webp)
.jpg.webp)
.jpg.webp)
Application
GGP120/30PI-E Injection grout pump is mainly used for ground/underground construction, such as highways, railways, water and electricity, construction, mining, etc.

FAQ
1. Are you the manufacturer or a trade company?
We are the manufacturer for producing grout equipment.
And we have owned a trading company to do International Business,
So that:
1) We can supply good service with professional international trade experience.
2) The price is much more competitive.
2. Can you do the ODM or OEM? What is MOQ?
Yes, it is possible as discussed, MOQ: 1unit.
3. What about delivery time? How long can I get the machine after the order?
The production time is as fast as 30-60 working days if you customize the machine.
The standard machine in stock can be delivered as soon as possible after ordering.
4. How to pay for yourself?
50% down payment, then production starts, and the balance 50% paid before shipping.
If the machines are in stock, pay 100% then delivery.
Our Advantages
Packaging and Delivery





Contact Supplier
1. What is the project you are going to do?
2. What flow and pressure do you demand?
3. What's the water-cement ratio of the material you will mix and grout?
4. Regarding the engine, would you like an electric motor or a diesel engine? if electric motor, 3 phase, 380v, 50HZ is ok for you?
