Gaodetec GBP1000160020HP-E Automatic Bentonite Grout Unit
GBP1000/1600/20HP-E
Specs & Compare
Details
Specifications
- Weight:2600.000kg
- Model:GBP1000/1600/20HP-E
- Mixer Capacity:1200L
- Agitator Capacity:1600L
- Hose Pump Output:20m3/h
- Dimensions:4300*2250*2200mm
- Weight:2600kg
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
Description

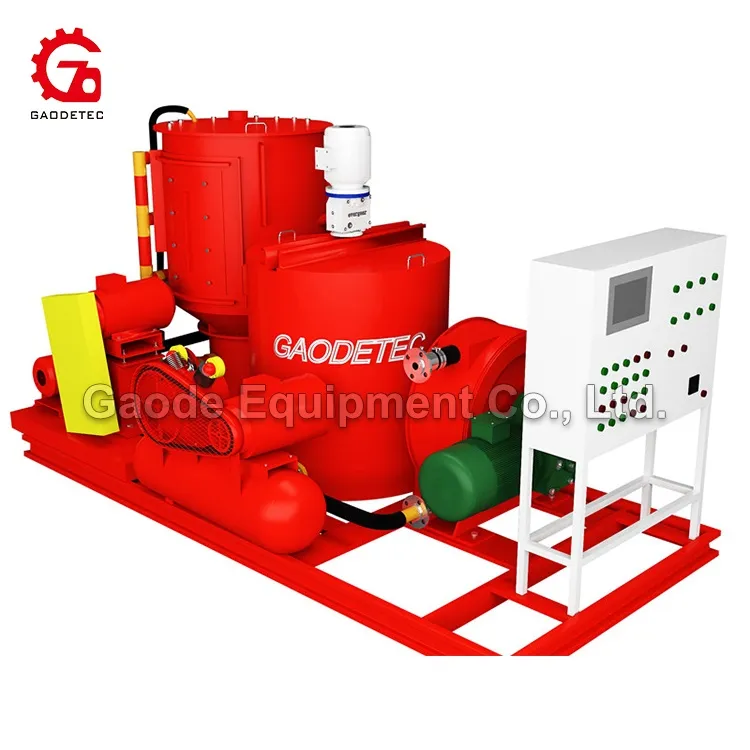

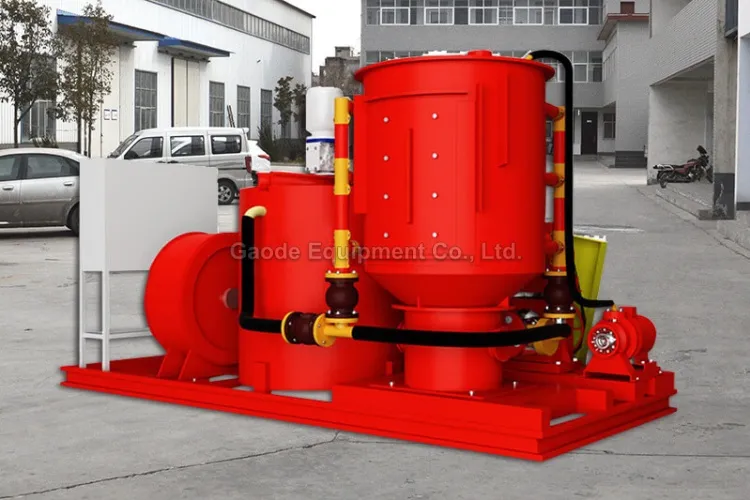

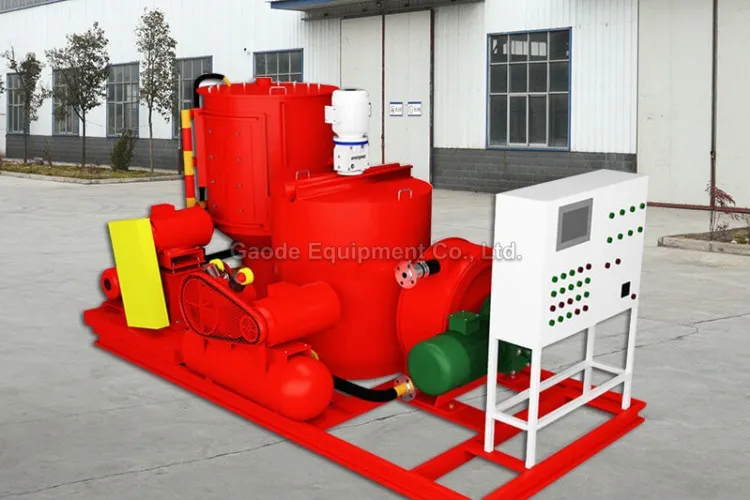

Gaodetec GBP1000160020HP-E Automatic Bentonite Grout Unit consists of a steel sheet cylindrical tank, set-up on a strong base frame, the pump and the motor. The muds are mixed through a high speed vortex produced by a special pump which, after sucking the material from the bottom of the tank, sends it back tangentially into the same tank in order to get highest possible efficiency. Through a time controlled operation of the pneumatic pipe clamp valve of the system, the pump can bring the mud to a storage container or directly to the area of use. By this process it is possible to obtain homogeneous colloidal and high quality mixtures within a very short period of time. At the same time, GBP system would be used for the mixing and pumping of the water, cementitious powders, pozzolans and admixtures.

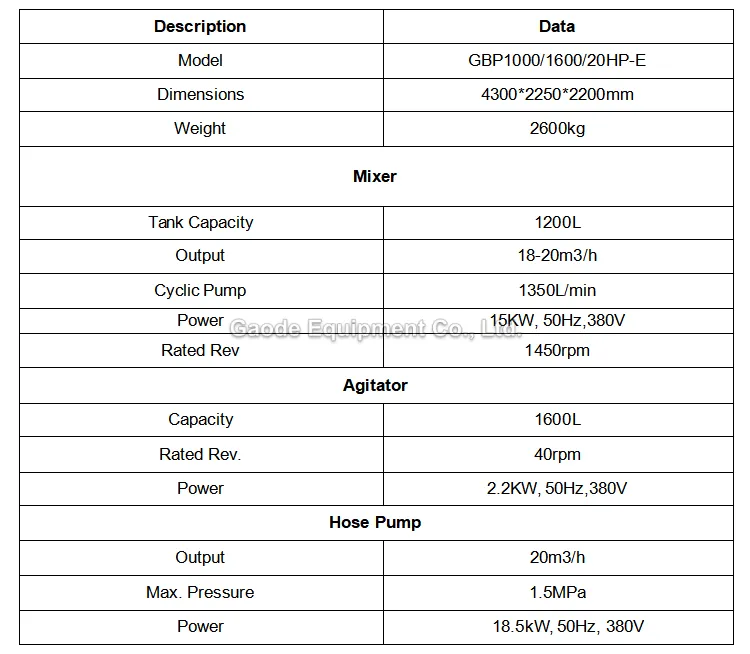

Parameters
Application
GBP1000160020HP-E Automatic Bentonite Grout Unit is mainly used to make and grout the cement slurry in the highway, railway, hydropower, construction, mining and other ground and underground construction applications.
FAQ
1. Are you the manufacturer or a trade company?
We are the manufacturer for producing grout equipment.
And we have owned a trading company to do International Business,
So that:
1)-We can supply good service with professional international trade experience.
2)-The price is much more competitive.
2. Can you do the ODM or OEM? What is MOQ?
Yes, it is possible as discussed, MOQ: 1unit.
3. What about delivery time? How long can I get the machine after the order?
The production time is as fast as 30-60 working days if you customize the machine.
The standard machine in stock can be delivered as soon as possible after ordering.
4. How to pay for yourself?
50% down payment, then production starts, and the balance 50% paid before shipping.
If the machines are in stock, pay 100% then delivery.
Our Advantages
Packaging and Delivery
Contact Supplier
1. What is the project you are going to do?
2. What flow and pressure do you demand?
3. What's the water-cement ratio of the material you will mix and grout?
4. Regarding the engine, would you like an electric motor or a diesel engine? if electric motor, 3 phase, 380v, 50HZ is ok for you?
