Summary
- Rated Load:9 ton
- Dimension(Long* Breadth * High):9500*3500*3845mm
- Type:wheel loader
- Place of Origin:Xuzhou, China
- Model Number:LW900KN
- Brand Name:XCMG
- Certification:CE, ISO
Specifications
- weight:31000.000kg
- Moving Type:Other
- Engine Brand:CUMMINS
- Rated Load:6-10 ton
- Bucket Capacity:0.5 - 2m³
- Bucket capacity: 5 cbm
- Hydraulic Cylinder Brand:Kawasaki
- Power:250kw
- Wheel base:3600mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

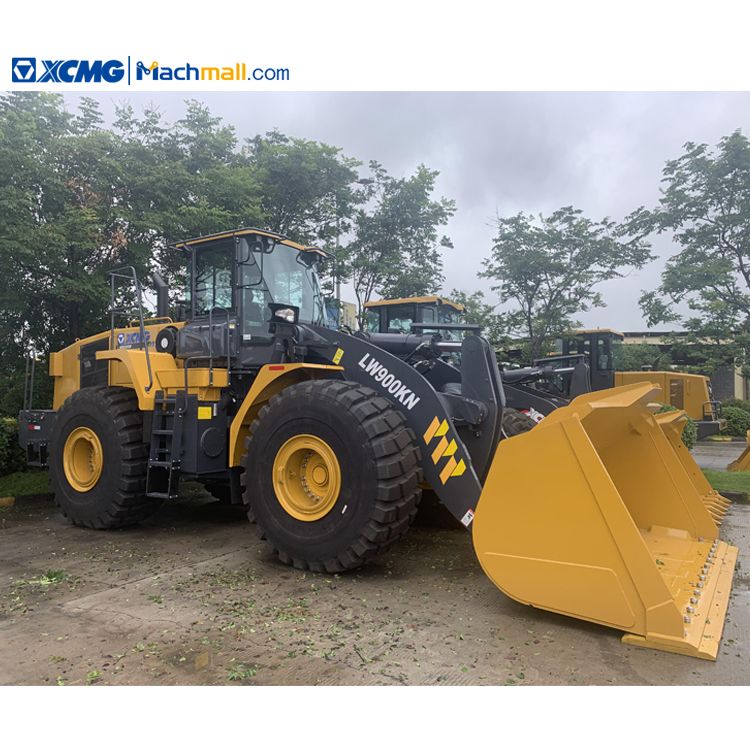

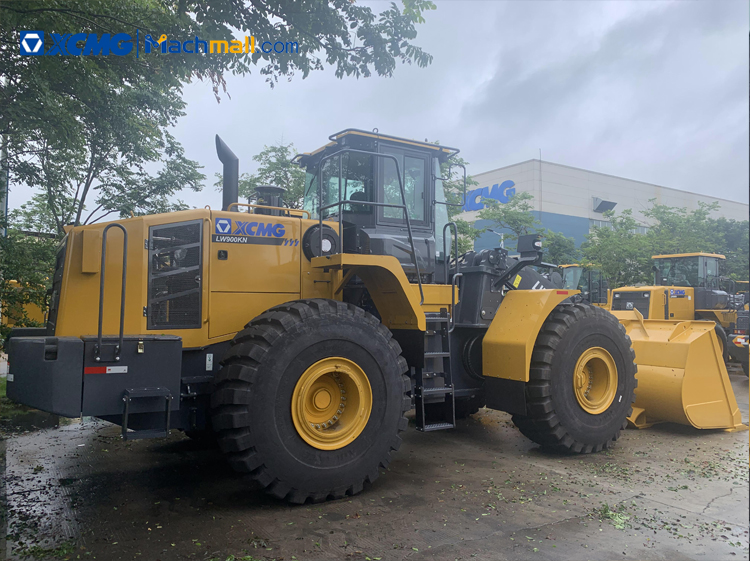

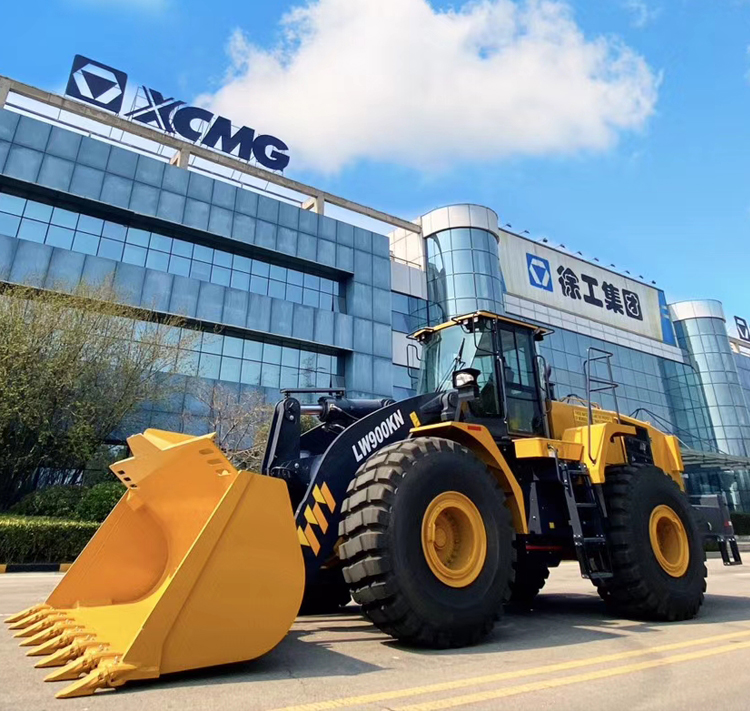

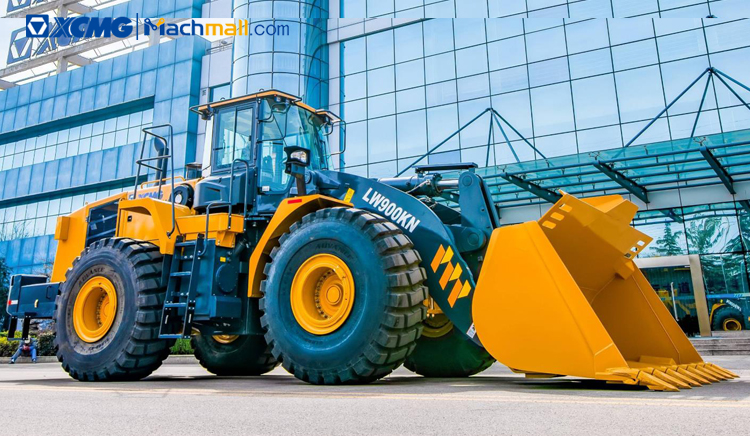

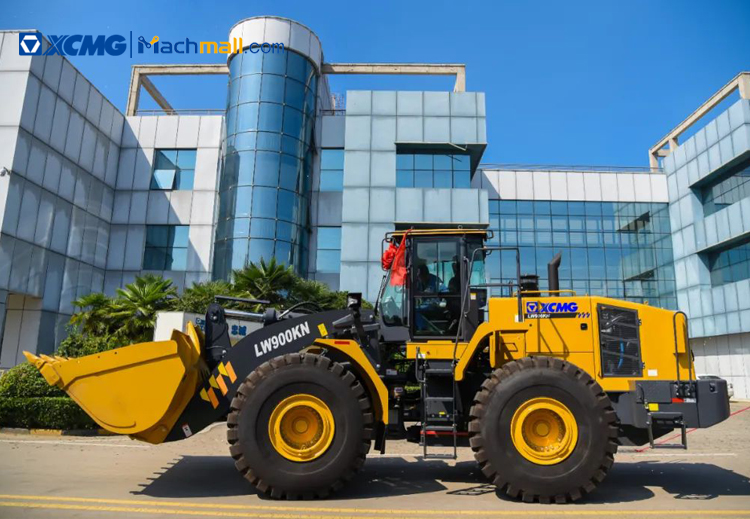

XCMG 9 ton wheel loader LW900KN.

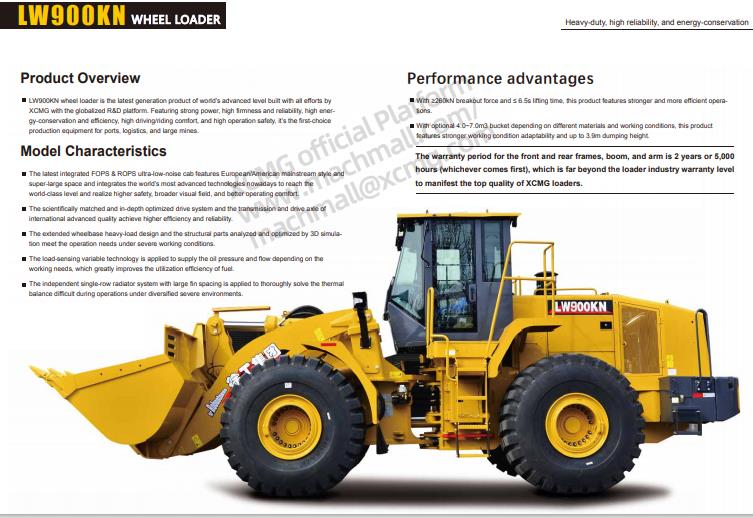

LW900KN wheel loader is the latest generation product of world's advanced level built with all efforts by XCMG with the globalized R&D platform.
wheel loader LW900KN featuring strong power, high firmness and reliability, high energy-conservation and efficiency, high driving/riding comfort, and high operation safety, it's the first-choice production equipment for ports and logistics.
Performance Characteristics:

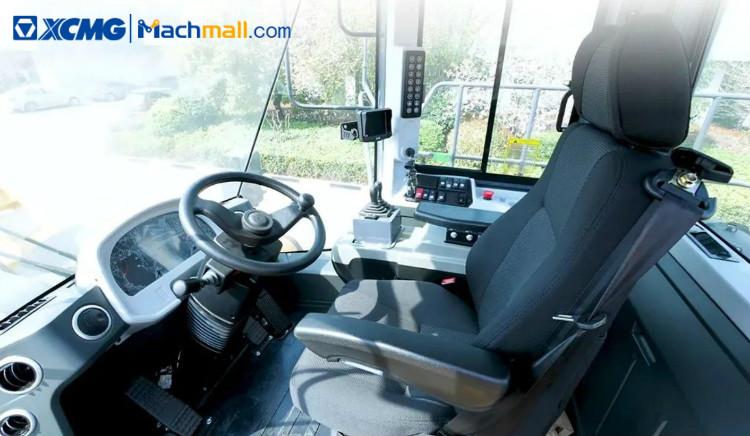

1. The latest integrated ultra-low-noise cab features European/American mainstream style and superlarge space to reach the world-class level and realize higher safety, broader visual field, and better operating comfort.
2. XCMG wheel loader LW900KN achieve higher efficiency and reliability.
3. LW900KN wheel loader meet the operation needs under severe working conditions.
4. Wheel loader LW900KN greatly improves the utilization efficiency of fuel.
5. XCMG LW900KN wheel loader thoroughly solve the thermal balance difficult during operations under diversified severe environments.
|
Description |
Unit |
Parameter value |
|
Wheel base |
mm |
3600 |
|
Tread |
mm |
2460 |
|
Dump clearance at maximum lift |
mm |
3400 |
|
Reach at maximum lift |
mm |
1400 |
|
Height of hinge at maximum lift height |
mm |
4600 |
|
Working height (fully lifted) |
mm |
6415 |
|
Overall machine dimension L×W×H |
mm |
9500×3500×3845 |
|
Rated operating load |
kg |
9000 |
|
Bucket capacity |
m³ |
5 |
|
Machine weight |
kg |
31000 |
|
Max. breakout force |
kN |
260 |
|
Max. horse power |
kN |
245 |
|
Lifting time of boom |
s |
≤6.5 |
|
Total cycle time |
s |
≤11.5 |
|
Minimum turning radius (at tire center) |
mm |
6200 |
|
Articulation angle |
° |
±38 |
|
Gradeability |
° |
25 |
|
Tyre size |
|
29.5R25 |
|
Engine Model |
|
QSM11—C335 |
|
Rated Power/Speed |
kW/rpm |
250/2100 |
