XCMG 5 ton compact loaders LW500KN catalog PDF

$20000.00-$50000.00 1 / EA (Min. Order)
Model: LW500KN
Engine: WEICHAI
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
XCMG 5 ton compact loaders LW500KN catalog PDF

Content:

*Email:

Full Name:

Mobile phone:

  • Summary
  • Specifications
  • 360-Degree VR Videos

Summary

  • Rated Load:5000kg
  • Dimension(Long* Breadth * High):8870*3000*3350mm
  • Type:front loader
  • Place of Origin:Xuzhou, Jiangsu, China
  • Model Number:LW500KN
  • Brand Name:XCMG
  • Certification:CE/ISO90001

Specifications

  • Weight:17500.000kg
  • Engine Brand:WEICHAI
  • Rated Load:6-10 ton
  • Bucket Capacity:2.5 - 3.5m³
  • Power:162KW
  • Bucket capacity:2.5~4.5m3
  • Max. breakout force:170KN
  • Machine Weight:17500kg

XCMG 5 ton compact loaders LW500KN catalog PDF

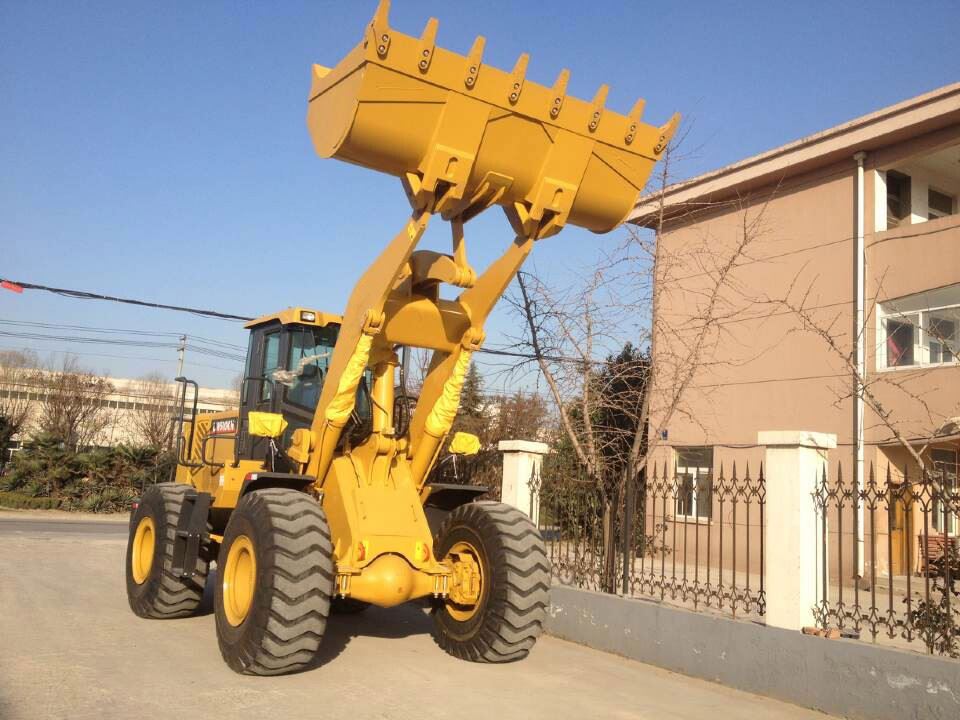

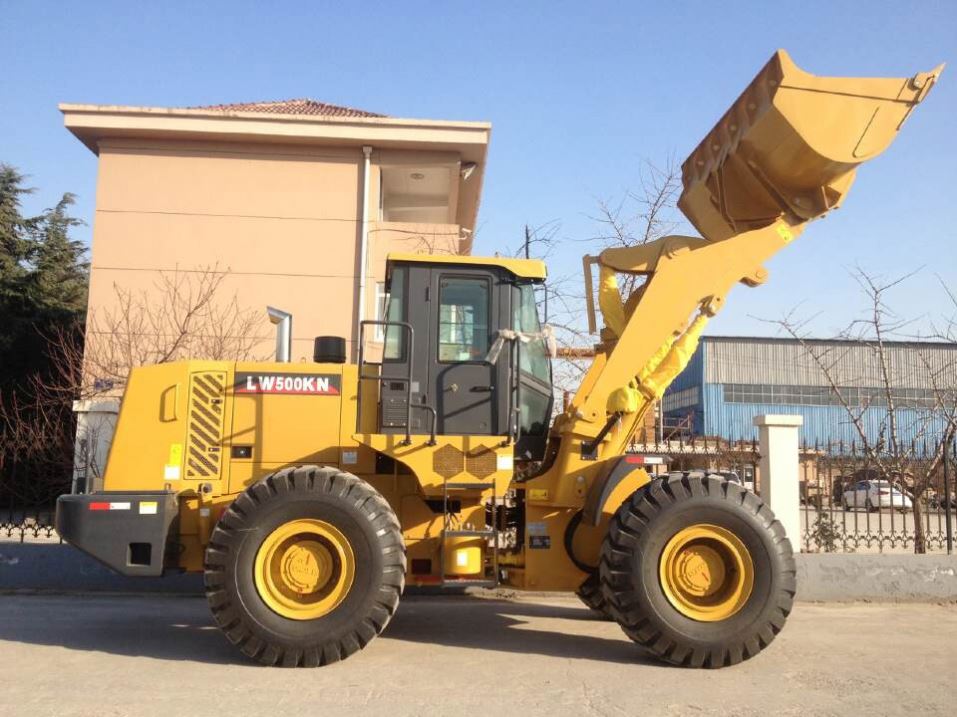

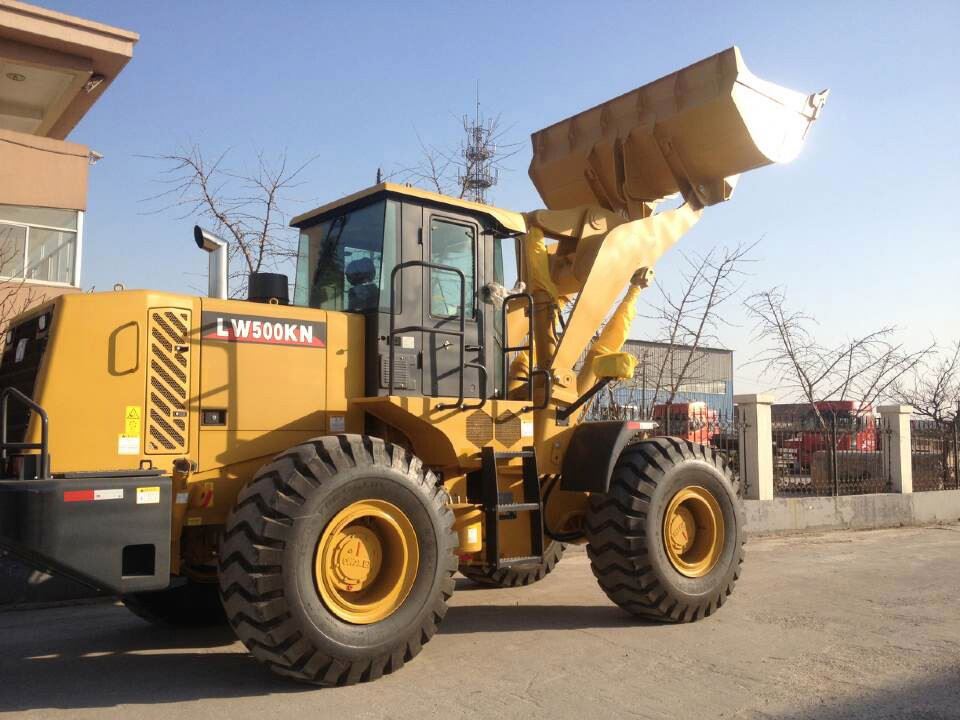

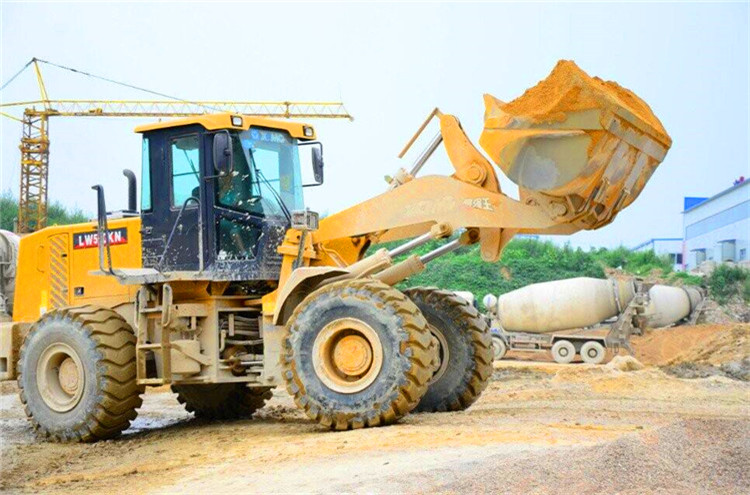

XCMG 5 ton compact loaders LW500KN.

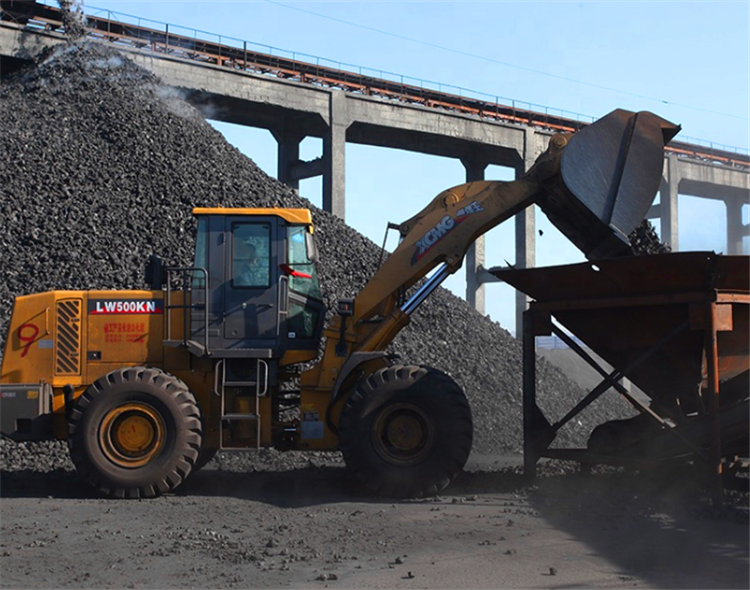

XCMG compact loaders LW500KN is suitable for heavy loads under rock conditions; the working device and front and rear frame feature thick board of high strength, reasonable distribution and strong carrying capacity.

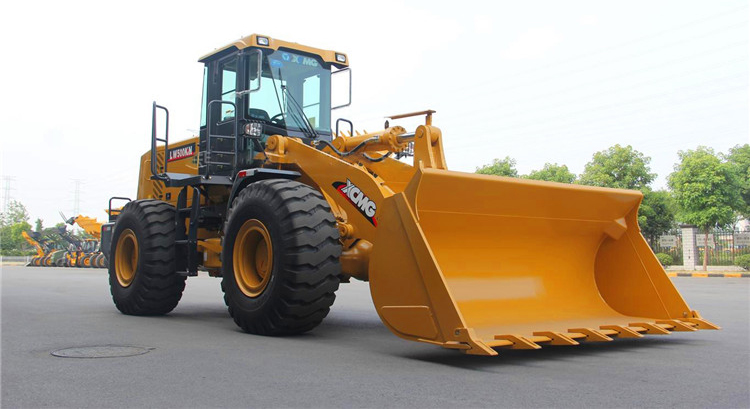

XCMG compact loaders LW500KN The large rock bucket with capacity of 3M3 is improved in terms of the work efficiency and adaptation.

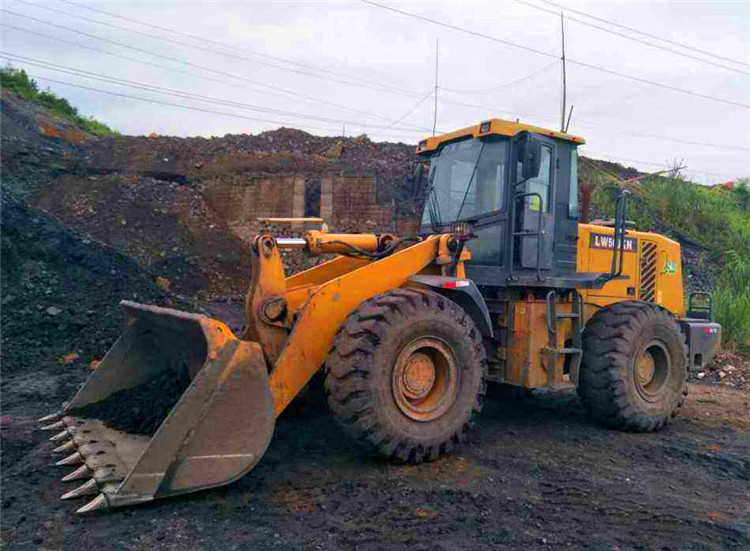

The bucket teeth adopt the structure of toothholder and sleeve.



The cutting blade and bucket edge are equipped with protection device, XCMG LW500KN compact loaders featuring excellent abrasion resistance and shock resistance.

XCMG 5 ton compact loaders LW500KN catalog PDF

Description
Unit
lw500kn
Rated operating load
kg
5000
Bucket capacity
2.7~4.5
Machine weight
kg
17200
Dump clearance at maximum lift
mm
3150~3560
Reach at maximum lift
mm
1100~1190
Wheel base
mm
3300
Tread
mm
2250
Height of hinge at maximum lift height
mm
4112
Working height(fully lifted)
mm
5407
Max.breakout force
kN
170
Hydraulic cycle time-raise
s
≤6.5 s
Total hydraulic cycle time
s
≤11 s
Min. turning radius over tyres
mm
5925 mm
Articulation angle
°
30 º
Gradeability
°
45 º
Tyre size

23.5-25-16PR
Overall machine dimension L×W×H
mm
8870*3000*3350
Model

WD10G220E21
Rated Power
kW
162
