XCMG Official LW900KN Wheel Loader for sale
Summary
- Rated Load:9000kg
- Dimension(Long* Breadth * High):9500×3500×3845mm
- Place of Origin:China
- Model Number:LW900KN
- Brand Name:XCMG
- Certification:ISO9001
Specifications
- Weight:31000.000kg
- Condition:New
- Moving Type:Wheel
- Engine Brand:SHANGCHAI
- Rated Load:1-2 ton
- Bucket Capacity:0.5 - 2m³
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

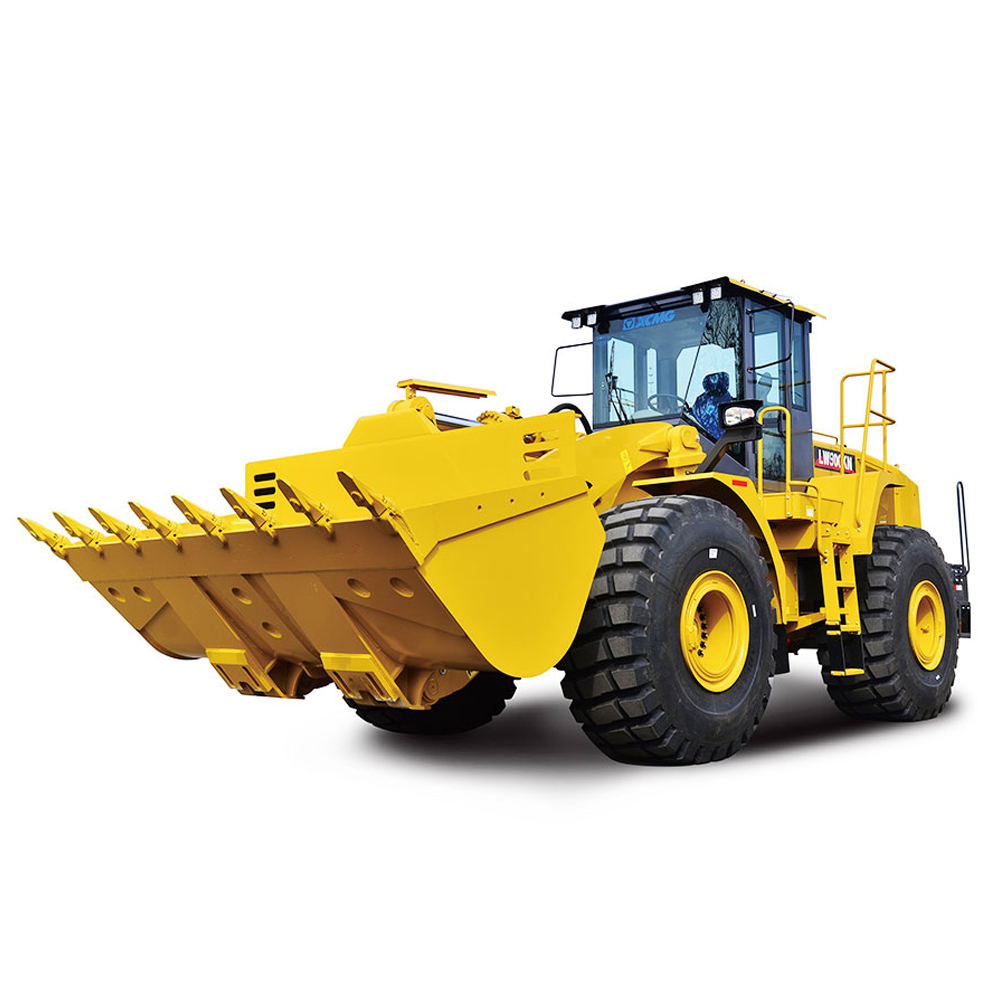

LW900KN Wheel Loader
1、The latest integrated FOPS & ROPS ultra-low-noise cab features European/American mainstream style and super-large space and integrates the world’s most advanced technologies nowadays to reach the world-class level and realize higher safety, broader visual field, and better operating comfort.
2、The scientifically matched and in-depth optimized drive system and the transmission and drive axle of international advanced quality achieve higher efficiency and reliability.
3、The extended wheelbase heavy-load design and the structural parts analyzed and optimized by 3D simulation meet the operation needs under severe working conditions.
4、The load-sensing variable technology is applied to supply the oil pressure and flow depending on the working needs, which greatly improves the utilization efficiency of fuel.
5、The independent single-row radiator system with large fin spacing is applied to thoroughly solve the thermal balance difficult during operations under diversified severe environments.
|
Description |
Unit |
Parameter value |
|
|
Wheel base |
mm |
3600 |
|
|
Tread |
mm |
2460 |
|
|
Dump clearance at maximum lift |
mm |
3400 |
|
|
Reach at maximum lift |
mm |
1400 |
|
|
Height of hinge at maximum lift height |
mm |
4600 |
|
|
Working height(fully lifted) |
mm |
6415 |
|
|
Overall machine dimension L×W×H |
mm |
9500×3500×3845 |
|
|
Rated operating load |
kg |
9000 |
|
|
Bucket capacity |
m³ |
5 |
|
|
Machine weight |
kg |
31000 |
|
|
Max.breakout force |
kN |
260 |
|
|
Max.horse power |
kN |
245 |
|
|
Lifting time of boom |
s |
≤6.5 |
|
|
Total cycle time |
s |
≤11.5 |
|
|
Minimum turning radius (at tire center) |
mm |
6200 |
|
|
Articulation angle |
° |
±38 |
|
|
Gradeability |
° |
25 |
|
|
Tyre size |
|
29.5R25 |
|
|
EngineModel |
|
CUMMINS QSM11—C335 |
|
|
Rated Power/Speed |
kW/rpm |
250/2100 |
|
|
Travel Speed
|
Ⅰ-gear(F/R) |
km/h |
7/7 |
|
Ⅱ-gear(F/R) |
km/h |
11.6/11.6 |
|
|
Ⅲ-gear(F/R) |
km/h |
24.5/24.5 |
|
|
Ⅳ-gear(F/R) |
km/h |
35 |
|
