XCMG Official LW700KV Wheel Loader for sale
Summary
- Rated Load:7000kg
- Dimension(Long* Breadth * High):8900×3200×3600mm
- Place of Origin:China
- Model Number:LW700KV
- Brand Name:XCMG
- Certification:ISO9001
Specifications
- Weight:23500.000kg
- Condition:New
- Moving Type:Wheel
- Engine Brand:SHANGCHAI
- Rated Load:1-2 ton
- Bucket Capacity:0.5 - 2m³
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

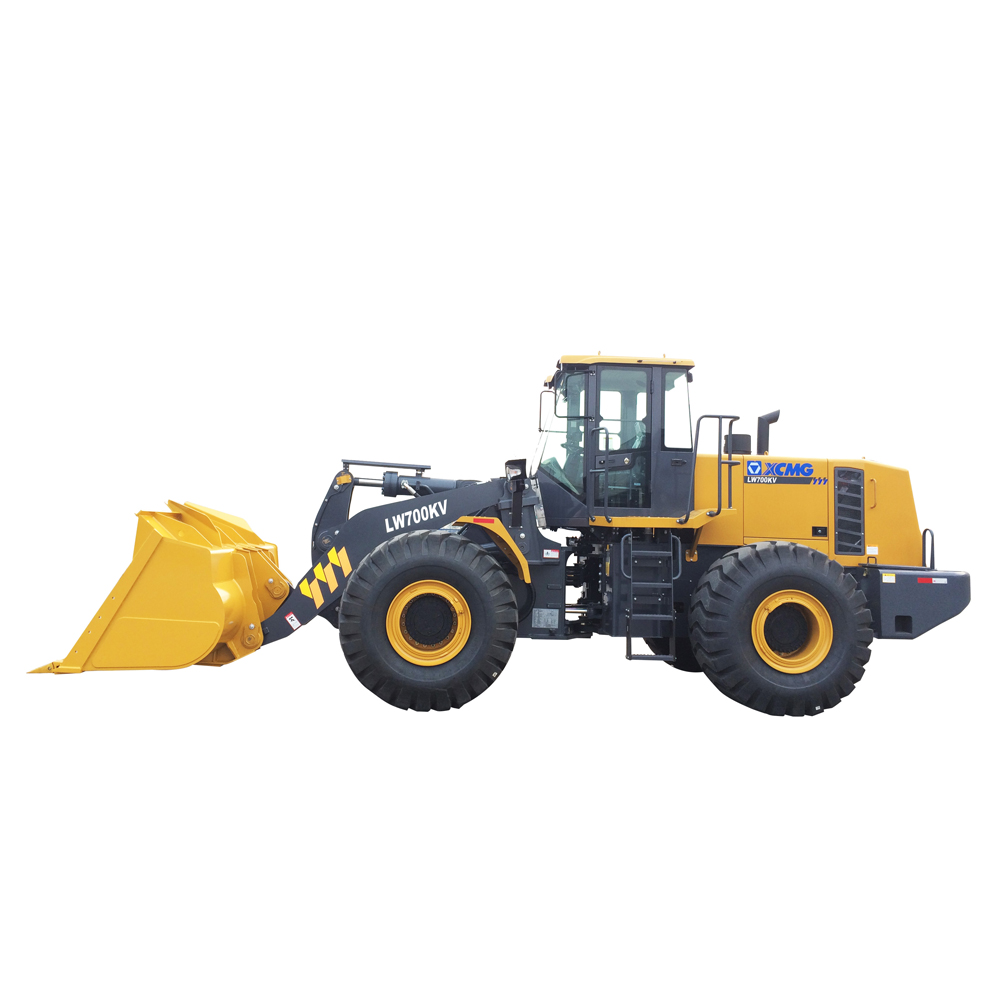

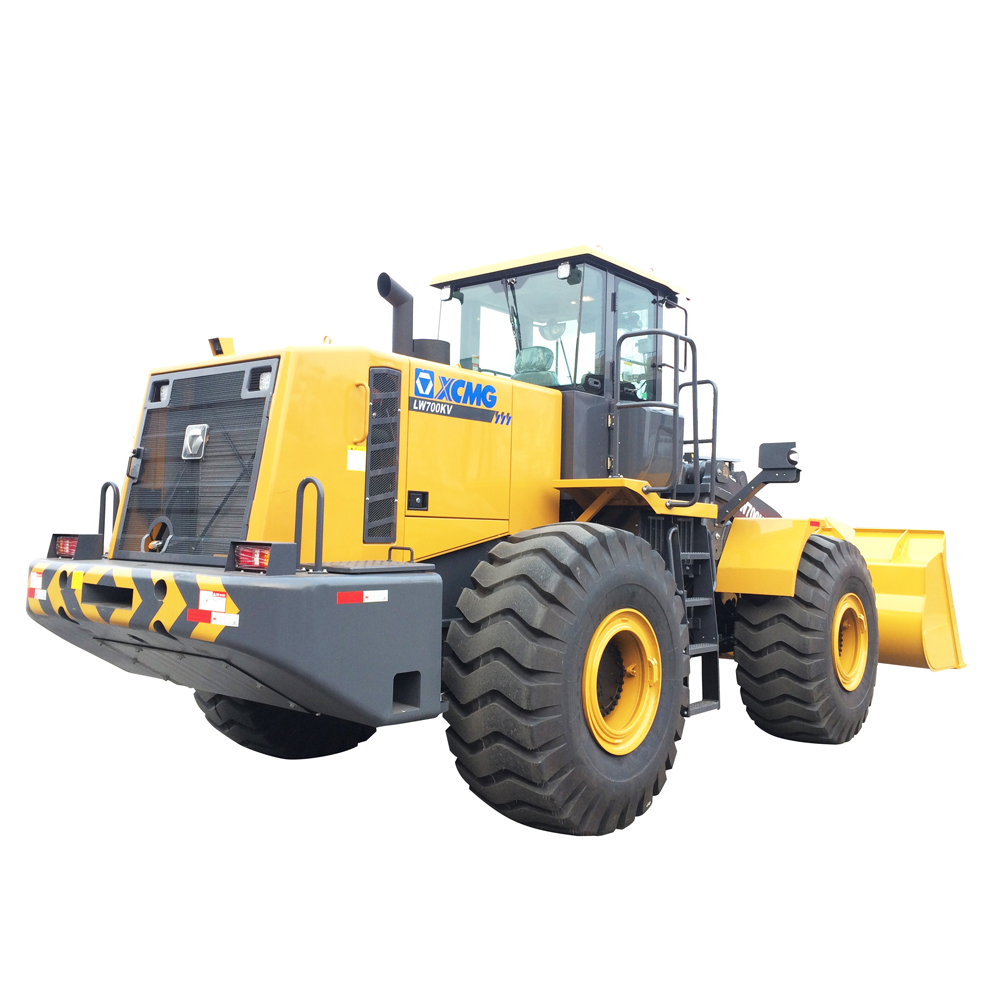

LW700KV Wheel Loader
1、The imported Cummins QSM11 electronic injection air-air inter-cooled, turbocharged engine with electronic start and stop device and high torque reserve coefficient enables the whole machine to have powerful traction force and rapid hydraulic response.
2、The low noise and high torque engine and the high capacity torque converter guarantee the maximum efficiency during low speed traveling to remarkably reduce the fuel consumption.
3、The hydraulic system adopts pilot control, steering flow amplifying, and working and steering confluence technology to realize low hydraulic power consumption, low energy consumption, and improved efficiency of the hydraulic system.
4、The hydraulic system adopts pilot control, steering flow amplifying, and working and steering confluence technology to realize low hydraulic power consumption, low energy consumption, and improved efficiency of the hydraulic system.
5、Compliance with environment protection requirements and output of clean emission.
|
Description |
Unit |
Parameter value |
|
Wheel base |
mm |
3450 |
|
Tread |
mm |
2360 |
|
Tire outside width |
mm |
3070 |
|
Hinge height at maximum lifting height |
mm |
4395 |
|
Hinge height during loading |
mm |
270 |
|
Ground clearance |
mm |
520 |
|
Overall machine dimension L×W×H |
mm |
8900×3200×3600 |
|
Rated operating load |
kg |
7000 |
|
Bucket capacity |
m³ |
4.2 |
|
Machine weight |
kg |
23500 |
|
Max.breakout force |
kN |
200 |
|
Hydraulic cycle time-raise |
s |
6 |
|
Total cycle time |
s |
10.8 |
|
Tire model |
|
26.5R25 |
