Gaodetec GDS1500G Gasoline engine mini Peristaltic Concrete Shotcrete Pump for dome
GDS1500G
Specs & Compare
Details
Select 3 models for comparison
Certification
Dimension(L*W*H)
Weight
Power(W)
Voltage
Model Number
Brand Name
Place of Origin
Air Consumption
Hose Inner Diameter
Max Aggregate Size
Max. Conveying Distance
Engineering & Construction Machinery
GDS1500G
CE
1900x850x1250mm
610kg
--
Gasoline engine
GDS1500G
Gaodetec
China
3m3/min
38mm
10mm
--
+ Add a Product
+ Add a Product
Summary
- Certification:CE
- Dimension(L*W*H):1900x850x1250mm
- Weight:610kg
- Voltage:Gasoline engine
- Model Number:GDS1500G
- Brand Name:Gaodetec
- Place of Origin:China
- Air Consumption:3m3/min
- Hose Inner Diameter:38mm
- Max Aggregate Size:10mm
Specifications
- Weight:610.000kg
- Condition:New
- Moving Type:Other
- output:1.5-3m3/h
- Pressure:1.5Mpa
- Max. Aggregate Size:10mm
- The squeeze hose:50mm
- Conveying hose:38mm
- Squeeze pump:GH50-455
- Power:Honda GX390 Gasoline engine
- Hopper volume:200 Liter
- Oil tank:120 Liter
- Requested air compressor:3m3/min, 0.5Mpa Pressure
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
Product Description

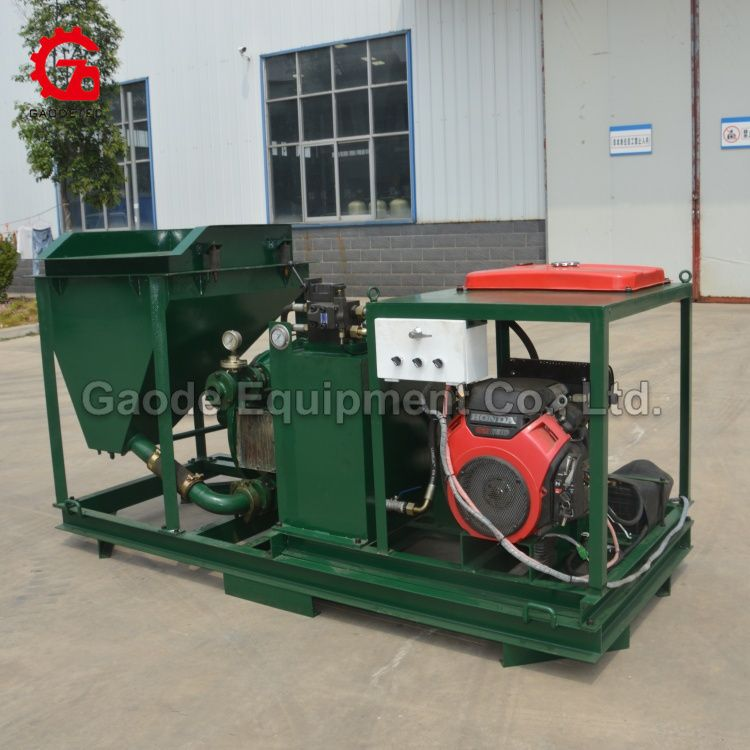

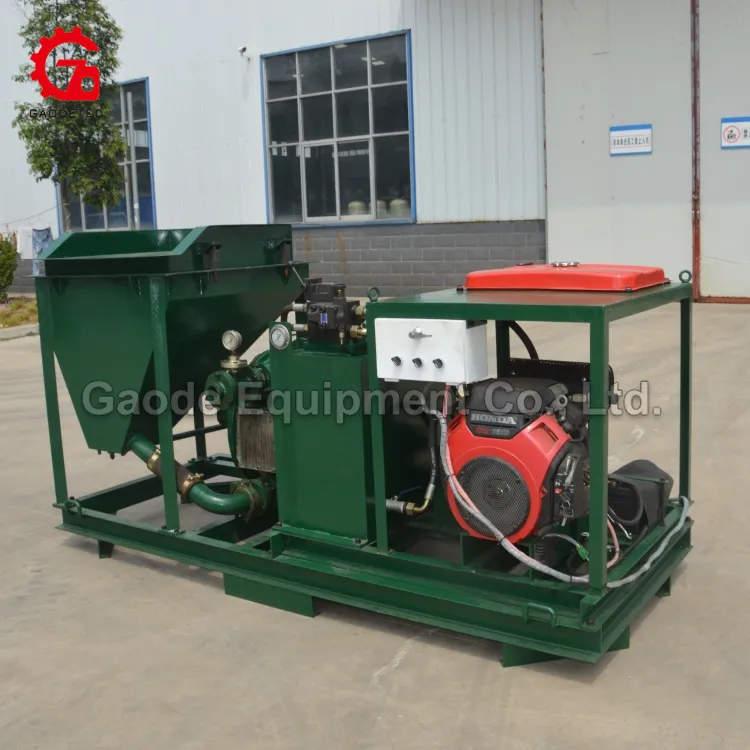

GDS1500G Gasoline engine mini Peristaltic Concrete Shotcrete Pump for dome
1. The GDS1500G concrete shotcrete pump is a gasoline-powered lightweight shotcrete pump run by a highly-reliable direct drive planetary gearbox and hydraulic power pack.
2. GDS1500G shotcrete hose pump output is 3m3/h, max.aggregate is 10mm. We can also customize it according to your needs..jpg.webp)
.jpg.webp)
GDS1500G gasoline concrete shotcrete pump feature:
1) Highly-reliable direct drive planetary gearbox
2) Infinite speed variation
3) Easily operating on site work
4) Standard spare part supply
.jpg.webp)
Technical Parameter
Image Display
Contact Us
Contact us for catalog and price of shotcrete machine
In order to confirm which type shotcrete machine suitable for your job, could you please help us to confirm the following information:
1. What's the project you will use the machine do, for slope protect or swimming pool or other?
2. Do you need dry-mix shotcrete machine or wet-mix shotcrete machine?
3. What's the output you need, 3m3/h, 5m3/h, 7m3/h, 9m3/h, 10m3/h or other?
4. What's the maximum particle size of the material, less than 10mm, 15mm, or 20mm?
5. About the engine, do you need air motor, electric or diesel? What voltage it is on your local? It is 3 phase 380V 50Hz in China.
