WEIHUA Double Girder Overhead Crane with Grab

WEIHUA Double Girder Overhead Crane with Grab
WEIHUA Packaging and Shipping Service Reference Price:Get Latest Price
Chat Now 1 / SET (Min. Order)
Payment Terms:
WEIHUA Double Girder Overhead Crane with Grab
  • Product
  • Summary
  • Details
  • Product Name:G5D2FE37FA71A6
  • Display online time:2019-07-26
  • weight:2500.000kg
  • Warranty Period:12 Months
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Condition:NEW

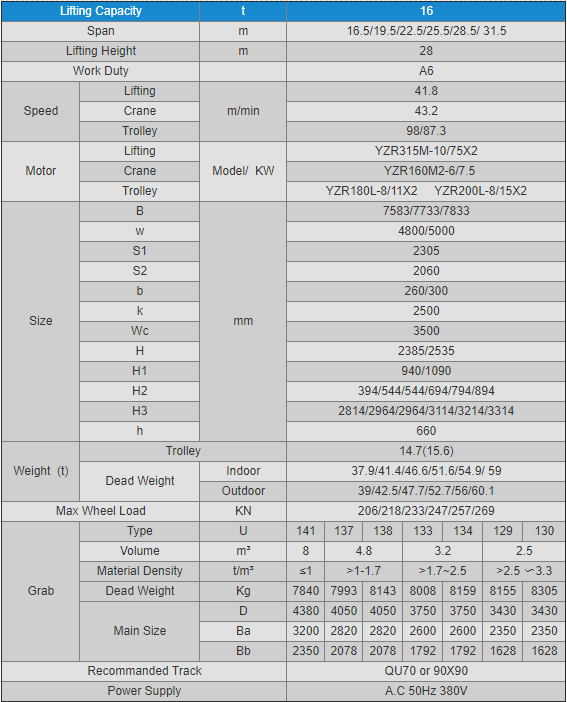

Product Name: Double Girder Overhead Crane with Grab
Capacity: 16t
Span: 16.5-31.5m
Lifting Height: 28m

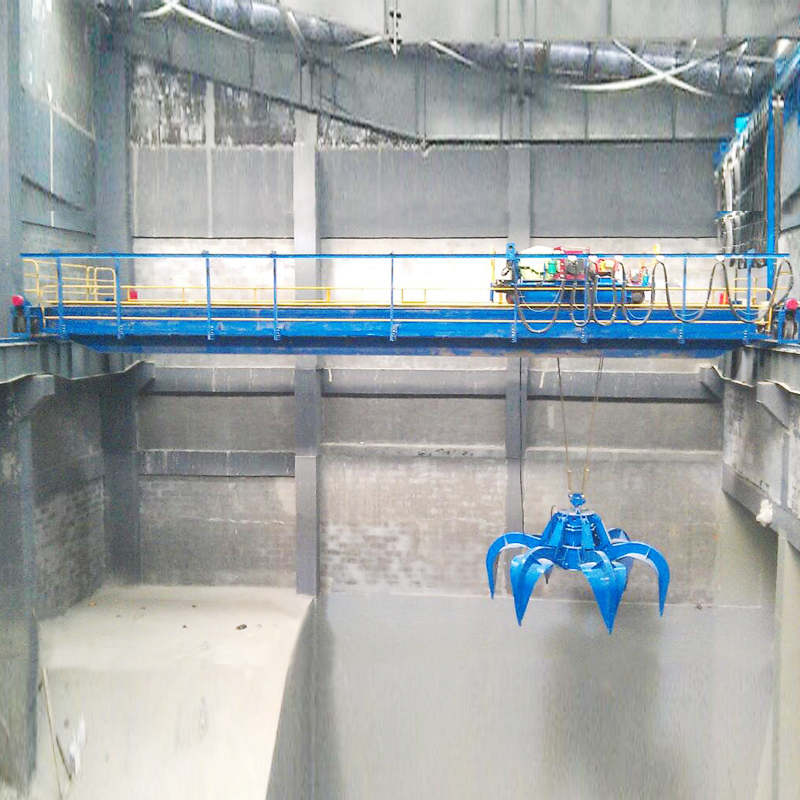

Double girder overhead crane with grab consists of girders, crane traveling mechanism, trolley, electric system and grab. Double girder overhead crane with grab is widely used in power stations, warehouses, workshops and ports to grab or lift bulk materials. The lifting capacity includes the weight of grab and the grab opening direction is parallel or vertical to the main girders.
Mechanisms of Double Girder Overhead Crane With Grab:
1. Double girders, box-type shaped by wielding, and the camber degree meets China standard;
2. Adopt high quality carbon steel Q235B and Q345B;
3. Efficient brake, long service life;
Electric System:
1. Safety slide contact line or angle slide contact line;
2. Trolley power supply through flat cable;
3. Traveling smoothly and beautiful exterior;
Protection Devices:
1. Rain covers for lifting mechanism, motor box and drive system outdoors;
2. Anti-collision device, sound and light alarm device;
Control System:
1. Handle control;
2. Cab control can be customized according users' needs with intermediate working level;
3. The cab can be open or close style installed left or right;
4. Entrance of cab: side entrance, end entrance and top entrance.
