XCMG 18m Mobile Rough Terrain Hydraulic Scissor Lift Platform XG1823RT

Chat Now 1 / EA (Min. Order)
Model: XG1823RT
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
XCMG 18m Mobile Rough Terrain Hydraulic Scissor Lift Platform XG1823RT

Content:

*Email:

Full Name:

Mobile phone:

  • Summary
  • Specifications

Summary

  • Weight:8000kg
  • Overall Dimension:4.9*2.3*3.2 m
  • Table Size:3.98*1.83 m
  • Max Lifting Height:18m
  • Rated Loading Capacity:680kg
  • Power:36kw
  • Lift Drive / Actuation:Hydraulic
  • Lift Mechanism:Scissor Lift
  • Model Number:XG1823RT
  • Brand Name:XCMG
  • Place of Origin:Jiangsu, China

Specifications

  • Weight:8000.000kg
  • Condition:New
  • Moving Type:Other

XCMG 18m Mobile Rough Terrain Hydraulic Scissor Lift Platform XG1823RT

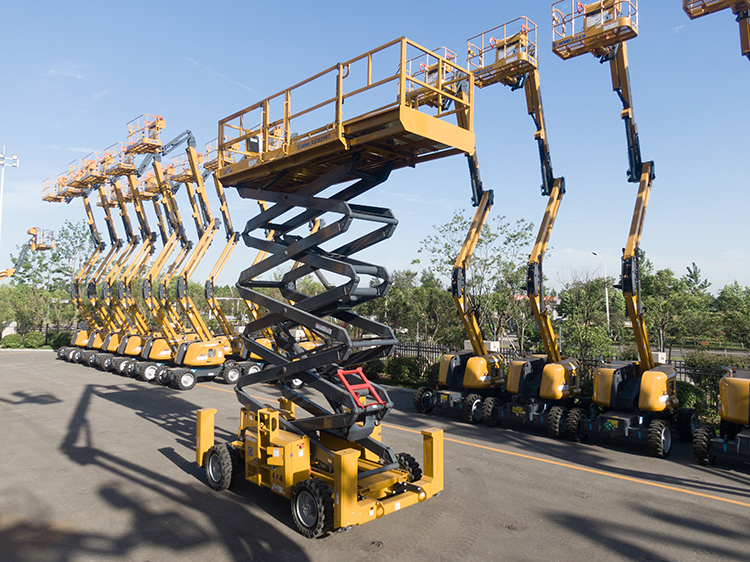

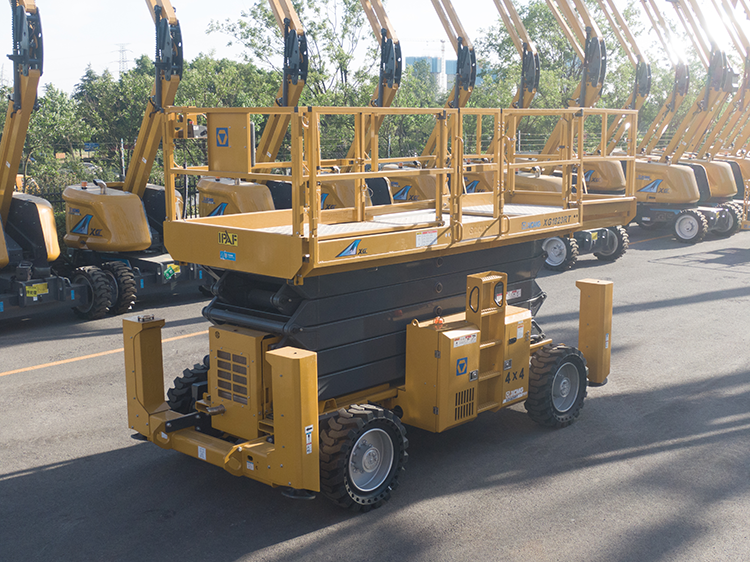

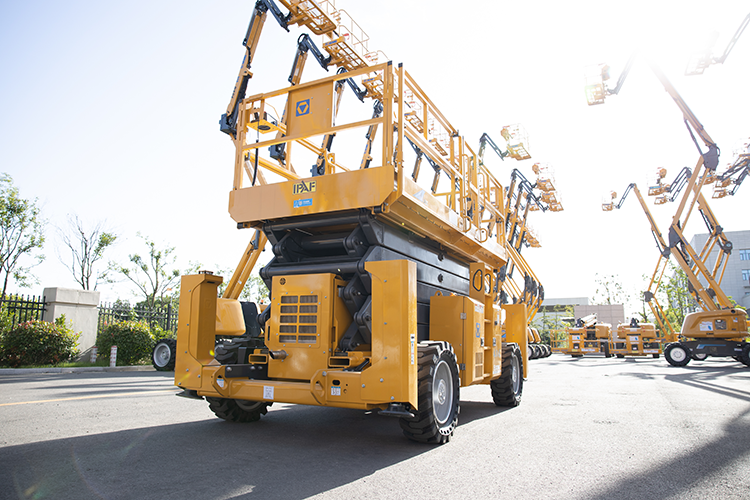

XCMG official 18m mobile rough terrain hydraulic scissor lift platform XG1823RT.



XCMG official 18m mobile rough terrain hydraulic scissor lift platform XG1823RT developed and produced by Xugong Group has a working height of 18m, a vehicle width of 2.3m, a rated load of 680kg, and a maximum climbing capacity of 40%.



Compared with the conventional scissor mobile lifting work platform, it has a large load and a wide platform. It is more suitable for the installation of large loads, large objects, and multi-person collaborative operations, such as fire-fighting ventilation pipes, lighting, glass, curtain wall installation, paint spraying, and wall finishing.



Performance Characteristics:



1. Adopt a more energy-saving and fuel-efficient power system, and the whole machine is more energy-efficient and fuel-efficient;



2. The working platform can be expanded and contracted, with larger working space, and more convenient transportation and displacement.



3. Achieve a maximum load of 680kg, reaching the leading level in the industry.



4. The fastest travel speed is 6.1km/h, with 40% climbing ability, making driving operations easier.





Item
Unit
XG1823RT
Overall dimension(L*W*H)
m
4.9*2.3*3.2
Wheelbase
m
2.85
Maximum working height
m
18
Maximum platform height
m
16
Maximum load
kg
230/680
Table size
m
3.98*1.83
Total Weight
kg
8000
Maximum speed
Km/h
1.1-6.1
Minimum ground clearance
m
0.23
Maximum gradeability
%
40
Engine model

V2403-M-DI
Engine rated power
kW(r/min)
36/(2600)
