Summary
- Weight:12500kg
- Table Size:2400×900mm
- Rated Loading Capacity:340kg
- Power:43/(2600)kW/(r/min)
- Model Number:GTBZ22S
- Brand Name:XCMG
- Place of Origin:China
- Certification:CE/ISO9001
- Max. Lifting Height:22m
- Overall Dimension(L*W*H):10150×2490×2800mm
Specifications
- Weight:12500.000kg
- Condition:New
- Moving Type:Wheel
- Max. Working Height:23.7m
- Max. Platform Height:22m
- Max. Working Range:18.3m
- Rotation Angle of Platform:180°
- Max. Travel Speed:6km/h
- Max. Tail Wagging:1550mm
- Min. Turning Radius:6m
- Max. Grade Ability:0.45
- Min. Ground Clearance:230mm

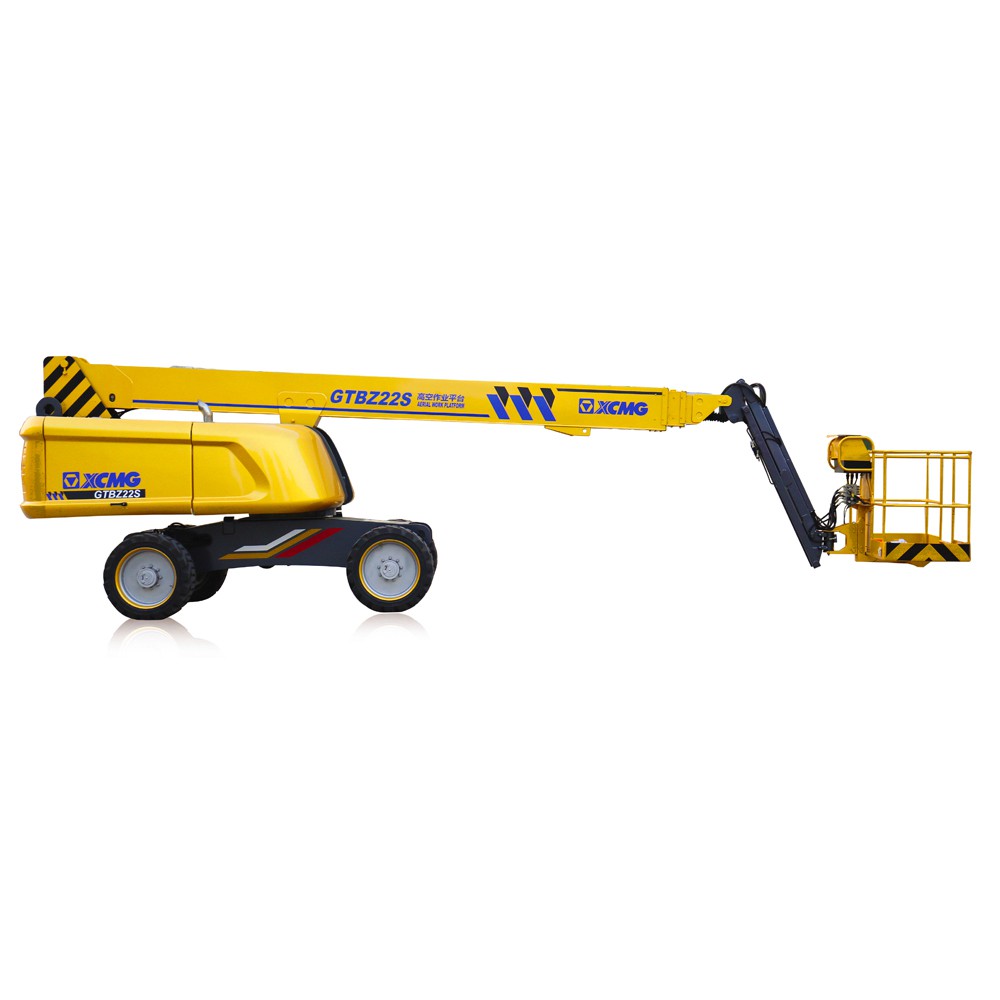

GTBZ22S Straight Boom Type Aerial Work Platform
1、Highest Efficiency in Operation
Being the highest-efficiency product applied at the elevation of 22 meters, it may be quickly lifted from the ground to the maximum altitude of operation just within 68 seconds.
2、Outstanding Performance of Operation
With the maximum carrying capacity of 340kg, it has the industry-leading altitude and radius of operation, and may satisfy relevant construction demands on heavy loads and large operating spaces.
3、Excellent Off-Road Performance
The four wide tyres, the real-time drive and the novel axle balancing system that may automatically make a response to the terrain will strengthen together the stability in driving on rough roads.
|
Unit |
Parameter value |
||
|
Overall Length |
mm |
10150 |
|
|
Overall Width |
W |
2490 |
|
|
Overall Height |
mm |
2800 |
|
|
Wheel Base |
mm |
2500 |
|
|
Maximum Working Height |
m |
23.7 |
|
|
Maximum Platform Height |
m |
22 |
|
|
Maximum Working Range |
m |
18.3 |
|
|
Maximum Load Capacity |
kg |
340 |
|
|
Boom luffing Range |
° |
-5～+75 |
|
|
Rotation Angle of Rotating Platform |
° |
360 |
|
|
Maximum Tail Wagging |
mm |
1550 |
|
|
Platform Size |
mm |
2400×900 |
|
|
Rotation Angle of Platform |
° |
180 |
|
|
Total Weight |
kg |
12500 |
|
|
Maximum Travel Speed |
km/h |
6.0 |
|
|
Minimum Turning Radius |
m |
6.0 |
|
|
Minimum Ground Clearance |
mm |
230 |
|
|
Maximum Grade Ability |
% |
45 |
|
|
Tire Specification |
315/55D625 |
||
|
Engine Model |
Perkins 404D-22T/Deutz D2011 L04i |
||
|
Rated Power of Engine |
kW/(r/min) |
43/(2600) 41/(2300) |
