Summary
- Weight:19300
- Overall Dimension:14400*2490/3800*3000mm
- Table Size:2400*900*1150mm
- Max Lifting Height:34.3m
- Rated Loading Capacity:300(unlimited)/460(limited)
- Power:55/(2200)kW/(r/min)
- Model Number:XGS34K
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- Weight:19300.000kg
- Condition:New
- Moving Type:Wheel
- Wheelbase:3800mm
- Max. traveling speed:5km/h
- Min. ground clearance:260

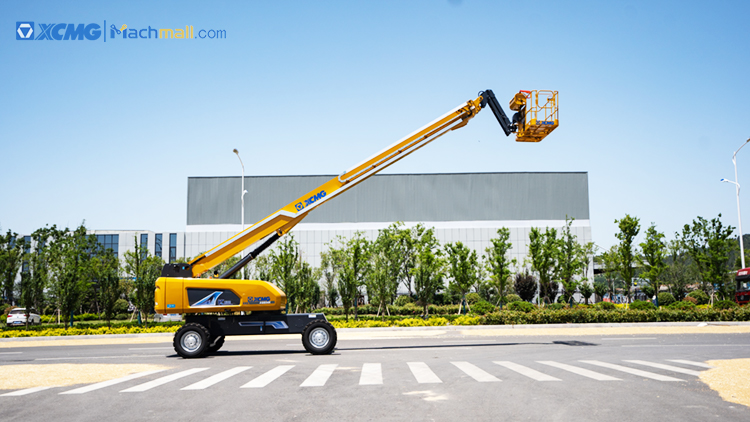

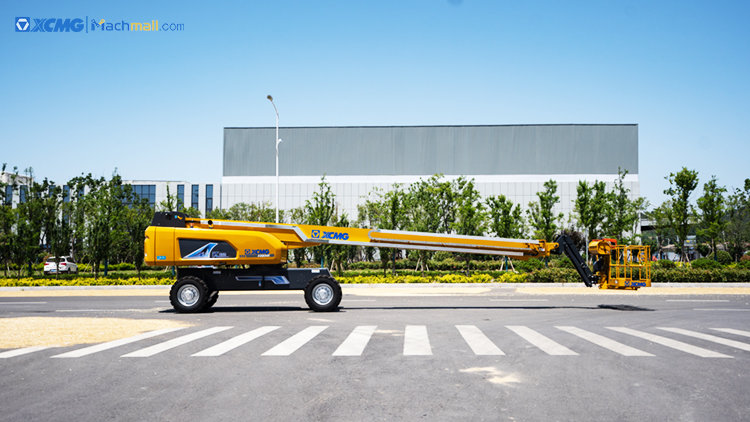

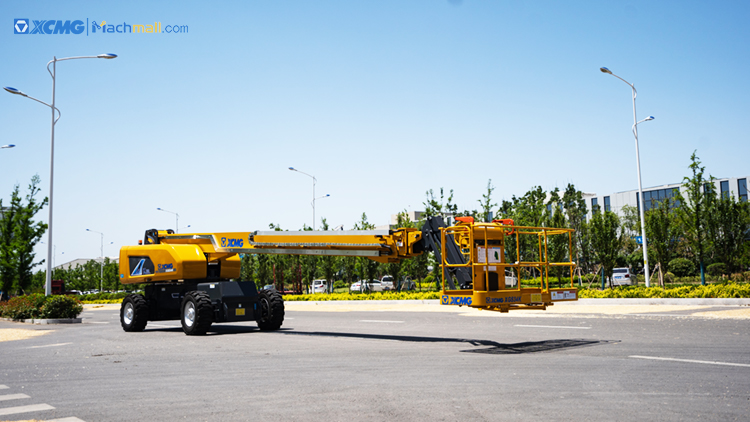

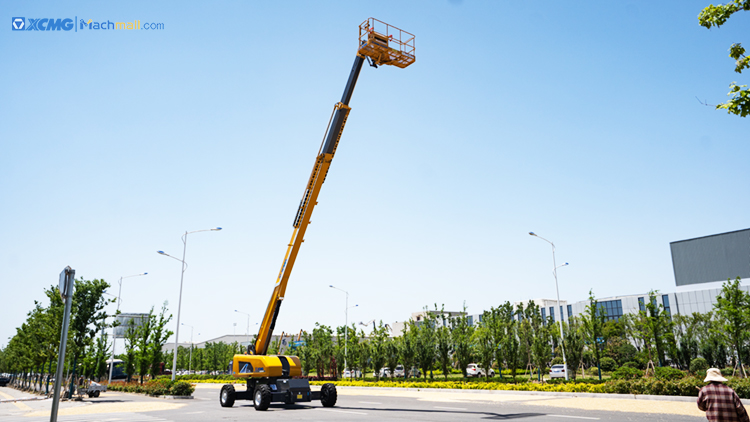

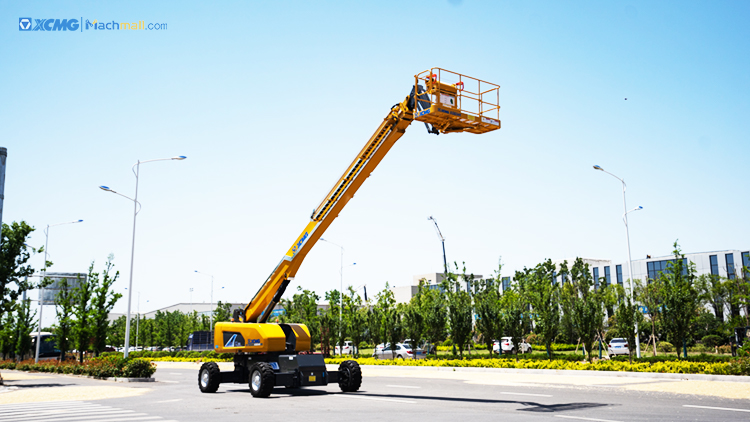

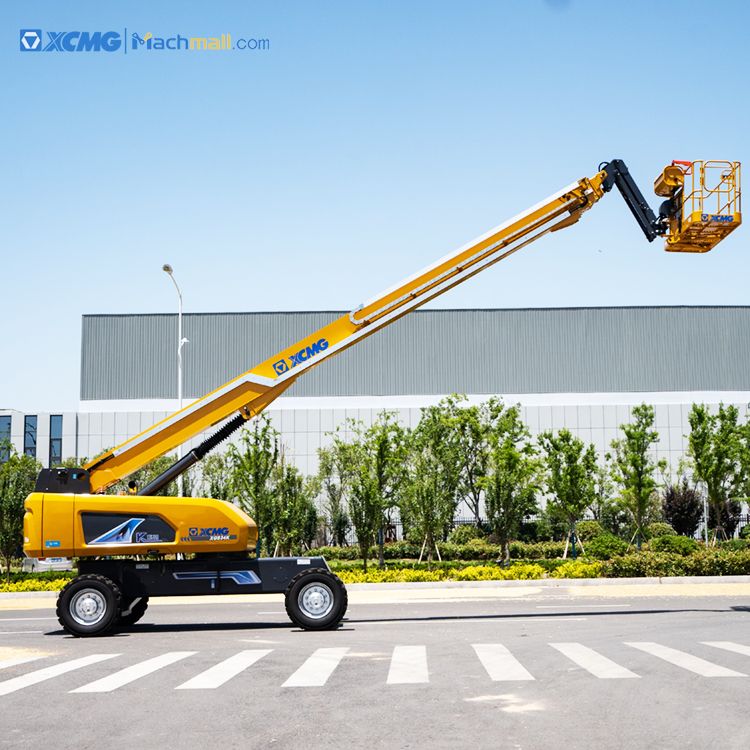

XCMG new 34m mobile self propelled telescopic boom lift platform XGS34K.
XCMG new 34m mobile self propelled telescopic boom lift platform XGS34K adopts dual-load design, equipped with boom gravity lowering technology and load sensing system, which is energy-saving and more environmentally friendly.
XCMG new 34m mobile self propelled telescopic boom lift platform XGS34K adopts electronic four-wheel steering control technology when getting off the car, which can realize independent steering of the front and rear axles, all-wheel steering and crab-shaped Four steering modes including steering, the whole machine is equipped with a human-computer interaction system, an innovative multi-controller CAN bus control system and multi-level integrated safety protection, and the protection system is more complete.

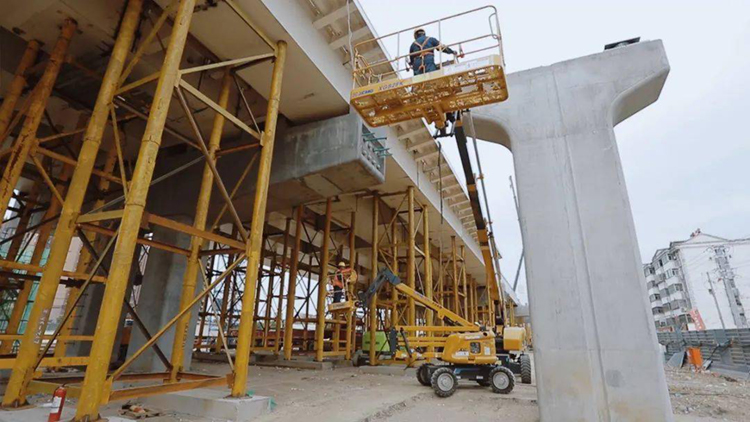

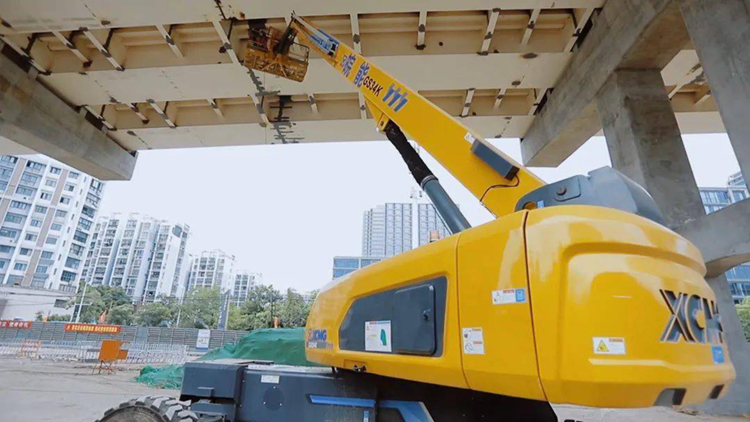

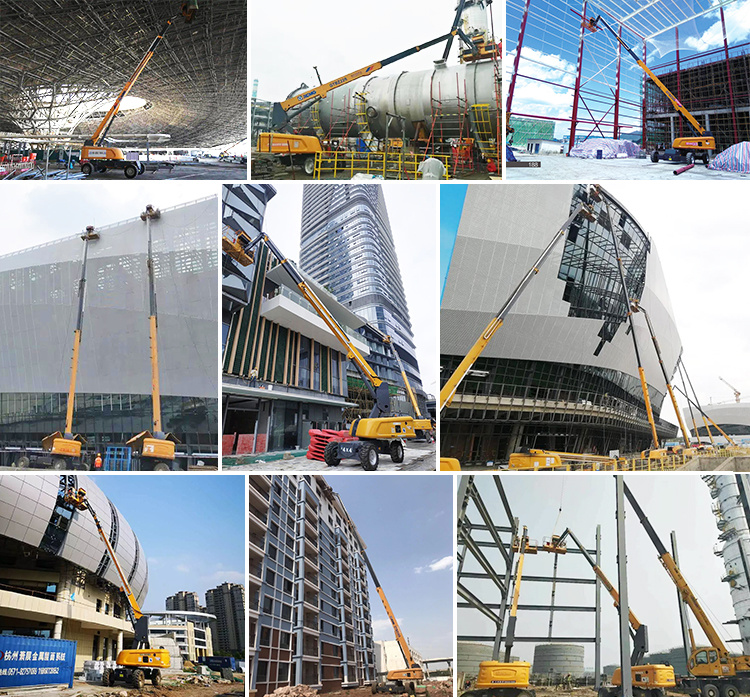

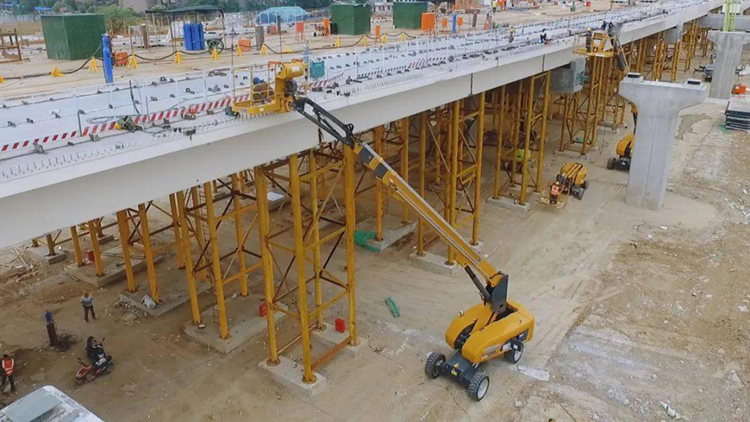

XCMG aerial work platforms stand out by virtue of excellent operation stability, excellent product quality, high-quality services and good user reputation, and have become the main construction force in many major viaduct projects.
Advantages and features:
1.Load capacity of 300kg and 460kg, meet the demand of different work conditions.
2.The boom gravity drop technology and load sensitive systems, more energy efficient.
3.Infinitely adjustable-speed, manipulation of the comfort is better.
4.Realize the independent front and rear axle steering, four kinds of steering model, which is flexible.
5.Axle balance control system, which could make the vehicle traveling on the rough road.
|
Item |
Unit |
Parameters |
|
Overall length |
mm |
14400 |
|
Overall width |
mm |
2490/3800 |
|
Overall height |
mm |
3000 |
|
Wheelbase |
mm |
3800 |
|
Max. working height |
m |
34.3 |
|
Max. platform height |
m |
32.3 |
|
Max. working range |
m |
24.7 |
|
Max. carrying weight |
kg |
300(unlimited)/460(limited) |
|
Boom luffing range |
° |
-6～+75 |
|
Slewing angle of turntable |
° |
360° |
|
Max. Tail swing |
mm |
2085/1430 |
|
Dimension of platform |
mm |
2400×900×1150 |
|
Slewing angle of platform |
° |
160 |
|
Overall weight |
kg |
19300 |
|
Max. traveling speed |
km/h |
5 |
|
Min. turning radius |
m |
8.2/10.8(two-turns) 5.8/6.8(four-turns) |
|
Min. ground clearance |
mm |
260 |
|
Max. gradeability |
% |
45 |
|
Specification of tire |
/ |
385/65D22.5 |
|
Engine model |
/ |
YC4FA75-T300 |
|
Engine rated power |
kW/(r/min) |
55/(2200) |
