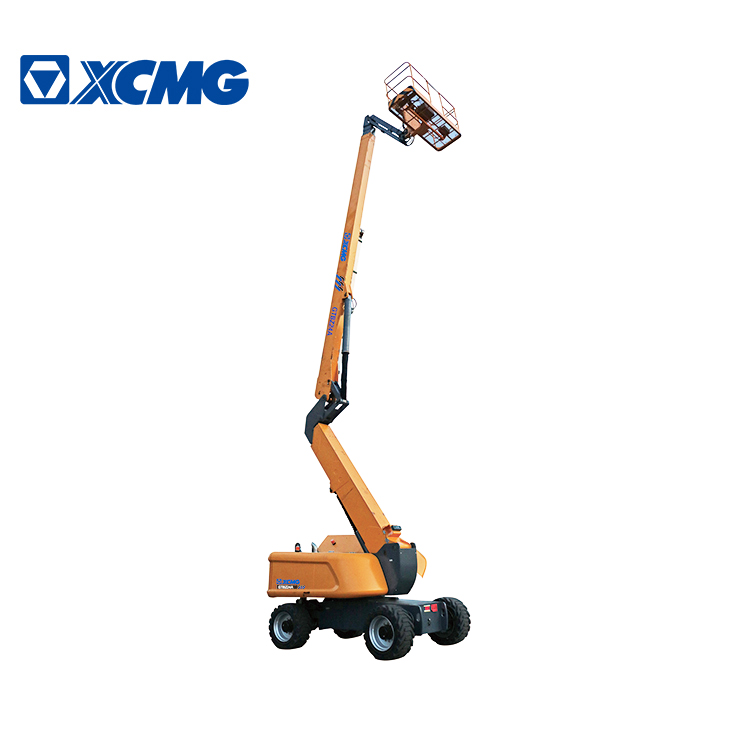

XCMG Official Manufacturer 24m Articulated Aerial Work Platform GTBZ24A

  • XCMG Official Manufacturer 24m Articulated Aerial Work Platform GTBZ24A

XCMG Official Manufacturer 24m Articulated Aerial Work Platform GTBZ24A

XCMG Official Manufacturer 24m Articulated Aerial Work Platform GTBZ24A
XCMG Official Manufacturer 24m Articulated Aerial Work Platform GTBZ24A

XCMG Official Manufacturer 24m Articulated Aerial Work Platform GTBZ24A

View All >
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
XCMG Official Manufacturer 24m Articulated Aerial Work Platform GTBZ24A

Content:

Or choose from these questions:
What is the best price you can offer?
Do you support customization?
What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

Specs & Compare
Details
Specs & Compare
Select 3 models for comparison
Weight
Overall Dimension
Table Size
Max Lifting Height
Min Lifting Height
Rated Loading Capacity
Power
Lift Drive / Actuation
Lift Mechanism
Model Number
Brand Name
Place of Origin
Certification
Max. Lifting Height
Min. Lifting Height
Overall Dimension(L*W*H)
Engineering & Construction Machinery
17800kg
--
2400×900mm
--
--
230kg
53(2200)kW/(r/min)
--
--
GTBZ24A
XCMG
China
CE/ISO9001
24.38m
--
11280×2490×3000mm
+   Add a Product
+   Add a Product

Summary

  • Weight:17800kg
  • Table Size:2400×900mm
  • Rated Loading Capacity:230kg
  • Power:53(2200)kW/(r/min)
  • Model Number:GTBZ24A
  • Brand Name:XCMG
  • Place of Origin:China
  • Certification:CE/ISO9001
  • Max. Lifting Height:24.38m
  • Overall Dimension(L*W*H):11280×2490×3000mm

Specifications

  • weight:17800.000kg
  • Condition:New
  • Moving Type:Wheel
  • Max. Working Height:26.08m
  • Max. Platform Height:24.38m
  • Max. Working Range:18.9m
  • Rotation Angle of Platform:360°
  • Max. Travel Speed:5km/h
  • Max. Tail Wagging:1330mm
  • Min. Turning Radius:4.2/6.7m
  • Max. Grade Ability:0.45
  • Min. Ground Clearance:260mm

Packaging & Shipping

  • Delivery Lead Time:7 days for ready goods
  • Minimum Order:1 Piece
  • Supply Ability:10,000 Set/ Sets per Month
  • Total Quantity In Stock:Over 5000
  • Delivery Port:Any Port In China

XCMG Official Manufacturer 24m Articulated Aerial Work Platform GTBZ24A

XCMG Official Manufacturer 24m Articulated Aerial Work Platform GTBZ24A

  Articulated Aerial Work Platform GTBZ24A:

  1、Outstanding Extending Capacity and Working Range

  The upward, downward, and spanning capacities are promoted to the maximum degree to realize multi-directional positioning function and efficiently reach the working space, with the maximum horizontal extending reach hitting 18.9m.

  2、Superexcellent Maneuverability

  The customized valve control system and all accurately controlled motions remarkably improve the motion smoothness and the flow anti-saturation design is applied to provide efficient and stable composite motion experiences.

  3、Industry’s Highest Fuel Economy

  Compared with traditional hydraulic system, the pioneering adaptive power energy-conservation system reduces by >30% the comprehensive fuel consumption under diversified working conditions.

XCMG Official Manufacturer 24m Articulated Aerial Work Platform GTBZ24A

DescriptionParameter value
Overall Length(mm)11280
Overall Width(mm)2490
Overall Height(mm)3000
Wheel Base(mm)3000
Maximum Working Height(m)26.08
Maximum Platform Height(m)24.38
Maximum Working Range(m)18.9
Maximum Load Capacity(kg)230
1st Boom luffing Range(°) -1~+70
2nd Boom luffing Range(°) -35~+68
Crank Arm Luffing Range(°) -60~+70
Rotation Angle of Rotating Platform(°)360
Maximum Tail Wagging(mm)1330
Platform Size(mm)2400*900
Platform turning angle(°)180
Total Weight(kg)17800
Maximum Travel Speed(km/h)5
Minimum Turning Radius(m)4.2m/6.7m
Minimum Ground Clearance(mm)260
Maximum Grade Ability(%)45
Tire Specification18/625
Engine ModelQSF2.8 71BHP/KD|2504 TCR
Rated Power of Engine(kW/(r/min))53(2200)/55.4(2600)
