- Product Name:G5FB8C2BD85D3E
- Display online time:2020-11-24
- weight:90000.000kg
- After-sales Service Provided:Engineers available to service machinery overseas
- Warranty:12 Months
- Condition:NEW
- Moving Type:other
- Overall dimensions（L*W*H）:9045*3400*4000mm
- Drive type:6*4
- Curb weight:32500kg
- GVW:90000kg
- Rated power/Peak power:360/500kW
- Container size（L*W*H）:6000*3200*1600mm
- Height of container side board from the ground:3400mm

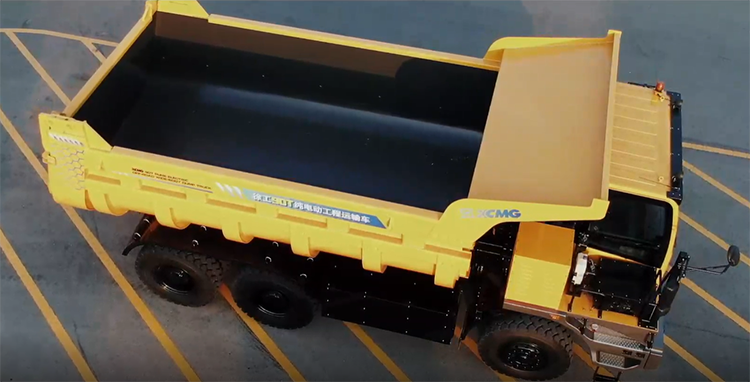

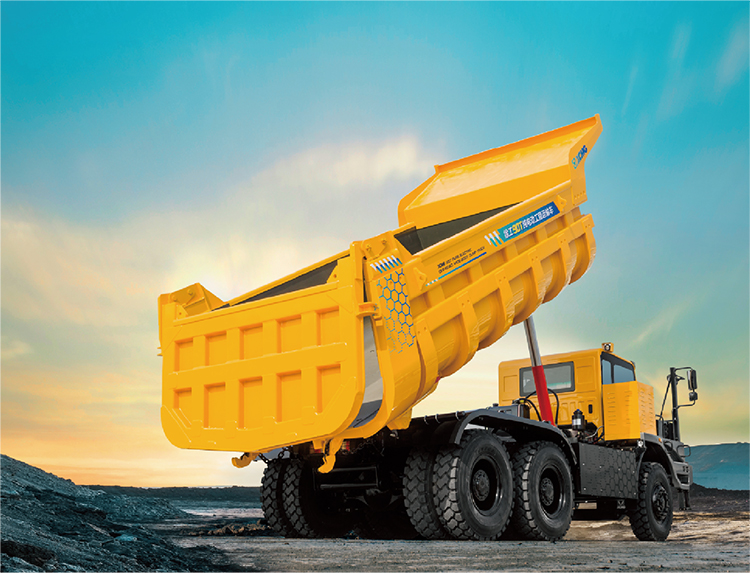

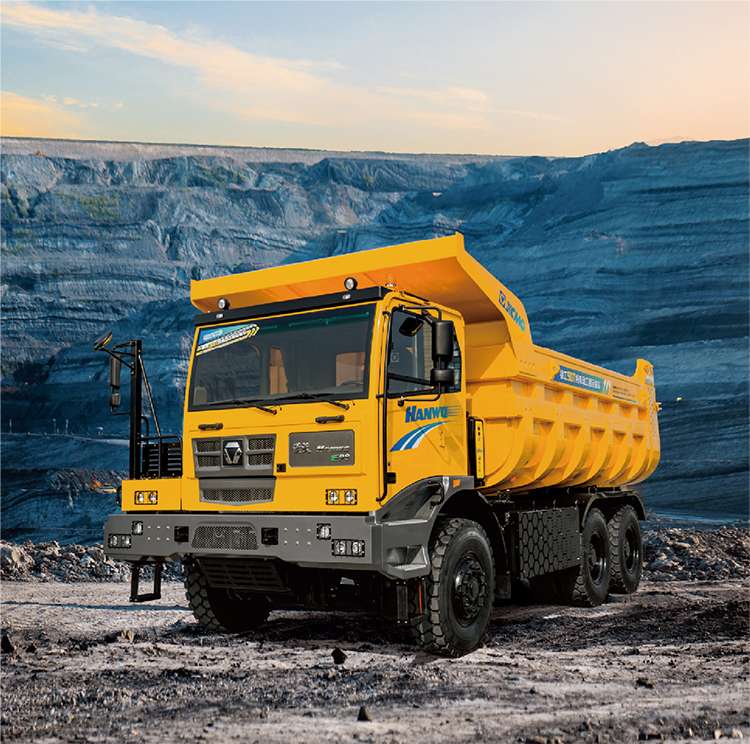

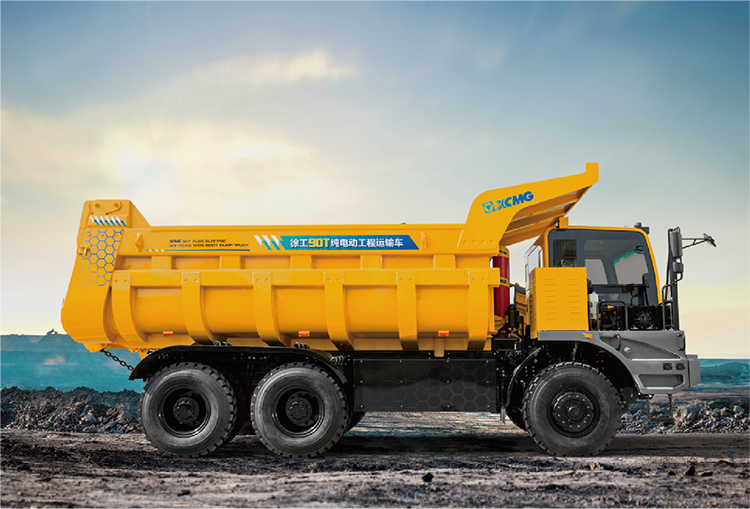

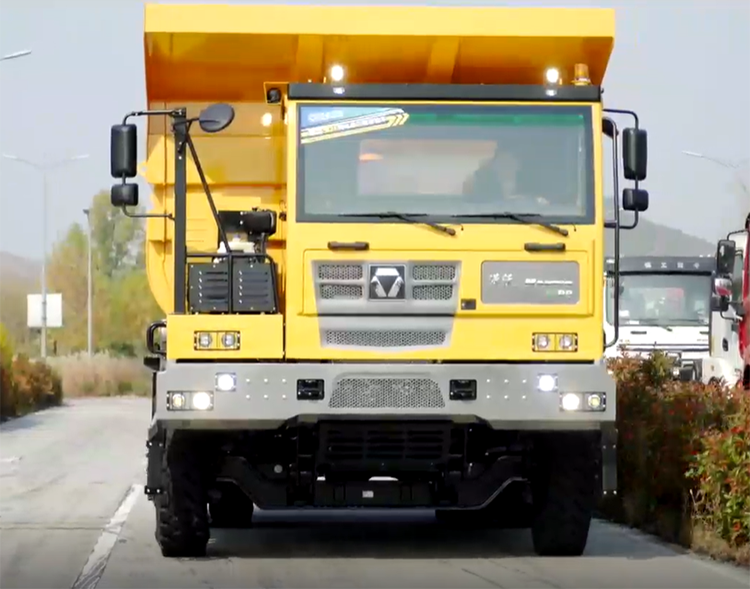

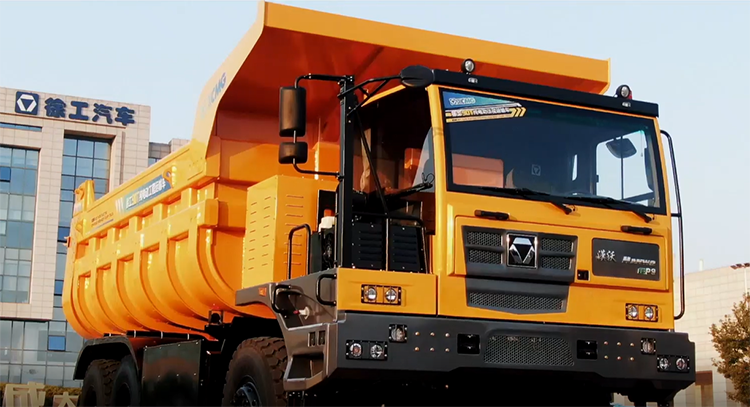

XCMG EDF531 6*4 90 ton pure electric mine dump truck.
XCMG 90T pure electric off road wide body mine dump truck
EDF531 is a more energy saving and environmental protection dump truck, which
designed and developed by XCMG AUTOMOTIVE, based on its advanced new energy
truck R&D concept and technology platform.
GVW reaches 90T, with double motor driving torque,
intelligent control and efficient operation, it can adapt to a variety of
complex working conditions; Large battery capacity and high recovery of braking
energy, make it improve the endurance effectively; Equipped with independent water
cooling and intelligent heating, it can ensure the battery and control system
work at the appropriate temperature, to improve the reliability; The front oil
and gas suspension can effectively alleviate road impact and enhance driving
comfort.
Item | Unit | Parameter |
Overall dimensions（L*W*H） | mm | 9045*3400*4000 |
Curb weight | kg | 32500 |
GVW | kg | 90000 |
Rated power/Peak power | kW | 360/500 |
Container size（L*W*H） | mm | 6000*3200*1600 |
Height of container side board from the ground | mm | 3400 |
