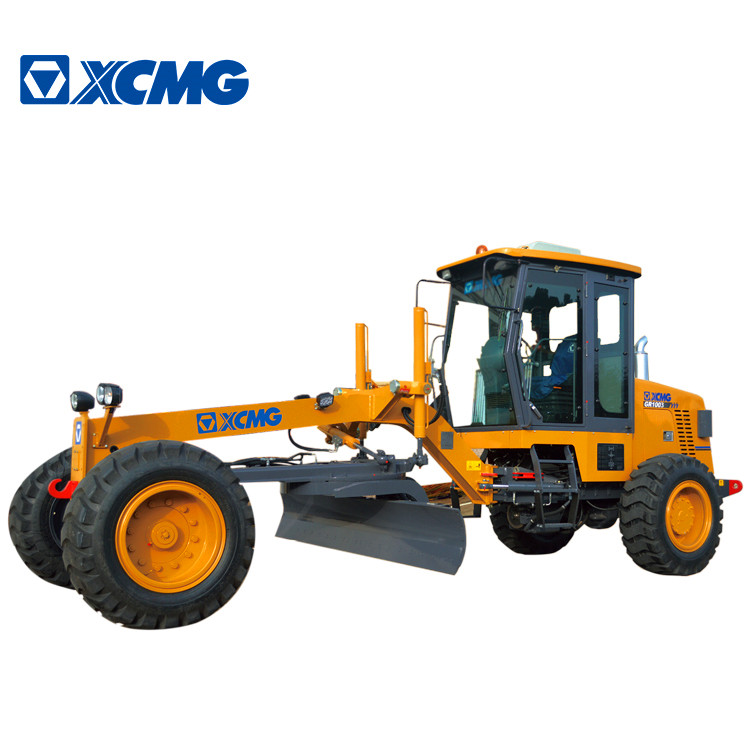

XCMG Official mini motor grader GR1003 Chinese 100HP small motor graders Cummins Engine for sale

.jpg)

Specifications
- Weight:7500.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG Official mini motor grader GR1003 Chinese 100HP small motor graders with Cummins Engine.
The motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc. It is the necessary construction machinery for national defense construction, mine construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.
Performance Characteristics:
1. Efficient operation: the optimized blade shape can turn and remove the soil quickly and efficiently, and realize optimal load distribution and the minimum material accumulation within the rotary discarea.
2. Safe and reliable: full hydraulic braking system, load sensing steering system, international supporting key components, ensuring safe and reliable system.
3. Advanced processing technology: all important parts and components are welded by international advanced welding equipment, which is characterized by high weld strength, uniform welding line and high welding quality.
4. Maintenance accessibility: adopting the backflip hydraulic lift hood, the machine cover is has large opening, easy for maintenance and repair of the machine.
Item |
GR1003 |
||
Basic parameters |
Engine model |
WP4.1 |
|
Rated power/speed |
75kW/2200rpm |
||
Overall dimension (standard) |
7130x2375x3150 |
||
Total weight (standard) |
7500kg |
||
Tire specification |
16/70-24/13.00-24 |
||
Ground clearance (front axle) |
550mm |
||
Space of front and rear axles |
5135 mm |
||
Space of middle and rear wheels |
1900 mm |
||
Working parameters |
Maximum steering angle of front wheel |
±49° |
|
Maximum slant angle of front wheel |
±17° |
||
Maximum oscillating angle of front axle |
±15° |
||
Maximum oscillating angle of equilibrium box |
±16° |
||
Maximum steering angle of frame |
±27° |
||
Minimum turning radius |
6m |
||
Scrape knife |
Maximum lift height |
310mm |
|
Maximum cutting depth |
350mm |
||
Maximum tilt angle |
45° |
||
Cutting angle |
28°-70° |
||
Angle of revolution |
120° |
||
Length & chord height |
3048x450mm |
||
Oil filling amount |
Coolant |
50L |
|
Fuel tank |
280L |
||
Engine |
18L |
||
Transmission |
26L |
||
Equilibrium box |
/ |
||
Drive alex |
28L |
||
Hydraulic oil |
89L |
