Specifications
- Weight:11000.000kg
- Condition:New
- Moving Type:Other
- Rated power:97kW
- Rated speed:2200rpm
- Traction force (f=0.75) :59kN
- Min.turing radius:6.6m
- Moldboard width×height:3660×610mm
- Brand Name:XCMG
- Place of Origin:China
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

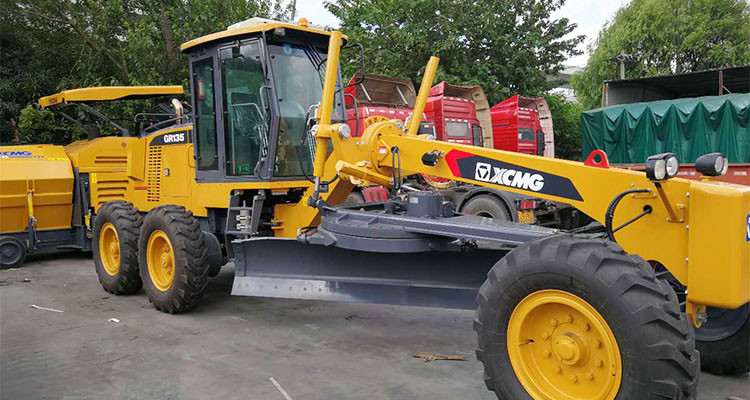

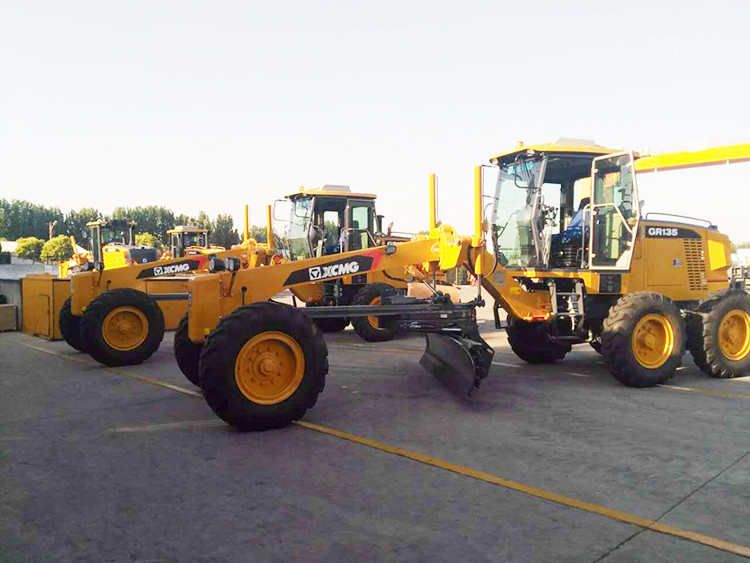

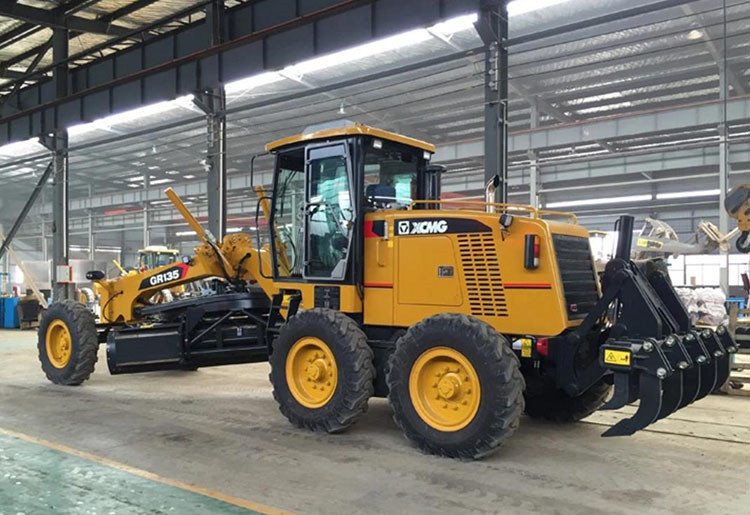

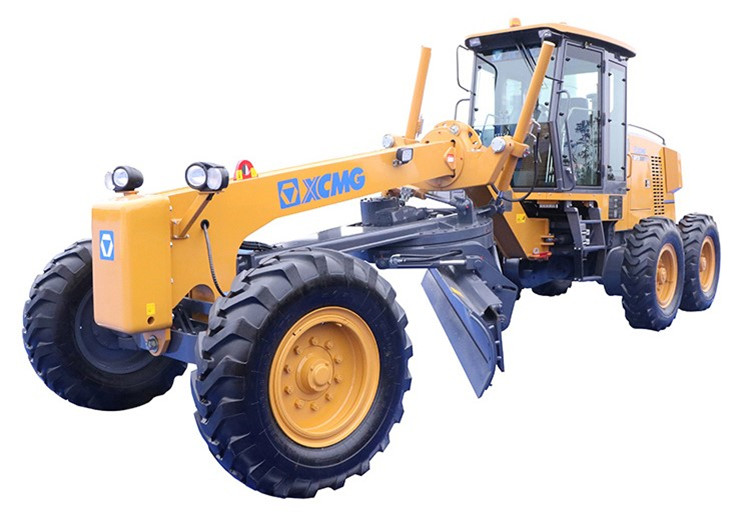

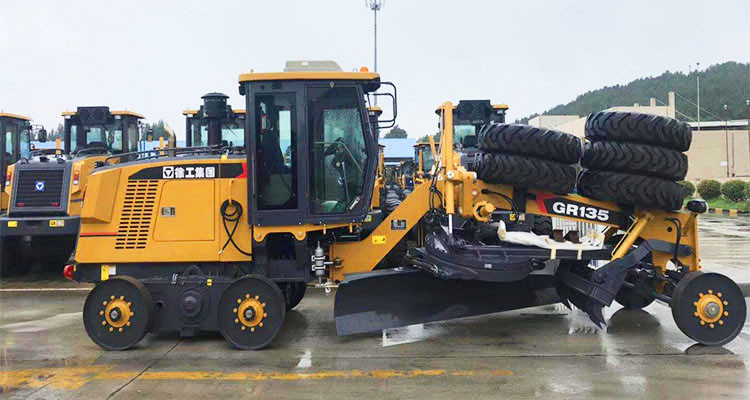

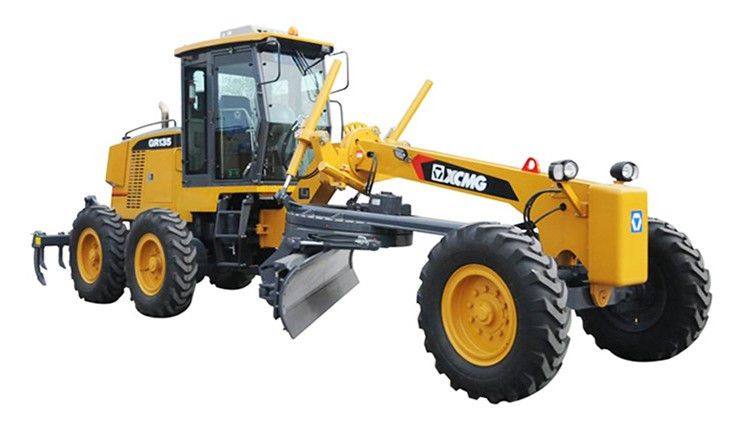

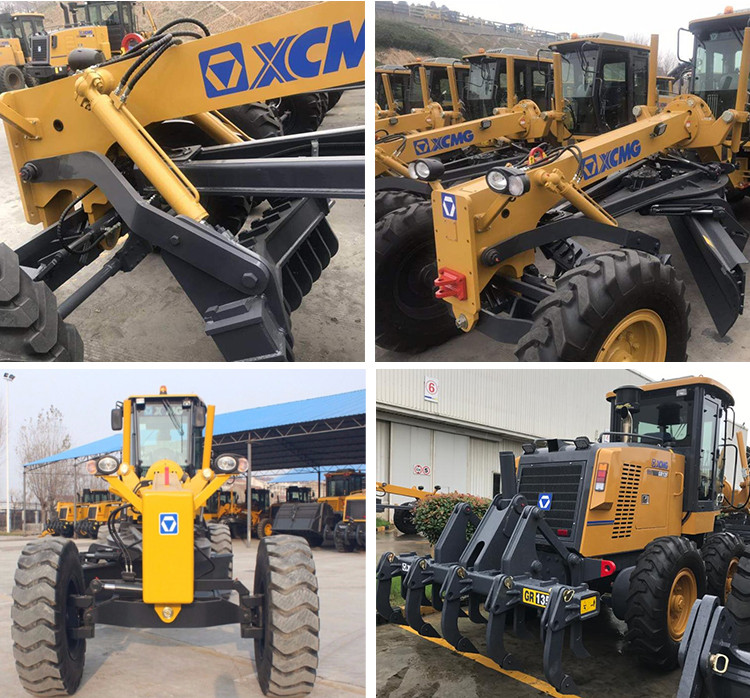

XCMG 135 HP New Small Motor Grader GR135 With Cummins Engine For Sale.
The GR135 motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farm- lands etc. It is the necessary construction machinery for national defense construction, mine construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.
1. GR135 adopt Dongfeng cummins 6BT5.9-C130-II turbocharged diesel engine, Large output torque and power reserve coeficient and low oil consumption.
2. Torque converter has big torque coefficient, wide high efficiency area. It has good combination working characteristics with engine. The transmis- sion box has six forward gears, three backward gears, with neutral start protection function, gear shift controlled by electro-hydraulic, flexible operation, shift without impact, reasonable speed ratio distribution, meet the requirements of various working conditions.
3. The rear axle adopts balanced suspension to ensure the uniform load of four wheels, which is conducive to the full use of its adhesion ability. The main drive of the rear axle is equipped with“NO - SPIN" self-locking differential.
4. The front axle is steering axle. The axle can swing from side to side. In addition to the front steering, it also uses the articulated frame, which can further reduce the turning radius.
5. The hood is structural part, well shaped with turn over function, the two sides double door is reversible, enhances the maintainability.
|
Item |
Unit |
GR135 |
||
|
Basic parameters |
Engine model |
|
6BT5.9-C130-II |
|
|
Rated power/speed |
kW/rpm |
97/2200 |
||
|
Overall dimension(standard) |
mm |
8015 x 2380 x 3050 |
||
|
Total weight(standard) |
kg |
11200 |
||
|
Tire specification |
|
13.00-24 |
||
|
Ground clearance |
mm |
515 |
||
|
Tread |
mm |
2020 |
||
|
Space of front and rear axles |
mm |
5780 |
||
|
Space of middle and rear wheels |
mm |
1538 |
||
|
Performance parameters |
Forward velocity |
km/h |
5、5、13、20、30、42 |
|
|
Reverse speed |
km/h |
5、13、30 |
||
|
Tractive effort f=0.75 |
kN |
≥59 |
||
|
Maximum gradeadbility |
% |
≥25 |
||
|
Inflation pressure of tires |
kPa |
300 |
||
|
Working system pressure |
MPa |
16 |
||
|
Transmission pressure |
MPa |
1.3-1.8 |
||
|
Working parameters |
Maximum steering angle of front wheels |
° |
±49 |
|
|
Maximum inclination angle of front wheels |
° |
±17 |
||
|
Maximum swing angle of front axle |
° |
±15 |
||
|
Maximum swing angle of balance box |
° |
±16 |
||
|
Maximum steering angle of frame |
° |
±27 |
||
|
Maximum turning radius |
m |
6.6 |
||
|
Blade |
Maximum lifting height |
mm |
410 |
|
|
Maximum shoveling depth |
mm |
515 |
||
|
Maximum lateral inclination angle |
° |
90 |
||
|
Cutting angle |
° |
54-90 |
||
|
Oil filling amount |
Slewing angle |
° |
360 |
|
|
Length x chord height |
mm |
3660 x 610 |
||
|
Coolant |
L |
50 |
||
|
Fuel tank |
L |
280 |
||
|
Engine |
L |
18 |
||
|
Transmission |
L |
26 |
||
|
Balance box |
L |
46 |
||
|
Drive axle |
L |
28 |
||
|
Hydraulic oil |
L |
96 |
||
