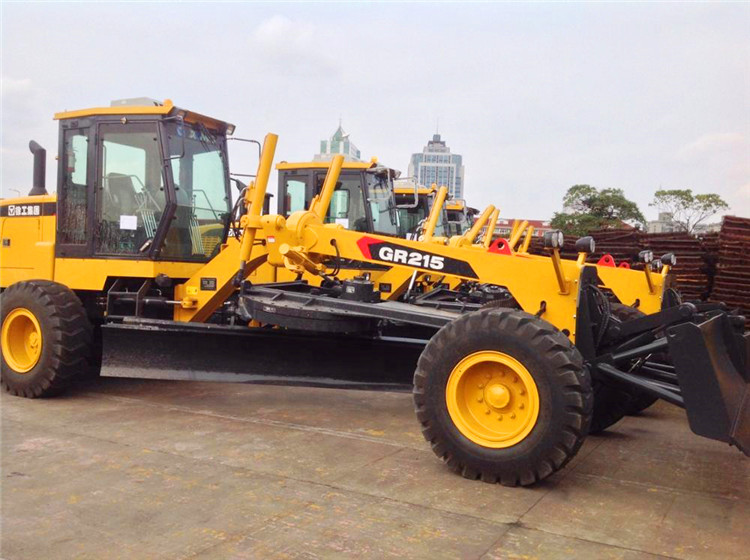

XCMG road grader GR215 with catalog price philippines

$70000.00-$75000.00 1 / EA (Min. Order)
Model: GR215
Engine: Cummins
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
XCMG road grader GR215 with catalog price philippines

Content:

*Email:

Full Name:

Mobile phone:

  • Summary
  • Specifications
  • 360-Degree VR Videos
  • Product PDF

Summary

Specifications

  • Weight:16500.000kg
  • Condition:New
  • Moving Type:Other
  • Forward Speed:38km/h
  • Reverse Speed:23km/h
  • Dimension(L*W*H):8970*2625*3420mm
  • Weight:16500kg
  • Rated power/speed:160kW/2200rpm
  • Ground clearance (front axle):430mm
  • Tractive effort f=0.75:87kN
  • Maximum gradeability:20%

XCMG road grader GR215 with catalog price philippines

XCMG road grader GR215 with catalog.



XCMG Road Graders Series:

XCMG GR series Road graders cover a wide range of models, including small type,conventional type,mining type,type for cold zone, desert and plateau as well as CE certified series. There are mainly models of GR165/GR180/GR200/GR215/GR230.



Applicable working scope of XCMG Road Graders GR215:

GR215 road graders are mainly used for large-area ground leveling, trenching, scraping, bulldozing, and soil loosening operations on highways, airports, and farmland. XCMG road graders GR215 is a necessary engineering machinery for national defense engineering, mine construction and other building construction, water conservancy construction, and farmland improvement.



Highlight of XCMG Road Graders GR215:



1. This machine is equipped with turbocharged diesel engine. Large output torque and power reserve coefficient and low oil consumption.

2. Take measures such as vibration elimination, sound absorption and sound insulation to reduce the internal and external noise of the cab.

3. The double circuit hydraulic brake system is applied to realize more reliable and stable braking.

4.The steering load-sensing system is applied and the main hydraulic units adopt international products to guarantee the system stability and reliability.

5. The XCMG's special enhanced working device is applied.

6. The blade body adopts adjustable large slide slot and double slide-way mechanism and the blade plates are made of wear-resistant high strength materials.

7.The multiple optional parts expand the performance and working scope of machine.



Market share of XCMG road graders:

XCMG GR series road graders are leading the industry, and their Chinese market share and export volume have been ranked first in the industry for four consecutive years.

XCMG road grader GR215 with catalog price philippines

Item

GR215

Basic parameters

Engine model

Cummins 6CTA8.3-C215

Rated power/speed

160kW/2200rpm

Overall dimension (standard)

8970x2625x3420

Total weight (standard)

16500 kg

Tire specification

17.5-25

Ground clearance (front axle)

430mm

Space of front and rear axles

6219 mm

Space of middle and rear wheels

1538 mm

Performance
parameters

Forward velocity

5,8,11,19,23,38km/h

Reverse speed

5,11,23km/h

Tractive effort f=0.75

87 kN

Maximum gradeability

20%

Tire inflation pressure

260kPa

Working system pressure

16MPa

Transmission pressure

1.3—1.8Mpa

Working parameters

Maximum steering angle of front wheel

±50°

Maximum slant angle of front wheel

±17°

Maximum oscillating angle of front axle

±15°

Maximum oscillating angle of equilibrium box

forwards15°, Reverse15°

Maximum steering angle of frame

±27°

Minimum turning radius

7.3m

Scrape knife

Maximum lift height

450mm

Maximum cutting depth

500mm

Maximum tilt angle

90°

Cutting angle

28°—70°

Angle of revolution

360°

Length & chord height

4270x610mm

Oil filling amount

Coolant

50L

Fuel tank

280L

Engine

24L

Transmission

38L

Equilibrium box

46L

Coolant

28L

Hydraulic oil

110L
