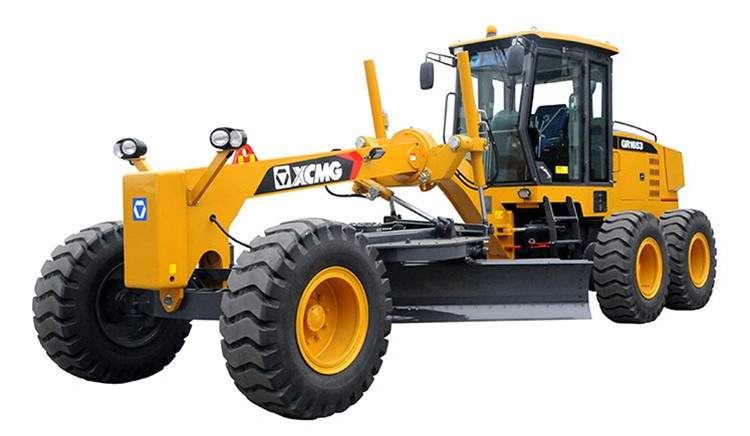

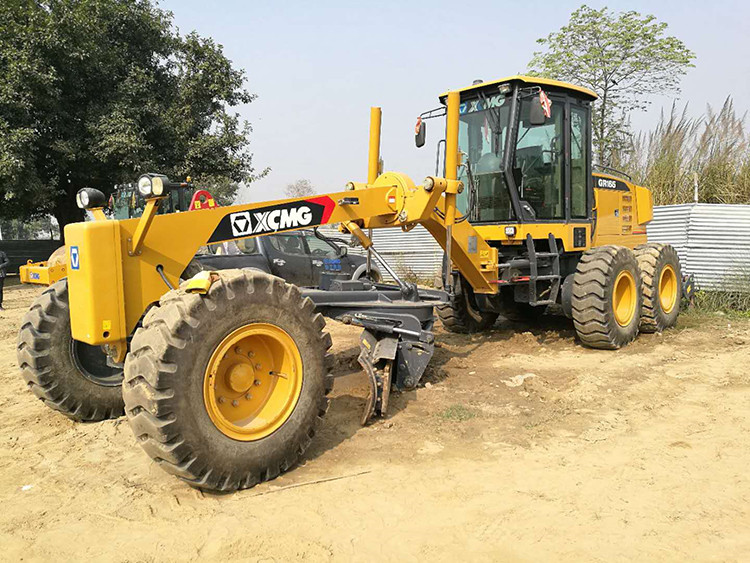

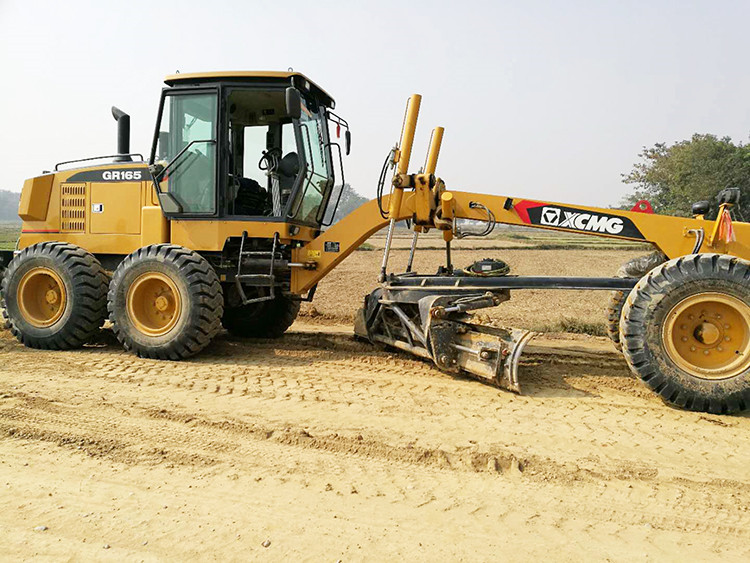

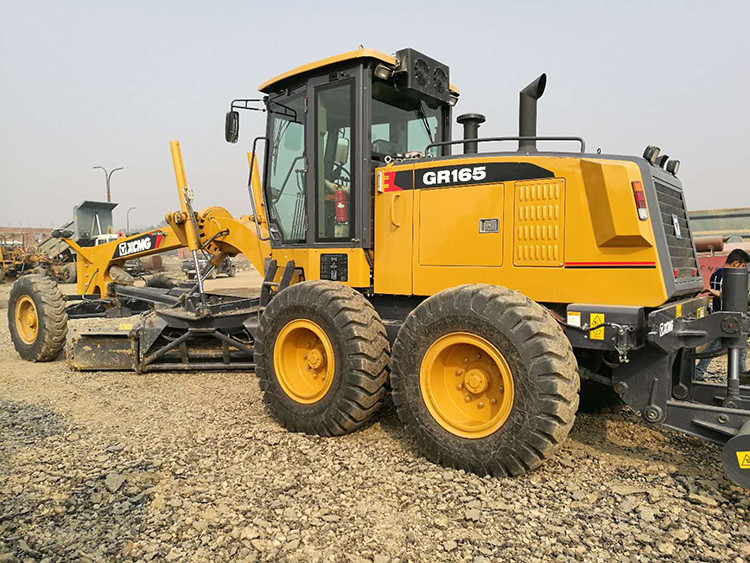

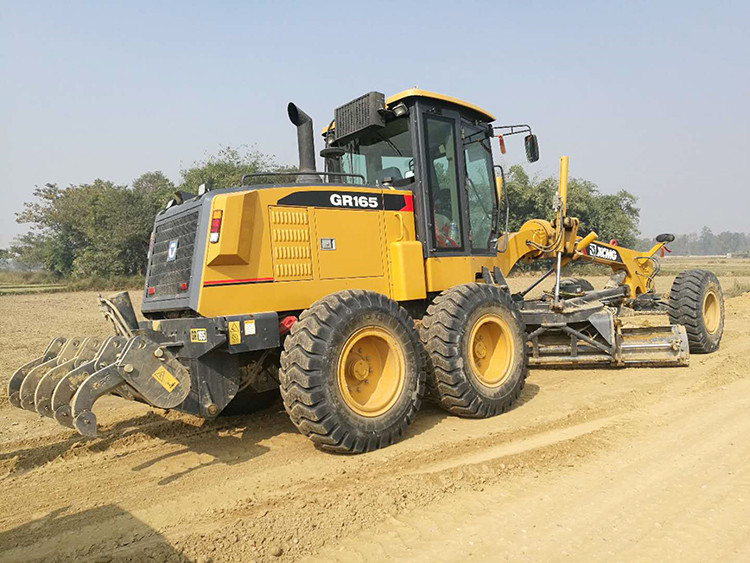

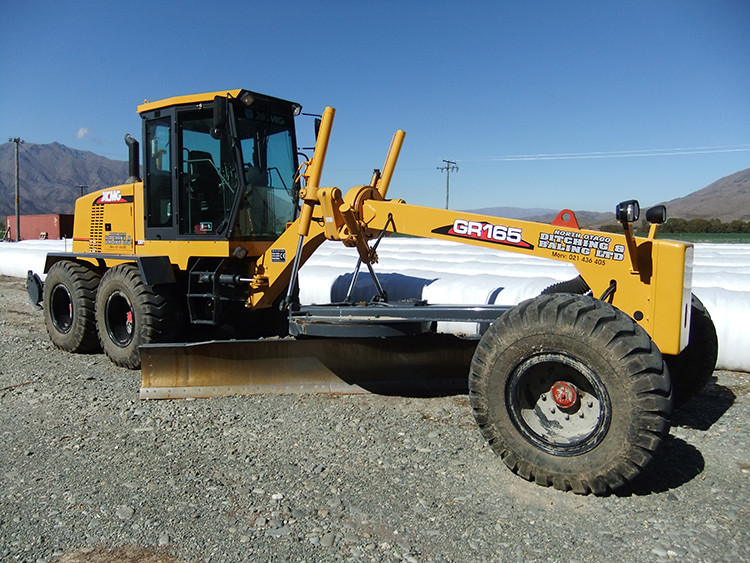

XCMG Road Construction Machines 165hp Small Motor Graders GR165DII For Sale
Specifications
- Weight:15000.000kg
- Condition:New
- Moving Type:Other
- Rated Power/Speed:132(2200r/Min)
- Dimension(L*W*H):8900*2625*3420mm
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG Road Construction Machines 165hp Small Motor Graders GR165DII For Sale.
The motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc. It is the necessary construction machinery for national defense construction, mine construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.
1. This machine is equipped with turbocharged diesel engine. Large output torque and power reserve coefficient and low oil consumption.
2. The drive axle is Special for XCMG used rear axle. The rear axle adopts balanced suspension to ensure the uniform load of four wheels, which is conducive to the full use of its adhesion ability. The main drive of the rear axle is equipped with"NO - SPIN" self-locking differential. If one side of the wheels is slipping, the other side can still deliver its original torque. Therefore, enough traction be can ensured under any road conditions.
3.The front axle is steering axle. The axle can swing from side to side. In addition to the front steering, it also uses the articulated frame, which can further reduce the turning radius.
4.The hood is structural part, well shaped with turn over function, the two sides double door is reversible, enhances the maintainability.
5.Sealed cab includes air conditioning system, the interior design is made of high quality and smooth materials, fully embodies the man-machine engineering needs.
|
Item |
Unit |
GR165DII |
||
|
Basic parameters |
Engine model |
|
6BT5.9-C180-II |
|
|
Rated power/speed |
kW/rpm |
132/2200 |
||
|
Overall dimension(standard) |
mm |
8900 x 2625 x 3420 |
||
|
Total weight(standard) |
kg |
15000 |
||
|
Tire specification |
|
17.5-25 |
||
|
Ground clearance |
mm |
430 |
||
|
Tread |
mm |
2156 |
||
|
Space of front and rear axles |
mm |
6219 |
||
|
Space of middle and rear wheels |
mm |
1538 |
||
|
Performance parameters |
Forward velocity |
km/h |
5、8、11、19、23、38 |
|
|
Reverse speed |
km/h |
5、11、23 |
||
|
Tractive effort f=0.75 |
kN |
≥77 |
||
|
Maximum gradeadbility |
% |
≥25 |
||
|
Inflation pressure of tires |
kPa |
260 |
||
|
Working system pressure |
MPa |
16 |
||
|
Transmission pressure |
MPa |
1.3-1.8 |
||
|
Working parameters |
Maximum steering angle of front wheels |
° |
±50 |
|
|
Maximum inclination angle of front wheels |
° |
±17 |
||
|
Maximum swing angle of front axle |
° |
±15 |
||
|
Maximum swing angle of balance box |
° |
front 15、back 15 |
||
|
Maximum steering angle of frame |
° |
±27 |
||
|
Maximum turning radius |
m |
7.3 |
||
|
Blade |
Maximum lifting height |
mm |
450 |
|
|
Maximum shoveling depth |
mm |
500 |
||
|
Maximum lateral inclination angle |
° |
90 |
||
|
Cutting angle |
° |
28-70 |
||
|
Oil filling amount |
Slewing angle |
° |
360 |
|
|
Length x chord height |
mm |
3660 x 610 |
||
|
Coolant |
L |
50 |
||
|
Fuel tank |
L |
280 |
||
|
Engine |
L |
24 |
||
|
Transmission |
L |
38 |
||
|
Balance box |
L |
46 |
||
|
Drive axle |
L |
28 |
||
|
Hydraulic oil |
L |
110 |
||
