XCMG official 14m China electric articulating boom lift GTBZ14J self-propelled equipment price
Summary
- Weight:6900kg
- Overall Dimension:6.69*2.26*2.13m
- Table Size:1.83*0.76*1.15m
- Max Lifting Height:14.2m
- Rated Loading Capacity:230kg
- Power:38KW/3000rpm
- Lift Drive / Actuation:Electric Motor
- Lift Mechanism:Articulated Lift
- Model Number:GTBZ14J
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Certification:CE
Specifications
- weight:6900.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

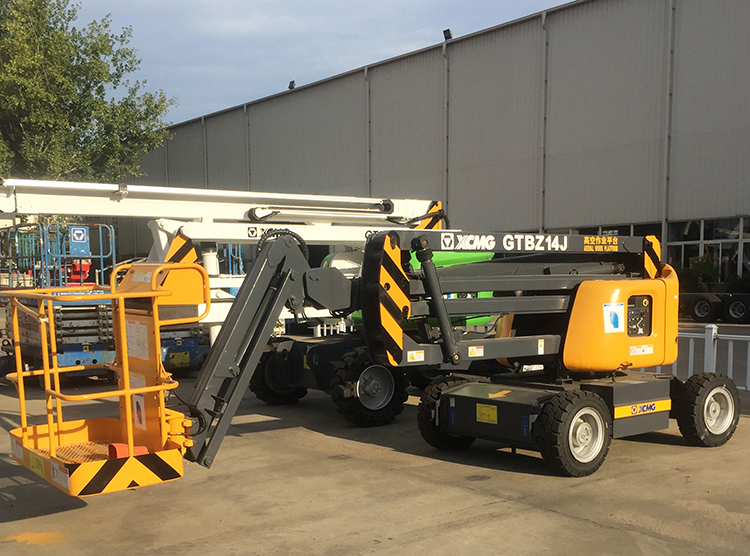

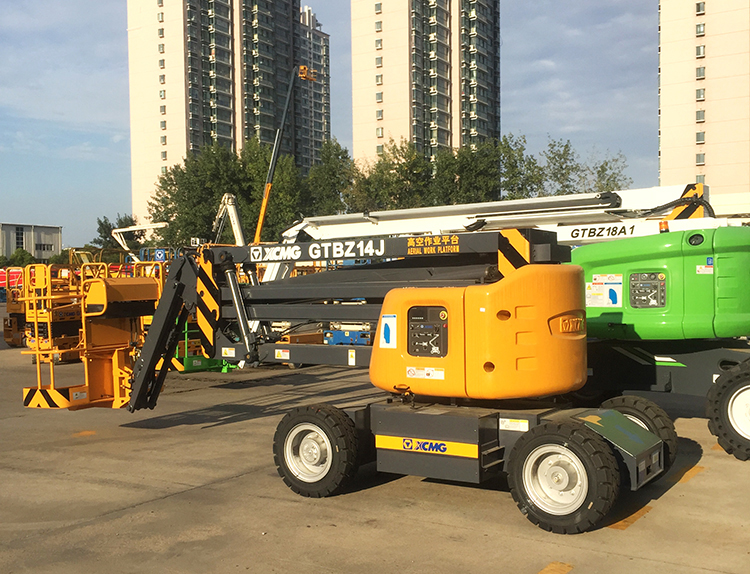

14m China electric articulating boom lift self-propelled equipment GTBZ14J.
14m-level articulated boom aerial work platform aiming at meeting customer demand has intelligent and perfect control system, adopts humanized layout and lubrication-free design, is easy for use and maintenance and provides comprehensive safety protection and abundant configuration options.
Model features:
(1) Flexibility and efficiency

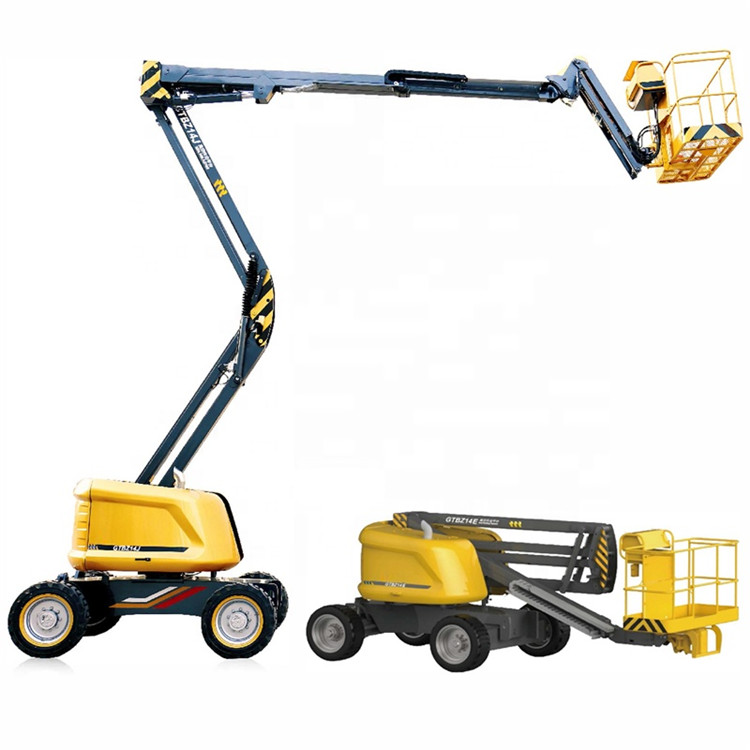

"Σ-type” double link jib has characteristics of compact structure and flexible extension, which can achieve vertical lifting and horizontal extension and has very strong obstacle climbing ability;180° rotatable platform provides bigger operation range; Narrow-type rotary table with compact structure can achieve" zero tail wagging" and improve operation efficiency.
(2) Super strong site adaptability
Cross-country type chassis, four-wheel drive system, pouring-type cross-country wide type, full-time axle balanced system and 38kw strong power are configured so that the equipment has excellent terrain adaptability.
(3) Advanced performance, safety and reliability
Full-range operation, visual and friendly control panel and easy operation; Electro-hydraulic proportional system control is accurate and efficient. Protective measures such as chassis incline protection, platform overload alarming, emergency landing, safety speed limit, flexibility start-stop technology, etc. are provided.
|
item |
Parameter |
|
Overall Length(mm) |
6690 |
|
Overall Width(mm) |
2260 |
|
Overall Height(mm) |
2130 |
|
Wheel Base(mm) |
2100 |
|
Maximum Working Height(m) |
15.75 |
|
Maximum Platform Height(m) |
14.05 |
|
Maximum Working Range(m) |
8.22 |
|
Maximum Load Capacity(kg) |
230 |
|
1st Boom luffing Range(°) |
0~+60 |
|
2nd Boom luffing Range(°) |
-8~+75 |
|
Crank Arm Luffing Range(°) |
-60~+80 |
|
Rotation Angle of Rotating Platform(°) |
355 |
|
Maximum Tail Wagging(mm) |
0 |
|
Platform Size(mm) |
1830*760*1150 |
|
Platform turning angle(°) |
180 |
|
Total Weight(kg) |
6900 |
|
Maximum Travel Speed(km/h) |
6.1 |
|
Minimum Turning Radius(m) |
4.5 |
|
Minimum Ground Clearance(mm) |
250 |
|
Maximum Grade Ability(%) |
45 |
|
Tire Specification |
315/55D20 |
|
Engine Model |
Perkins404D-22 |
|
Rated Power of Engine(kW/(r/min)) |
38/(3000) |
