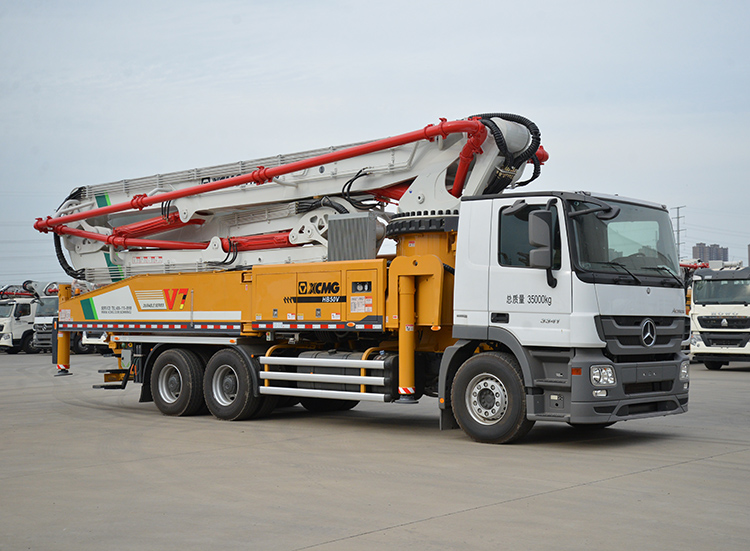

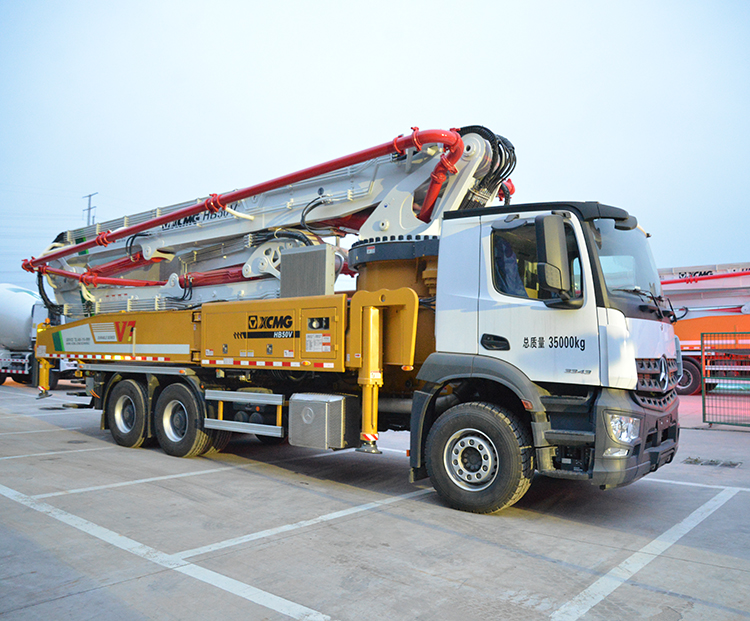

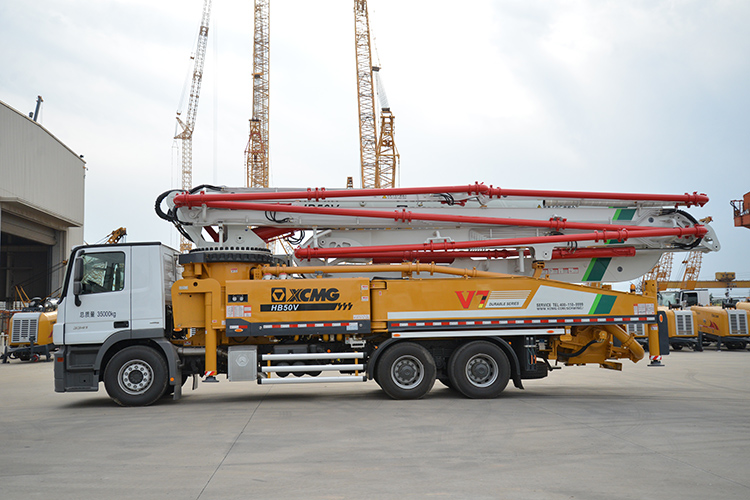

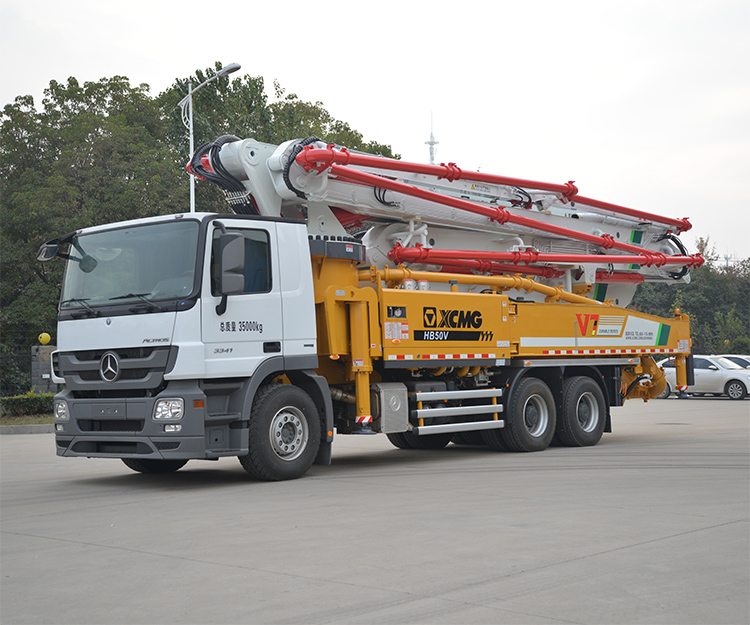

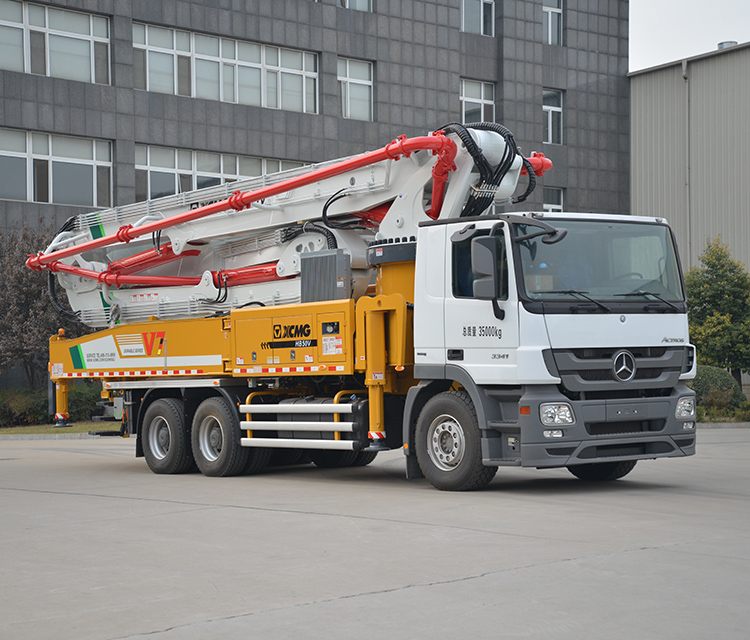

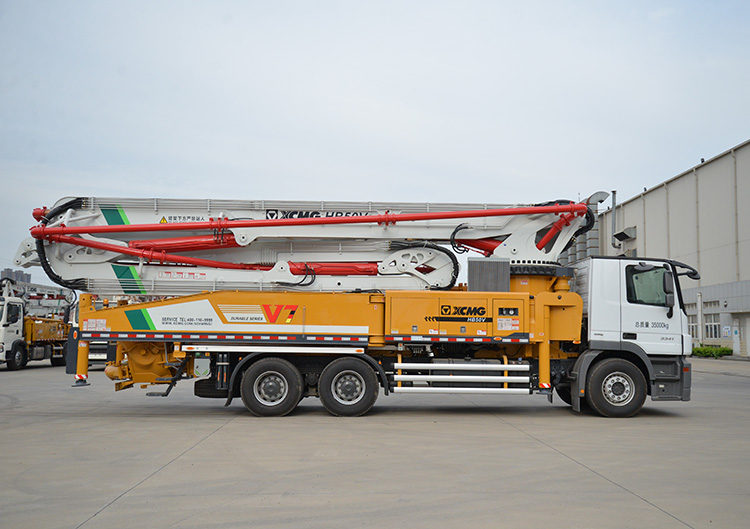

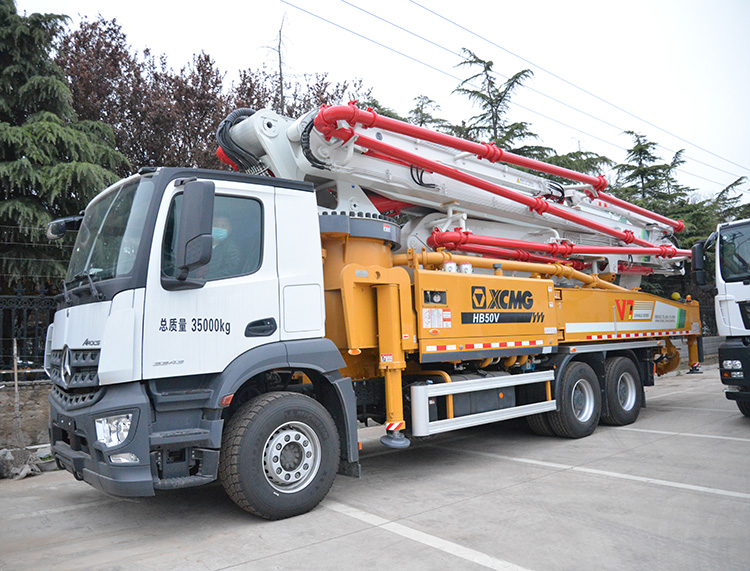

XCMG Schwing concrete pump truck HB50V China new 50m concrete truck with benz chassis price

  • XCMG Schwing concrete pump truck HB50V China new 50m concrete truck with benz chassis price
  • XCMG Schwing concrete pump truck HB50V China new 50m concrete truck with benz chassis price
  • XCMG Schwing concrete pump truck HB50V China new 50m concrete truck with benz chassis price
  • XCMG Schwing concrete pump truck HB50V China new 50m concrete truck with benz chassis price
  • XCMG Schwing concrete pump truck HB50V China new 50m concrete truck with benz chassis price
  • XCMG Schwing concrete pump truck HB50V China new 50m concrete truck with benz chassis price
  • XCMG Schwing concrete pump truck HB50V China new 50m concrete truck with benz chassis price

Share:
XCMG Schwing concrete pump truck HB50V China new 50m concrete truck with benz chassis price
FOB for Concrete Mach Reference Price:Get Latest Price
$120000.00-$138000.00 1 / EA (Min. Order)
Model: HB50V
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
XCMG Schwing concrete pump truck HB50V China new 50m concrete truck with benz chassis price
XCMG Schwing concrete pump truck HB50V China new 50m concrete truck with benz chassis price
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Specifications
  • 360-Degree VR Videos
Summary
  • Dimension(L*W*H):12600×2530×4000mm
  • Weight:35000kg
  • Power(W):315kW
  • Model Number:HB50V
  • Brand Name:XCMG
  • Place of Origin:Xuzhou, Jiangsu, China
  • Certification:CE/ISO9001
Specifications
  • weight:35000.000kg
  • Condition:New
  • Moving Type:Other
  • Color:Red
  • Theoretical:170m³/h
  • Reach height:49.1m
  • Reach depth:34.4m

XCMG Schwing concrete pump truck HB50V China new 50m concrete truck with benz chassis price

concrete pump truck HB50V China new 50m concrete truck with benz chassis.



The XCMG HB50V concrete pump truck is equipped with more efficient skirt valve and S valve pump technology, more stable reversing buffer technology, more reliable full hydraulic reversing technology.



It adopts benz chassis, which complies with China V emission standard, featuring with powerful output, large torque, high efficiency, energy conservation and strong off-road performance.



Advantages and highlights:



1.Ultimately Safe Boom.



2. Lower Structure of High Rigidity.



3.Hydraulic System of Outstanding Performance.



4.Effectively reduce emissions with the reversing, vulnerability of longer life.



5.The pumping system adopts electric control reversing, reversing faster and the system impact smaller.



6.The actual pumping efficiency is more than 5% higher than the conventional hydraulic control reversing system.

XCMG Schwing concrete pump truck HB50V China new 50m concrete truck with benz chassis price

Category

Item

Unit

HB50V

Overall

Outline dimension

mm

12600×2530×4000

Overall weight

kg

35000

Brand

/

Benz

Chassis

Model

/

AROCS3343

Wheelbase

mm

4800+1350

Max.power

kW

315

Engine

Emission

/

China V

Theoretical

m³/h

170

Pumping system

Concrete pumping pressure

Mpa

8

Theoretical pumping times

Times/min

2326

Delivery cylinder diameter × stroke

mm

φ260×2000

Placing boom

Reach height

m

49.1

Reach depth

m

34.4

Slewing radius

m

44.2

Slewing angle

°

±270

Others

Transfer tuble

/

Rock valve/S valve

XCMG Schwing concrete pump truck HB50V China new 50m concrete truck with benz chassis price
