XCMG 70 Meter HB67K diesel concrete pump truck with Benz Chassis for Mexico price

  • XCMG 70 Meter HB67K diesel concrete pump truck with Benz Chassis for Mexico price
  • XCMG 70 Meter HB67K diesel concrete pump truck with Benz Chassis for Mexico price
  • XCMG 70 Meter HB67K diesel concrete pump truck with Benz Chassis for Mexico price
  • XCMG 70 Meter HB67K diesel concrete pump truck with Benz Chassis for Mexico price
  • XCMG 70 Meter HB67K diesel concrete pump truck with Benz Chassis for Mexico price

Share:
XCMG 70 Meter HB67K diesel concrete pump truck with Benz Chassis for Mexico price
FOB for Concrete Mach Reference Price:Get Latest Price
$100000.00-$200000.00 1 / EA (Min. Order)
Model: HB67K
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
XCMG 70 Meter HB67K diesel concrete pump truck with Benz Chassis for Mexico price
XCMG 70 Meter HB67K diesel concrete pump truck with Benz Chassis for Mexico price
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Specifications
  • 360-Degree VR Videos
  • Product PDF
Summary
  • Dimension(L*W*H):15780*2500*4000mm
  • Weight:54000kg
  • Power(W):335000W
  • Model Number:HB67K
  • Brand Name:XCMG
  • Place of Origin:JiangSu,China
  • Power Type: Diesel
  • Certification:CE/ISO9001
Specifications
  • weight:54000.000kg
  • Condition:New
  • Moving Type:Wheel
  • Color:Color
  • Emission standard:Eruo V
  • Theoretical pumping times:25Time/min
  • Max. vertical conveying distance:67m
  • Productivity:130m3/h
  • Filling height:1580mm
  • Max. horizontal conveying distance:62m

XCMG 70 Meter HB67K diesel concrete pump truck with Benz Chassis for Mexico price

XCMG 70 Meter HB67K diesel concrete pump truck with Benz Chassis for Mexico.



XCMG 70 Meter HB67K diesel concrete pump truck is a new generation equipment which is developed by XCMG and SCHWING Germany technology.

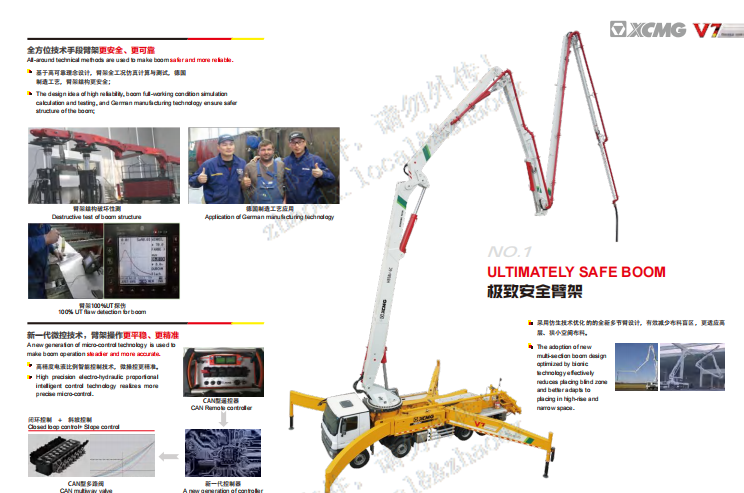

XCMG 70 Meter HB67K diesel concrete pump truck is highly reliable and durable with seven technical highlights. More advanced boom structure technology ,More efficient rock valve pumping technology, Steadier stabilizer structure technology, Steadier reversing buffering technology, more reliable fully-hydraulic reversing technology, Ultra-low pressure loss hydraulic system technology, safer and smarter electrical control system.

* Large diameter (260 mm) Φ, large displacement (170 / hour) pumping systems.
* Material absorption can reach more than 85%.
* Effectively reduce emissions with the reversing, vulnerability of longer life.
* The pumping system adopts electric control reversing, reversing faster and the system impact smaller.
* The actual pumping efficiency is more than 5% higher than the conventional hydraulic control reversing system.

XCMG 70 Meter HB67K diesel concrete pump truck with Benz Chassis for Mexico price
Description
Unit
Parameter value
Outline dimension
mm
15780×2500×4000
Overall weight
kg
54000
Chassis
Max. speed
km/h
85
Max. grade-ability
%
51.4
Wheelbase
mm
2020 + 5180 + 1350 + 1450
Engine
Model

OM501LA·V6
Max. power
kW
335
Max. torque
N·m/(r/min)
2200/1080
Displacement
L
11.946
Emission standard

Eruo V
Pumping system
Theoretical output
m³/h
170
Concrete pumping pressure
MPa
8
Theoretical pumping times
Time/min
21~23
Delivery cylinder diameter ×stroke
mm
φ260×2200
Max. diameter of pumping concrete
mm
≤40
Filling height
mm
1570
Concrete slump range
cm
8~23
Placing boom
Reach height
m
66.1
Reach depth
m
48.6
Slewingradius
m
60.9
Slewing angle
°
±270
Unfolding angle of the 1st section
°
90
Unfolding angle of the 2nd section
°
180
Unfolding angle of the 3rd section
°
180
Unfolding angle of the 4th section
°
230
Unfolding angle of the 5th section
°
210
Unfolding angle of the 6th section
°
90
Unfolding angle of the 7th section
°
180
Stabilizer span
Longitudinal span of stabilizer
mm
13700
Transverse span of front stabilizer
mm
13000
Transverse span of rear stabilizer
mm
15300
Others
Lubrication method

Automatic lubrication
Control method

Manual/remote control
Volume of water box
L
1000



XCMG 70 Meter HB67K diesel concrete pump truck with Benz Chassis for Mexico priceXCMG 70 Meter HB67K diesel concrete pump truck with Benz Chassis for Mexico priceXCMG 70 Meter HB67K diesel concrete pump truck with Benz Chassis for Mexico priceXCMG 70 Meter HB67K diesel concrete pump truck with Benz Chassis for Mexico priceXCMG 70 Meter HB67K diesel concrete pump truck with Benz Chassis for Mexico price

XCMG 70 Meter HB67K diesel concrete pump truck with Benz Chassis for Mexico price
