Shuoli hydraulic shotcrete machine concrete SCHP30 30m3/h displacement price

$180000.00-$190000.00 1 / EA (Min. Order)
Model: SCHP30
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Shuoli hydraulic shotcrete machine concrete SCHP30 30m3/h displacement price

Content:

*Email:

Full Name:

Mobile phone:

  • Summary
  • Specifications

Summary

  • Dimension(L*W*H):7850/8450*2460(transport)/2600(work)*3490 mm
  • Weight:16000/17500
  • Power(W):92Kw
  • Model Number:SCHP30
  • Brand Name:ShuoLi
  • Place of Origin:Jiangsu,China

Specifications

  • Weight:16000.000kg
  • Condition:New
  • Moving Type:Wheel
  • Color:Color
  • Operation method:Wheeled self-propelled
  • Maximum travel speed:20 km/h
  • Minimum turning radius:6.4/6.6m

Shuoli hydraulic shotcrete machine concrete SCHP30 30m3/h displacement price

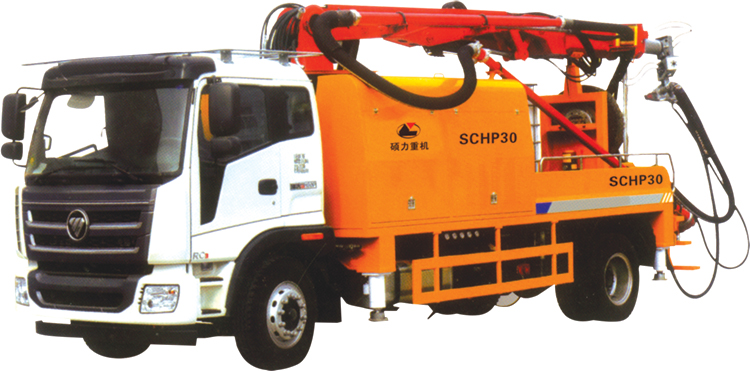

Shuoli hydraulic shotcrete machine concrete SCHP30 30m3/h displacement.


Engine and motor dual power system, fully hydraulic drive, and can be quickly switched according to needs, strong applicability, convenient operation, simple maintenance, and high safety.


The walking system is fully hydraulic double-axle drive, four-wheel steering, small turning radius, high maneuverability and maneuverability, good adaptability to individual small-area high piles or deep pits, and strong absorption of roadbed protrusions.


The dexterous spray manipulator can realize 9 degrees of freedom operation of the boom movement. The dynamic load stability is good, the operation is flexible and convenient, the construction scope is large, and there is no construction blind area, which can be applied to the needs of different working conditions. The nozzle adopts rotating spray construction, which has low rebound, less dust and high construction quality.


Fully intelligent computer control system, productivity and feeding ratio can be automatically set and adjusted, strong anti-interference ability, good construction stability and quality.


The concrete conveying adopts the S-valve plunger pump conveying method, which has high bearing pressure, long life and stable conveying.

Shuoli hydraulic shotcrete machine concrete SCHP30 30m3/h displacement price

Machine parameters

model

Unit

SGHP25SGHP30

SGHP25C/SGHP30

CSGHP25DSGHP30D

Operation method



Wheeled self-propelled

Wheeled self-propelled

Wheeled self-propelled

Engine power

Kw

92

92

92

Maximum travel speed

km/h

20

20

20

Minimum turning radius

m

6.4/6.6

6.4/6.6

6.4/6.6

Maximum grade



25°

25°

25°

Minimum distance from the ground

mm

300/350

300/350

300/350

Braking distance



≤10m22kmh

≤10m22kmh

≤10m22kmh

Maximum steering angle



34°/33°

34°/33°

34°/33°

Long

mm

7850/8450

7850/8450

7850/8450

Width

mm

2460transport)/2600work

2450transport)/2600work

2450transport)/2600work

High

mm

3490

3490

3490

Self-weight

kg

16000/17500

16000/17500

16000/17500

Coagulant system parameters

Accelerating agent pump model



-

-

-

Motor Power

KW

0,75

0,75

0,75

Accelerator system pressure

Pa

8/12

8/12

8/12

Accelerating agent tank volume

L

1000

1000

1000

Manipulator parameters

Slewing support model









Boom structure



Telescopic + folding + telescopic

Telescopic + folding + telescopic

Telescopic + folding + telescopic

Jet height

m

16

16

17

Jet width

m

28

28

30

Boom pitch angle



30°60°

30°60°

30°60°

Forearm pitch angle



60°~37°

60°~37°

60°~37°

Forearm swing angle



230°

230°

230°

Nozzle horizontal axis rotation angle



360°

360°

360°

Vertical axis swing angle of nozzle



240°

240°

240°

chassis parameters

Chassis model



SJ25/5J30

SJ25/5J30

SJ25/5J30

Wheelbase

mm

4230/4500

4230/4500

4230/4500

Front axle track

mm

1896/1800

1896/1800

1896/1800

Rear axle track

mm

1896/1800

1896/1800

1896/1800

Wheel mussel model



16/70-20

16/70-20

16/70-20

Tire diameter

mm

1020/1070

1020/1070

1020/1070

Front and rear axle drive mode



hydraulic

hydraulic

hydraulic

Turning



Four-wheel steering

Four-wheel steering

Four-wheel steering

Concrete cylinder conveying system

Work drive



motor driven

motor driven

motor driven

Motor Power

kw

75/55

75/55

75/55

Motor voltage

V

380

380

380

Theoretical pumping times of concrete

times/min







Theoretical displacement of mud concrete

m3/h

25/30

25/30

25/30

Outlet pressure

Mpa

6

6

6

Concrete cylinder inner diameter

mm

160/180

160/180

160/180

Concrete cylinder stroke

mm

800

800

800

Conveying pipe diameter

mm

Φ125-Φ80

Φ125-Φ80

Φ125-Φ80

Nozzle mouth diameter

mm

Φ45

Φ45

Φ45

Hopper feeding height

mm

1470

1470

1470


Shuoli hydraulic shotcrete machine concrete SCHP30 30m3/h displacement priceShuoli hydraulic shotcrete machine concrete SCHP30 30m3/h displacement price

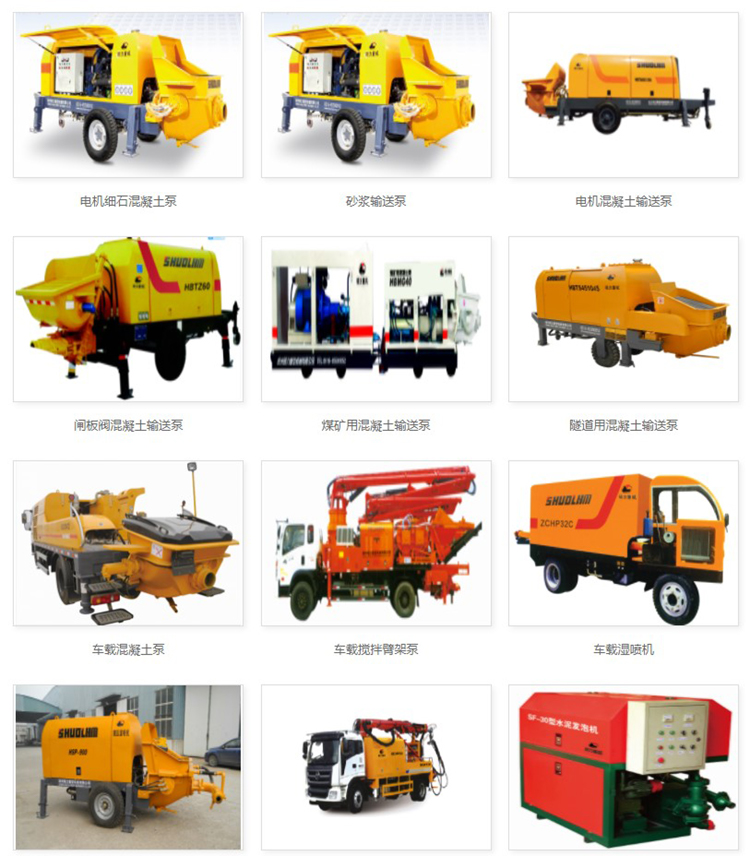

More Shotcrete Machine Concrete
