Shuoli 46kw 20m3/h truck mounted wet spray machine concrete pump for sale

$20000.00-$35000.00 1 / EA (Min. Order)
Model: ZCHP20/ZCHP20C
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Shuoli 46kw 20m3/h truck mounted wet spray machine concrete pump for sale

Content:

*Email:

Full Name:

Mobile phone:

  • Summary
  • Specifications

Summary

  • Dimension(L*W*H):6500×2000×2800mm
  • Weight:7000kg
  • Power(W):46kw
  • Model Number:ZCHP20/ZCHP20C
  • Brand Name:ShuoLi
  • Place of Origin:Jiangsu,China
  • Dimension(L*W*H):5100×2100×2700mm
  • Weight:5000kg
  • Power(W):46kw
  • Model Number:ZCHP20/ZCHP20C
  • Brand Name:Shuo Li
  • Place of Origin:Jiangsu,China

Specifications

  • Weight:5000.000kg
  • Condition:New
  • Moving Type:Wheel
  • Color:Color
  • Theoretical injection displacement:20m³/h
  • Hopper capacity:0.3M3
  • Loading height:1380mm

Shuoli 46kw 20m3/h truck mounted wet spray machine concrete pump for sale

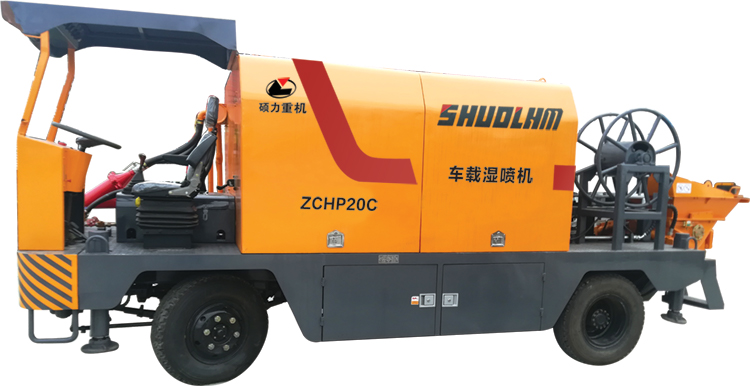

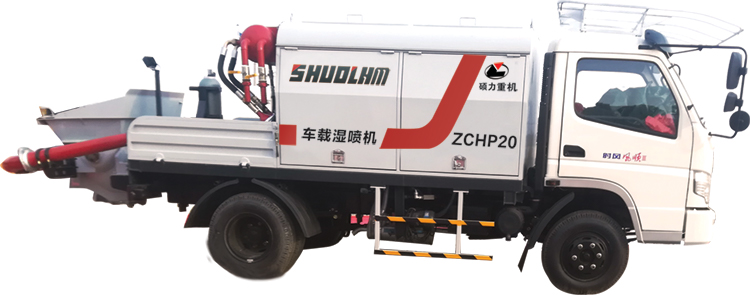

Shuoli 46kw 20m3/h truck mounted wet spray machine concrete pump.



Shuoli 46kw 20m3/h truck mounted wet spray machine concrete pump is suitable for spraying wet concrete in various engineering constructions, spraying fire-resistant, moisturizing materials, green soil and slope protection in the construction of ecological environment. It is the first wet spraying machine with multiple nozzles in China. The pumping volume can be adjusted steplessly and the displacement is large. One machine has multiple functions and can be used as a small truck-mounted concrete conveying pump.



Features:



1. According to the needs of customers, we can customize the two-nozzle, three-nozzle, and four-nozzle vehicle wet spraying machine.



2. High-horsepower chassis, four-wheel drive chassis can be customized according to customer needs.



3. The combination of 3 piston wet spraying machine and hydraulic wet spraying machine can make the spraying more stable and even.



4. The pipeline is cleaned in a special way, which is convenient and fast.



5. The special combination of hydraulic wet spraying machine can make the spraying more stable.

Shuoli 46kw 20m3/h truck mounted wet spray machine concrete pump for sale

Model     ZCHP20/ZCHP20C ZCHP32/ZCHP32C ZCHP23/ZCHP23C ZCHP14/ZCHP21C
Project Basic performance Unit parameter parameter parameter parameter
Machine parameters Overall vehicle size (length*width*height) MM 6500×2000×2800 6500×2400×2800 6500×20002800 5200×2000×2800
  Total Weight kg 7000 8800 7700 5000
Pumping system Theoretical injection displacement M3/h 20 32 23 14/21
  Pump cylinder bore mm 140/160 140/160 140/160
  Pumping stroke mm 1000/800 1000/800 1000/800
  Conveying pipe diameter mm Φ12557 variable diameter Φ12557 variable diameter Φ12557 variable diameter Φ12557 variable diameter
Pumping system concrete outlet pressure Mpa 6 6 6
  Hopper capacity M3 0.3 1.2 0.8
  Loading height mm 1380 1380 1380 1380
  Concrete distribution valve   S pipe valve S pipe valve S pipe valve S pipe valve
  Lubrication system   Automatic + manual Automatic + manual Automatic + manual Automatic + manual
  Concrete slump cm 44548 44548 44548 44548
  cooling method   Air-cooled Air-cooled Air-cooled Air-cooled
  Dust near the machine mg/m3 6 6 6 6
  Rebound rate % 10 10 10 10

  Maximum particle size of sprayed aggregate mm 15 15 15 15
  Applicable mixture water-cement ratio   0.45-0.6 0.45-0.6 0.45-0.6 0.45-0.6
Walking chassis Engine power kw 46 70 70 46
  Wheelbase mm 2800 2800 2800 2800
  Maximum walking speed of walking chassis km/h 40 40 40 40
  Maximum grade   15/22° 15/25° 15° 15°
  Braking method   Air brake Air brake Air brake Air brake
Accelerating agent system Accelerating agent pump model   FG20-2 FG20-2 FG20-2 FG20-2
  Drive method   Electric drive Electric drive Electric drive Electric drive
  Accelerating agent displacement L/h 2×330 4×330 3×330 2×330/3×330
  Maximum pressure of accelerator MPa 2 2   2
Hydraulic system main motor power kw 37/45 37/45×2 37/45+7.5 2×7.53×7.5
  Fuel tank capacity L 200 200 200 -
  Hydraulic oil pollution degree NAS1638 44417 44417 44417 44417
  Main pump displacement ml/r 80 80 80 80
