Telescopic single boom furnace tend vehicle HNBZ8512 for aluminum smelters furnace rake slag cinder

  • Telescopic single boom furnace tend vehicle HNBZ8512 for aluminum smelters furnace rake slag cinder
  • Telescopic single boom furnace tend vehicle HNBZ8512 for aluminum smelters furnace rake slag cinder
  • Telescopic single boom furnace tend vehicle HNBZ8512 for aluminum smelters furnace rake slag cinder
  • Telescopic single boom furnace tend vehicle HNBZ8512 for aluminum smelters furnace rake slag cinder
  • Telescopic single boom furnace tend vehicle HNBZ8512 for aluminum smelters furnace rake slag cinder
  • Telescopic single boom furnace tend vehicle HNBZ8512 for aluminum smelters furnace rake slag cinder

Share:
Telescopic single boom furnace tend vehicle HNBZ8512 for aluminum smelters furnace rake slag cinder
FOB for OEM Reference Price:Get Latest Price
$10000.00-$1000000.00 1 / EA (Min. Order)
Model: HNBZ8512
Engine: Cummins
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
Telescopic single boom furnace tend vehicle HNBZ8512 for aluminum smelters furnace rake slag cinder
Telescopic single boom furnace tend vehicle HNBZ8512 for aluminum smelters furnace rake slag cinder
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Specifications
Summary
  • Certification:CE/ISO9001
  • Weight:11000kg
  • Model Number:HNBZ8512
  • Brand Name:XCMG
  • Place of Origin:Xuzhou, Jiangsu, China
Specifications
  • weight:11000.000kg
  • Condition:New
  • Moving Type:Other
  • Rated Loading Capacity:10 TON
  • Max.travelling speed:28km/h
  • Hydraulic oil tank capacity:230L
  • Fuel oil tank capacity:230L

Telescopic single boom furnace tend vehicle HNBZ8512 for aluminum smelters furnace rake slag cinder.



This telescopic single boom furnace tend vehicleis designed for the cleaning of slag which are generated in the smelting and holding furnaces during the metal smelting process.

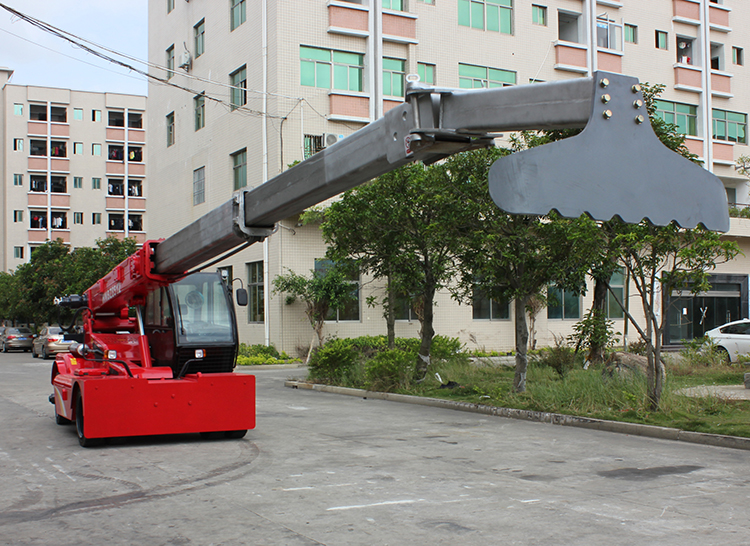

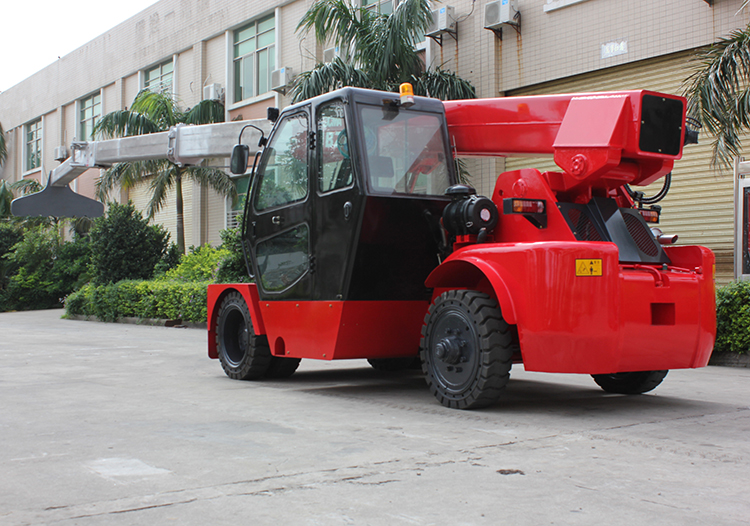

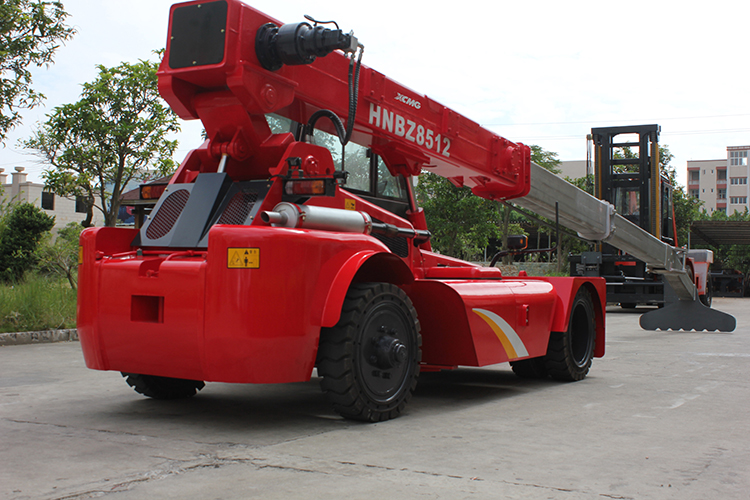

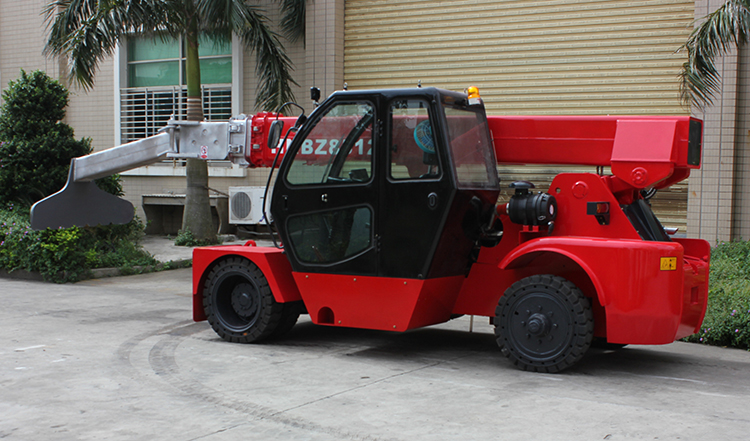

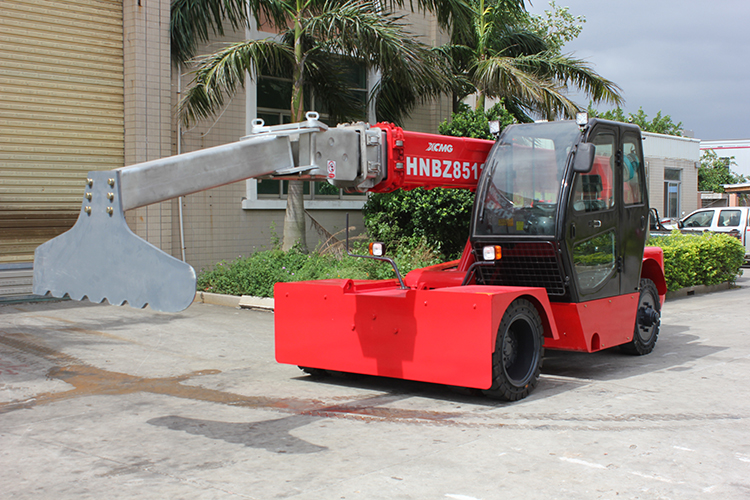

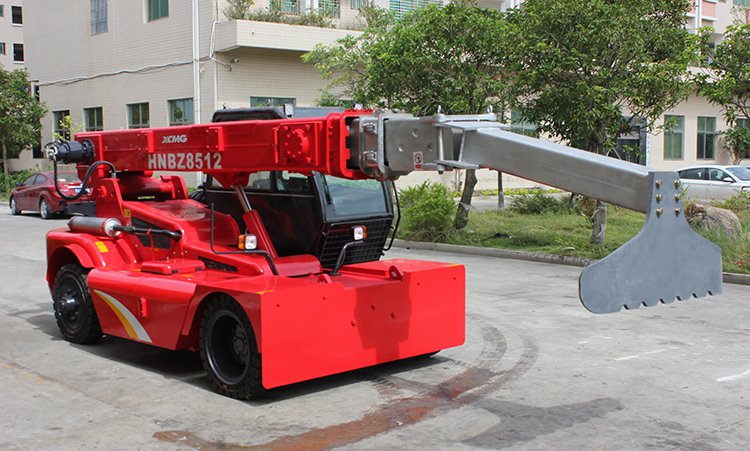

HNBZ8512 is a multipurpose tyre type telescopic slagging truck, with three-section telescopic boom, the maximum lifting height 3200mm, the slag power is bigger than 10KN, the maximum extension distance 8500mm, all the slag action is through hydraulic pilot operation Handle to complete it, very suitable for smelting furnace and holding furnace slag, stirring and cleaning furnace.



Performance Characteristics:



1, Adopt Dongfeng CUMMINS turbocharge diesel engine, meet the efficient working requirements.



2, Adopt fixed - shaft type hydraulic transmission, the double-variable system is more reliable.



3, Reduction in fuel consumption and energy consumption.



4, Adopt full hydraulic coaxial flow amplification steering system, the turning radius of rear axle is small, steering light and flexible.Telescopic single boom furnace tend vehicle HNBZ8512 for aluminum smelters furnace rake slag cinder

Performance

Item

Specifications

Basic parameter

Overall width (The boom is fully retracted)

7100 mm

Basic boom length

4490 mm

Max.boom length (Fully extended)

13000 mm

Width

2340 mm

Height

Cab height

2360 mm

Max lifting height at full extension of the boom

3200 mm

Min.ground clearance

160 mm

Max.extension

8600 mm

Wheelbase

3000 mm

Wheel tread

Front

1640 mm

Rear

1630 mm

Min.outside turning radius≤105%

7000 mm

Approach angle

20 °

Departure angle

15 °

Range elevation

Max.elevation angle of boom

7 °

Min.elevation angle of boom

-12 °

Truck weight

11000 kg

Slag removing force

Level≥90%

10 kN

Vertical≥90%

10 kN

Engine

Brand

Cummins QSB3.9-C100-31

Rated power/rotate speed

74kW/2400 rpm

Max.torque/rotate speed

330N.m/1400~1600 rpm

Transmission system

Transmission way

Power shift, fixed-axis type, hydraulic transmission

Gear (forward / backward)

2/1

Max.travelling speed

28km/h

Max.drawbar pull≥90%

30kN

Gradeability

15%

Oil tank capacity

Hydraulic oil tank capacity

230L

Fuel oil tank capacity

230L

Telescopic single boom furnace tend vehicle HNBZ8512 for aluminum smelters furnace rake slag cinderTelescopic single boom furnace tend vehicle HNBZ8512 for aluminum smelters furnace rake slag cinderTelescopic single boom furnace tend vehicle HNBZ8512 for aluminum smelters furnace rake slag cinderTelescopic single boom furnace tend vehicle HNBZ8512 for aluminum smelters furnace rake slag cinderTelescopic single boom furnace tend vehicle HNBZ8512 for aluminum smelters furnace rake slag cinderTelescopic single boom furnace tend vehicle HNBZ8512 for aluminum smelters furnace rake slag cinderTelescopic single boom furnace tend vehicle HNBZ8512 for aluminum smelters furnace rake slag cinder
