XCMG new 14m telescopic forklift handler XC6-3514K price

  • XCMG new 14m telescopic forklift handler XC6-3514K price
  • XCMG new 14m telescopic forklift handler XC6-3514K price
  • XCMG new 14m telescopic forklift handler XC6-3514K price
  • XCMG new 14m telescopic forklift handler XC6-3514K price
  • XCMG new 14m telescopic forklift handler XC6-3514K price
  • XCMG new 14m telescopic forklift handler XC6-3514K price

Share:
XCMG new 14m telescopic forklift handler XC6-3514K price
FOB for Loader Reference Price:Get Latest Price
$10000.00-$100000.00 1 / EA (Min. Order)
Model: XC6-3514K
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
XCMG new 14m telescopic forklift handler XC6-3514K price
XCMG new 14m telescopic forklift handler XC6-3514K price
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Specifications
Summary
  • Overall Dimensions:6380*2500*2740mm
  • Max Lifting Height:14m
  • Rated Loading Capacity:3500 kg
  • Type:14m telescopic forklift
  • Model Number:XC6-3514K
  • Brand Name:XCMG
  • Place of Origin:Jiangsu,China
  • Certification:ISO/CE
Specifications
  • weight:10500.000kg
  • Condition:New
  • Moving Type:Wheel
  • Traction:60kN
  • Rated power:74.9kW
  • Turning radius:≤4750mm
  • Maximum traveling speed:30km/h

XCMG new 14m telescopic forklift handler XC6-3514K price

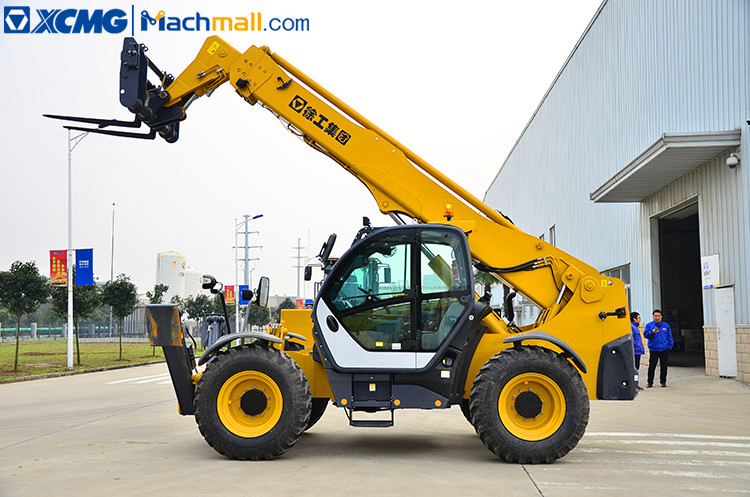

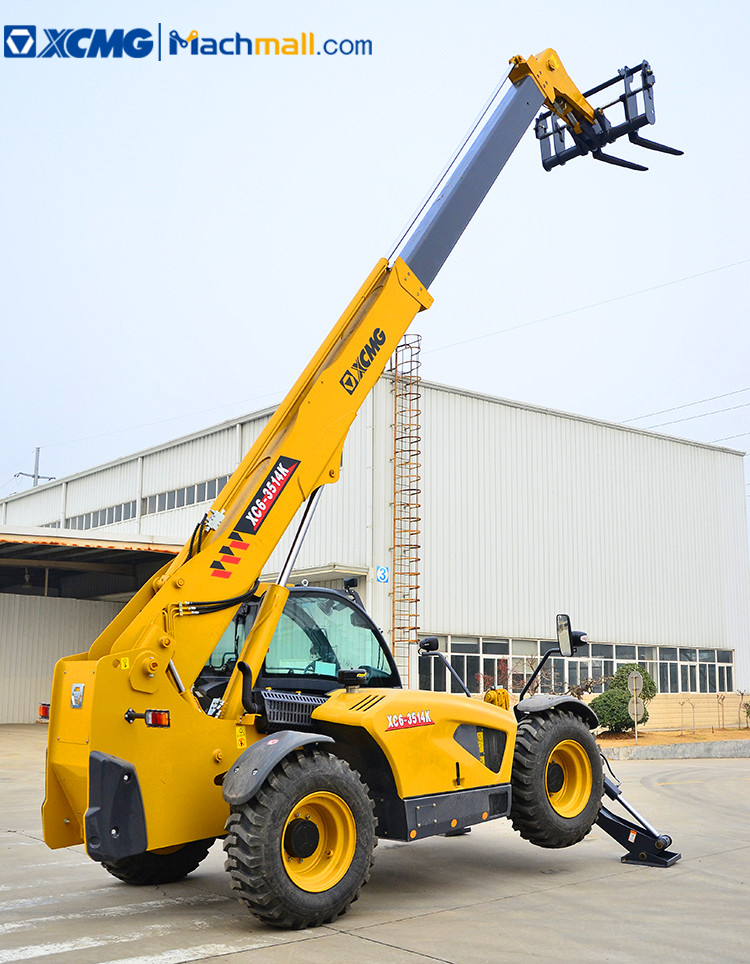

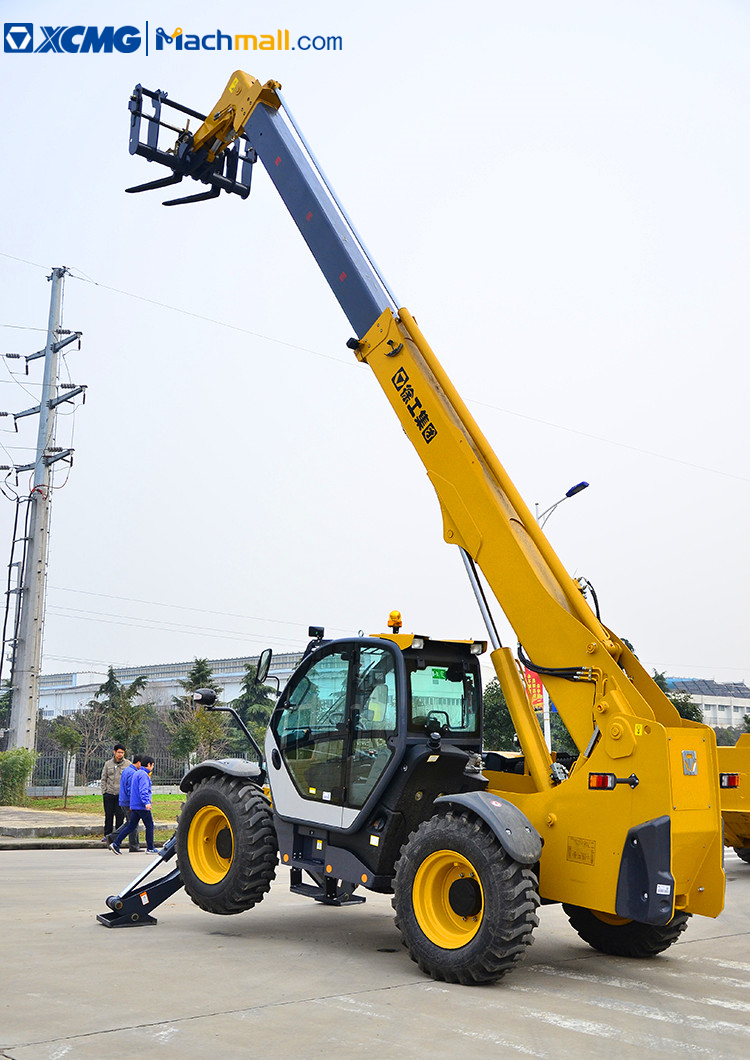

XCMG new 14m telescopic forklift handler XC6-3514K.



XCMG new 14m telescopic forklift handler XC6-3514K is a domestically intelligent, safe and efficient telescopic fork loader product. The electronically controlled static pressure transmission system and stepless variable speed drive technology make the operation more stable and reliable; the intelligent independent heat dissipation system is energy-saving and efficient.



Selling points:



1.Panoramic cab, XCMG visual recognition appearance design, stylish and beautiful;



2.Compact short wheelbase, horizontal engine layout, the whole machine is light and flexible;



3.The integrated static pressure continuously variable drive system realizes full speed range driving and stable driving;



4.Four-wheel drive, multiple steering modes of two-wheel, four-wheel and crab line, with super cross-country ability, adapt to different construction occasions;



5.Equipped with frame leveling function (XC6-3514K), strong site adaptability, meeting the requirements of various working conditions;



6.Using micro-movement control technology and special overload control system, the operation is safe and reliable;



7.The working system is controlled by electro-hydraulic proportion, and the operation is accurate, stable and efficient.



8.The advanced human-computer interaction, intelligent heat dissipation and dust removal control system fully demonstrate the technological intelligence.

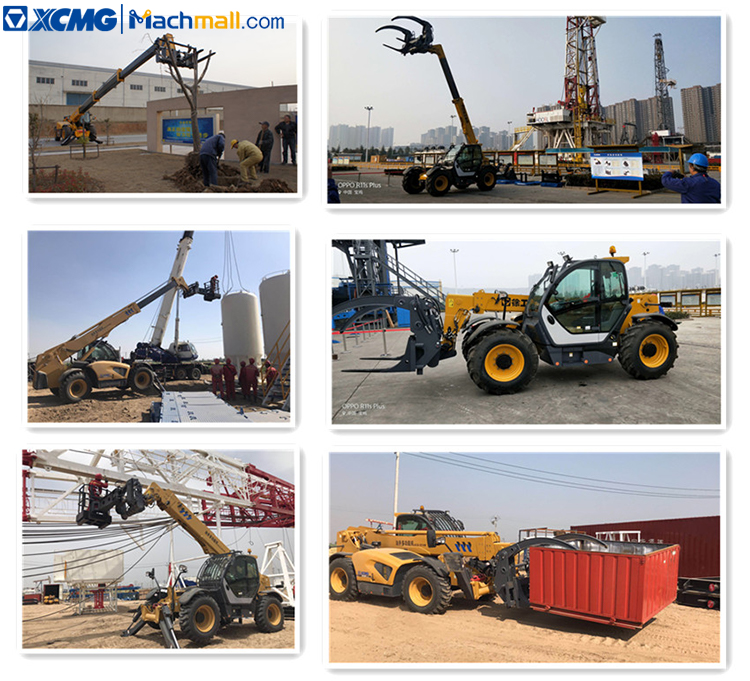

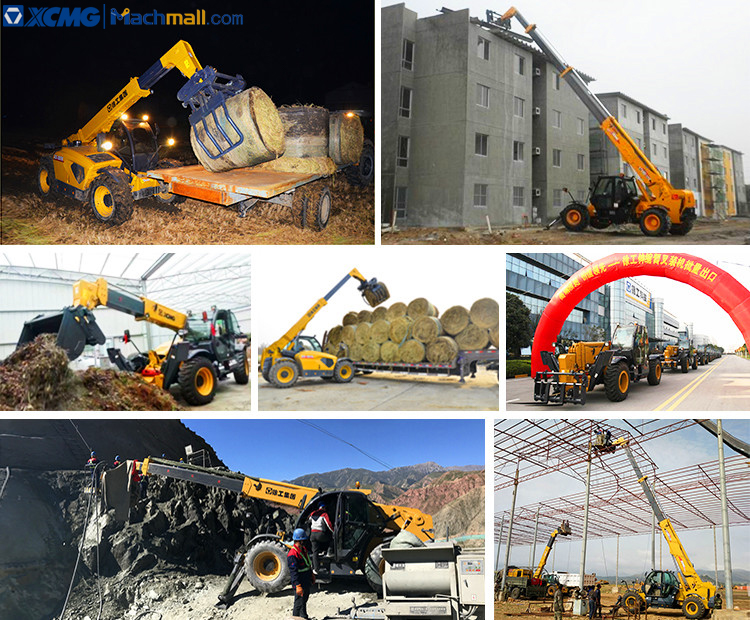

9.It can be equipped with a variety of equipment such as aerial work platforms, buckets, and double clamps to meet the individual needs of users.



XCMG new 14m telescopic forklift handler XC6-3514K price

Description

Unit

XC6-3514K

Gross weight

kg

10500

Engine power

kW

74.9

Rated load

kg

3500

Effective load at maximum forward reach

kg

635

Maximum lifting height

mm

13700

Maximum forward reach

mm

9600

Center distance of load

mm

600

Luffing angle

°

-4~73

Fork angle

°

90~18

Maximum traction force

kN

≥55

Gradeability

°

≥25

Maximum traveling speed

km/h

30

Turning radius

mm

≤4750

Braking distance

m

≤8

Overall length

mm

6380

Overall width

mm

2500

Overall height

mm

2740

Wheelbase

mm

2980

Wheel tread

mm

2060

Fork length

mm

1200

Bale clamp diameter

mm

800-1800



XCMG new 14m telescopic forklift handler XC6-3514K priceXCMG new 14m telescopic forklift handler XC6-3514K priceXCMG new 14m telescopic forklift handler XC6-3514K price
