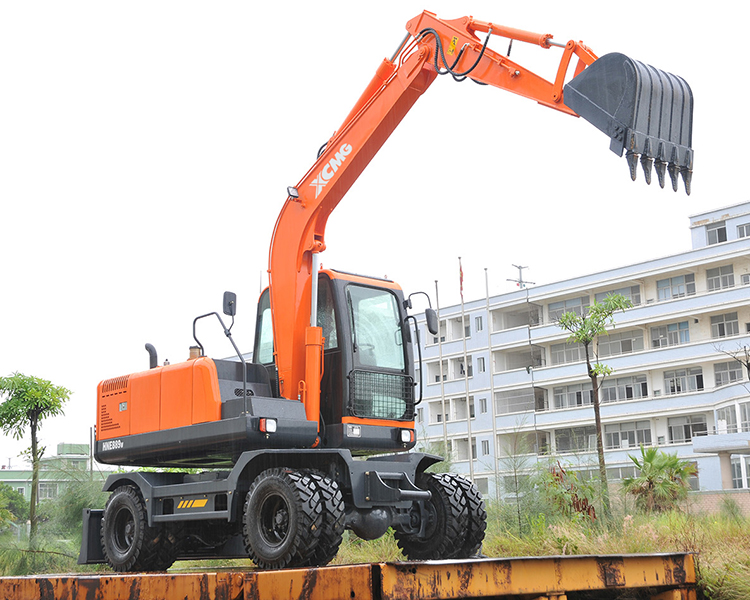

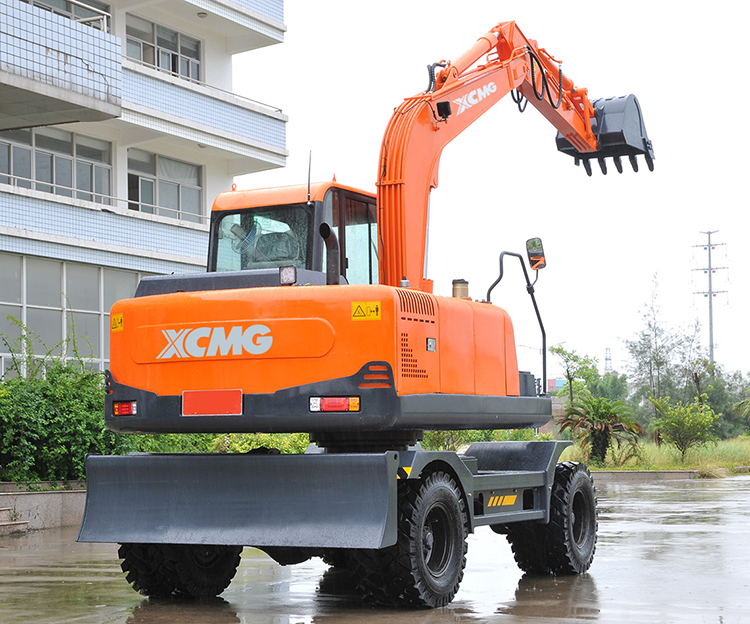

XCMG 9 ton wheel excavator HNE90W with spreader price
Summary
- Rated Speed:32km/h
- Machine Weight:8200kg
- Maximum Digging Depth:3800mm
- Maximum Digging Height:6500mm
- Bucket Capacity:0.4m3
- Operating Weight:8200kg
- Model Number:HNE90W
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu,China
Specifications
- Weight:8200.000kg
- Condition:New
- Moving Type:Other
- Power:55kW
- Overall dimension:5800*2120*2850mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG 9 ton wheel excavator HNE90W with spreader.
HNE90W wheel excavator is our independent research and development machine according to market demand, and reference domestic and abroad advanced technology of similar models. The main parts are from Sino-foreign joint ventures and domestic well-known manufacturers. The performance indicators are better than similar products in the domestic market.
Applied Range:
HNE90W wheel excavator are widely used in construction engineering, municipal engineering, urban and rural landscape, road traffic construction remolds, station dock, irrigation and water conservancy, rustic home construction, and minor works for loading and transporting earth and stone block etc., also can be matched well with kinds of lorry, tractor, agricultural vehicle and construction machinery etc.
Auxiliary tools:

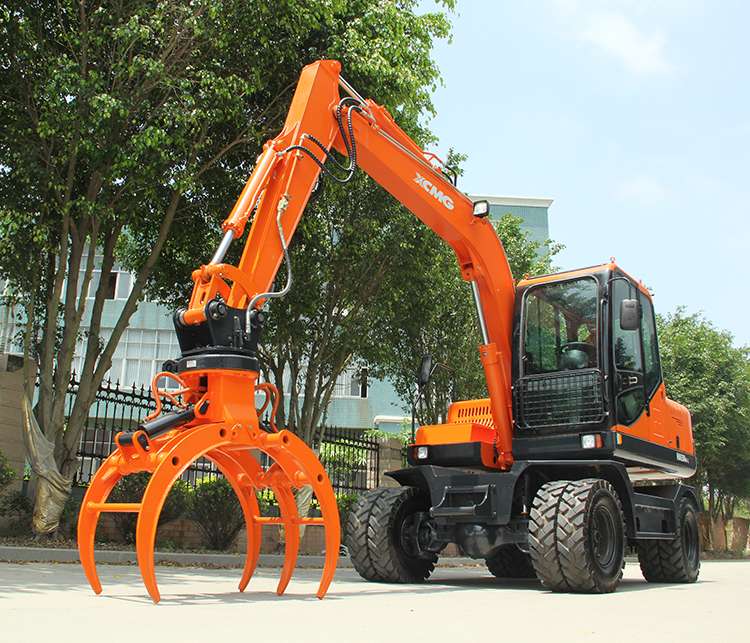

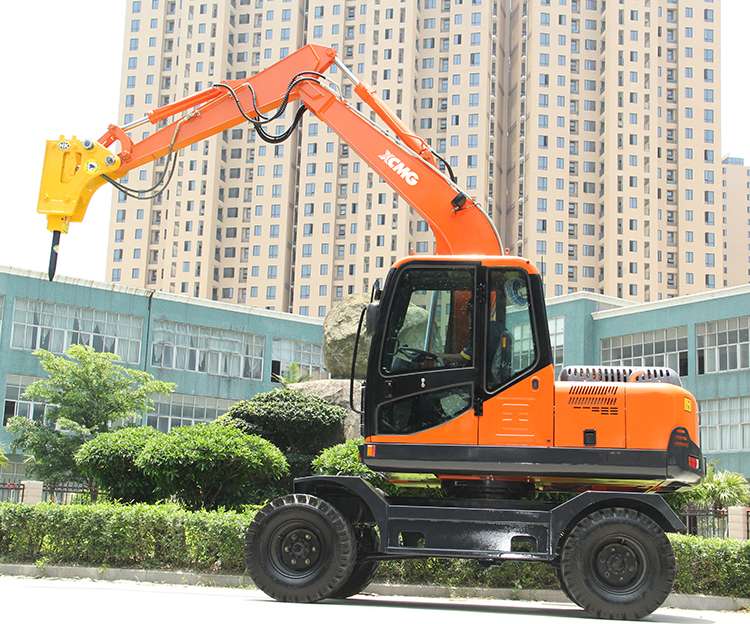

Breaker Hammer, Clamshell Bucket, Grapple
|
Working ranges |
|
|
Boom length |
3500mm |
|
Arm length |
1900mm |
|
Max. Digging depth |
3700mm |
|
Max. Digging height |
6400mm |
|
Max. Dumping height |
4830mm |
|
Min. Swing radius |
2230mm |
|
Rear tail swing radius |
1800mm |
|
Performance |
|
|
Operating weight |
7500kg (with blade, out trigger) |
|
Engine Rated power (Model XINCHAI A498BPG-515) |
55KW |
|
Bucket capacity |
0.22m³ |
|
Hydraulic system working pressure |
22Mpa |
|
Swing speed |
11.5r/min |
|
Traveling speed |
32Km/h |
|
Bucket digging force |
45KN |
|
Arm crowd force |
28KN |
|
Max. Grade ability |
30° |
|
Ground pressure |
49Kpa |
|
Dimension |
|
|
Overall length |
5800mm |
|
Overall width |
2120mm |
|
Overall height |
2850mm |
|
Min. Ground clearance |
220mm |
|
Wheel base |
2450mm |
