Summary
- Place of Origin:Jiangsu,China
- Model Number:KAT1004
- Brand Name:XCMG
- Power(W):73.5kW
- Drive Type:4×4
- Usage:Farm Tractor
- By wheel:4WD
- Type:Tractors
- Certification:CE/ISO9001
Specifications
- Weight:5100.000kg
- Condition:New
- Moving Type:Other
- Dimension(L*W*H):4840×2160×2990mm
- Max.Pulling Force:24kN
- Max.Lifting Capacity:25kN
- Power Type:Diesel

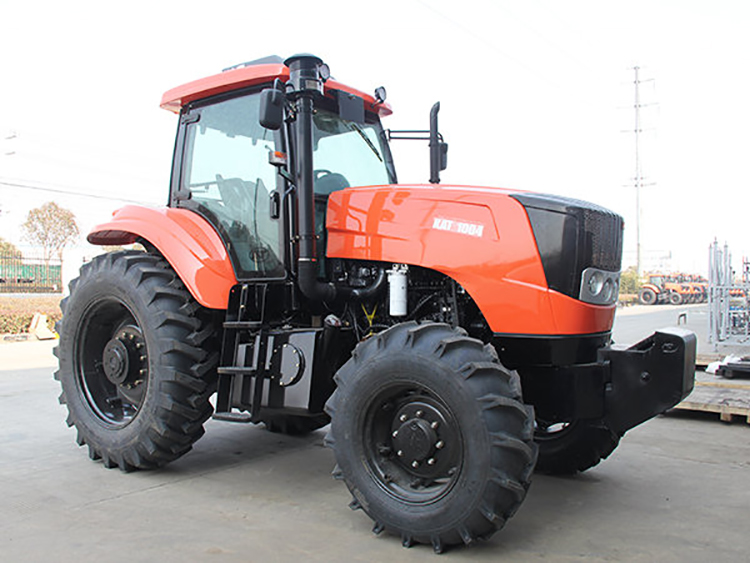

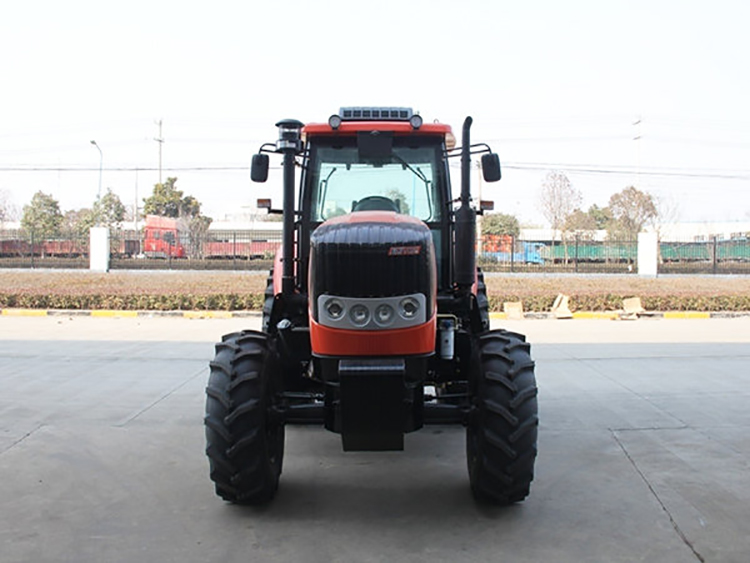

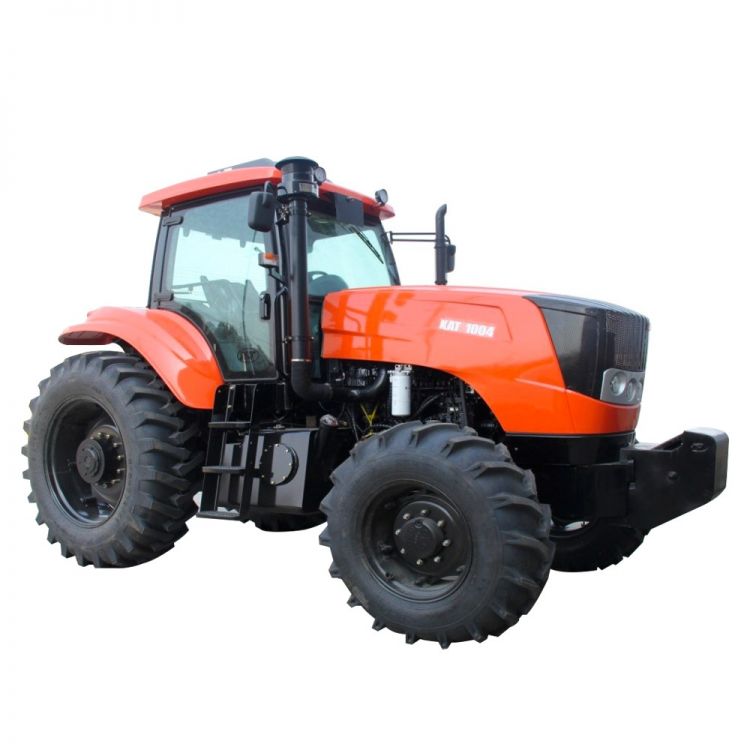

4×4 tractors KAT1004 China 100hp farming wheel tractor
4WD agriculture tractor.
XCMG KAT1004 wheeled tractor is a versatile agricultural
wheeled tractor. The machine has strong momentum, big traction, flexible
steering, big lifting force and easy maintenance and other features.
XCMG KAT1004 tractor equipped weichai Deutz four cylinder
engine(turbocharger, intercooling)is designed with 12 hours rated
power(73.5kw), fully enclosed cab, air heater, 16+4 shifts of transmission.
The tractor has shifting synchronizer, integrated frame,
driving system with modularized structure，DANA front axle，construction machinery rear axle,
caliper disc brake, replaceable power output shaft, fully hydraulic front wheel
steering.
|
Description |
Unit |
Parameter value |
||
|
Engine |
Power/speed |
kW/r/min |
73.5(100)/2300 |
|
|
Specific Fuel Consumption |
g/kw.h |
≤230 |
||
|
Drive Type |
4×4 |
|||
|
Dimension (Length/Width/Height) |
mm |
4840/2160/2990 |
||
|
Wheel Base |
mm |
2688 |
||
|
Track (Front wheel) |
mm |
1552-1948 |
||
|
Track (Rear wheel) |
mm |
1626-2150 |
||
|
Min. Ground Clearance |
mm |
480 |
||
|
Mi. Running weight |
kg |
5100 |
||
|
Front counter weight |
kg |
400 |
||
|
Rated Traction Force |
kN |
24 |
||
|
No. of gear |
16F+4R |
|||
|
Forward Gear Speed |
km/h |
3-33 |
||
|
Reverse Gear |
km/h |
6-28 |
||
|
Tyre Model |
Front Tires |
14.9-24 |
||
|
Rear Tires |
16.9-38 |
|||
|
Power-output shaft Type |
Rear position or independent |
|||
|
power-output shaft Rated Speed |
r/min |
540/1000 |
||
|
Max. Pull-down piston pull |
kN |
25 |
||
