Summary
Specifications
- weight:21000.000kg
- Condition:New
- Moving Type:Wheel
- Engine Brand:SHANGCHAI
- Rated Load:1-2 ton
- Bucket Capacity:0.5 - 2m³
- Brand Name:XCMG
- Model:LW500KNV-T18
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG Official LW500KN-T18 18 ton forklift wheel loader.

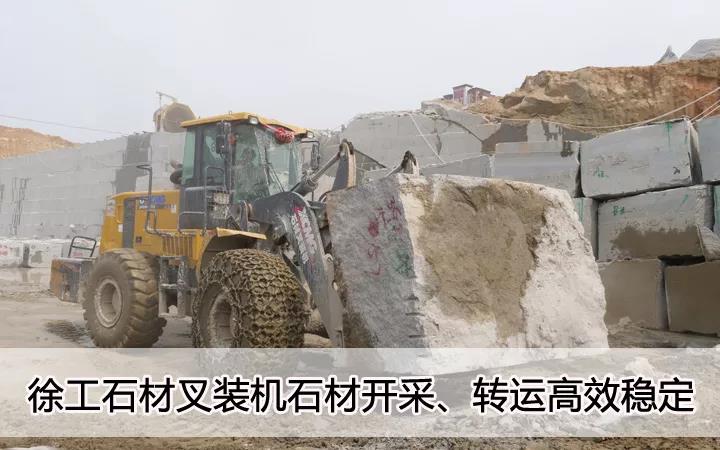

LW500KN-T18 stone forklift loader is a special machine developed by XCMG for the operation demands of mining and transport of diversified stone materials. With design optimization, it's capable of forklifting >18t material (with ground clearance no more than 1,500). The main features are as below:
- 1.The Z-shaped link mechanism designed espeially for stone operating cnditions features high breakout force and loading capacity and the classic double-rocker structure ensures a broad operating view.
2.The extended wheelbase and wheel tread and ultra-high ballast realize good working stability of the machine.
3.The China-lIl engine, high reliability XCMG's electronic control countershaft transmission, and the reinforced dry-type drive axle are matched perfectly to save the fuel and reduce the consumption.
4,The higher dumping height and dumping distance, extensive rotation angle scope of forks, and adjustable fork spacing are suitable to diversified operation needs, induding the forklifting and overturning of stones.
5.The 23.5-25 24PR engneering tires are suitable to diversified severe road conditions, featuring powerful off-road performance. The optional tire chains are at your choice.
6.The high ground clerance,small tuming radius, and high depature angle of the classis can adapt to various complicated operation conditions.
|
Parameter |
Specifications |
Unit |
|
|
Operating weight |
21000 |
kg |
|
|
Rated power |
162 |
kw |
|
|
Rated lifting capacity |
18 |
t |
|
|
Fork size(LxW) |
1500x1014 |
mm |
|
|
Loading capacity at highest position |
14000 |
kg |
|
|
Gradeability |
Unloaded |
15 |
° |
|
Full-load |
23 |
° |
|
|
Working device actuation time |
Lifting under rated load |
≤8.5 |
s |
|
Forward tilting of forks |
≤1.0 |
s |
|
|
Lowering under no-load |
≤6.5 |
s |
|
|
Total cycle time |
≤16 |
s |
|
|
Tire specification |
Front wheels |
23.5-25-24PR |
- |
|
Rear wheels |
23.5-25-20PR |
- |
|
|
Overall dimensions(LxWxH) |
8180x2950x3515 |
mm |
|
|
Max. machine height |
4470 |
mm |
|
|
Dumping height(22.5°) |
2410 |
mm |
|
|
Dumping range(22.5°) |
1900 |
mm |
|
|
Max. lifting height |
3050 |
mm |
|
|
Material transport height |
480 |
mm |
|
|
Turning radius |
Tire center |
6600 |
mm |
|
Material transport of forks |
6440 |
mm |
|
|
Wheelbase |
3410 |
mm |
|
|
Wheel tread |
2350 |
mm |
|
