Summary

Model Number:XCA130_E
Brand Name:XCMG
Place of Origin:China
Rated Loading Capacity:130t
Certification:CE/ISO9001

Specifications

Weight:60000.000kg
Condition:New
Moving Type:Wheel
Color:Red
Wheel base:2500+1650+2100+1650mm
Front/ Rear overhang:2582/2359mm
Front/ Rear extension:2161/0mm
Max. travel speed :80(14.0R25)/85(16.0R25/20.5R25)km/h
Min. stable travel speed:3km/h
Max. total rated lifting capacity:130t
Min. rated working radius:3m

Packaging & Shipping

Delivery Lead Time:7 days for ready goods
Minimum Order:1 Piece
Supply Ability:10,000 Set/ Sets per Month
Total Quantity In Stock:Over 5000
Delivery Port:Any Port In China

XCMG Official 130ton All Terrain Crane XCA130_E (Euro stage IV) for sale

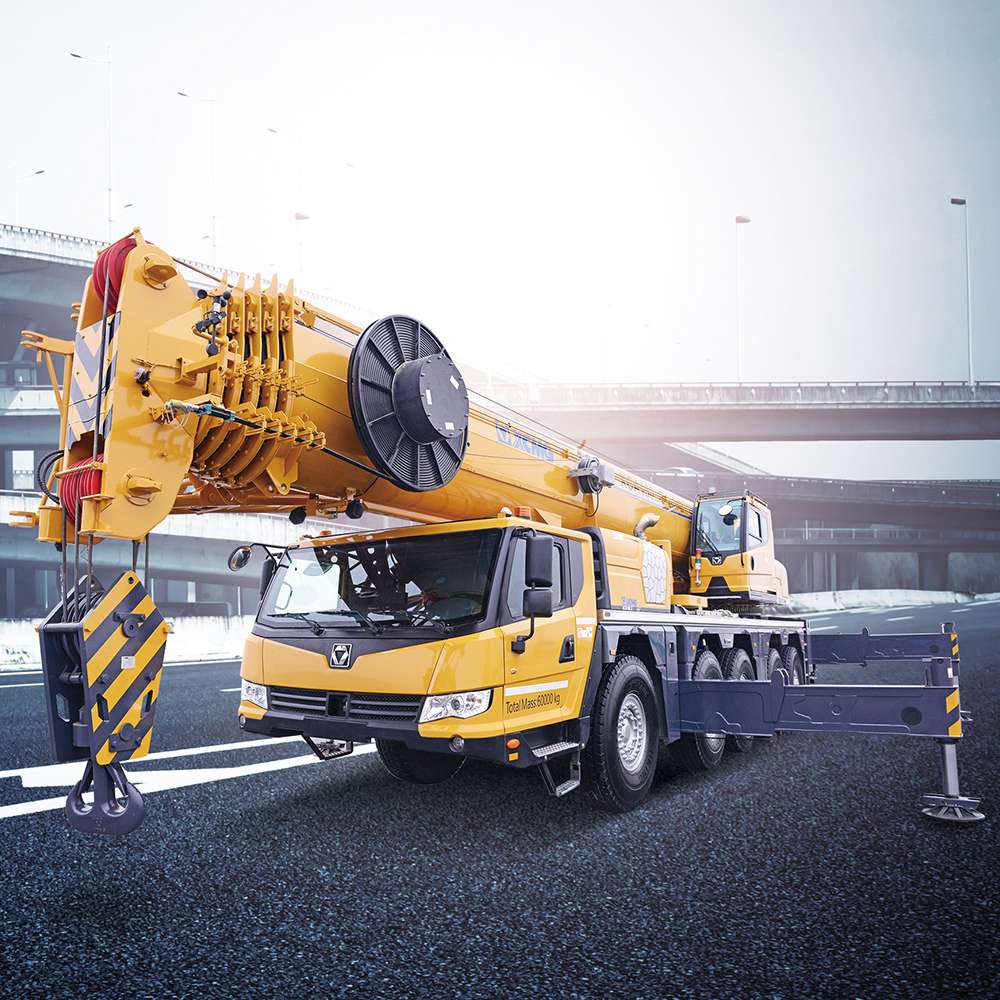

Intelligent five-axle all terrain crane with high job site transfer performance.

Wireless remote control technology is applied, so the remote control of outriggers, lifting, elevating, counterweight erection, jib unfolding and folding with one person can be realized. Efficient job site transfer with various axle loads is realized, so job site transfer is more convenient.

The min. stable slewing speed is 0.1°/s. The min. stable lifting speed (at drum) is 2.5m/min. Precise and safe lifting movements can be realized. Dual-pump separate and confluent control technology brings higher compound movement performance in the industry with higher working efficiency.

XCMG Official 130ton All Terrain Crane XCA130_E (Euro stage IV) for sale

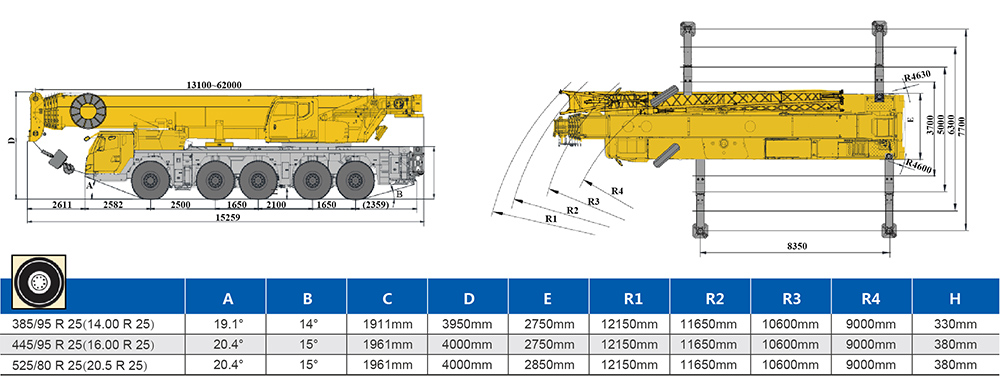

Item			Unit	Parameters
Dimensions	Outline size (lengthxwidthxheight)		mm	15259x2750x3950(14.0R25)
				15259x2750x4000(16.0R25)
				15259x2850x4000(20.5R25)
	Wheel base		mm	2500+1650+2100+1650
	Track(Front/ Rear)		mm	2296(14.0R25)/2340(16.0R25)/2308(20.5R25)
	Front/ Rear overhang		mm	2582/2359
	Front/ Rear extension		mm	2161/0
Weight	Max. permissible total weight		kg	60000
	Axle load	1st axle	kg	12000
		2nd axle	kg	12000
		3rd axle	kg	12000
		4th axle	kg	12000
		5th axle	kg	12000
Power	Engine model		——	OM471LA
	Engine rated power/rpm		kW/(r/min)	360/1700
	Max. net power/rpm		kW/(r/min)	360/1700
	Max. output torque/rpm		N.m/(r/min)	2300/1300
	Emission standard		——	EU Stage IV/EPA Tier 4F
Travel	Max. travel speed		km/h	80(14.0R25)/85(16.0R25/20.5R25)
	Min. stable travel speed		km/h	3
	Min. turning diameter		m	≤18(Tight-turning radius mode, five-axle steering) ≤22(Normal road mode, five-axie steering)
	Min. turning diameter at boom tip		m	≤23.3(Tight-turning radius mode, five-axle steering) ≤27.2(Normal road mode, five-axle steering)
	Min. ground clearance		mm	330(14.0R25)/380(16.0R25/20.5R25)
	Approach angle		°	19.1(14.0R25)/20.4(16.0R25/20.5R25)
	Departure angle		°	14(14.0R25)/15(16.0R25/20.5R25)
	Braking distance (at 30 km/h )		m	≤10
	Max. grade ability		%	63(14.0R25)/63(16.0R25/20.5R25)
	Fuel consumption per 100 km		L	65
Main performance	Max. total rated lifting capacity		t	130
	Min. rated working radius		m	3
	Turning radius at turntable tail	Counterweight	mm	4630/4335
	Turning radius at turntable tail	Auxiliary winch	mm	4600
	Max. load moment	Base boom	kN.m	4468
		Fully-extended boom	kN.m	2297
		Fully-extended boom + Jib	kN.m	1976
	Outrigger span	Longitudinal	m	8.35
	Outrigger span	Lateral	m	7.7
	Hoist height	Base boom	m	12.1
		Fully-extended boom	m	61.5
		Fully-extended boom + Jib	m	92.5
	Boom length	Base boom	m	13.1
		Fully-extended boom	m	62
		Fully-extended boom + Jib	m	94.5
	Jib offset angle		°	0、20、40
Working speed	Boom raising time		s	≤65
	Boom fully extended time		s	≤630
	Max. slewing speed		r/min	≥1.65
