XCMG factory 220 ton cheap stock all terrain crane QAY220 on sale
Summary
- Model Number:QAY220
- Brand Name:XCMG
- Place of Origin:Xuzhou,Jiangsu,China
- Max. Lifting Height:94.7m
- Max. Lifting Load:220 ton
- Rated Lifting Moment:6774kN·m
- Rated Loading Capacity:220 ton
- Application:Construction
- Certification:CE/ISO9001
Specifications
- weight:72000.000kg
- Condition:New
- Moving Type:Wheel
- Color:Color
- Overall dimension:15850*3000*3970mm
- Engine rated power:162/2100kw/(r/min)
- Engine rated torque:854/1400N.m/(r/min)
- Max.travel speed:72km/h
- Min.turning diameter:23m
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

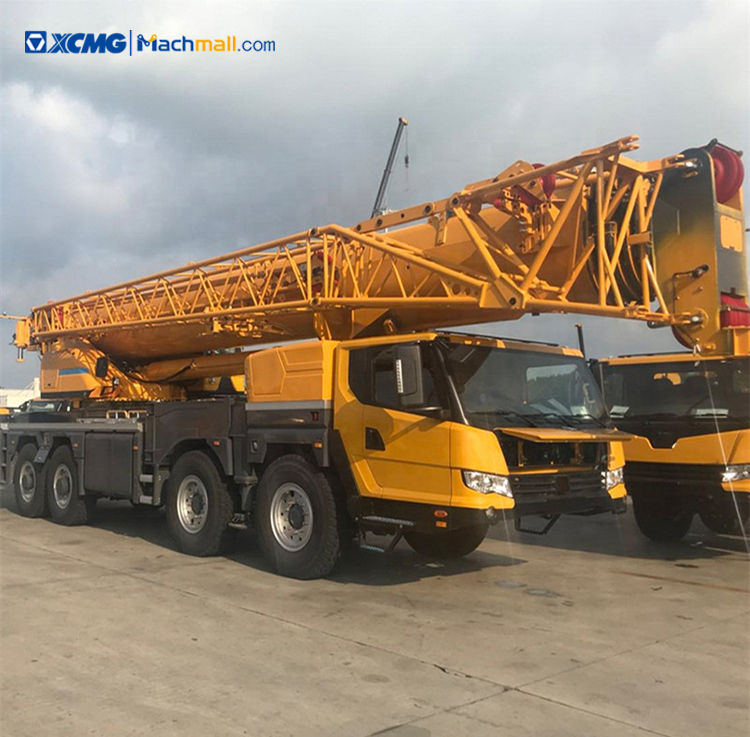

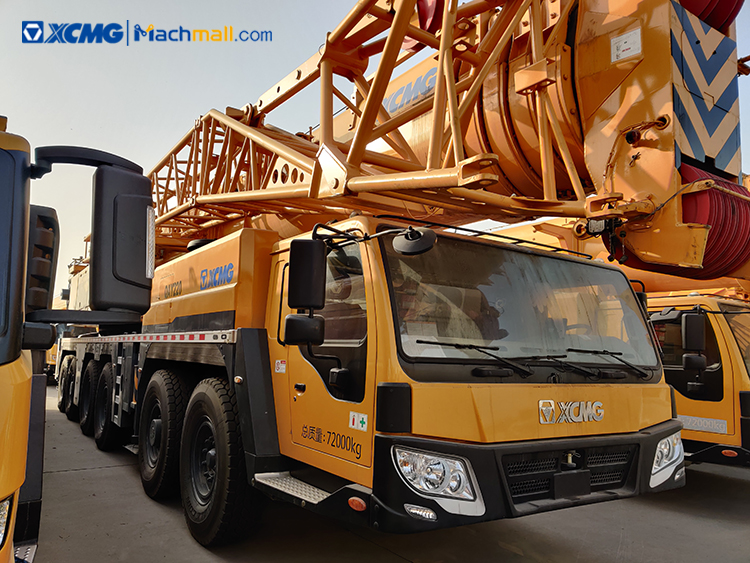

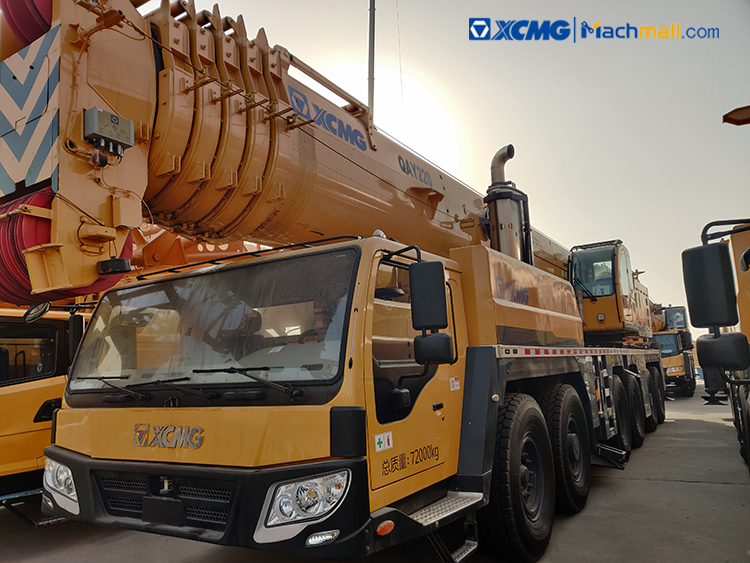

XCMG factory 220 ton cheap stock all terrain crane QAY220.
XCMG QAY220 all terrain crane inherits the 222 patent techniques and 38 new patents techniques.
XCMG all terrain crane QAY220 adopts 6-axle chassis, 12x12 full-axle steering, 6-segment retractable boom, and oval section.
Performance Characteristics:
1. The variable section technique make XCMG all terrain crane QAY220 has big antitorque and high stability. The optimized various retractable boom combination play the performance to the most.
2. The self-combination counterweight technique developed by XCMG can effectively improve the lifting performance by 30%.
3. The electrohydraulic proportion control multi-axle steering mode can realize many kinds of steering modes.
4. The new brake technique can reduce 2/3 maintenance cost, and improve the travel safety. The comfortable cabs and outrigger operation completely show the humanity design concept.
5. Equip with the XCMG unique control system, auxiliary retractable boom system, virtual wall system, perfect failure diagnosis, real-time detection, CAN technique, etc.
|
Item |
Unit |
QAY220 |
|
Size parameters |
||
|
Overall dimension |
mm |
15850*3000*3970 |
|
Wheelbase |
mm |
1650+3200+1650+2300+1650 |
|
Weight parameter |
||
|
Total mass in driving state |
kg |
72000 |
|
Axle load |
kg |
12000×6 |
|
Dynamic parameters |
||
|
Engine model (on the car) |
|
TAD720VE |
|
Engine rated power |
kw/(r/min) |
162/2100 |
|
Engine rated torque |
N.m/(r/min) |
854/1400 |
|
Engine model (get off) |
|
OM502LA.E3A/3 |
|
Engine rated power |
kw/(r/min) |
442.6/1800 |
|
Engine rated torque |
N.m/(r/min) |
2700/1300 |
|
Driving parameters |
||
|
Driving |
||
|
Max.travel speed |
km/h |
72 |
|
Min.stable driving speed |
km/h |
2 |
|
Turn |
||
|
Min.turning diameter |
m |
23 |
|
Max.grade |
% |
50(72t) |
|
Min.ground clearance |
mm |
270 |
|
Approach angle |
° |
16 |
|
Departure angle |
° |
18 |
|
Braking distance |
m |
≤10 |
|
Fuel consumption per hundred kilometers |
L |
83 |
|
Main performance parameters |
||
|
Max.rated total lifting capacity |
t |
220 |
|
Min.rated range |
m |
3 |
|
Max.lifting moment of basic boom |
kN·m |
6774 |
|
Turntable tail radius of gyration |
mm |
5087 |
|
Outrigger |
||
|
Vertical |
m |
8.8 |
|
Horizontal |
m |
8.7(6.5) |
|
Max.lifting height |
||
|
Basic arm |
m |
14.1 |
|
Longest main arm |
m |
63.5 |
|
Longest main boom + secondary boom |
m |
94.7 |
|
Boom length |
||
|
Basic arm |
m |
13.6 |
|
Longest main arm |
m |
64 |
|
Longest main boom + secondary boom |
m |
96 |
|
Working speed |
||
|
Max.swing speed |
r/min |
1.9 |
