Summary
- Model Number:XCA180
- Brand Name:XCMG
- Place of Origin:Xuzhou,Jiangsu,China
- Max. Lifting Height:103m
- Max. Lifting Load:180 ton
- Rated Lifting Moment:3000kN.m
- Rated Loading Capacity:180 ton
- Application:Construction
- Certification:CE/ISO9001
Specifications
- Weight:60000.000kg
- Condition:New
- Moving Type:Wheel
- Color:Color
- Engine rated power:162/2100-360/1800kW/(r/min)
- Engine rated torque:2200/1100N.m/(r/min)
- Max. travel speed:80km/h

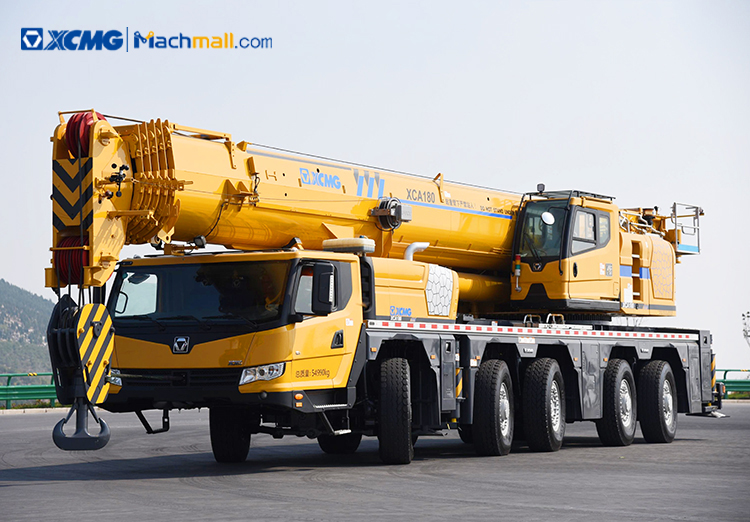

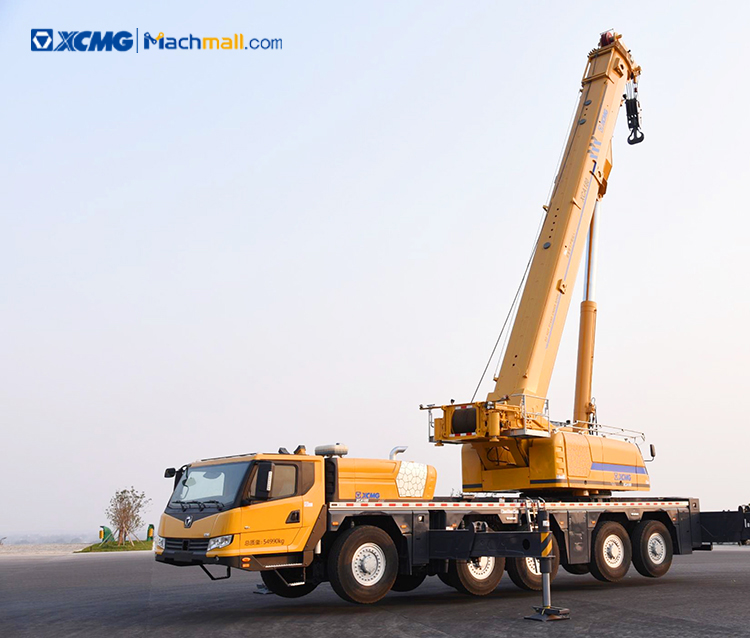

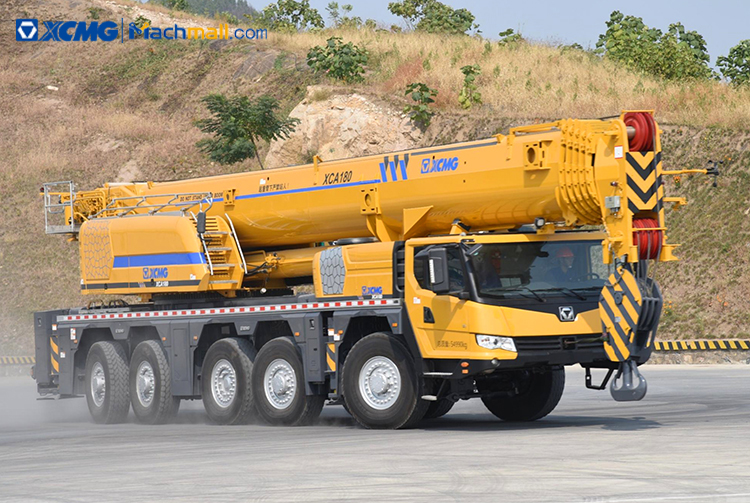

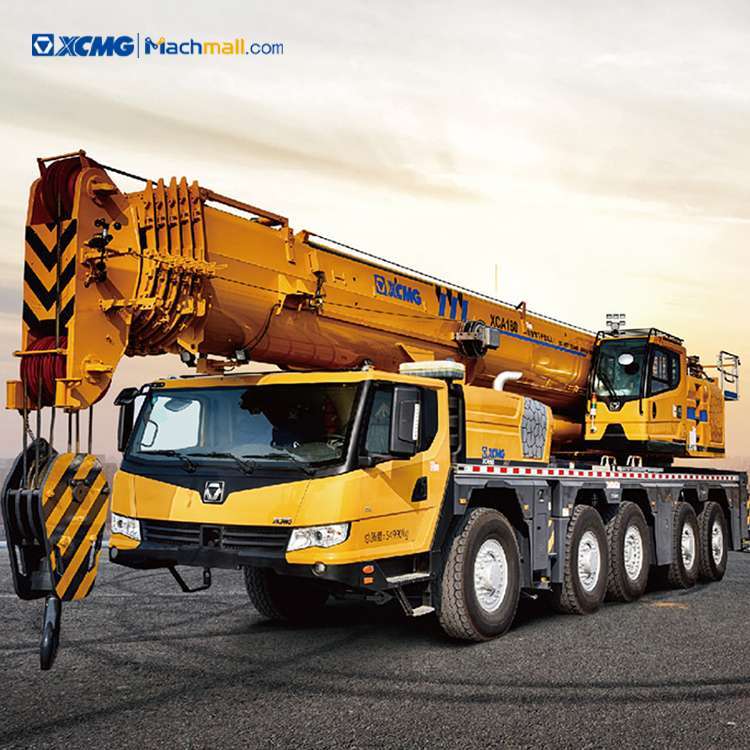

180 ton XCMG mobile all terrain truck crane XCA180.
XCMG all terrain crane XCA180 adopts new fully closed hydraulic system for lifting system is available,equipped with double-variable fine control adjusting system and control strategies, contributing to stable and smooth operation.
Performance Characteristics:
1. Super lifting performance
Six-section boom of 64m. Fixed jib of 11m-18.5m, and three boom extensions with each length of 7m are available.

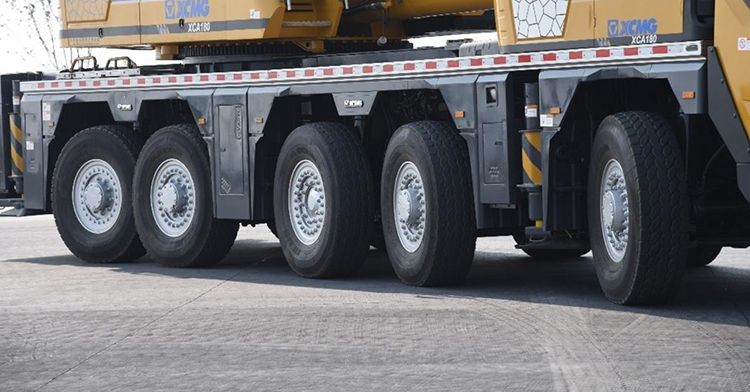

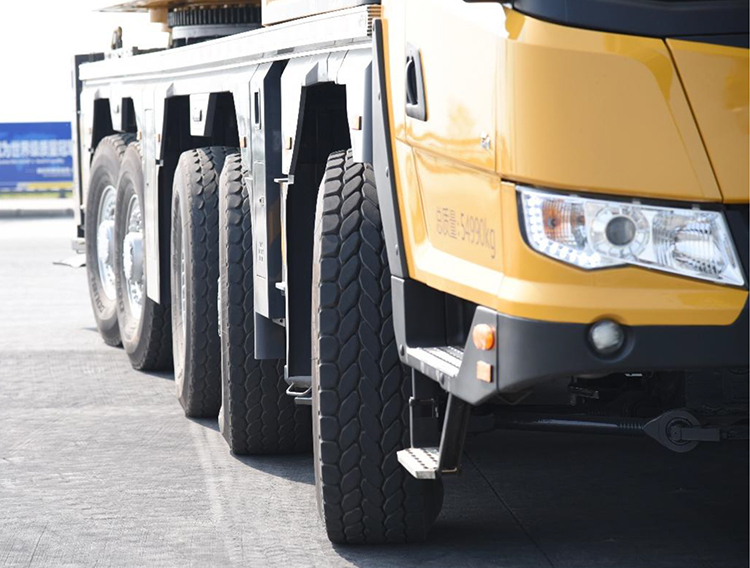

2. High mobility
All-axle steering, small turning radius and free changeover of 6WD/8WD are available. 6WD is used to drive on roads, which is more economic. 8WD is suitable for off-road travel and jobsite transfer.
3. New highly efficient energy-saving hydraulic system
Min. stable lifting speed (at drum) is 0.8-1m/min, and min. stable slewing speed is 0.1°/s.
4. Power and traveling performance
Electronic diesel engine, rated power 356kW, max. torque 2300N.m.
