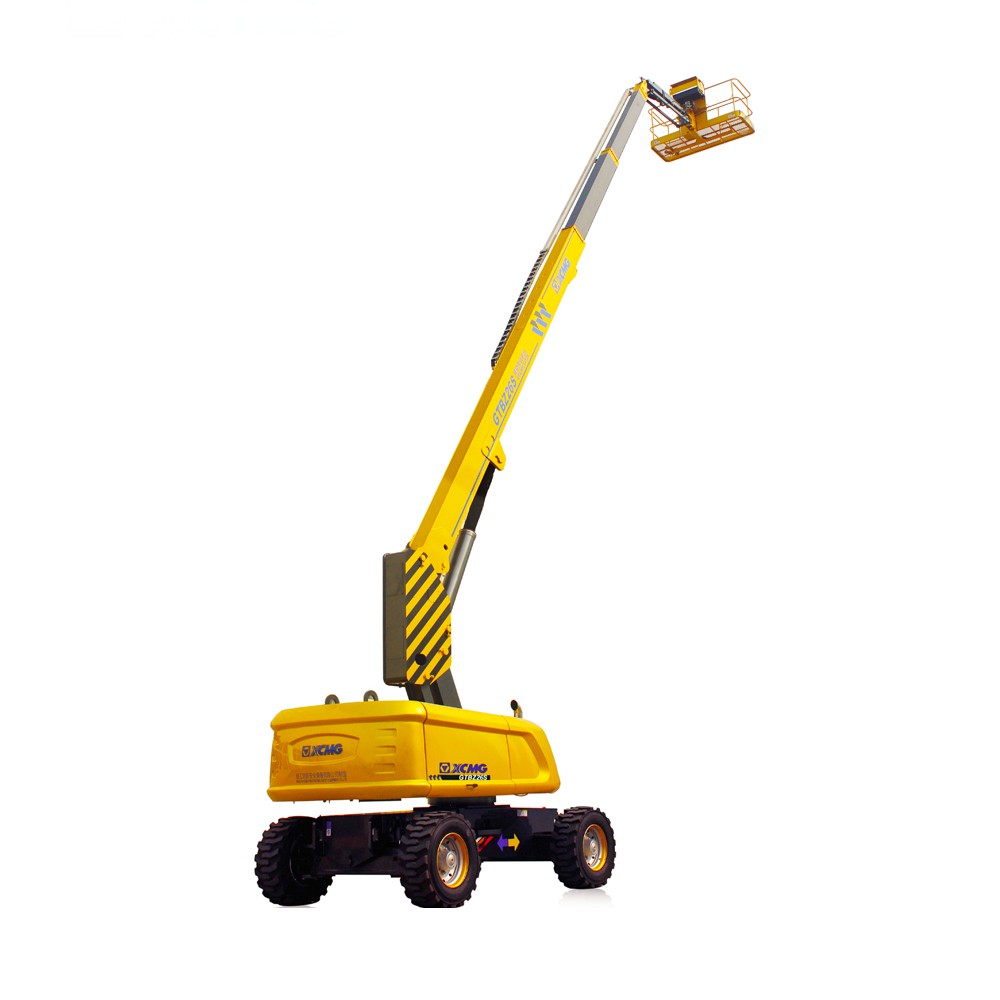

XCMG Official 26m Telescopic Aerial Work Platform GTBZ26S

  • XCMG Official 26m Telescopic Aerial Work Platform GTBZ26S
  • XCMG Official 26m Telescopic Aerial Work Platform GTBZ26S
  • XCMG Official 26m Telescopic Aerial Work Platform GTBZ26S

Share:
XCMG Official 26m Telescopic Aerial Work Platform GTBZ26S
FOB for Special Mach Reference Price:Get Latest Price
Chat Now 1 / EA (Min. Order)
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping
Payment Terms:
XCMG Official 26m Telescopic Aerial Work Platform GTBZ26S
  • Summary
  • Details
Summary
  • Weight:16600kg
  • Table Size:2400×900mm
  • Rated Loading Capacity:340kg
  • Power:53/(2200)kW/(r/min)
  • Model Number:GTBZ26S
  • Brand Name:XCMG
  • Place of Origin:China
  • Certification:CE/ISO9001
  • Max. Lifting Height:28.2m
  • Overall Dimension(L*W*H):12100×2490×3050mm
Details
  • Product Name:G5CDBB5454CD5A
  • Display online time:2019-11-14
  • weight:16600.000kg
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Warranty:12 Months
  • Condition:NEW
  • Moving Type:wheel
  • Max. Working Height:27.9m
  • Max. Platform Height:26.2m
  • Max. Working Range:23.2m
  • Rotation Angle of Platform:180°
  • Max. Travel Speed:6.1km/h
  • Max. Tail Wagging:1400mm
  • Min. Turning Radius:6.7m
  • Max. Grade Ability:0.45
  • Min. Ground Clearance:320mm

1、Ability in Fast Access to the Construction Area

The boom driven by a single cylinder and the synchronously amplitude-varying and lifted stand column enhance the operating speed, and realize the fast access to the construction area, which will improve the construction efficiency.

2、Better Adaptability to Poor Construction Enviroment

The application of a lubrication-free shaft sleeve and slider relieves the friction between each hinge point for connection and inter-arm slider, thus resulting in better adaptability to welding and dusty enviromeent.

3.Advanced power system integration control

Electronic-controlled engine is adopted as the dynamical system, oil pressure, water temperature, rotating speed, sensor etc. are integrated by engine and controlled through ECU, which is safe and reliable. Meanwhile, there is a fault diagnosis interface as supporting for convenient of fault diagnosis and maintenance.


XCMG Official 26m Telescopic Aerial Work Platform GTBZ26S

XCMG Official 26m Telescopic Aerial Work Platform GTBZ26S

Description

Unit

Parameter value

Overall Length

mm

12100

Overall Width

mm

2490

Overall Height

mm

3050

Wheel Base

mm

3000

Maximum Working Height

m

27.9

Maximum Platform Height

m

26.2

Maximum Working Range

m

23.2

Maximum Load Capacity

kg

340

Boom luffing Range

°

-5+75

Crank Arm Luffing Range

°

-65+70

Rotation Angle of Rotating Platform

°

360

Maximum Tail Wagging

mm

1400

Platform Size

mm

2400×900/1800×800

Rotation Angle of Platform

°

180

Total Weight

kg

16600

Maximum Travel Speed

km/h

6.1

Minimum Turning Radius

m

6.7

Minimum Ground Clearance

mm

320

Maximum Grade Ability

%

45

Tire Specification

385/65-22.5

Engine Model

Foton CumminsQSF2.8-71HP

Rated Power of Engine

kW/(r/min)

53/(2200)






























XCMG Official 26m Telescopic Aerial Work Platform GTBZ26S
