XCMG XGS58 58m 74kw hydraulic mobile straight arm aerial platform telescopic boom lift for sale

$50000.00-$200000.00 1 / EA (Min. Order)
Model: XGS58
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
XCMG XGS58 58m 74kw hydraulic mobile straight arm aerial platform telescopic boom lift for sale

Content:

*Email:

Full Name:

Mobile phone:

  • Summary
  • Specifications
  • Product PDF

Summary

  • Weight:27200kg
  • Overall Dimension:19450*2490*3050mm
  • Table Size:2400*900mm
  • Max Lifting Height:58m
  • Rated Loading Capacity:230/450kg
  • Power:74.4KW
  • Lift Drive / Actuation:Hydraulic
  • Lift Mechanism:Telescopic lift
  • Model Number:XGS58
  • Brand Name:XCMG
  • Place of Origin:Jiangsu, China
  • Certification:CE/ISO9001

Specifications

  • Weight:27200.000kg
  • Condition:New
  • Moving Type:Wheel
  • Min. ground clearance:0.25m
  • Min. turning radius:9.5/6.6m
  • Maximum traveling speed:4.5km/h
  • Wheelbase:5.22/4.59m
  • Max. gradeability:45%

XCMG XGS58 58m 74kw hydraulic mobile straight arm aerial platform telescopic boom lift for sale

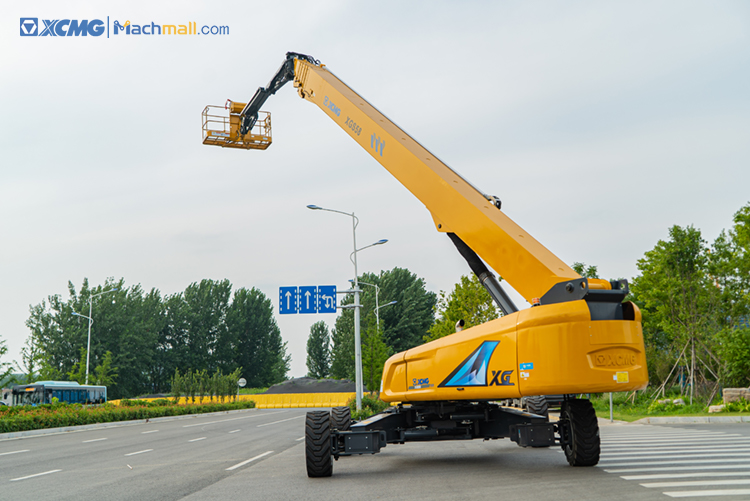

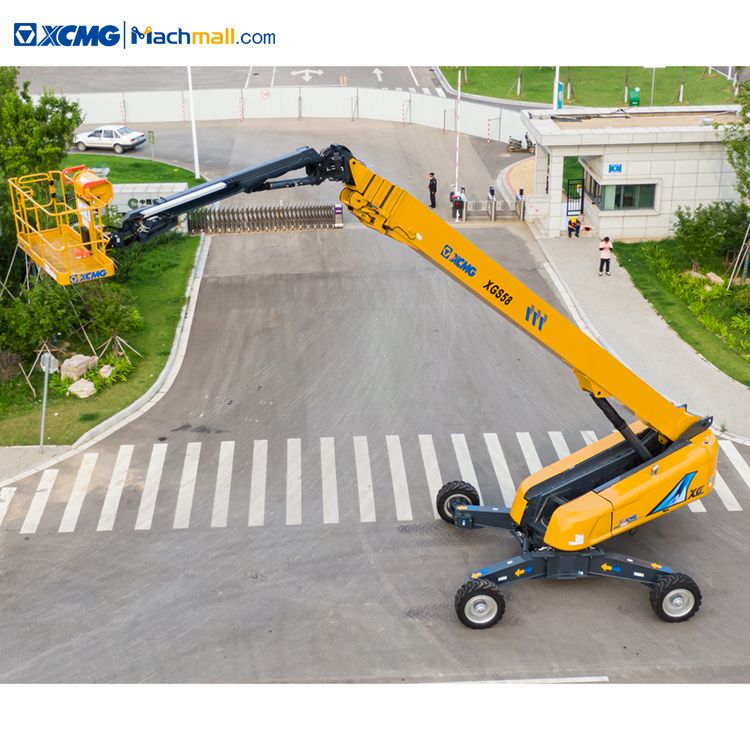

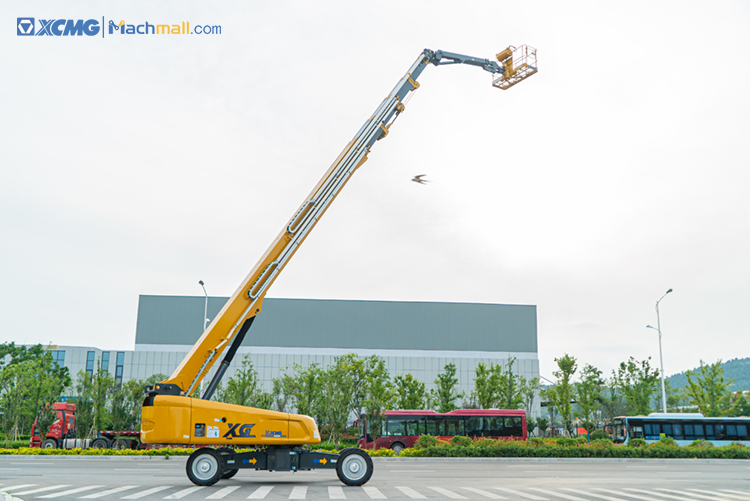

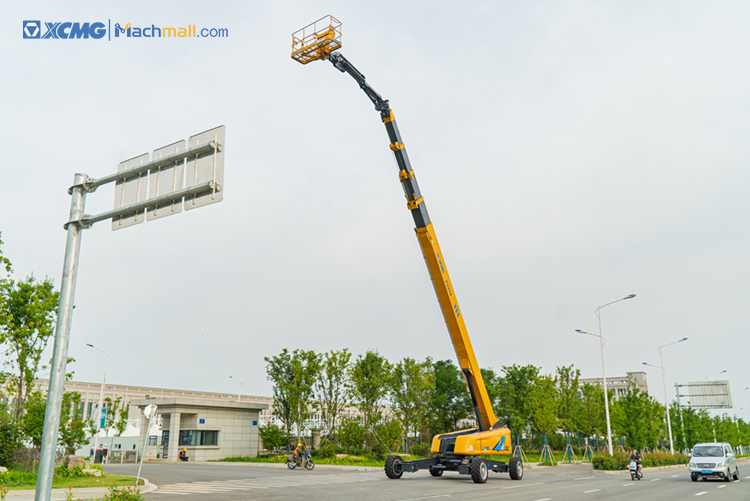

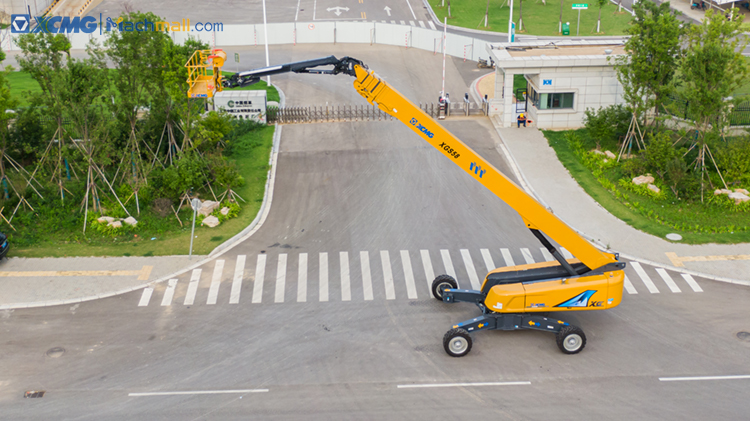

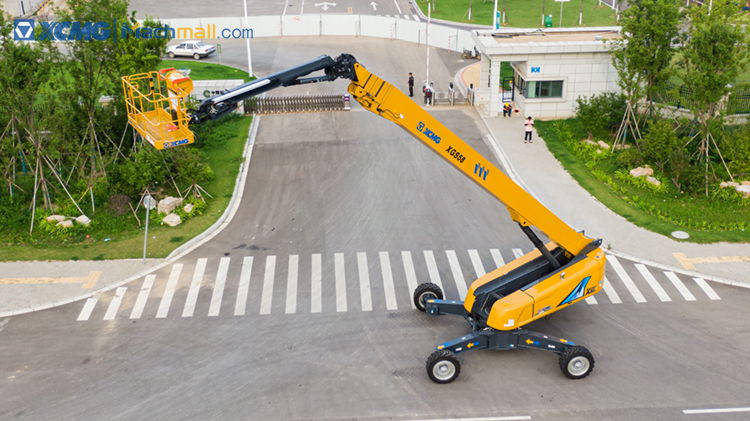

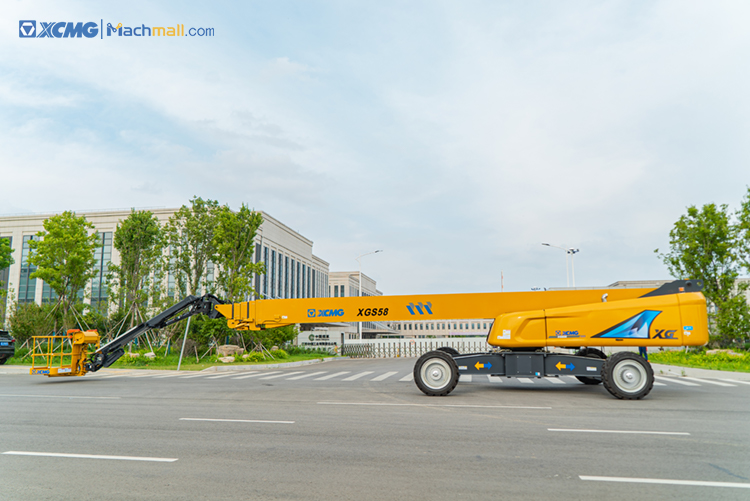

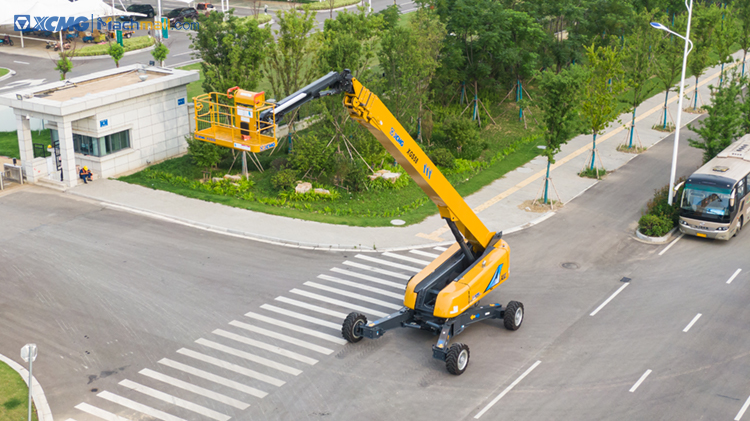

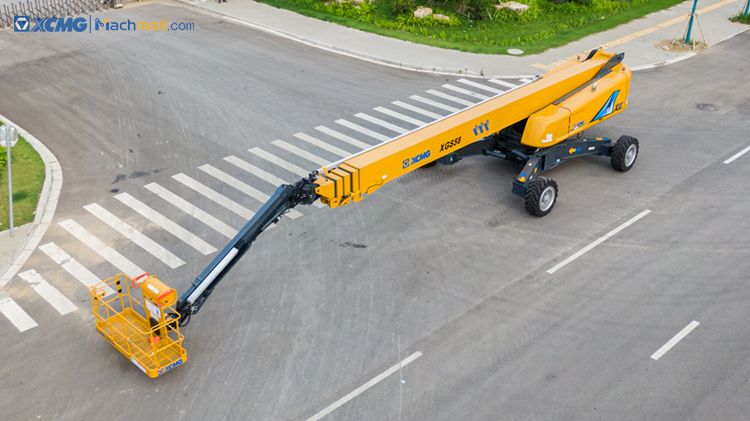

XCMG XGS58 58m 74kw hydraulic mobile straight arm aerial platform telescopic boom lift.



XCMG XGS58 58m 74kw hydraulic mobile straight arm aerial platform telescopic boom lift has a number of core technologies such as X-type swing-leg all-wheel steering, dual-leveling cylinder proportional leveling, precise and smooth manipulation, power self-matching energy-saving hydraulic control system, and intelligent Internet of Things, showing the king posture.

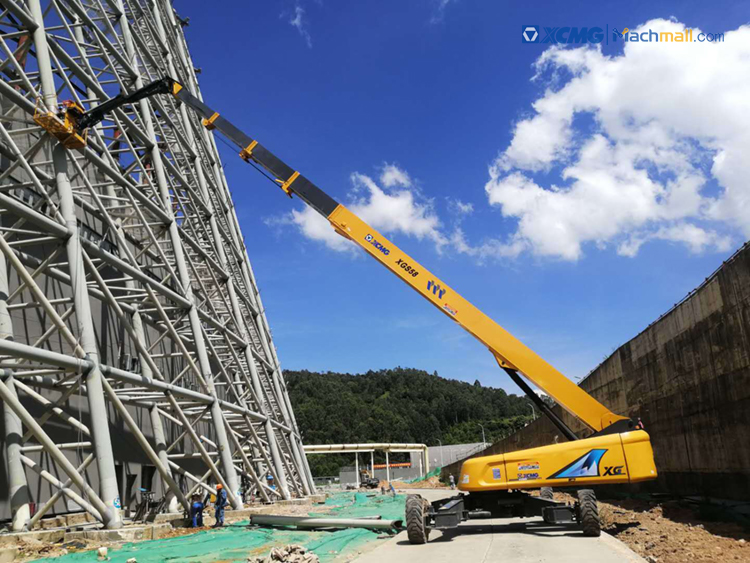

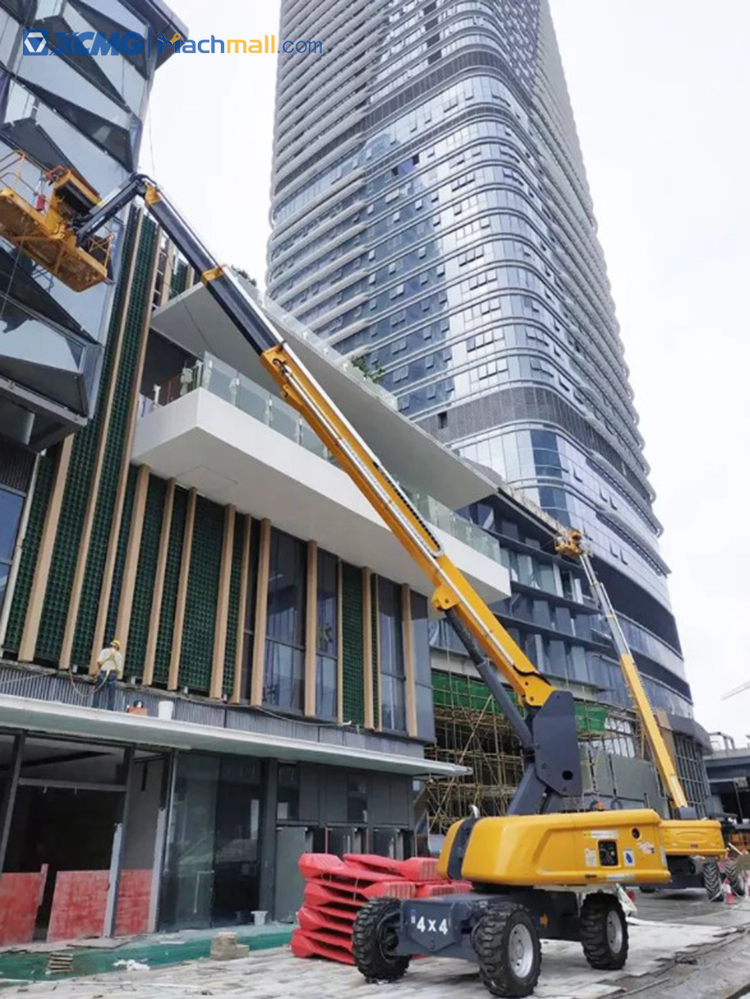

The application of XGS58 fills the gap of domestic large-scale and super-large intelligent aerial work platform products, which can easily cope with the difficult-to-reach and complex aerial work construction environment, provide safer and more efficient construction guarantee, and create higher value for users .



Highlights:



1. The working height is 58m and the maximum bearing weight is 230/450kg. The dual-load control system can automatically adjust the working range according to the load to meet the different bearing needs of users.



2. Three telescopic boom, a tower boom and a small flying boom is equipped to overcome obstacles and achieve wide range of operation.



3. Sensitive hydraulic system is loaded to achieve more accurate control.



4. Multiple safety designs are adopted to ensure the safety of construction personnel and machines.



XCMG XGS58 58m 74kw hydraulic mobile straight arm aerial platform telescopic boom lift for sale



Item

Unit

Parameter

Overall length (Transport status)

m

19.45(14.6)

Overall width (With shaft retracted/extended)

m

2.49/5.03

Overall height

m

3.05

Wheelbase

m

5.22/4.59

Maximum working height

m

58.6

Maximum platform height

m

56.6

Maximum working range

m

25.1

Maximum carrying weight

kg

230 (unrestricted)/450 (restricted)

Luffing range of boom

°

-1 ~ 80

Slewing angle of turntable

°

360°

Maximum tail swing

m

2.32

Dimension of platform

m

2.4×0.9

Slewing angle of platform

°

180

Overall weight

kg

27200

Maximum traveling speed

km/h

4.5

Minimum turning radius (With axle retracted/extended)

m

9.5/6.6 (Four-wheel steering)

Minimum ground clearance

m

0.25

Maximum gradeability

%

45

Specification of tire

-

445/50D710 24-ply

Engine model

-

Deutz TCD3.6 L4

Engine rated power

kW/(r/min)

74.4/2300
