XCMG Official Aerial Work Platform XGA16 Self Propelled Articulated Boom Lift

Chat Now 1 / EA (Min. Order)
Model: XGA16
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
XCMG Official Aerial Work Platform XGA16 Self Propelled Articulated Boom Lift

Content:

*Email:

Full Name:

Mobile phone:

  • Summary
  • Specifications

Summary

  • Weight:6900kg
  • Overall Dimension:6.69*2.26*2.13m
  • Table Size:1.83*0.76m
  • Max Lifting Height:16.05m
  • Rated Loading Capacity:230kg
  • Power:38KW
  • Lift Drive / Actuation:Electric
  • Lift Mechanism:Articulated Lift
  • Model Number:XGA16
  • Brand Name:XCMG
  • Place of Origin:Xuzhou, Jiangsu, China
  • Certification:CE/ISO9001

Specifications

  • Weight:6900.000kg
  • Condition:New
  • Moving Type:Other

XCMG Official Aerial Work Platform XGA16 Self Propelled Articulated Boom Lift

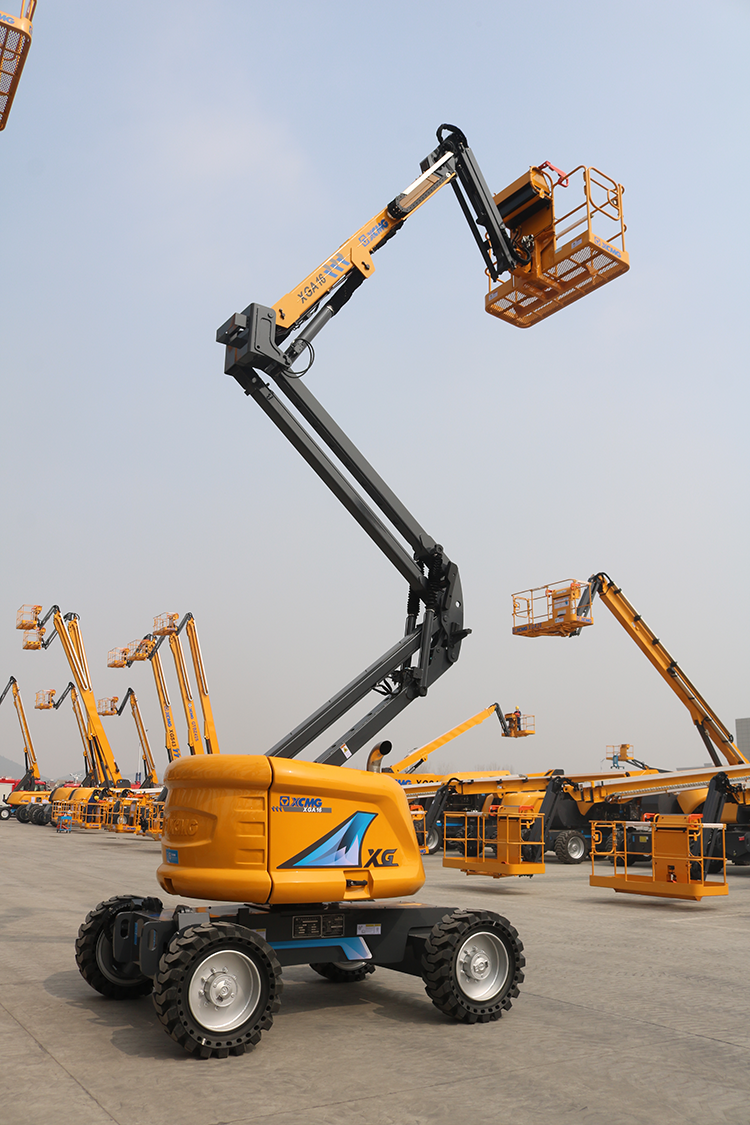

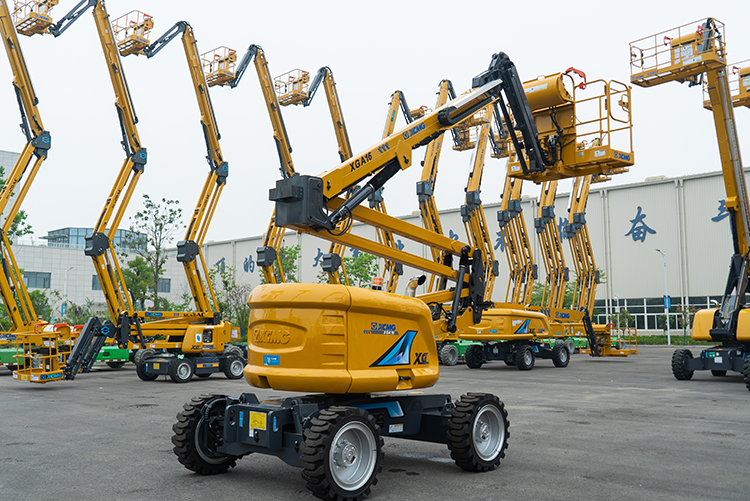

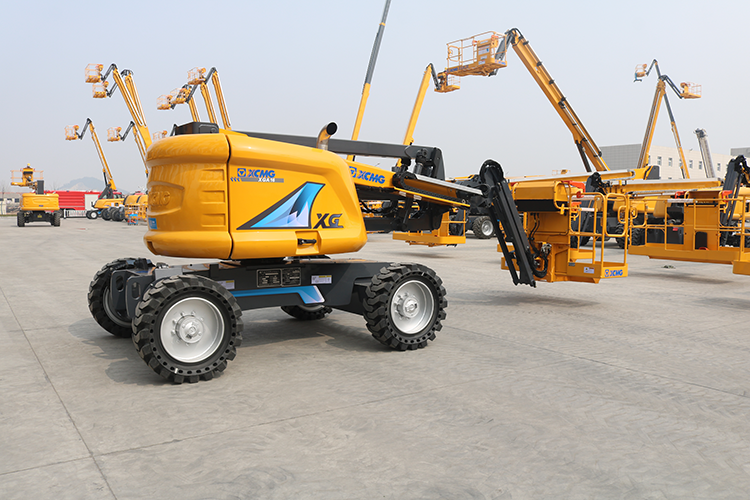

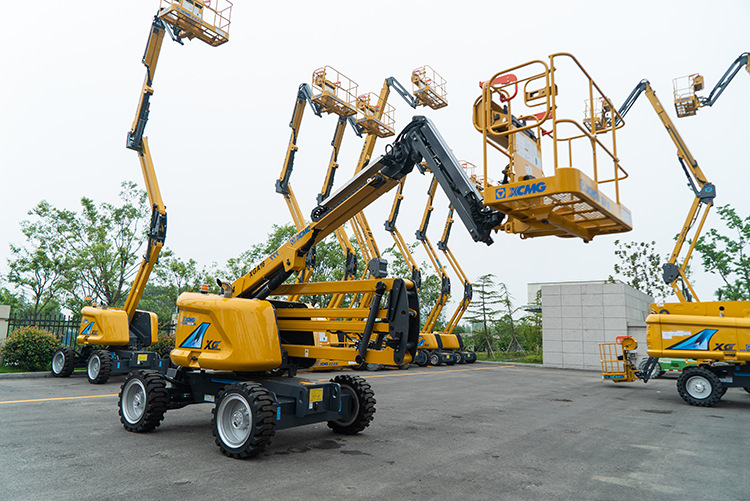

16m XCMG mobile electric lift platform XGA16.

XCMG electric lift platform XGA16 aiming to satisfy customers’ requirements. Intelligent and perfect control system features the humanized layout, the maintenance-free design and easy use and maintenance, providing the multiple options and comprehensive safety.



Advantages and highlights:

1.Σ-shaped boom, compact and flexible, able to ascend and descend vertically or extend horizontally to cross obstacles;

2.Compact and narrow turntable eliminates tail swing and improves operation efficiency;

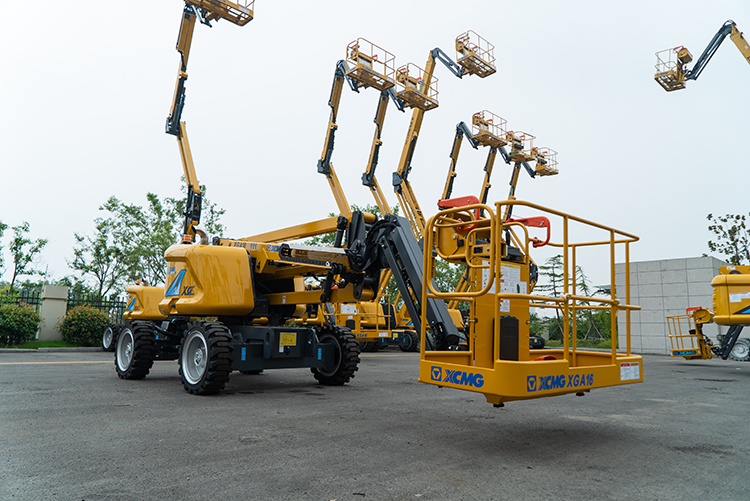

3.Work platform is enabling to extend out, enlarging the work space, together with the foldable fence making the transportation easier;

4.Full - range work; direct and friendly control panel easy to control;

5.Platform overloading warning, emergent lowering, safety speed limit, flexible start/stop technologies.



Item
Parameter
Parameters of traveling state
Overall dimensions (L × W × H)
6.69×2.26×2.13 m
Working platform overall dimensions
1.83×0.76×1.15 m
Max. speed
6.12 km/h
Max. gradeability
≥30%(2WD) ≥45%(4WD)
Min. external turning radius
≤4.5m
Ground clearance/m (centre)
0.41 m
Wheelbase
2.1 m
Total mass
6900 kg
Main Operation Performance Parameters
Rated working height
16.05m
Max. platform height
14.05m
Max. working range
8.22m
Max. net spanning height
7.14 m
Scope of luffing of No. 1 arm
0°~60°
Scope of luffing of No. 2 arm
-9°~75°
Scope of crank arm luffing
-60°~80°
Scope of platform swing
160°
Slewing angle
355° discontinuous slewing
Slewing radius of turntable
1.145 m
Max. Load capacity
230 kg
Max. Tail swing
0 m
Control system
12V DC proportional control
Emergency control unit
12V DC battery
Working speed
Platform lifting/lowering speed
0.1~0.3m/ s
Extending/Retracting speed of Boom No.2
0.1~0.3m/ s
Slewing speed
0.5~1r/min



XCMG Official Aerial Work Platform XGA16 Self Propelled Articulated Boom LiftXCMG Official Aerial Work Platform XGA16 Self Propelled Articulated Boom LiftXCMG Official Aerial Work Platform XGA16 Self Propelled Articulated Boom LiftXCMG Official Aerial Work Platform XGA16 Self Propelled Articulated Boom LiftXCMG Official Aerial Work Platform XGA16 Self Propelled Articulated Boom Lift

XCMG Official Aerial Work Platform XGA16 Self Propelled Articulated Boom LiftXCMG Official Aerial Work Platform XGA16 Self Propelled Articulated Boom LiftXCMG Official Aerial Work Platform XGA16 Self Propelled Articulated Boom LiftXCMG Official Aerial Work Platform XGA16 Self Propelled Articulated Boom Lift

Send your message to this supplier:

Email:
to:
XCMG E-commerce Inc.
Content:
/6000

Your inquiry content must be between 20 to 6000 characters.

Quantity:
/ Set
back to top
Response Time : Within 24 hours
XCMG was founded in 1943. XCMG products include: excavators, loaders, cranes including earth-moving machinery, road machinery, concrete machinery, mining machinery and other 12 construction machinery.
