XCMG Official GR1803 Motor Grader for sale

$56000.00-$70000.00 1 / EA (Min. Order)
Model: gr1803
Engine: Cummins
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
XCMG Official GR1803 Motor Grader for sale
XCMG Official GR1803 Motor Grader for sale
Quantity:
- + /EA

Content:

*Email:

Full Name:

Mobile phone:

  • Summary
  • Specifications
  • 360-Degree VR Videos
  • Product PDF

Summary

  • Dimension(L*W*H):8900 x 2625 x 3420mm
  • Weight:15400kg
  • Model Number:GR1803
  • Brand Name:XCMG
  • Place of Origin:China
  • Reverse Speed(km/h):5、11、23km/h
  • Forward Speed(km/h):5、8、11、19、23、38km/h
  • Certification:Can provide relevant certification

Specifications

  • Weight:15400.000kg
  • Condition:New
  • Moving Type:Wheel
  • Engine model:SC7H190.1G3
  • Rated power/speed:140kW/2000rpm
  • Tire specification:17.5-25
  • Ground clearance (front axle):430mm
  • Space of front and rear axles :6219mm
  • Tractive effort f=0.75:≥79
  • Working system pressure:20MPa
  • Maximum steering angle of front wheel:±48°
  • Minimum turning radius:7.3m
  • Maximum lift height:400mm
  • Maximum shoveling depth:500mm

XCMG Official GR1803 Motor Grader for sale

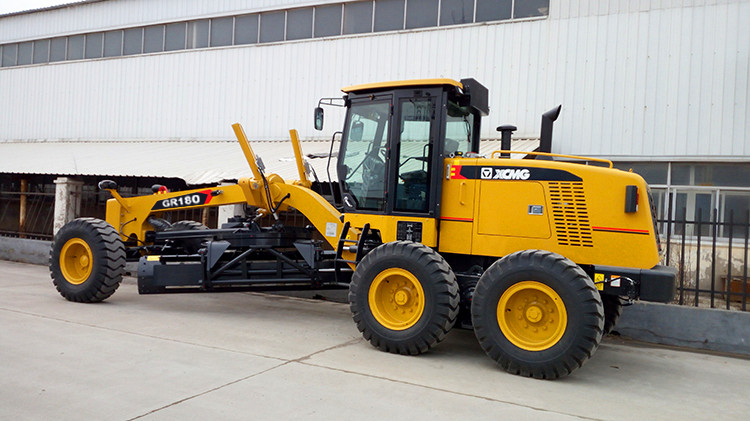

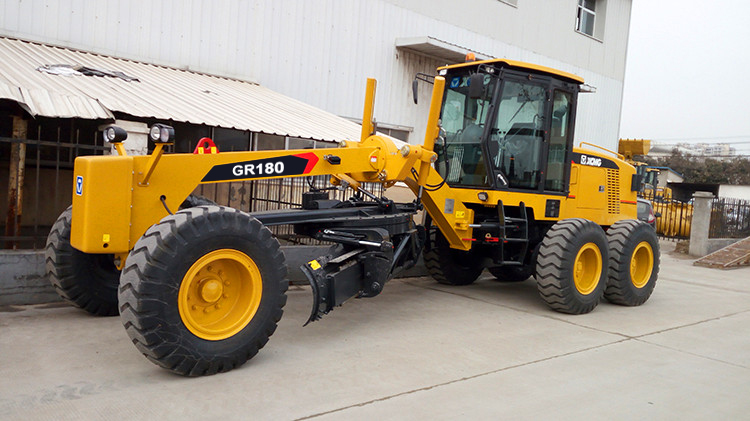

XCMG 180HP small motor graders GR1803 China new mini motor grader.



The motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc.



1. Energy saving and noise reduction: adopt low speed engine transmission line, low fuel consumption and energy saving and environmental protection.



2. Strong power: Shangchai efficient China stage III engine and hydraulic torque converter, the optimal torque converter achieves the best matching of torque converter and engine, reducing the start time, increase the work of torque output at low speed, strong and powerful.



3. Rotation with load: improve the pressure of hydraulic system system, the rotary force of the blade, the high frequency quenching treatment improves the wear resistance and life span.



4. Efficient operation: improves the displacement of hydraulic pump and hydraulic motor, increase the oil cylinder speed by 20%, realizes the industry leading work efficiency.

XCMG Official GR1803 Motor Grader for sale



Item

Unit

GR1803

Basic parameters

Engine model



SC7H190.1G3

Rated power/speed

kW/rpm

140/2000

Overall dimension(standard)

mm

8900 x 2625 x 3420

Total weight(standard)

kg

15400

Tire specification



17.5-25

Ground clearance

mm

430

Tread

mm

2156

Space of front and rear axles

mm

6219

Space of middle and rear wheels

mm

1538

Performance parameters

Forward velocity

km/h

5811192338

Reverse speed

km/h

51123

Tractive effort f=0.75

kN

79

Maximum gradeadbility

%

25

Inflation pressure of tires

kPa

260

Working system pressure

MPa

20

Transmission pressure

MPa

1.3-1.8

Working parameters

Maximum steering angle of front wheels

°

±48

Maximum inclination angle of front wheels

°

±17

Maximum swing angle of front axle

°

±15

Maximum swing angle of balance box

°

front 15, rear 15

Maximum steering angle of frame

°

±27

Maximum turning radius

m

7.3

Blade

Maximum lifting height

mm

400

Maximum shoveling depth

mm

500

Maximum lateral inclination angle

°

90

Cutting angle

°

28-70

Oil filling amount

Slewing angle

°

360

Length x chord height

mm

3660 x 610

Coolant

L

50

Fuel tank

L

280

Engine

L

24

Transmission

L

38

Balance box

L

46

Drive axle

L

28

Hydraulic oil

L

110
