XCMG Official Manufacturer 32m Telescopic Aerial Work Platform GTBZ32S

  • XCMG Official Manufacturer 32m Telescopic Aerial Work Platform GTBZ32S
  • XCMG Official Manufacturer 32m Telescopic Aerial Work Platform GTBZ32S

Share:
XCMG Official Manufacturer 32m Telescopic Aerial Work Platform GTBZ32S
FOB for Cranes Reference Price:Get Latest Price
Chat Now 1 / EA (Min. Order)
Shipping
Payment Terms:
XCMG Official Manufacturer 32m Telescopic Aerial Work Platform GTBZ32S
  • Summary
  • Details
Summary
  • Brand:XCMG
  • Place of Origin:China
Details
  • Product Name:G5CDBB59385153
  • Display online time:2019-11-14
  • weight:18400.000kg
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Warranty:3 Months
  • Condition:NEW
  • Moving Type:other
  • Overall Length(mm):14300
  • Overall Width(mm):2490/3800
  • Overall Height(mm):3070
  • Wheel Base(mm):3800
  • Maximum Working Height(m):33.9
  • Maximum Platform Height(m):32.2
  • Maximum Working Range(m):24.6
  • Maximum Load Capacity(kg):230/340
  • Boom Luffing Range(°): -6~+75
  • Rotation Angle of Rotating Platform(°):360
  • Maximum Tail Wagging(mm):2085/1430
  • Platform Size(mm):2400*900
  • Rotation Angle of Platform(°):180
  • Total Weight(kg):18400
  • Maximum Travel Speed(km/h):5
  • Minimum Turning Radius(m):10.8/8.2(Two-turn) 6.8/5.8(Two-turn)
  • Minimum Ground Clearance(mm):260
  • Maximum Grade Ability(%):45
  • Tire Specification:385/65D22.5
  • Engine Model:Perkins 1104D-44T

XCMG Official Manufacturer 32m Telescopic Aerial Work Platform GTBZ32S

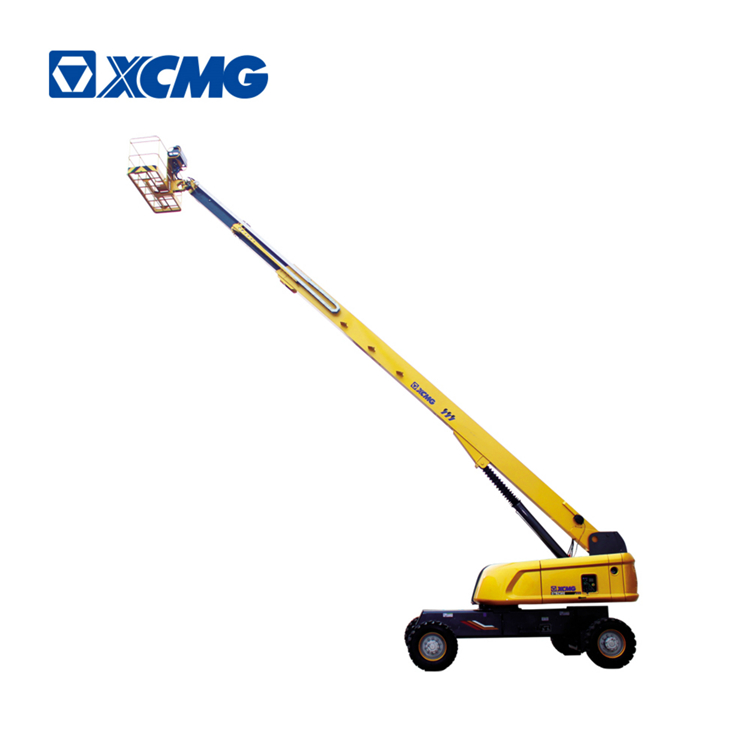

It is a straight boom aerial work platform with the widest scope of application at the elevation of 32 meters. It is featured by: the widest scope of application among the products operating under the same elevation to enhance the ability of operation; the strongest capacity of loading within the industry to satisfy the user’ s demands on heavy load; and the excellent capacity of climbing drive to adapt itself to all kinds of complicated road conditions. The machine may be widely used for building operations, bridge & equipment maintenance,shipbuilding, petrochemical engineering and other related industries.

1.Super-Strong Capacity of Climbing Drive

The electronic steering and wide foam tyres both attribute to an excellent capacity of climbing drive, thus adapting itself to all kinds of complicated road conditions.

2.Strongest Capacity of Loadingwithin the Industry

The maximum capacity of loading, i.e. 480kg, ranks the first within the industry, thus satisfying the user’s demands on heavy load.

3.Excellent Working Range

The double-load operating-curve control technologies realizes a real-time monitoring over loads, thus producing a strong capacity of operation, as well as a widest working range at the same elevation.

XCMG Official Manufacturer 32m Telescopic Aerial Work Platform GTBZ32S

Itmm

 Parameter



Overall Length(mm)

14300



Overall Width(mm)

2490/3800



Overall Height(mm)

3070



Wheel Base(mm)

3800



Maximum Working Height(m)

33.9



Maximum Platform Height(m)

32.2



Maximum Working Range(m)

24.6



Maximum Load Capacity(kg)

230/340



Boom Luffing Range(°)

 -6~+75



Crank Arm Luffing Range(°)





Rotation Angle of Rotating Platform(°)

360



Maximum Tail Wagging(mm)

2085/1430



Platform Size(mm)

2400*900



Rotation Angle of Platform(°)

180



Total Weight(kg)

18400



Maximum Travel Speed(km/h)

5



Minimum Turning Radius(m)

10.8/8.2(Two-turn)



6.8/5.8(Two-turn)



Minimum Ground Clearance(mm)

260



Maximum Grade Ability(%)

45



Tire Specification

385/65D22.5



Engine Model

Perkins 1104D-44T



Rated Power of Engine(kW/(r/min))

55.5(2400)
