XC8-S0750
Specs & Compare
Details
Select 3 models for comparison
Rated Load
Dimension(Long*Breadth*High)
Type
Place of Origin
Model Number
Brand Name
Certification
Engineering & Construction Machinery
XC8-S0750
3800kg
3760*1612*2300mm
Backhoe Loader
Xuzhou, Jiangsu, China
XC8-S0750
XCMG
--
+ Add a Product
+ Add a Product
Summary
- Rated Load:3800kg
- Dimension(Long*Breadth*High):3760*1612*2300mm
- Type:Backhoe Loader
- Place of Origin:Xuzhou, Jiangsu, China
- Model Number:XC8-S0750
- Brand Name:XCMG
Specifications
- Weight:3800.000kg
- Condition:New
- Moving Type:Other
- Specified Load:700kg
- Dig bucket capacity:0.06m3
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

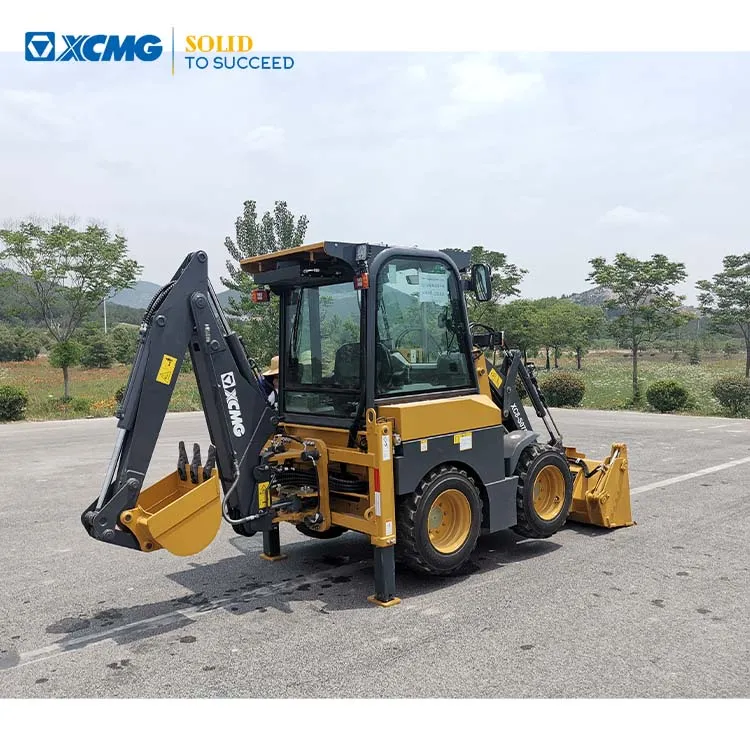

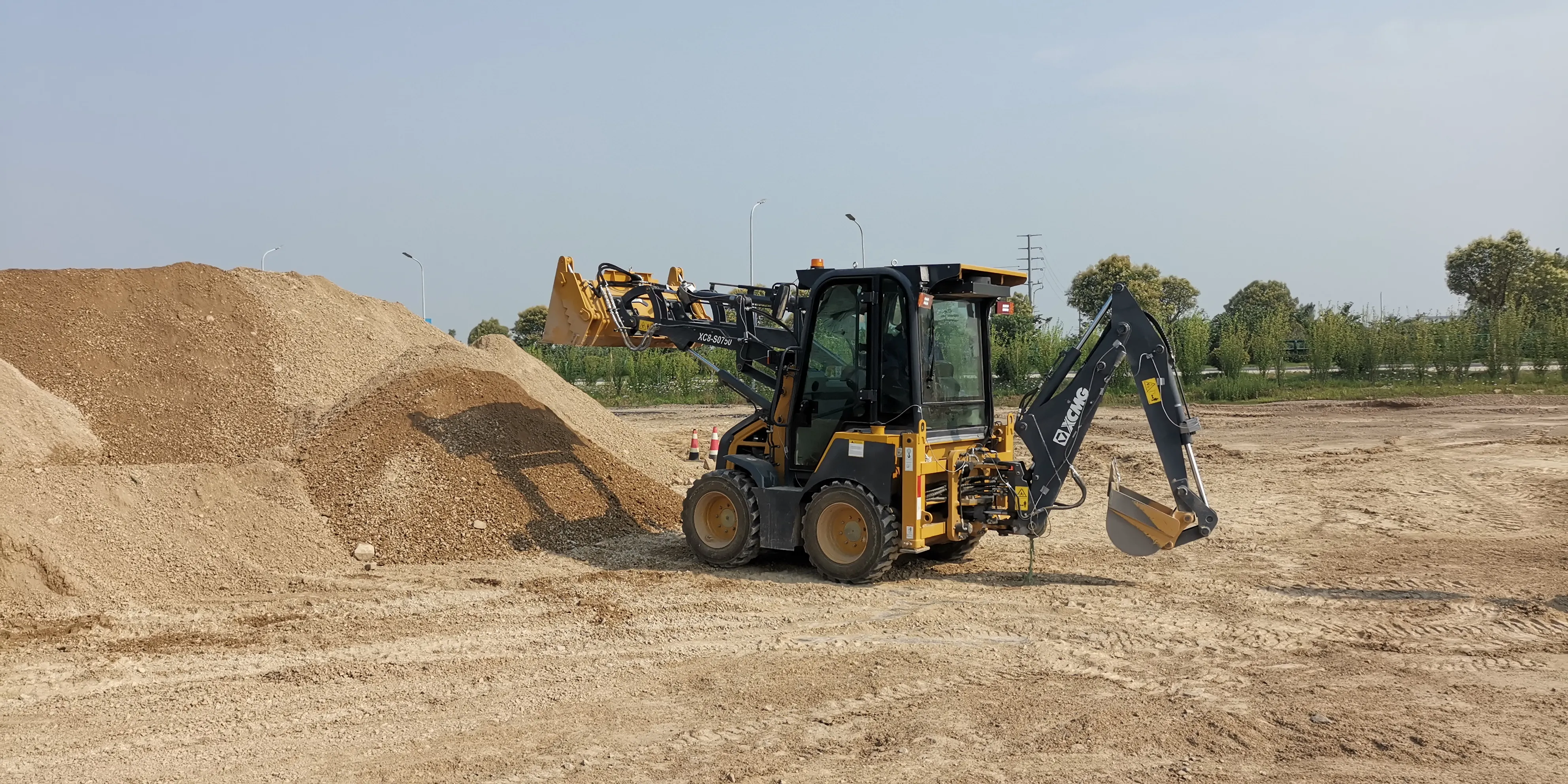

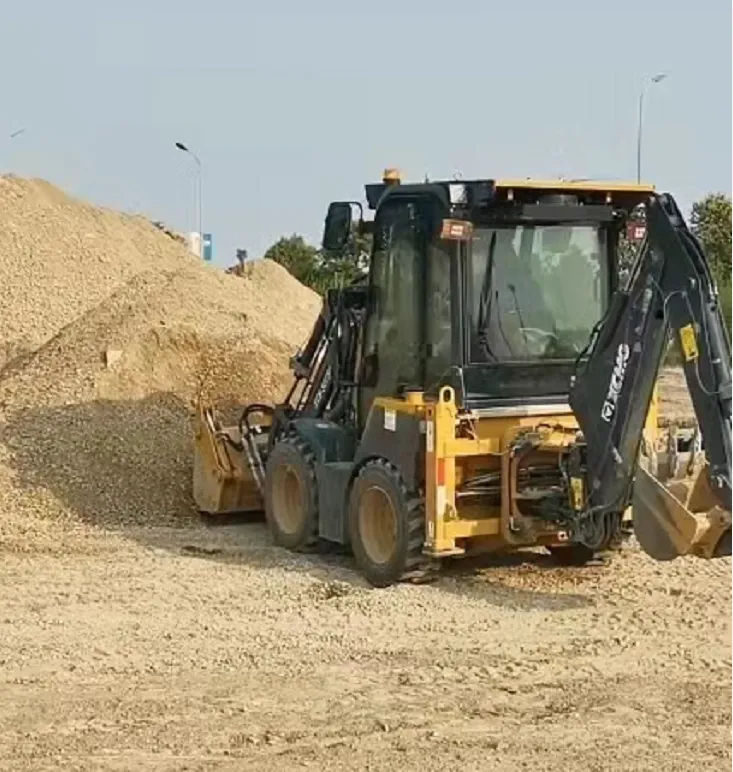

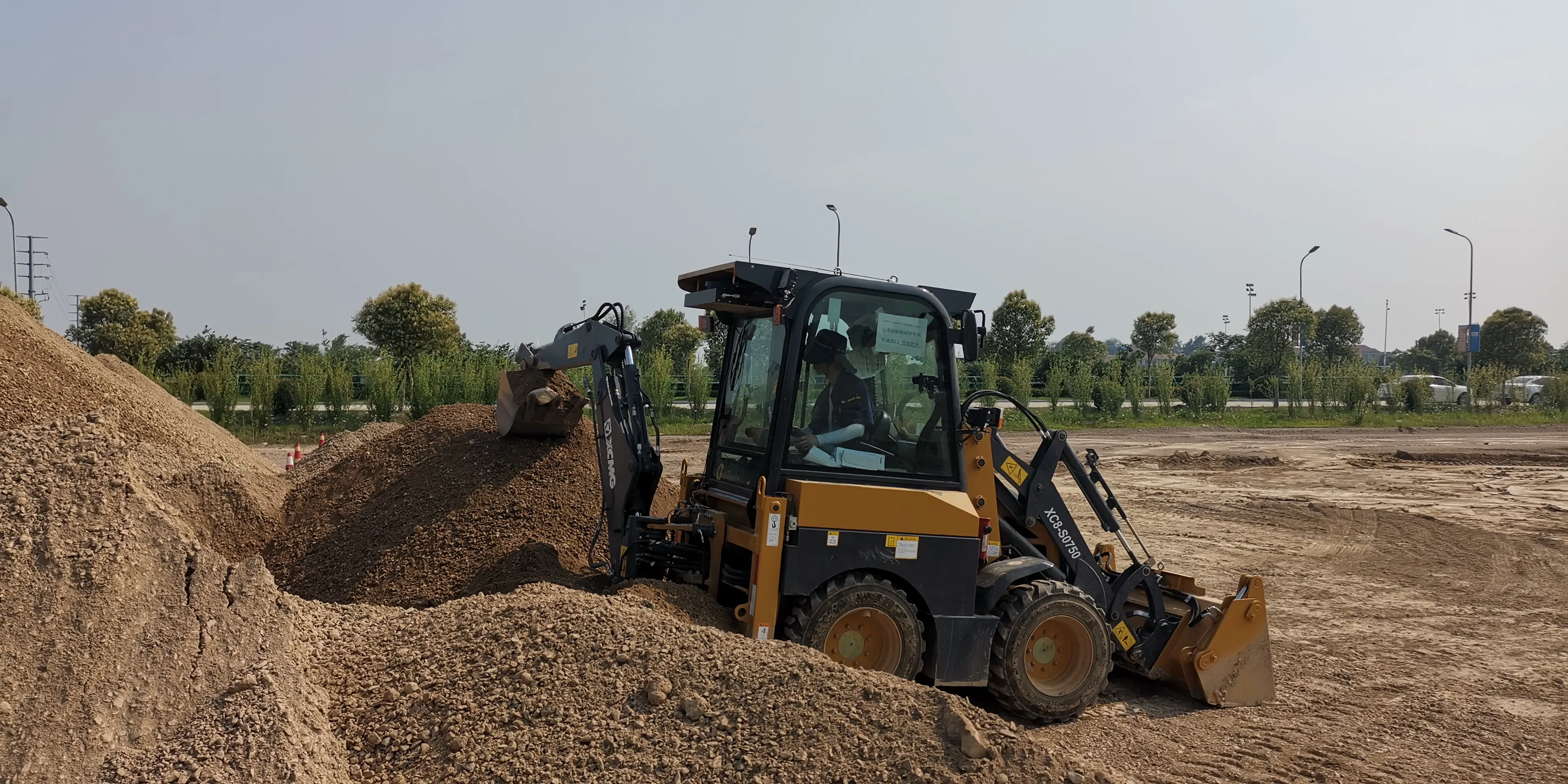

XCMG Official Mini Backhoe Loader Xc8-S0750 Retroexcavadora Excavator Loader
Structure and hinge points with optimal design, light structure and high strength, high lifting force and excellent performance in the bucket angle and good leveling, with the function of automatic leveling and high working efficiency.
The excavation working device adopts straight arm form, and the excavation turning angle is 180°, with excellent excavation depth and radius, wide excavation range and efficient work.
The split type frame layout is reasonable, the structure is reliable, the main structure adopts high strength steel plate, reduce the pressure type and irregular welds, strengthen the important bearing parts, can withstand the torsion and impact load under various complex working conditions, excellent performance.
Specification
|
Item
|
Unit
|
Parameter
|
|
Overall length
|
mm
|
3760
|
|
Overall width
|
mm
|
1612
|
|
Overall height
|
mm
|
2300
|
|
Wheel base
|
mm
|
1182
|
|
The frame is separated from the ground
|
mm
|
190
|
|
Front wheel lateral width
|
mm
|
1306
|
|
The outer width of the rear wheel
|
mm
|
1306
|
|
Operation weight
|
kg
|
3800
|
|
Maximum drawbar pull
|
kN
|
≥24.5
|
|
Maximum gradability
|
°
|
≥23
|
|
Turning radius (outer front wheel)
|
mm
|
1300
|
|
The bucket Angle
|
°
|
42
|
|
Maximum dump clearance
|
mm
|
2220
|
|
Angle of discharge
|
°
|
45
|
|
Maximum workingheight
|
mm
|
3445
|
|
Bucket pin of maximum height
|
mm
|
2886
|
|
Specified load
|
kg
|
700
|
|
Turn the bucket to dig up the force
|
kN
|
29
|
|
Move the arm to dig up the force
|
kN
|
17
|
|
Maximum improvement height to enhance the ability
|
kg
|
2000
|
|
Dipper capacity
|
m³
|
0.36
|
|
Dig bucket rotation Angle
|
°
|
203
|
|
Maximum digging radius
|
mm
|
3610
|
|
Maximum mining depth
|
mm
|
2755
|
|
Loading height
|
mm
|
2418
|
|
Maximum excavation height
|
mm
|
5308
|
|
Dig bucket excavation force
|
kN
|
25
|
|
Dock excavation force
|
kN
|
15
|
|
The rotation Angle
|
°
|
180
|
|
Dig bucket capacity
|
m³
|
0.06
|
|
Power rating
|
kW
|
36.8
|
|
Rated speed
|
r/min
|
2400
|
|
Acrot orque
|
N.m
|
190
|
|
Displacement
|
L
|
2.982
|
