XCMG Official Motor Grader GR135 For Sale, MACHMALL

Engineering & Construction Machinery > Road Construction & Maintenance Machinery > Motor Grader

XCMG Official Motor Grader GR135 For Sale

View All >

After-sales Service： Engineers available to service machinery overseas

Min Order Quantity： 1 Unit

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 20 days)

Customization (negociated delivery time)

After-sales Service：

1. It is recommended that you keep in touch with the seller after purchasing offline...

About after-sales service:

1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:

1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Inquiry Chat Now

Favorite Products

Product:

XCMG Official Motor Grader GR135 For Sale

Quantity:

- + /EA

Content:

Or choose from these questions:

What is the best price you can offer?

Do you support customization?

What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

Specs & Compare

Details

Specifications

weight:11200.000kg
Condition:New
Moving Type:Other
Rated Power:97kW
Model Number:GR135
Place of Origin:China
Rated Speed:5-42km/h

Packaging & Shipping

Delivery Lead Time:7 days for ready goods
Minimum Order:1 Piece
Supply Ability:10,000 Set/ Sets per Month
Total Quantity In Stock:Over 5000
Delivery Port:Any Port In China

XCMG Official Motor Grader GR135 For Sale

	Item		Unit	GR135
Basic parameters	Engine model			6BT5.9-C130-II
	Rated power/speed		kW/rpm	97/2200

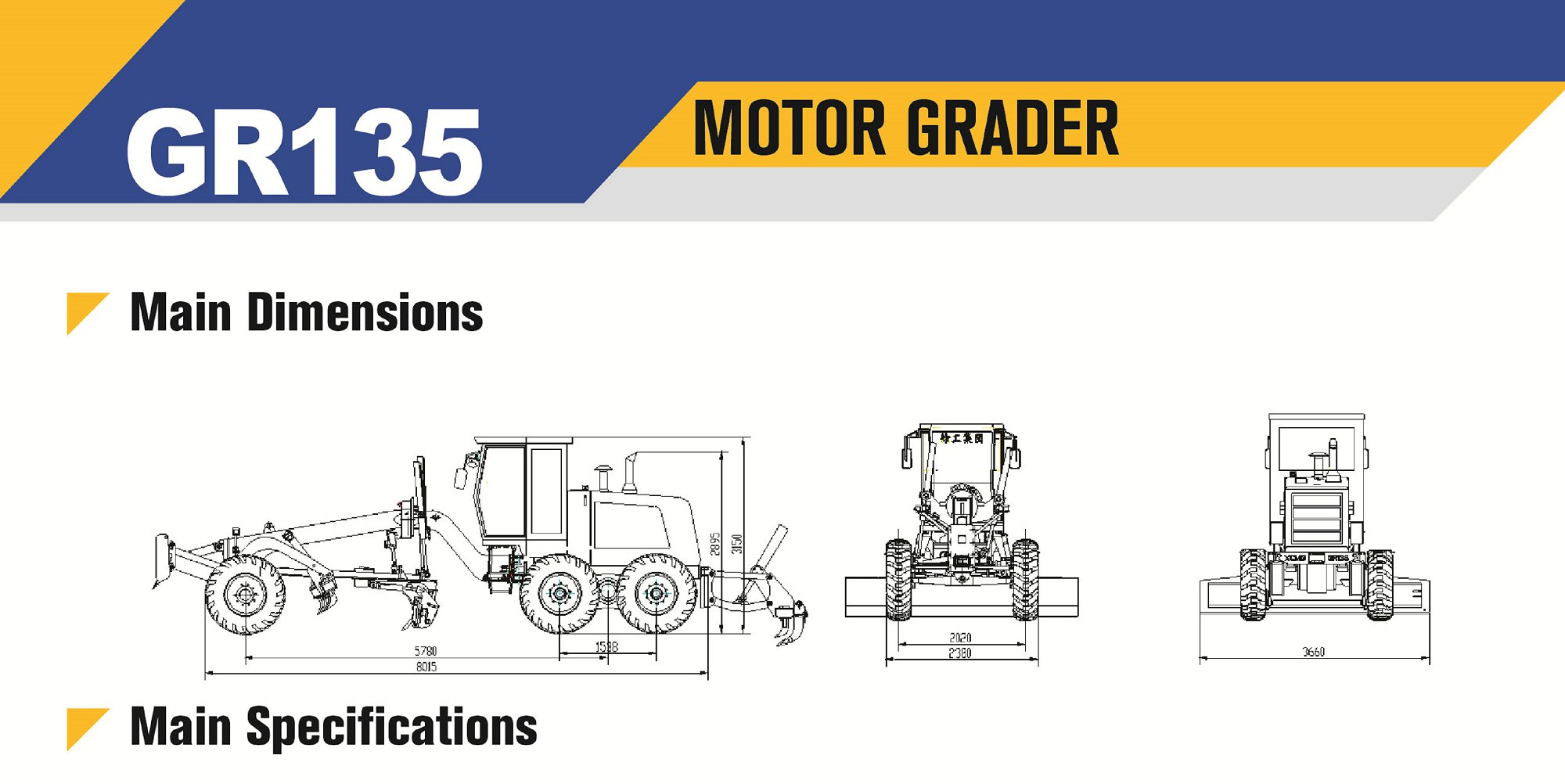

	Overall dimension(standard)		mm	8015 x 2380 x 3050
	Total weight(standard)		kg	11200
	Tire specification			13.00-24
	Ground clearance		mm	515
	Tread		mm	2020
	Space of front and rear axles		mm	5780
	Space of middle and rear wheels		mm	1538
Performance parameters	Forward velocity		km/h	5、5、13、20、30、42
	Reverse speed		km/h	5、13、30
	Tractive effort f=0.75		kN	≥59
	Maximum gradeadbility		%	≥25
	Inflation pressure of tires		kPa	300
	Working system pressure		MPa	16
	Transmission pressure		MPa	1.3-1.8
Working parameters	Maximum steering angle of front wheels		°	±49
	Maximum inclination angle of front wheels		°	±17
	Maximum swing angle of front axle		°	±15
	Maximum swing angle of balance box		°	±16
	Maximum steering angle of frame		°	±27
	Maximum turning radius		m	6.6
	Blade	Maximum lifting height	mm	410
		Maximum shoveling depth	mm	515
		Maximum lateral inclination angle	°	90
		Cutting angle	°	54-90
Oil filling amount		Slewing angle	°	360
		Length x chord height	mm	3660 x 610
	Coolant		L	50
	Fuel tank		L	280
	Engine		L	18
	Transmission		L	26
	Balance box		L	46
	Drive axle		L	28
	Hydraulic oil		L	96

XCMG Official Motor Grader GR135 For Sale
