XCMG Official Motor Grader GR215DⅢ For Sale

  • XCMG Official Motor Grader GR215DⅢ For Sale

Share:
XCMG Official Motor Grader GR215DⅢ For Sale
FOB for Road Mach Reference Price:Get Latest Price
Chat Now 1 / EA (Min. Order)
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
XCMG Official Motor Grader GR215DⅢ For Sale
XCMG Official Motor Grader GR215DⅢ For Sale
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Details
Summary
  • Weight:16500kg
  • Dimension(L*W*H):8970 x 2625 x 3420mm
  • Power(W):160kW
  • Model Number:GR215DⅢ
  • Brand Name:XCMG
  • Place of Origin:China
Details
  • Product Name:G5E5DCCE6BF13C
  • Display online time:2020-03-03
  • weight:1.000kg
  • After-sales Service Provided:Overseas service center available
  • Warranty:12 Months
  • Condition:NEW
  • Moving Type:other


XCMG Official Motor Grader GR215DⅢ For Sale


XCMG Official Motor Grader GR215DⅢ For SaleXCMG Official Motor Grader GR215DⅢ For Sale

Item

Unit

GR215D III

Basic parameters

Engine model

6CTA8.3-C215

Rated power/speed

kW/rpm

160/2200

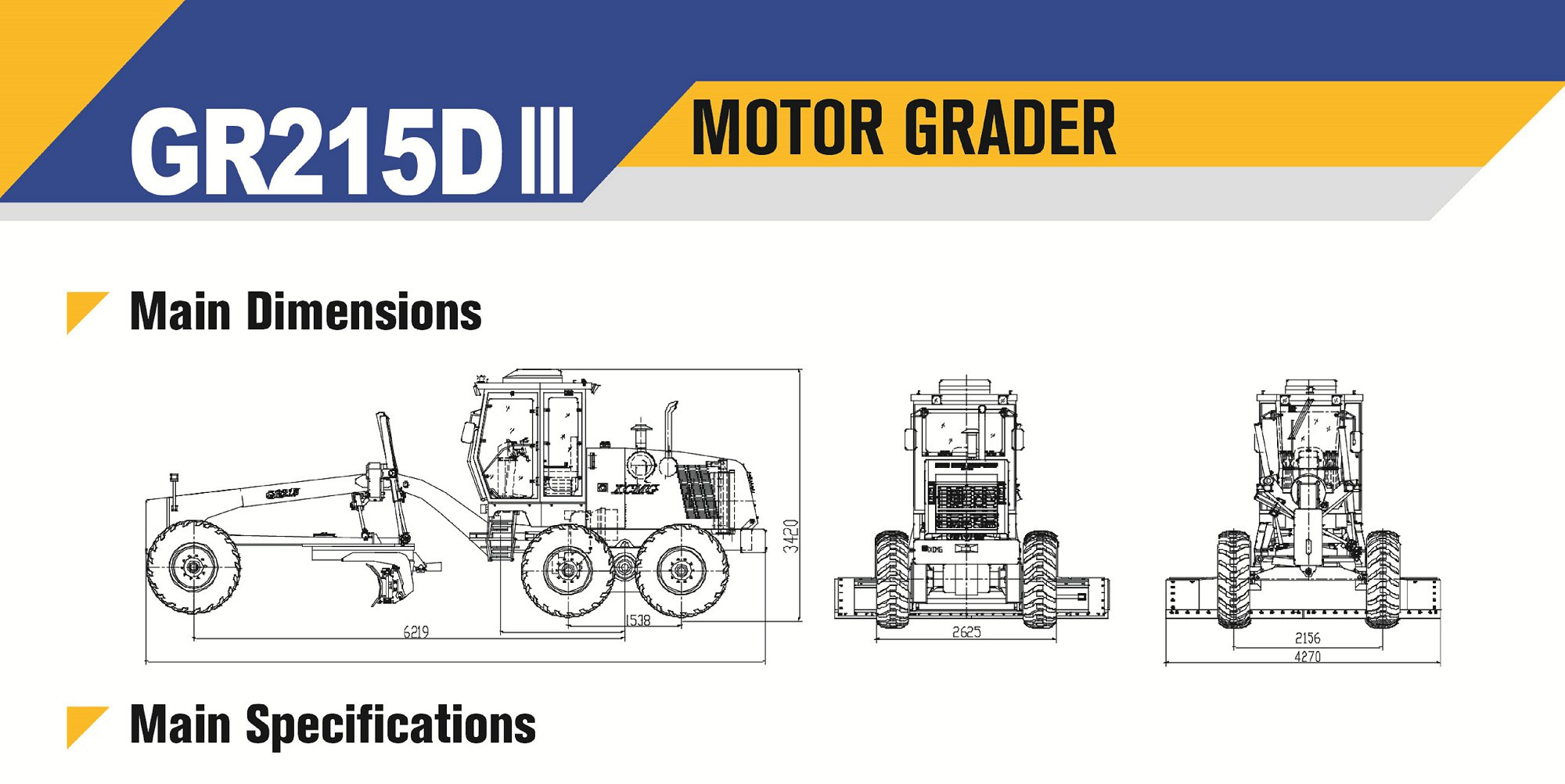

Overall dimension(standard)

mm

8970 x 2625 x 3420

Total weight(standard)

kg

16500

Tire specification

17.5-25

Ground clearance

mm

430

Tread

mm

2156

Space of front and rear axles

mm

6219

Space of middle and rear wheels

mm

1538

Performance parameters

Forward velocity

km/h

5811192338

Reverse speed

km/h

51123

Tractive effort f=0.75

kN

85

Maximum gradeadbility

%

25

Inflation pressure of tires

kPa

260

Working system pressure

MPa

16

Transmission pressure

MPa

1.3-1.8

Working parameters

Maximum steering angle of front wheels

°

±50

Maximum inclination angle of front wheels

°

±17

Maximum swing angle of front axle

°

±15

Maximum swing angle of balance box

°

front 15back 15

Maximum steering angle of frame

°

±27

Maximum turning radius

m

7.3

Blade

Maximum lifting height

mm

450

Maximum shoveling depth

mm

500

Maximum lateral inclination angle

°

90

Cutting angle

°

28-70

Oil filling amount

Slewing angle

°

360

Length x chord height

mm

3965 x 610

Coolant

L

50

Fuel tank

L

280

Engine

L

24

Transmission

L

38

Balance box

L

46

Drive axle

L

28

Hydraulic oil

L

110

XCMG Official Motor Grader GR215DⅢ For SaleXCMG Official Motor Grader GR215DⅢ For SaleXCMG Official Motor Grader GR215DⅢ For Sale

Send your message to this supplier
Email:
to:
XCMG E-commerce Inc.
Content:
/6000

Your inquiry content must be between 20 to 6000 characters.

Quantity:
/ Set
Response Time : Within 24 hours
XCMG was founded in 1943. XCMG products include: excavators, loaders, cranes including earth-moving machinery, road machinery, concrete machinery, mining machinery and other 12 construction machinery.
