XCMG 180hp asphalt soil motor graders for road Construction GR180 for sale

$60000.00-$70000.00 1 / EA (Min. Order)
Model: GR180
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
XCMG 180hp asphalt soil motor graders for road Construction GR180 for sale

Content:

*Email:

Full Name:

Mobile phone:

  • Summary
  • Specifications
  • 360-Degree VR Videos
  • Product PDF

Summary

Specifications

  • Weight:1.000kg
  • Condition:New
  • Moving Type:Other

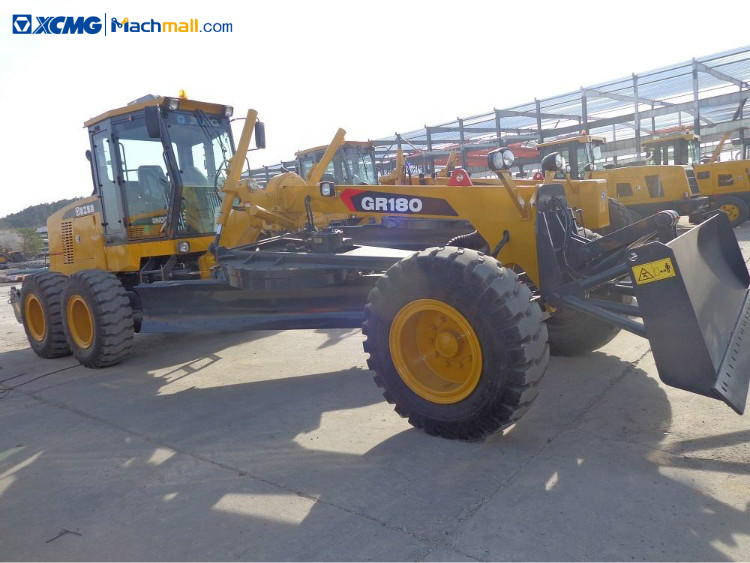

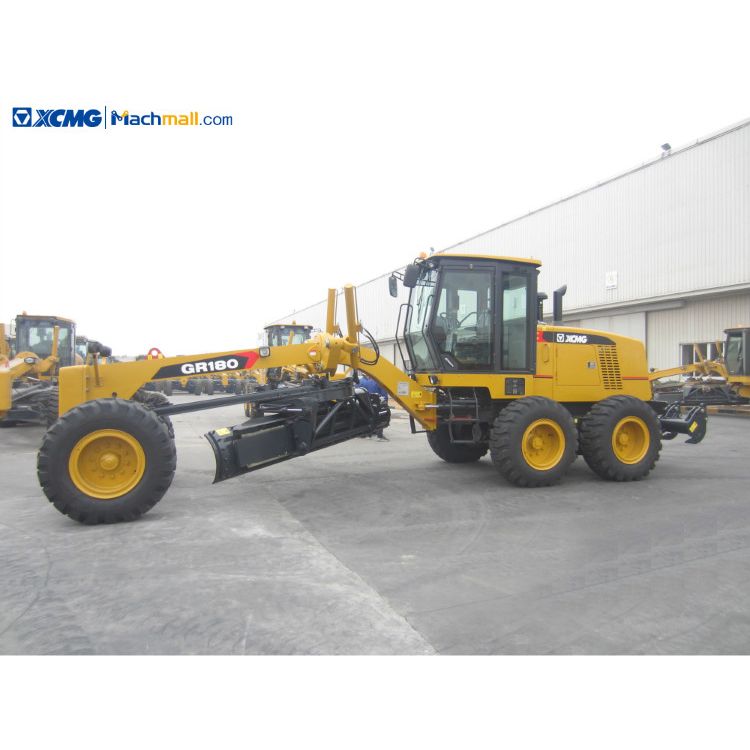

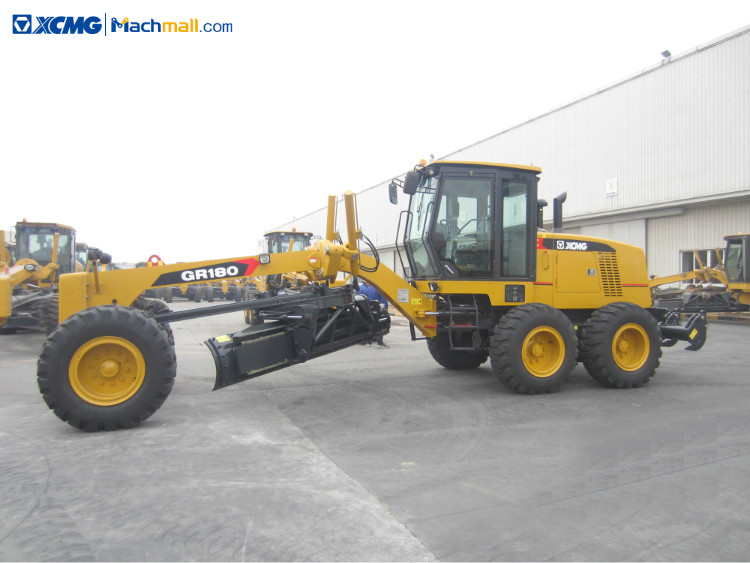

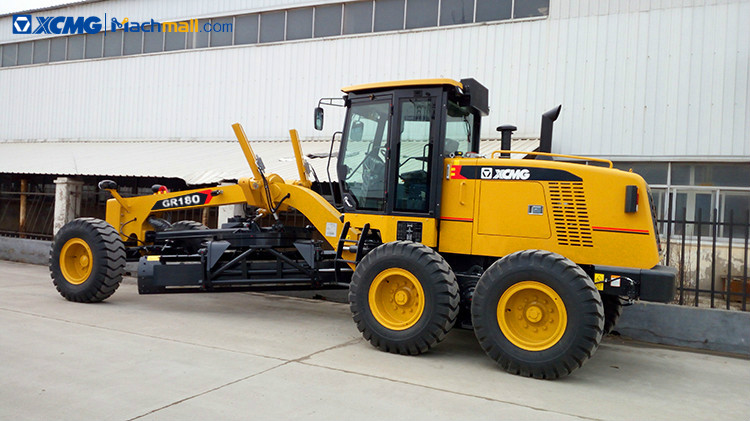

XCMG 180hp asphalt soil motor graders for road Construction GR180 for sale

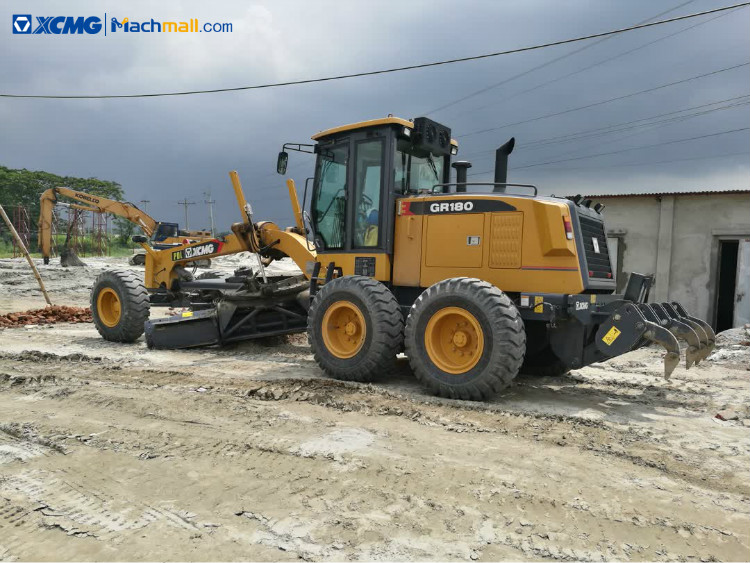

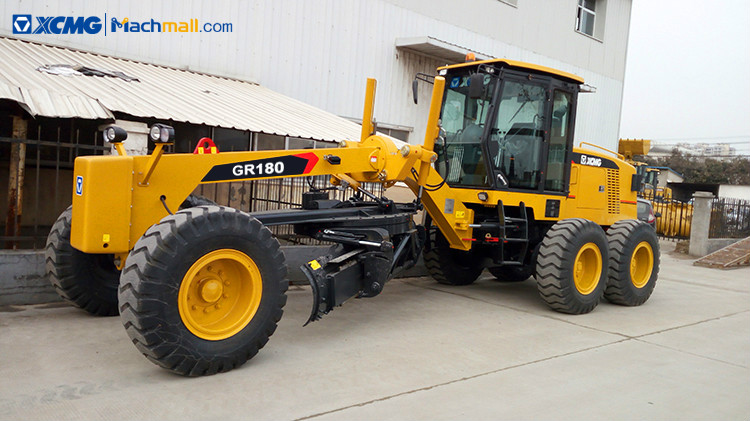

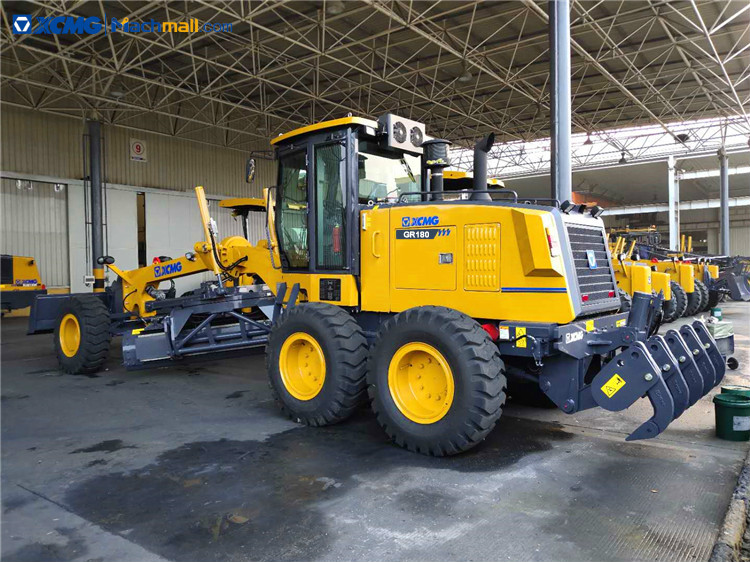

XCMG 180hp asphalt soil motor graders for road Construction GR180.

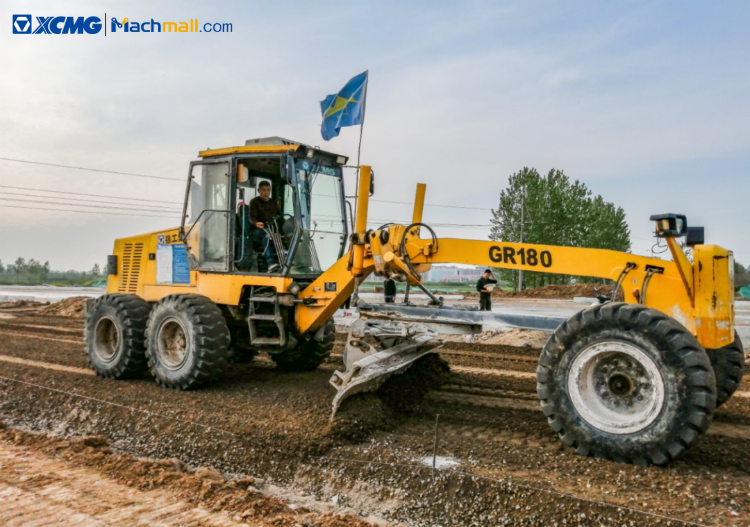

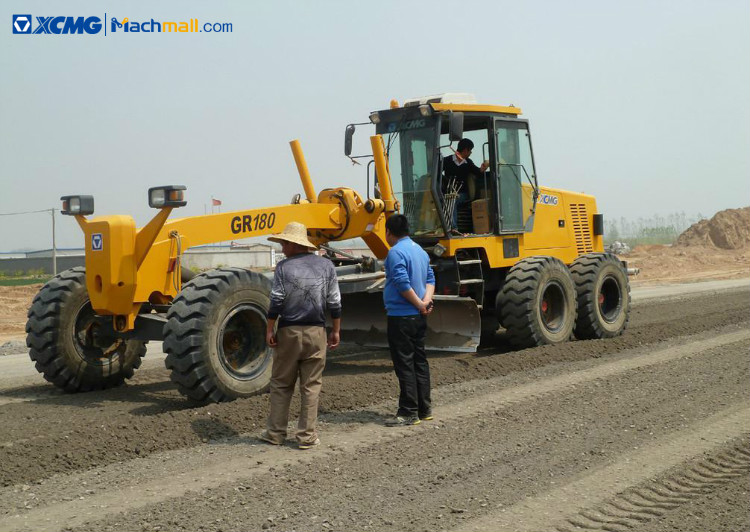

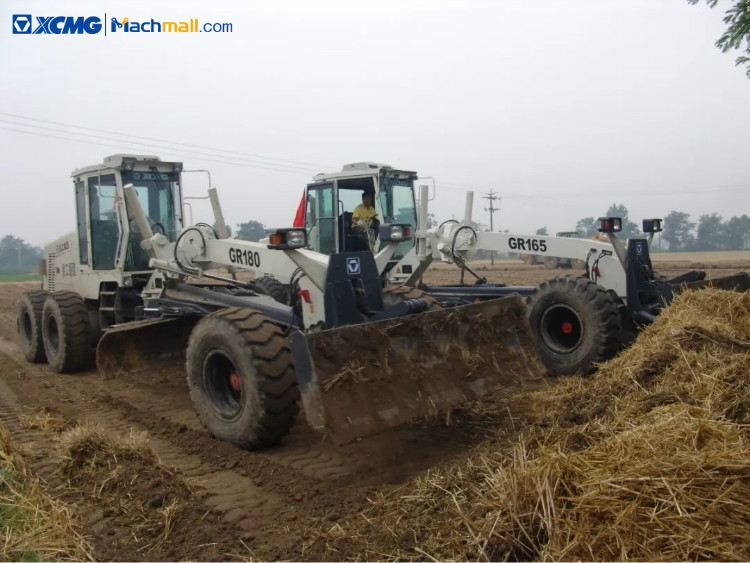

XCMG 180hp asphalt soil motor graders GR180 is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc.



GR180 motor graders is the necessary construction machinery for national defense construction, mine construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.



GR180 motor graders advantages and highlights:

1. Famous brand Engine, ZF Technology Gearbox, and XCMG Drive Axle make the drive system power matching more reasonable and reliable.

2. Double-circuit hydraulic brake system makes the brake more reliable and stable.

3. Steering to the load sensing system, the main hydraulic components adopt international support to ensure the stability and reliability of the system.

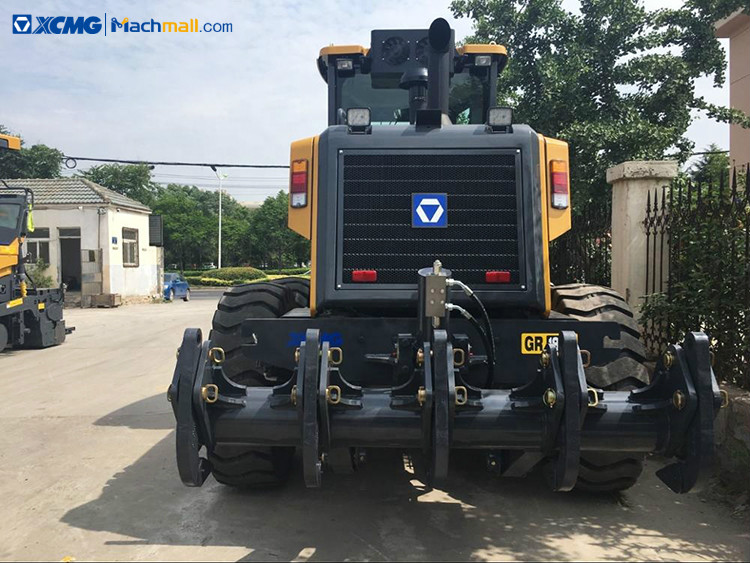

4. The blade body adopts adjustable large chute and double slide mechanism, and the working blade adopts high-strength and wear-resistant material.

5.Various options expand the machine's performance and working range.



XCMG 180hp asphalt soil motor graders for road Construction GR180 for sale

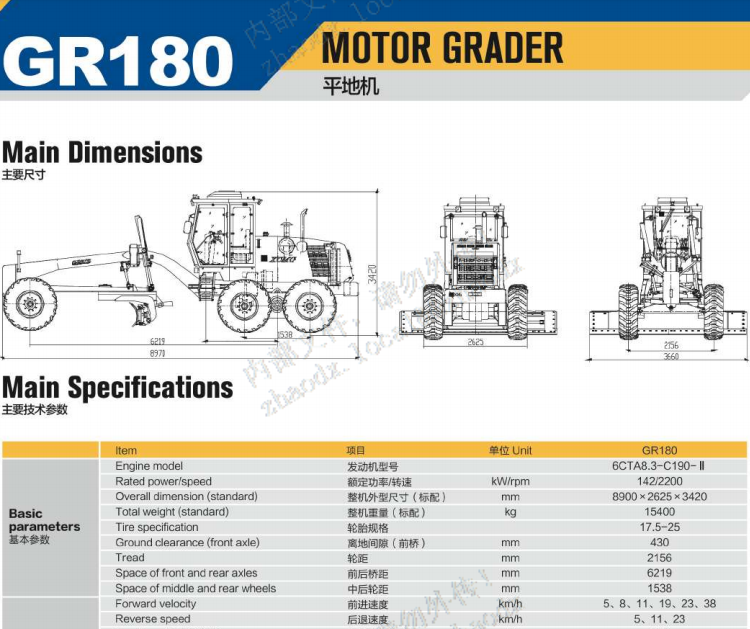

Item





GR180

Basic parameters

Engine model



6CTA8.3-C190-



Rated power/speed



142kW/2200rpm



Overall dimension (standard)



8900x2625x3420



Total weight (standard)



15400 kg



Tire specification



17.5-25



Ground clearance (front axle)



430mm



Tread



2156mm



Space of front and rear axles



6219 mm



Space of middle and rear wheels



1538 mm

Performance parameters

Forward velocity



5811192338km/h



Reverse speed



51123km/h



Tractive effort f=0.75



≥79 kN



Maximum gradeability



≥25%



Tire inflation pressure



260kPa



Working system pressure



18MPa



Transmission pressure



1.3—1.8Mpa

Working parameters

Maximum steering angle of front wheel



±50°



Maximum slant angle of front wheel



±17°



Maximum oscillating angle of front axle



±15°



Maximum oscillating angle of equilibrium box



±15°



Maximum steering angle of frame



±27°



Minimum turning radius



7.3m



Scrape knife

Maximum lift height

450mm





Maximum cutting depth

500mm





Maximum tilt angle

90°





Cutting angle

28°—70°





Angle of revolution

360°





Length & chord height

3965x610mm

Oil filling amount

Coolant



50L



Fuel tank



280L



Engine



24L



Transmission



38L



Balancing box



46L



Drive axle



28L
