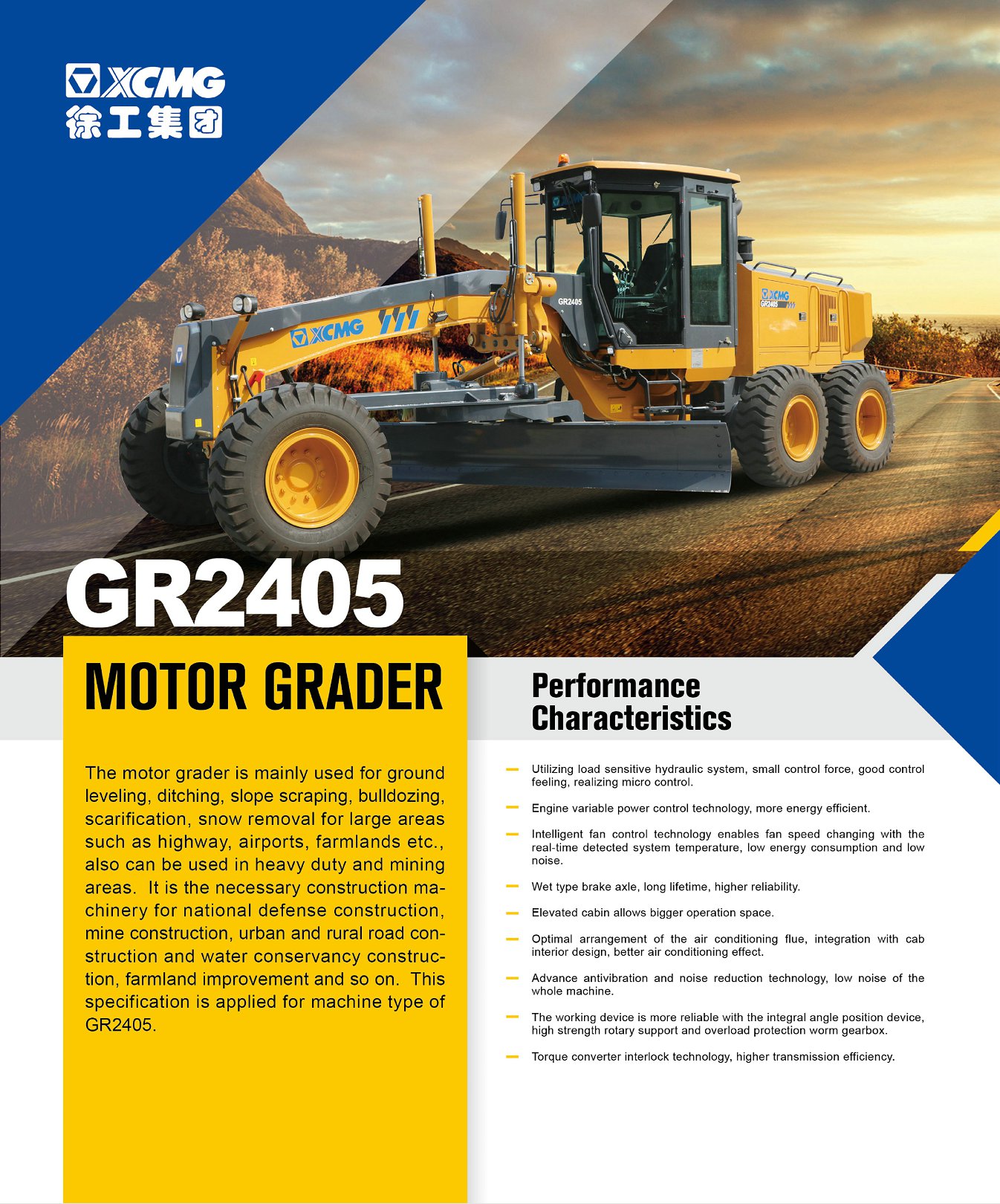

XCMG Official GR2405 Motor Grader for sale
Summary

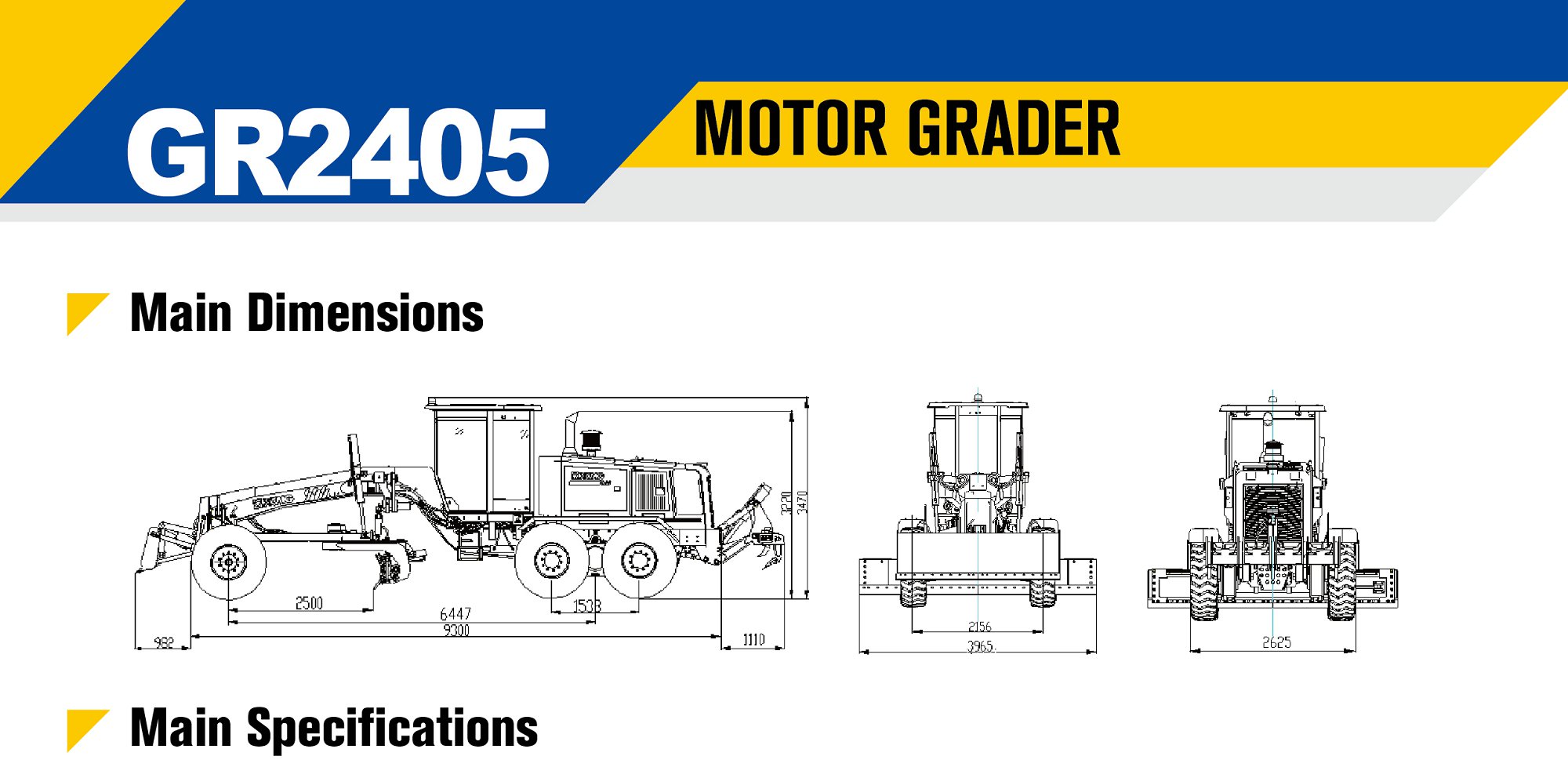

- Dimension(L*W*H):9300 x 2625 x 3470mm
- Weight:17000kg
- Model Number:GR2405
- Brand Name:XCMG
- Place of Origin:China
- Reverse Speed(km/h):5、11、25km/h
- Forward Speed(km/h):5、8、11、18、25、40km/h
- Certification:Can provide relevant certification
Specifications
- Weight:17000.000kg
- Condition:New
- Moving Type:Wheel
- Engine model:QSB6.7
- Rated power/speed:178kW/2200rpm
- Tire specification:17.5-25
- Ground clearance (front axle):586mm
- Space of front and rear axles :6447 mm
- Tractive effort f=0.75:≥88kN
- Working system pressure:22MPa
- Maximum steering angle of front wheel:±48°
- Minimum turning radius:7.3m
- Maximum lift height:480mm
- Maximum shoveling depth:715mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
|
|
Item |
Unit |
GR2405 |
|
|
Basic parameters |
Engine model |
|
QSB6.7 |
|
|
Rated power/speed |
kW/rpm |
178/2200 |
||
|
Overall dimension(standard) |
mm |
9300 x 2625 x 3470 |
||
|
Total weight(standard) |
kg |
17000 |
||
|
Tire specification |
|
17.5-25 |
||
|
Ground clearance |
mm |
586 |
||
|
Tread |
mm |
2156 |
||
|
Space of front and rear axles |
mm |
6447 |
||
|
Space of middle and rear wheels |
mm |
1538 |
||
|
Performance parameters |
Forward velocity |
km/h |
5、8、11、18、25、40 |
|
|
Reverse speed |
km/h |
5、11、25 |
||
|
Tractive effort f=0.75 |
kN |
≥88 |
||
|
Maximum gradeadbility |
% |
≥25 |
||
|
Inflation pressure of tires |
kPa |
260 |
||
|
Working system pressure |
MPa |
22 |
||
|
Transmission pressure |
MPa |
1.85-2.2 |
||
|
Working parameters |
Maximum steering angle of front wheels |
° |
±48 |
|
|
Maximum inclination angle of front wheels |
° |
±17 |
||
|
Maximum swing angle of front axle |
° |
±15 |
||
|
Maximum swing angle of balance box |
° |
front 15, rear 15 |
||
|
Maximum steering angle of frame |
° |
±25 |
||
|
Maximum turning radius |
m |
7.3 |
||
|
Blade |
Maximum lifting height |
mm |
480 |
|
|
Maximum shoveling depth |
mm |
715 |
||
|
Maximum lateral inclination angle |
° |
90 |
||
|
Cutting angle |
° |
29-69 |
||
|
Oil filling amount |
Slewing angle |
° |
360 |
|
|
Length x chord height |
mm |
3965 x 610 |
||
|
Coolant |
L |
50 |
||
|
Fuel tank |
L |
270 |
||
|
Engine |
L |
24 |
||
|
Transmission |
L |
38 |
||
|
Balance box |
L |
60 |
||
|
Drive axle |
L |
36 |
||
|
Hydraulic oil |
L |
190 |
||
