XCMG Official XGA26 Articulated Mobile Elevating Work Platform for sale

  • XCMG Official XGA26 Articulated Mobile Elevating Work Platform for sale

Share:
XCMG Official XGA26 Articulated Mobile Elevating Work Platform for sale
FOB for Road Mach Reference Price:Get Latest Price
Chat Now 1 / EA (Min. Order)
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping
Payment Terms:
XCMG Official XGA26 Articulated Mobile Elevating Work Platform for sale
  • Summary
  • Details
Summary
Details
  • Product Name:XGA26
  • Display online time:2020-03-03
  • weight:16100.000kg
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Warranty:12 Months
  • Condition:NEW
  • Moving Type:wheel


XCMG Official XGA26 Articulated Mobile Elevating Work Platform for sale

I.Product overviews and features

XGA26 articulated mobile elevating work platform reaches as high as 26.38m operation height. It is outstanding in terms of extending and operation range and efficient operation efficiency. The initial energy saving system according to power improves fuel efficiency to the maximum extend. It features advanced performance, precise control, safe and reliable operation, meeting demands from building construction, bridge and equipment maintenance, shipyard and petrochemical industry and users from rental service.

Advantages and features

lMaximum working range 18.9m to reach operation area at different directions

lThis vehicle is equipped with No. 1, No. 2 booms and a full section of articulated boom, available to implement all-directional aerial work through the elevating, telescopic and slewing control, and thus making the machine more flexible.

lFlexible 4WD multi-mode steering system and the leading gradeability.

lThe customized valve control system and all accurately controlled motions effectively improve the motion smoothness

lThe flow anti-saturation design is applied to provide efficient and stable composite motion experiences.

lInitial power self-matching system could save the energy, dropping the comprehensive fuel consumption under each work condition by 30% or higher.

II.Introduction of Main Parts

1. Chassis

Main configurations: 4WD, four wheel steering, axle balance and perfusion foam tires.

(1)   Maximum driving speed at 5km/h.

(2)   Maximum gradeability at 45%-Max. level in industry

(3)   Axle balance system - greatly improving the vehicle ability to cross over any rough road.

(4)   Multi-mode steering control technologies - internal and external wheels could have their speed adjustable, making the traveling smoother and the tires less worn.

(5)   The built-in traveling reducer that integrates the motor and reducer is applied and two driving speeds (high speed and low speed) are provided to meet the driving demands of the machine under different environments. The traveling mechanism features self-braking function while traveling on slopes and is equipped with clutch device to ease the towing in event of malfunction.

2. Boom

(1)   Foldable arm could maximize the upward, downward and crossing-over capacities, and the horizontal extension to 18.9m, realizing the multi-directional positioning and effectively reaching the work target.

(2)   Boom material - The boom is welded from high strength steel to realize lightweight and high safety.

(3)   Strength-stiffness matching - It guarantees the outstanding strength and stiffness of the boom.

3. Turntable

(1)   The turntable is capable of 360° continuous rotation and is provided with two holes for installation of transport locking pins.

(2)   Power system - optimal matched shock-absorbing and radiator system, the automatic reminding of maintenance.

(3)   Spin-out engine mounting is bolted to vehicle frame and could be spined out, make it easy to access to engine and its attachments for maintenance and repair.

(4)   System diagnosis - The main malfunctions are indicated by the turntable display and alarmed by the buzzer and the calibration function is provided.

4. Platform

(1)   2.4m×0.9m large work platform.

(2)   160° rotatable platform.

(3)   Up to 230kg carrying capacity.

(4)   Electro-hydraulic proportional automatic leveling system.

5. Hydraulic system

(1)   Closed pump + variable pump: the former is used to control the running system and the latter to control the complete hydraulic system driven directly with engine, except for the running system.

(3)   Emergency power unit - make sure the boom could be retracted to the running state when the engine or the oil pump is failed.

(4)   Superstructure hydraulic system is of open-type variable system: based on the electric-hydraulic proportional control technologies, the machine could perform the slewing of superstructure, the luffing, retracting / extending of No. 1 and No. 2 booms, the luffing of crank and the swinging of work platform. the main valve of superstructure is of sheet-type valve set; the machine is mounted with hydraulic oil radiator.

(5)   The running system is of a closed variable system - 4×4 drive type, classified into high-speed and low-speed gears. The undercarriage hydraulic system could perform the axle balancing, and the steering functions.

(6)   The customized valve control system and all accurately controlled motions remarkably improve the motion smoothness and the flow anti-saturation design is applied to provide efficient and stable composite motion experiences.

6. Electric system

(1)   PLC control technology - One controller is provided each for the chassis, turntable and platform. A control boxy is installed for the chassis turntable and platform respectively to control the chassis, turntable, boom, and platform.

(2)   Main control items - engine startup, shutdown and rpm; the turning and running of chassis; the slewing of turntable; the luffing, retracting/ extending of No. 1 and No. 2 arms; the swinging of platform and the luffing of crank.

(3)   More than 10 safety measures-engine status detection and start-up protection; chassis anti-tilt protection, overloading warning, driving confirmation system, reduction before limit position and safety limit;

III. Configuration of XGA26 Main Parts

S/N

Name

Quantity

Note

1

Engine

1

Cummins

2

Traveling reducer

4

OMNI

3

Traveling motor

4

DANFOSS/SUNBUN

4

Hydraulic oil pump

1

REXROTH/LIYUAN

5

Power unit

1

BUCHER

6

Platform valve group

1

SUNBUN /Sant

7

Turntable valve group

1

8

Traveling control valve group

1

9

Swing cylinder

1

HELAC/Weihai Liansheng

10

Crank arm cylinder

1

Chengdu Chenggang Hydraulic Equipment Co., Ltd./XCMG Hydraulic Parts Co., Ltd.

11

Leveling cylinder

1

12

Luffing cylinder of No. 1 arm

1

13

Telescopic cylinder of No. 1 arm

1

14

Luffing cylinder of arm 2

1

15

Telescopic cylinder of No. 2 arm

1

16

Steering cylinder

4

17

Balance cylinder

2

18

Hydraulic oil radiator

1

Yinlun

19

Controller

3

XCMG

20

Turntable inclination sensor

1

Parker

21

Steering angle sensor

4

22

Platform inclination sensor

1

Xuzhou YUWEI

23

Weighing switch

4

Bengbu LIYE

24

Joystick

4

P+G

25

Foot switch

1

SUNS

26

Slewing bearing

1

Ma’anshan Fangyuan

27

Slewing reducer

1

Xuzhou Keyuan / Tai’an Fushen

28

Swing motor

1

Ningbo Zhongyi

29

Tire

4

Laizhou Exmile

IV.Main Technical Specification of XGA26

Item

Unit

Parameter

a.     Overall length of complete machine

mm

11280

b.    Overall width of complete machine

mm

2490

c. Overall height

mm

3000

d. Wheelbase

mm

3000

Max. working height

m

26.38

Max. platform height

m

24.38

Max. working range

m

18.9

Max. carrying weight

kg

230

Scope of luffing of No. 1 arm

°

-1~ +70

Scope of luffing of No. 2 arm

°

-35~ +68

Slewing angle of turntable

°

360°

Max.Tail swing

mm

1330(boom lifting)

Dimension of platform

mm

2400×900

Slewing angle of platform

°

160

Overall weight

kg

17800

Max. traveling speed

km/h

5

Min. turning radius

m

4.2m(Four-wheel steering)/6.7m(Two-wheel steering)

Min. ground clearance

mm

260

Max. gradeability

%

45

Specification of tire

-

18-625

Engine model

-

Cummins QSF2.8 71BHP

Engine rated power

kW/(r/min)

53/(2200)

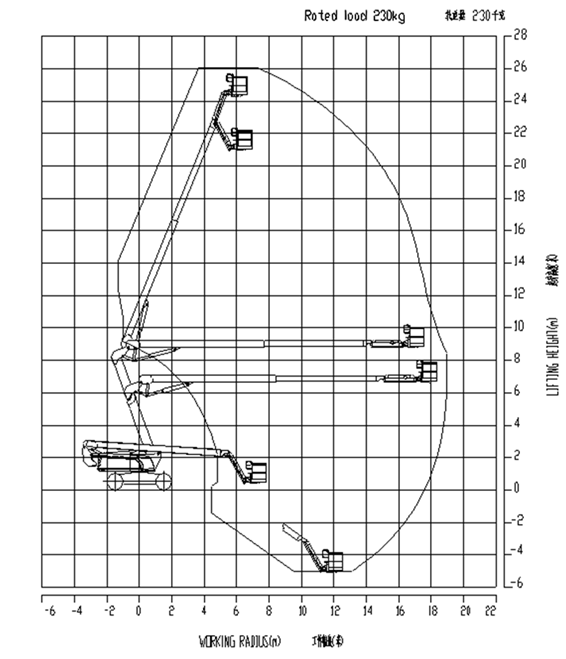

V. Safe Working Range Diagram of Machine

XCMG Official XGA26 Articulated Mobile Elevating Work Platform for sale

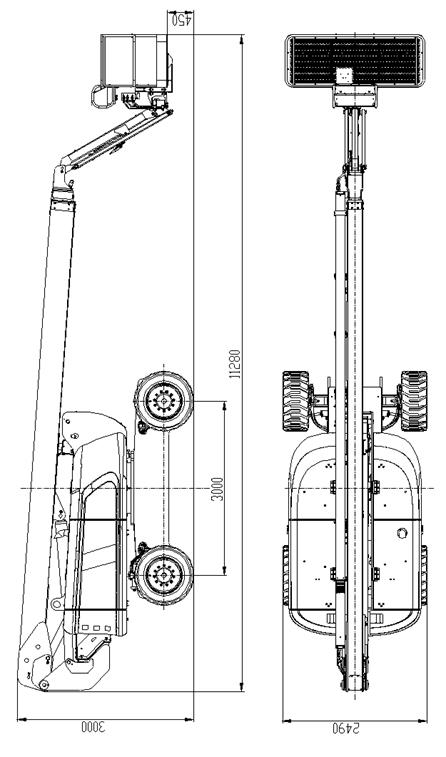

VI.Dimension Diagram of Machine

XCMG Official XGA26 Articulated Mobile Elevating Work Platform for sale


XCMG Official XGA26 Articulated Mobile Elevating Work Platform for saleXCMG Official XGA26 Articulated Mobile Elevating Work Platform for saleXCMG Official XGA26 Articulated Mobile Elevating Work Platform for sale
