XCMG Official XR150DIII Rotary Drilling Rig for sale

  • XCMG Official XR150DIII Rotary Drilling Rig for sale

Share:
XCMG Official XR150DIII Rotary Drilling Rig for sale
FOB for Piling Mach Reference Price:Get Latest Price
Chat Now 1 / EA (Min. Order)
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping
Payment Terms:
XCMG Official XR150DIII Rotary Drilling Rig for sale
  • Summary
  • Details
Summary
  • Certification:CE/ISO9001
  • Dimension(L*W*H):7550×4200×19040mm
  • Weight:49000kg
  • Power(W):150kW
  • Voltage:220V/380V
  • Usage:Water Well
  • Model Number:XR150DIII
  • Brand Name:XCMG
  • Place of Origin:China
  • Power Type:Electric
  • Type:Rotary Drilling Rig
Details
  • Product Name:G5CDBB0F927DA3
  • Display online time:2019-12-27
  • weight:49000.000kg
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Warranty:12 Months
  • Condition:NEW
  • Moving Type:crawler
  • Max. Drilling Diameter:1500mm
  • Max. Drilling Depth:56m
  • Allowable luffing scope:3250-3650mm
  • Max. working pressure of hydraulic system:35Mp
  • Max. torque:150kN •m
  • Rotational speed:7-33r/min
  • Rotary table slewing angle:360°
  • Max. traveling speed:2.1km/h
  • Max. climbable gradient:0.4
  • Width of crawler plate:700mm
  • Engine model:CUMMINS QSB6.7

XCMG Official XR150DIII Rotary Drilling Rig for sale

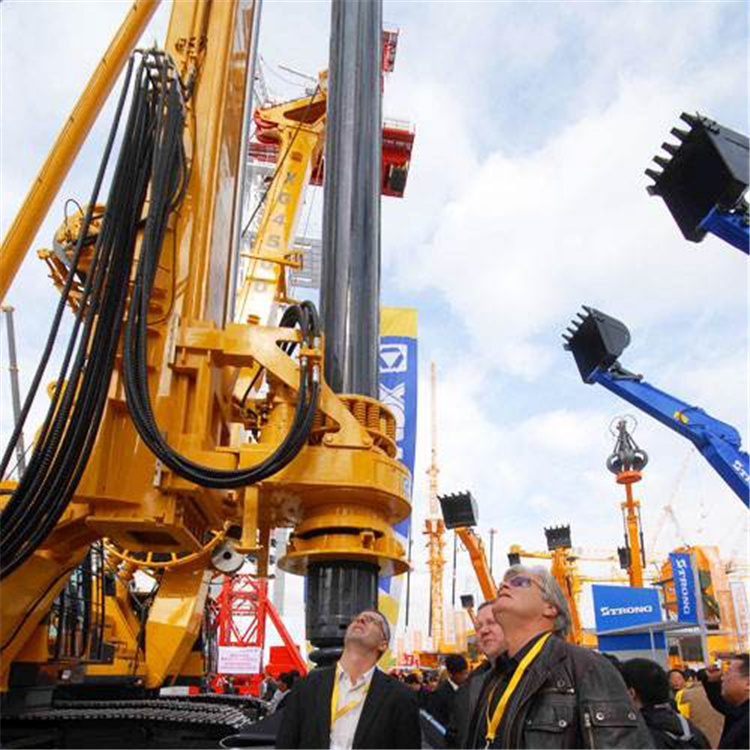

XR150DⅢ Rotary Drilling Rig

1It adopts the dedicated hydraulic retractable crawler chassis and large diameter slewing bearing to provide extraordinary stability and transport convenience.
2It adopts the Cummins electric control turbo-supercharged engine to provide strong power and conformity with Euro III emission standard.
3With the hydraulic pressure system adopted threshold power control and negative flow control,the system acquired high efficiency and higher energy conservation.
4Using single rope winding, effectively solve the steel wire rope wear problem, improve the life of wire rope; And drill deep detection device is setted in main winding,single rope to make deep inspection more accurate.
5The whole machine design meet the requirements of the CE directive, safety guarantee, construction safer.
6The optional centralized lubrication system, maintenance more convenient.
7Several drilling rod configurations with different specification are available for efficient construction on different layers.
8The detachable unit head drive key can provide easy maintenance and replacement.

XCMG Official XR150DIII Rotary Drilling Rig for sale
XCMG Official XR150DIII Rotary Drilling Rig for sale

XCMG Official XR150DIII Rotary Drilling Rig for sale

Description

Unit

Parameter value

Max. drilling diameter

mm

1500

Max. drilling depth

m

56

Allowable luffing scope (from center of drill rod to slewing center)

mm

32503650

Drilling rig dimension in working condition (L × W × H)

mm

7550×4200×19040

Drilling rig dimension in transport condition (L × W × H)

mm

13150×2960×3140

Weight of overall unit (standard configuration, excluding drilling tool)

t

49

Engine

Model

CUMMINS  QSB7

Rated power/speed

kW

150/2050r/min

Max. working pressure of hydraulic system

MPa

35

Rotary drive

Max. torque

kN m

150

Rotational speed

r/min

733

Crowd  cylinder

Max. Pushing force

kN

120

Max. Pulling force

kN

160

Max.stroke

mm

3500

Main winch

Max.pulling force

kN

160

Max. single-rope speed

m/min

72

Diameter of the steel wire rope

mm

26

Auxiliary winch

Max.pulling force

kN

50

Max. single-rope speed

m/min

60

Diameter of the steel wire rope

mm

16

Drilling mast

Left/right inclination of mast

°

3/3

Front/back inclination of mast

°

5/15

Rotary table slewing angle

°

360

Traveling

Max. traveling speed of the overall unit

km/h

2.1

Max. climbable gradient of the overall unit

%

40

Crawler

Width of crawler plate

mm

700

External width of crawler (min.-max.)

mm

29604200

Center distance between two longitudinal wheels of crawler

mm

4310

Average ground pressure

kPa

83






XCMG Official XR150DIII Rotary Drilling Rig for sale

XCMG Official XR150DIII Rotary Drilling Rig for sale
