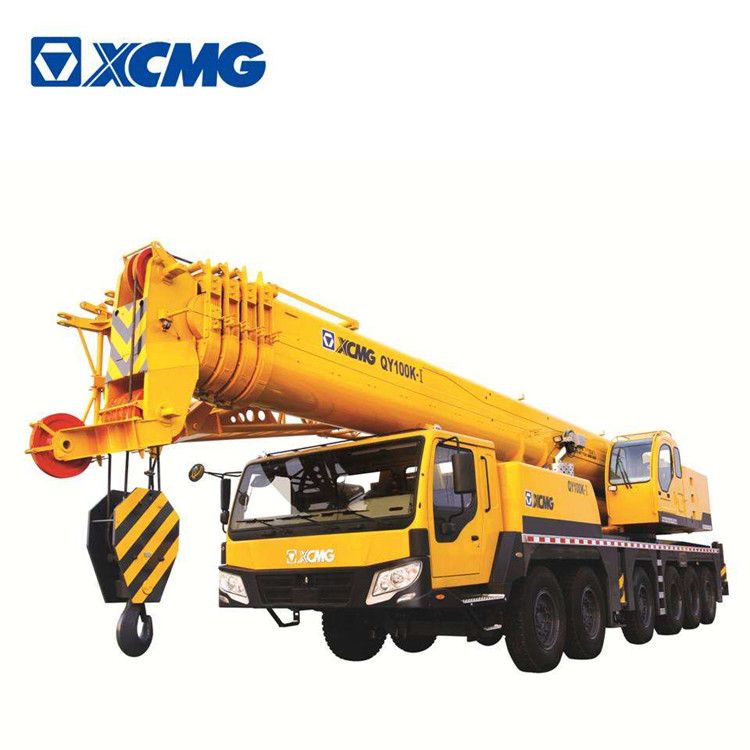

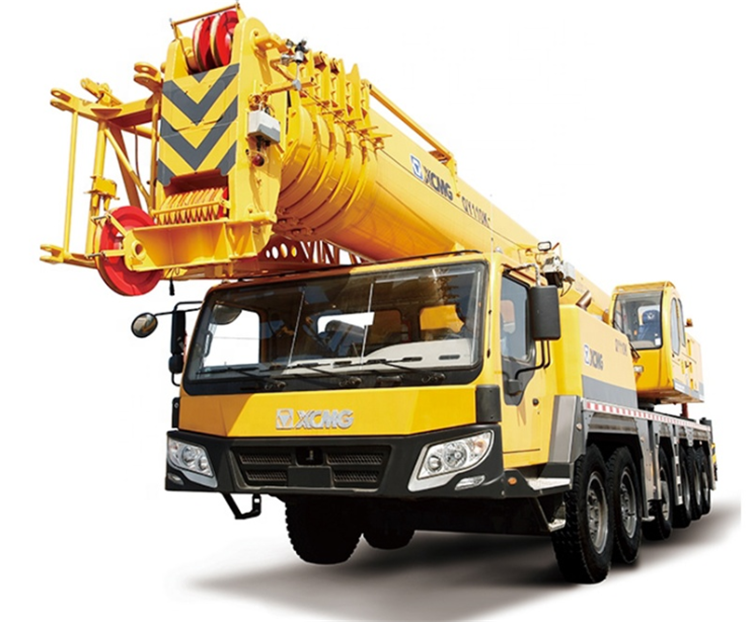

XCMG Official Truck Crane Hydraulic QY100K-I China Hydraulic Crane Manufacturer Price
.jpg)
Summary
- Model Number:QY100K-I
- Brand Name:XCMG
- Place of Origin:China
- Span: 7.6m
- Max. Lifting Height:70.4m
- Rated Lifting Moment:3450kN.m
- Rated Loading Capacity:100t
- Application:Construction
- Certification:CE/ISO9001
Specifications
- Weight:100000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG Official Truck Crane Hydraulic QY100K-I China Hydraulic Crane Manufacturer.
• The innovative jib system adopts embedded block, plug-in boom head and international advanced U section jib, which has excellent lifting performance and safe and reliable lifting work.
• The unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations.
• Eight patent techniques ensure the smooth, high efficiency and energy conservation of the lifting, rotation, and luffing systems.
• The torque limiter adopts colorful LCD display, realizing the intelligence of the failure diagnosis. The precision is ahead of the industry.
• Adopt the new hydraulic motor with big torque starting point, making the secondary lifting safer.
• The humanity design makes the cab and control cab more spacious, and easy to operate.
• Six unique manufacturing technologies ensure the high quality.
|
Item |
Unit |
||
|
Dimensions |
Overall length |
15600×3000×3850 |
mm |
|
Weighet |
Operation mass in travel state |
1420+2420+1800+1420+1505 |
mm |
|
Axle load |
54900 |
kg |
|
|
1st axle |
8000 |
kg |
|
|
2nd axle |
8000 |
kg |
|
|
3rd axle |
7900 |
kg |
|
|
4th axle |
12000 |
kg |
|
|
5th axle |
12000 |
kg |
|
|
6th axle |
7000 |
kg |
|
|
Power |
Superstructure engine |
TAD720VE/TAD750VE/OM906LAE2/3/BF6M1013EC |
|
|
Superstructure engine rated output |
174/2300 181/2300 180/2200 174/2300 |
KW/(r/min) |
|
|
Superstructure engine max torque |
875/1400 1050/1500 900/1200-1600 875/1400 |
N.m/(r/min) |
|
|
Carrier engine |
ISME420.30 MO460LA.E3A/1 WP12.460N |
||
|
Carrier engine rated output |
306/1900 360/1800 338/1900 |
KW/(r/min) |
|
|
Carrier engine max torque |
2010/1200 2200/1300 2100/1000-1400 |
||
|
Travel |
Approach angle |
20 |
° |
|
Departure angle |
14 |
° |
|
|
Braking distance(at 30km/h) |
≤10 |
m |
|
|
Max.grade ability |
40 |
% |
|
|
Min.turning diameter |
24 |
m |
|
|
Min.ground clearance |
300 |
mm |
|
|
Fuel consumption per 100km |
70 |
L |
|
|
Lifting Performance |
Max.total rated lifting capactiy |
100 |
t |
|
Min.rated working radius |
3 |
m |
|
|
At counterweight |
4200 |
mm |
|
|
At auxilary winch |
4590 |
mm |
|
|
Base boom |
3450(4m×88t) |
kn.m |
|
|
Full-extended boom |
1925(2.4m×8.3t) |
kn.m |
|
|
Full-extended boom+Jib |
708(25.8×2.8t) |
kn.m |
|
|
Longitudinal distance |
7.56 |
m |
|
|
Lateral distance |
7.6 |
m |
|
|
Base boom |
13.5 |
m |
|
|
Full-extended boom |
50.9 |
m |
|
|
Full-extended boom+Jib |
70.4 |
m |
|
|
Base boom |
13.5 |
m |
|
|
Full-extended boom |
51 |
m |
|
|
Full-extended boom+Jib |
51+18.1+4 |
m |
|
|
Working speed |
Jib offset |
0,15,32 |
° |
|
3Boom raising |
75 |
s |
|
|
Full-extending |
160 |
s |
