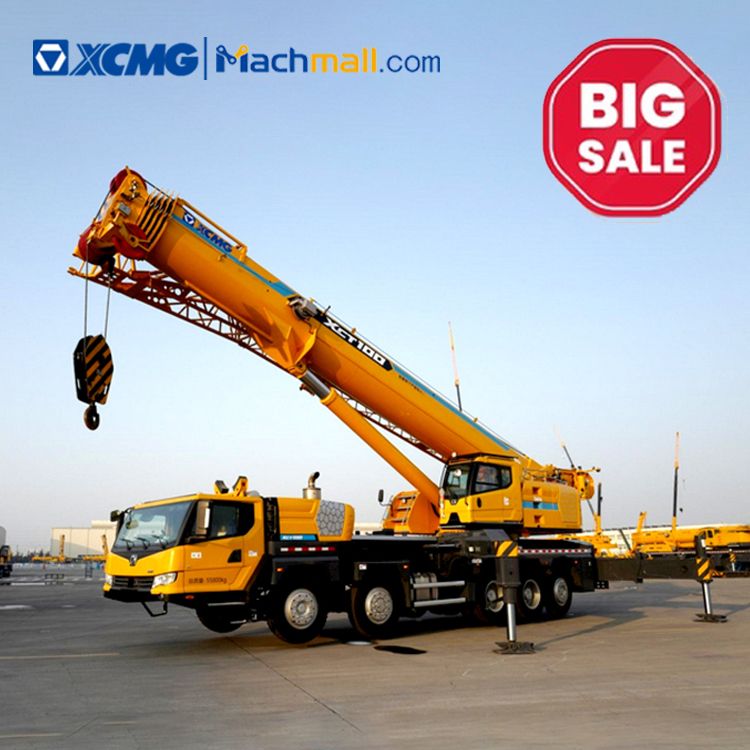

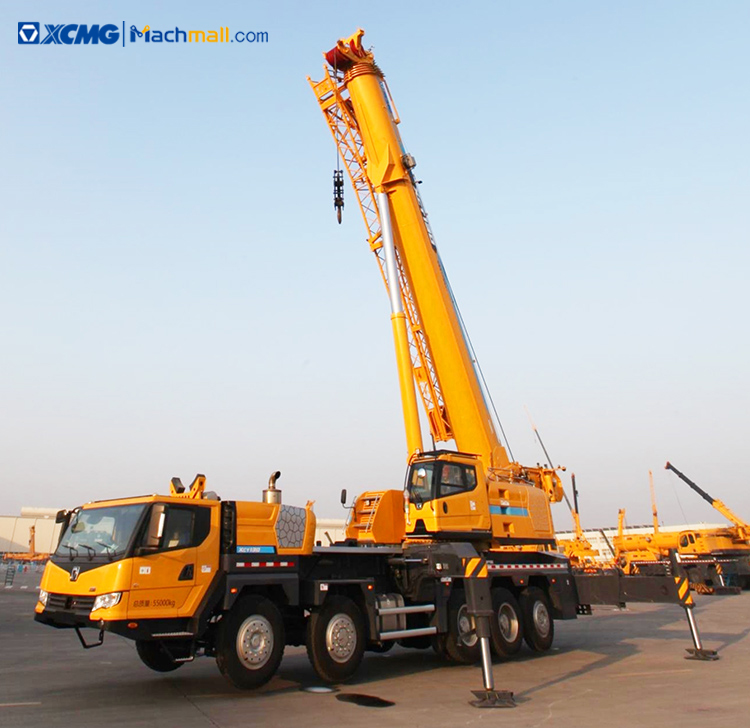

XCMG 100 ton XCT100 cheap mobile truck crane machines on sale

  • XCMG 100 ton XCT100 cheap mobile truck crane machines on sale
  • XCMG 100 ton XCT100 cheap mobile truck crane machines on sale
  • XCMG 100 ton XCT100 cheap mobile truck crane machines on sale
  • XCMG 100 ton XCT100 cheap mobile truck crane machines on sale
  • XCMG 100 ton XCT100 cheap mobile truck crane machines on sale
  • XCMG 100 ton XCT100 cheap mobile truck crane machines on sale

Share:
XCMG 100 ton XCT100 cheap mobile truck crane machines on sale
FOB for Cranes Reference Price:Get Latest Price
$339000.00-$365000.00 1 / EA (Min. Order)
Model: XCT100
Engine: WEICHAI
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
XCMG 100 ton XCT100 cheap mobile truck crane machines on sale
XCMG 100 ton XCT100 cheap mobile truck crane machines on sale
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Specifications
  • Product PDF
Summary
  • Model Number:XCT100
  • Brand Name:XCMG
  • Place of Origin:Xuzhou,Jiangsu,China
  • Span:7.9m
  • Max. Lifting Height:96.1m
  • Max. Lifting Load:100 Ton
  • Rated Lifting Moment:4707kN.m
  • Rated Loading Capacity:100 Ton
  • Application:Construction
  • Certification:CE/ISO9001
Specifications
  • weight:55000.000kg
  • Condition:New
  • Moving Type:Wheel
  • Engine rated power:190/2200kW/rpm
  • Engine rated torque:1000/1200-1600N.m/(r/min)
  • Overall dimension:15600*3000*3870mm
  • Min. turning diameter:23m
  • Min. ground clearance:326mm
  • Max. grade ability:45%
  • Max. travel speed:90km/h

XCMG 100 ton XCT100 cheap mobile truck crane machines on sale

XCMG 100 ton XCT100 cheap mobile truck crane machines.



XCMG truck crane XCT100 is widely used for the lifting operations in general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.

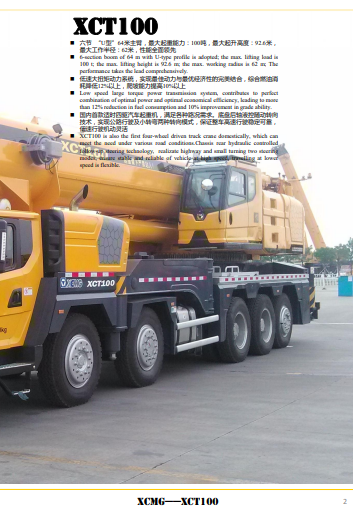

Performance Characteristics:



1. XCMG truck crane XCT100 adopts 6-section boom of 64 m with U-type profile is adopted; the max. lifting load is 100 t; the max. lifting height is 92.6 m; the max. working radius is 62 m; The performance takes the lead comprehensively.



2. Truck crane XCT100 to perfect combination of optimal power and optimal economical efficiency, leading to more than 12% reduction in fuel consumption and 10% improvement in grade ability.



3. XCMG truck crane XCT100 is also the first four-wheel driven truck crane domestically, which can meet the need under various road conditions.



4. Chassis rear hydraulic controlled follow-up steering technology, realizate highway and small turning two steering modes, ensure stable and reliable of vehicle at high speed, travelling at lower speed is flexible.

XCMG 100 ton XCT100 cheap mobile truck crane machines on sale

Description
Unit
Parameter value
Overall length
mm
15600
Overall width
mm
3000
Overall Height
mm
3870
Wheel Base
mm
1920+3500+1420+1505
Track(front/rear)
mm
2449/2315
Front/Rear overhang
mm
2650/2765
Front/Rear extension
mm
1840/0
Total vehicle mass in travel configuration
kg
55000
Axle load
1st and 2nd Axle
kg
10000
3rd and 4th Axle
13000
5th Axle
9000
Engine Model

WP6G240E330
M906LA.E3A/2
WP12.430N
Engine rated power
kw/(r/min)
176/2300
190/2200
316/1900
Engine rated torque
N.m/(r/min)
860/1200-1700
1000/1200-1600
2060/1000-1400
Max. travel speed
km/h
90
Min. turning diameter
m
23
Min. ground clearance
mm
326
Max. grade ability
%
45
Approach angle
°
18
Departure angle
°
13
Braking distance (at 30 km/h, full load )
m
≤10
Oil consumption per 100km
L
70
Noise level at seated position
dB(A)
≤90
Exterior noise level
dB(A)
≤88
