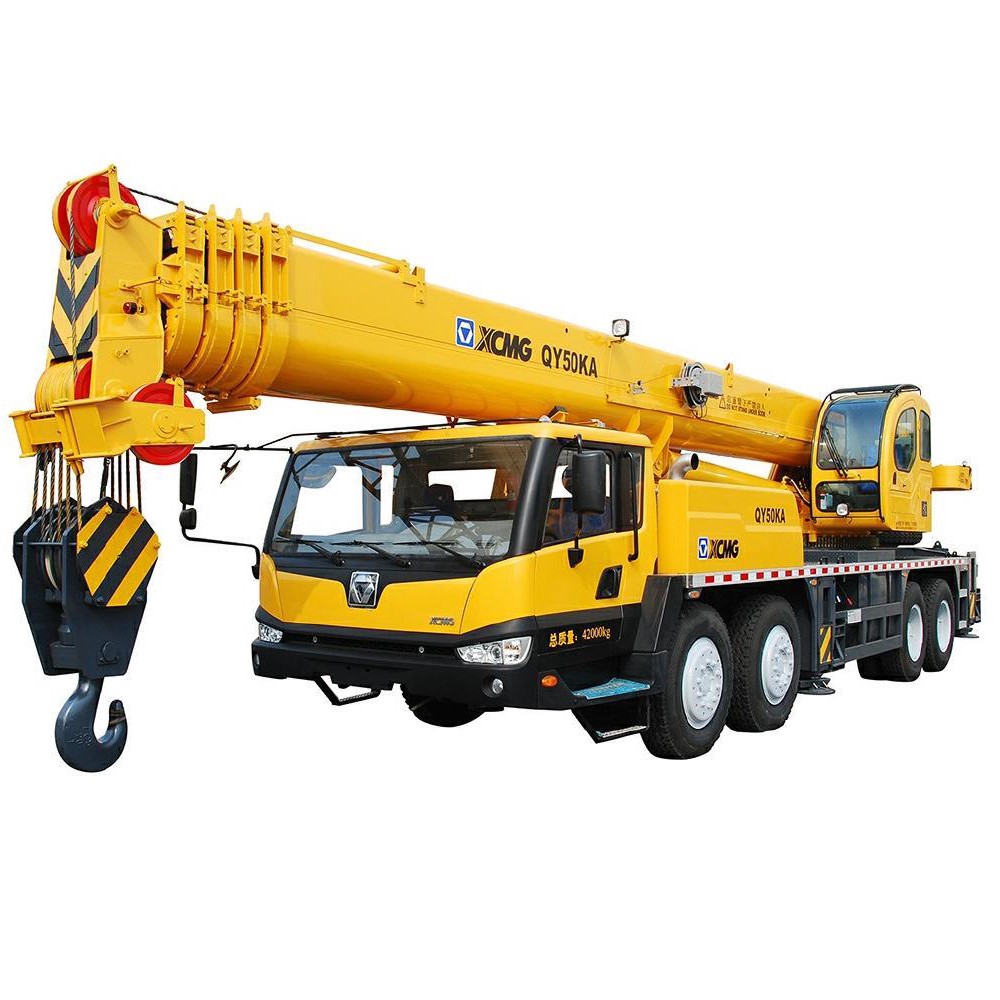

XCMG Official QY50KA Truck Crane for sale

  • XCMG Official QY50KA Truck Crane for sale

Share:
XCMG Official QY50KA Truck Crane for sale
FOB for Cranes Reference Price:Get Latest Price
Chat Now 1 / EA (Min. Order)
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
XCMG Official QY50KA Truck Crane for sale
XCMG Official QY50KA Truck Crane for sale
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Specifications
Summary
  • Model Number:QY50KA
  • Brand Name:XCMG
  • Place of Origin:China
  • Span:Longitudinal6.1m/Lateral7.1m
  • Max. Lifting Height:58.1
  • Max. Lifting Load:50t
  • Rated Lifting Moment:2009kN.m
  • Rated Loading Capacity:50t
  • Application:Construction Industry
  • Certification:ISO9001/CE
Specifications
  • weight:42200.000kg
  • Condition:New
  • Moving Type:Wheel
  • Overall length:13930mm
  • Overall width:2780mm
  • Overall height:3630mm
  • Wheel base:2304+2075mm
  • Total vehicle mass in travel configuration:42200kg
  • Engine Model:WD615.338
  • Engine rated power:276/2200kw/(r/min)
  • Engine rated torque:1500/1300-1600N.m/(r/min)
  • Max. travel speed:85km/h
  • Min. turning diameter:24m
  • Min. ground clearance:327mm
  • Max. grade ability:0.42
  • Exterior noise level during acceleration traveling:≤88dB(A)


XCMG Official QY50KA Truck Crane for sale


XCMG Official QY50KA Truck Crane for sale

QY50KA Truck Crane:
1.Leading lifting performance and traveling performance
2.Mature and reliable double pump confluence technology, highest hoisting, elevating and telescoping efficiency in the industry
3.Improved reliability of radiation and electric systems, safer lifting and driving operation
4.Air-assisting shift gears bring more comfortable operation
5.New upgraded outline and humanized design, more comfortable driving operation
XCMG Official QY50KA Truck Crane for sale
XCMG Official QY50KA Truck Crane for sale
XCMG Official QY50KA Truck Crane for sale


.Main Technical Data Table in Travel configuration

Description

Unit

Parameter value

Overall length

mm

13930

Overall width

mm

2780

Overall Height

mm

3630

Axle base

1st ,2nd axle

mm

1470

2nd ,3rd axle

4300

3rd ,4th axle

1350

Wheel Base

mm

 2304+2075

Front overhang/rear overhang

mm

2389/2064or 2376/2064

Front extension/rear extension

mm

2131/226 or 2144/226

Total vehicle mass in travel configuration

kg

42200

Axle load

Front axle

kg

16200

Rear axle

26000

Engine Model

WD615.338

Engine rated power

kw/(r/min)

276/2200

Engine rated torque

N.m/(r/min)

1500/1300-1600

Max. travel speed

km/h

85

Min. steady travel speed

km/h

23

Min. turning diameter

m

24

Min. ground clearance

mm

327

Max. grade ability

%

42

Approach angle

°

19

Departure angle

°

15

Braking distance (at 30 km/h, full load )

m

10

Oil consumption per 100km

L

40

Exterior noise level during acceleration traveling

dB (A)

88

Noise level at seated position

dB (A)

90




























































.Main Technical Data Table for Lifting Operation

Max. total rated lifting capacity

t

50

Min. rated working radius

m

3

Turning radius at turntable tail

mm

3800

Max. load moment

Base boom

KN.m

2009

Fully-extended boom

1129

Outrigger span

Longitudinal

m

6.1

Lateral

7.1

Hoist height

Base boom

m

11.9

Fully-extended boom

44

Fully-extended boom + Jib

58.1

Boom length

Base boom

m

11.4

Fully-extended boom

43.5

Fully-extended boom + Jib

59.5

Jib offset angle

°

0, 15, 30

Time for boom raising

s

40

Time for boom extending fully

s

90

Max. slewing speed

r/min

2.0

Outrigger extending and retracting time

Outrigger

beam

Extending

Simultaneously

s

35

Retracting

Simultaneously

30

Outrigger

jack

Extending

Simultaneously

40

Retracting

Simultaneously

35

Hoisting speed

(single line

Main winch

No load

m/min

130

Auxiliary winch

No load

130

Exterior noise level

dB (A)

118

Noise level at seated position

dB (A)

90
