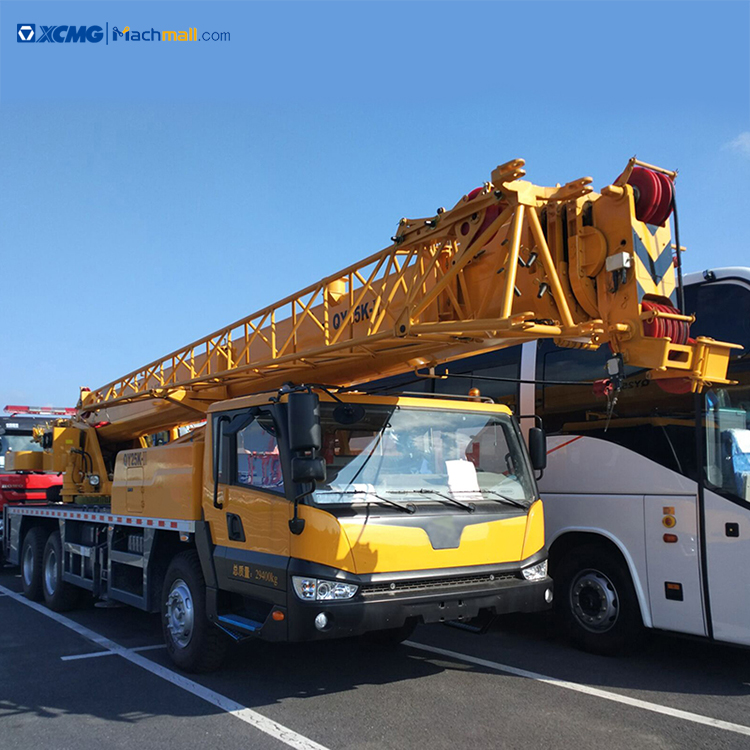

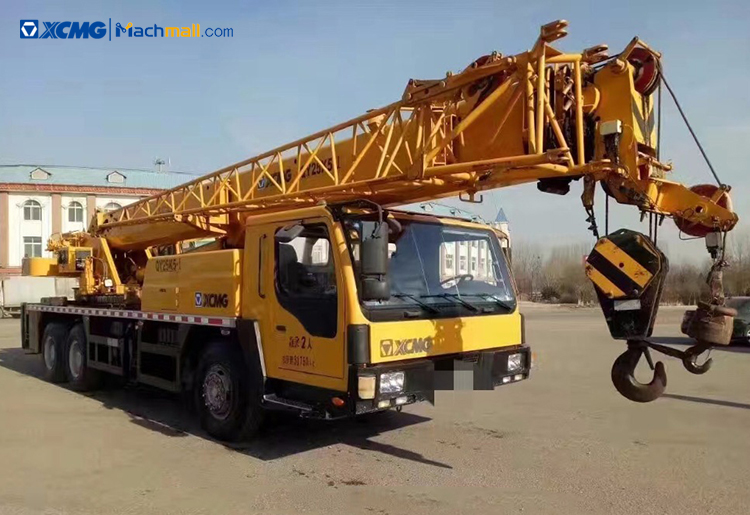

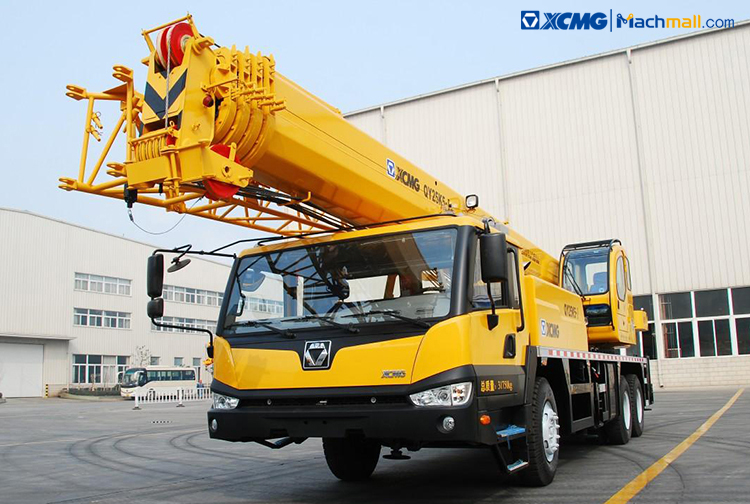

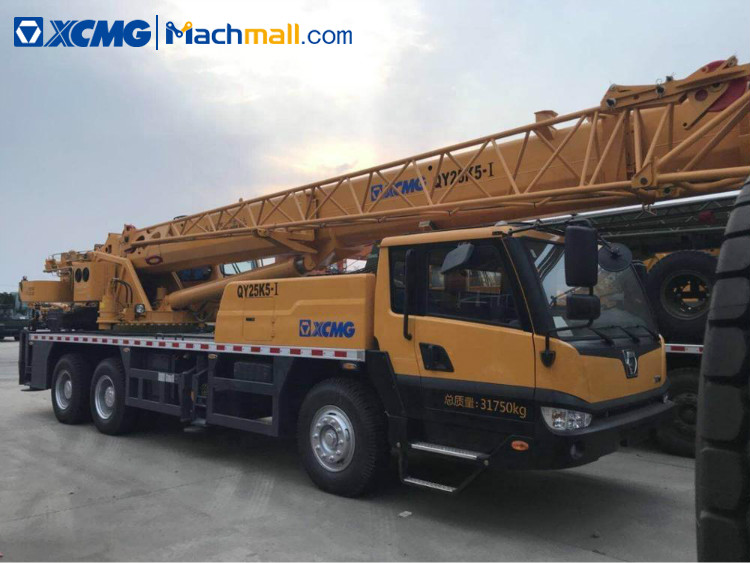

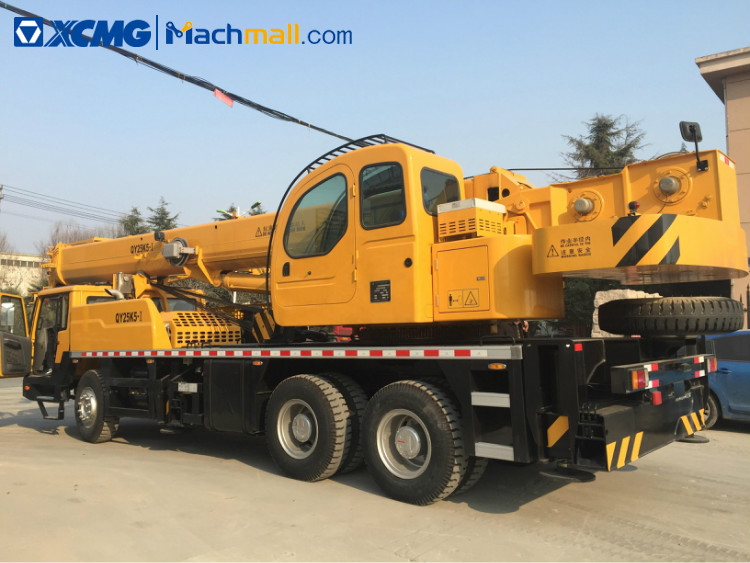

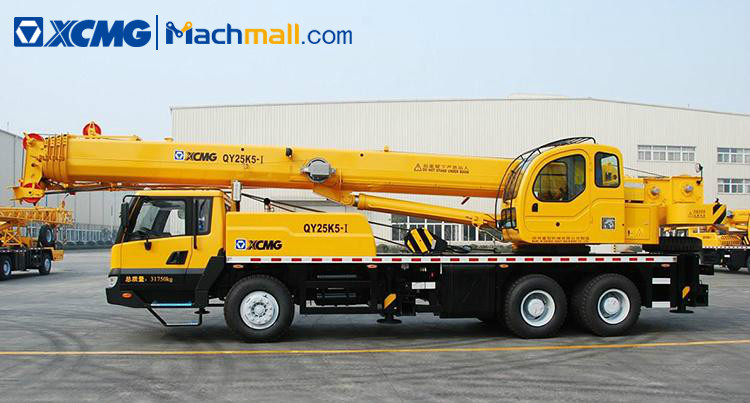

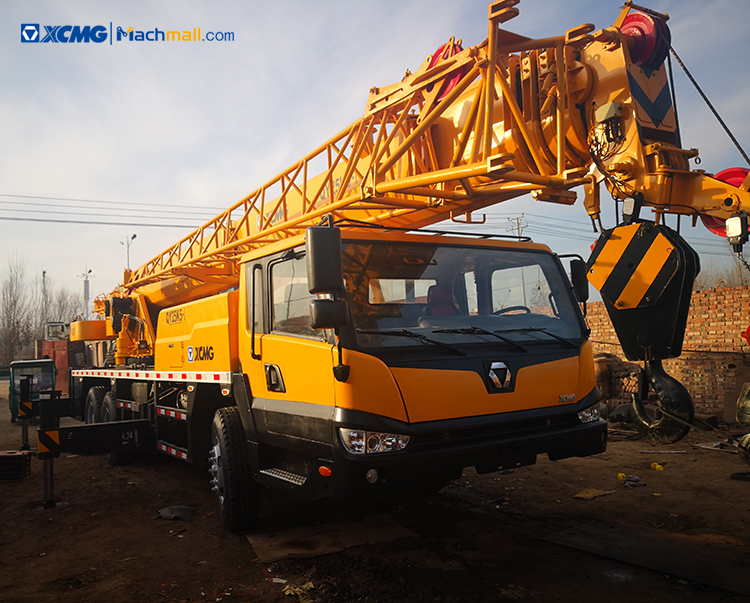

25 ton XCMG pickup truck lift crane QY25K5-I price

  • 25 ton XCMG pickup truck lift crane QY25K5-I price
  • 25 ton XCMG pickup truck lift crane QY25K5-I price
  • 25 ton XCMG pickup truck lift crane QY25K5-I price
  • 25 ton XCMG pickup truck lift crane QY25K5-I price
  • 25 ton XCMG pickup truck lift crane QY25K5-I price
  • 25 ton XCMG pickup truck lift crane QY25K5-I price
  • 25 ton XCMG pickup truck lift crane QY25K5-I price

Share:
25 ton XCMG pickup truck lift crane QY25K5-I price
FOB for Cranes Reference Price:Get Latest Price
$80000.00-$120000.00 1 / EA (Min. Order)
Model: QY25K5-I
Engine: SHANGCHAI
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
25 ton XCMG pickup truck lift crane QY25K5-I price
25 ton XCMG pickup truck lift crane QY25K5-I price
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Specifications
  • 360-Degree VR Videos
Summary
  • Model Number:QY25K5-I
  • Brand Name:XCMG
  • Place of Origin:Xuzhou,Jiangsu,China
  • Span:6m
  • Max. Lifting Height:48m
  • Max. Lifting Load:25 ton
  • Rated Lifting Moment:961KN.m
  • Rated Loading Capacity:25 ton
  • Application:Construction
  • Certification:CE/ISO9001
Specifications
  • weight:31750.000kg
  • Condition:New
  • Moving Type:Other
  • Engine rated torque:1112/1400N.m/(r/min)
  • Engine rated power:206/2200kw/(r/min)
  • Max. travel speed:80km/h
  • Wheel base:4425+1350mm

25 ton XCMG pickup truck lift crane QY25K5-I price

25 ton XCMG pickup truck lift crane QY25K5-I.



XCMG lifting crane QY25K5-I is the product with high reliability inheriting XCMG classical and advanced technology about design and manufacture truck crane of many years and based on mature technology.



The operations of lifting crane QY25K5-I are very simple, convenient and flexible. It is widely used for lifting operation and installation work in urban renewal, transportation, ports, bridges, oilfield, industrial and mining enterprises, etc.



Performance Characteristics:



1. Leading performance: the boom length in full extension is 39.5m, the performance leading in 5%. The grade ability is 40%, which make the machine have good road adaptability.



2. The unique U boom and plug-in boom head make the load-carrying capacity more balanced, and lift more smoothly.



3. The unique stretch and retract technique prevents the misoperation; the stretch and retract of the boom is safer and more reliable.



4. The innovative jib system adopts embedded block, plug-in boom head and octagon jib, which has excellent lifting performance and safe and reliable lifting work.



5. The unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations.

25 ton XCMG pickup truck lift crane QY25K5-I price

Description

Unit

Parameter value

Overall dimension

mm

12300*2500*3350

Wheel Base

mm

4425+1350

Track

mm

2074/1834/1834

Total vehicle mass in travel configuration

kg

31750

Axle load

Front axle

kg

6550

Rear axle

25200

Engine Model



SC8DK280Q3

Engine rated power

kw/(r/min)

206/2200

Engine rated torque

N.m/(r/min)

1112/1400

Max. travel speed

km/h

80

Min. turning diameter

m

22

Min. ground clearance

mm

275

Max. grade ability

%

40

Approach angle

°

16

Departure angle

°

13

Braking distance (at 30 km/h, full load )

m

10

Oil consumption per 100km

L

37

Exterior noise level during acceleration traveling

dB (A)

88

Noise level at seated position

dB (A)

90
