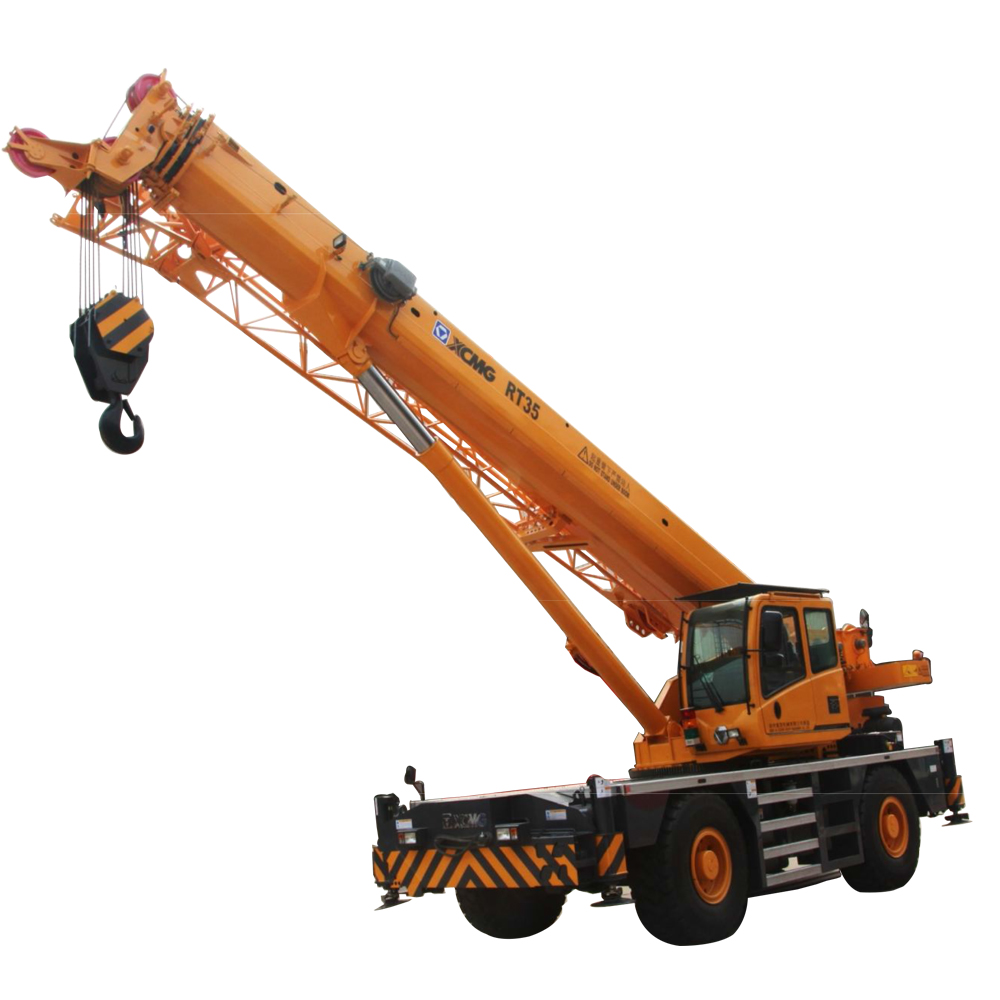

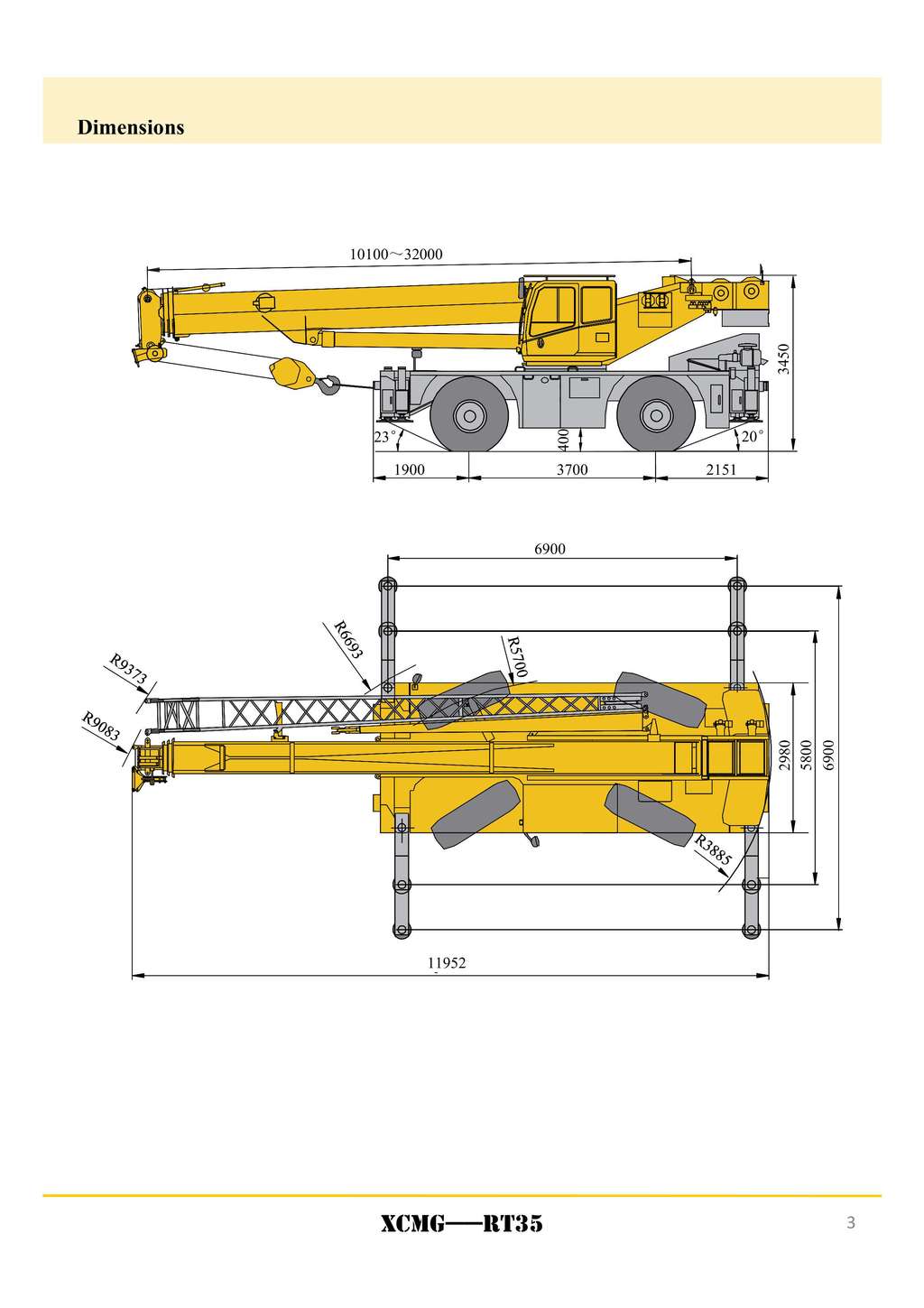

RT35 Rough Terrain Crane
1、Specialized energy-saving hydraulic system.
2、Due to powerful power configuration, specific off-road tires and all-wheel drive, the crane can easily handle various tough terrains.
3、The crane is designed by conforming with the safety standards of Europe, North America and China, for optimal active protection.
4、Developed jointly by Chinese and German engineers, with advanced design concept.
5、Accumulation of experience in boom crane design for 70 years.
6、Top class modern plate machining center, and first class NC machining center.
0-120 m/min, no load, 4th layer,
0-120 m/min, no load, 4th layer
Approx. 65s for boom elevation from -1.5° to 80°
Approx. 85s for boom extension from 10.1m to 32m
Turntable and frame are made of fine grained high strength steel, with anti-torsion large cross-section frame structure, has heavy loadbearing capacity.
I basic boom and 3-telescoping sections, dodecagon cross section welding structure. Single-cylinder plus ropes telescoping mechanism is fbr synchronous telescoping.
5 pulleys on boom head are standard. Boom length: 10.1 m ~ 32m.
4 outriggers, H-shaped arrangement, which are controlled by electrical and hydraulic and located at both sides of chassis frame. Front and rear towing brackets are available.
Integrated design, appearance is simple and artistic, equipped with all-weather and large arc glass, which has a wide vision, as well as spacious and comfortable due to ergonomic inner design.
QSB6.7-C 190-30, in line six-cylinder water- cooled compression ignition diesel engine, manufac-tured by DCEC, CHINA, rated power 142kW/2200rpm, max. torque 931Nm / 1400rpm, off-road EU Stage IIIA emission standards.
Fuel tank capacity : Approx. 300L
Hydraulic balance valve, Hydraulic relief valve, Hydraulic double-way valve, LMI., Lowering limiter avoids wire rope overreleasing. Anti-two block at boom head avoids wire rope over-winding.
The constant delivery pump is connected to the transmission through PTO for controlling the movements of crane.
Oil tank capacity: Approx. 500L.
Total weight is 4t, fixed counterweight,
Hydraulic proportional controlled operation sys-tem is equipped with two electric proportional control the main movements of crane.
DC 24 volts is in series with two 12-volt battery packs.
6WG260, automatic transmission imported from ZF Germany, with 5 forward and 3 reverse gears available.
Auxiliary which system
Driven by hydraulic motor through planetary gear reducer and with built-in constant closed brake, equipped with anti-winding wire rope.
Exclusive axles imported from Xuzhou Meritor, with both front axle and rear axle for driving and steering.
2-section,lattice and box welding structure, withO0 ,15° and 30° jib offset angles available.
Jib length:8.5m ~ 15m.
Front axle is connected with frame rigidly, swing rigidly lockable hydraulic suspension is used for rear axle. Road shock is buffered and
travel smoothness is improved when driving on roads, the rear suspension cylinder may be locked to rigid state so as to meet the requirement for travel with a load suspended.
Equipped in the cab, for improving comfortable performance.
4 tires, each axle is equipped with single tire, large bearing capacity.
Single-row four-point ball contact slewing ring, driven by hydraulic motor through planetary gear reducer and with built-in constant closed brake, for 360 ° continuous rotation.
Paralleled full hydraulic multi-mode steering: front axle independent steering, small turning radius steering, crab walk steering and rear axle independent steering are available.
Main winch system
Driven by hydraulic motor through planetary gear reducer and with built-in constant closed brake, equipped with anti-winding wire rope, having features of high speed with light load and low speed with heavy load.
Service brake: double-circuit hydraulic disc brake, acting on all wheels. Automatically braking function works when the pressure in braking system is too low.
Parking brake: spring-loaded brake, acting on front axles, hydraulic-released independent disc brake.
Product parts list is as mentioned above, please refer to the product quotation for specific parts.
