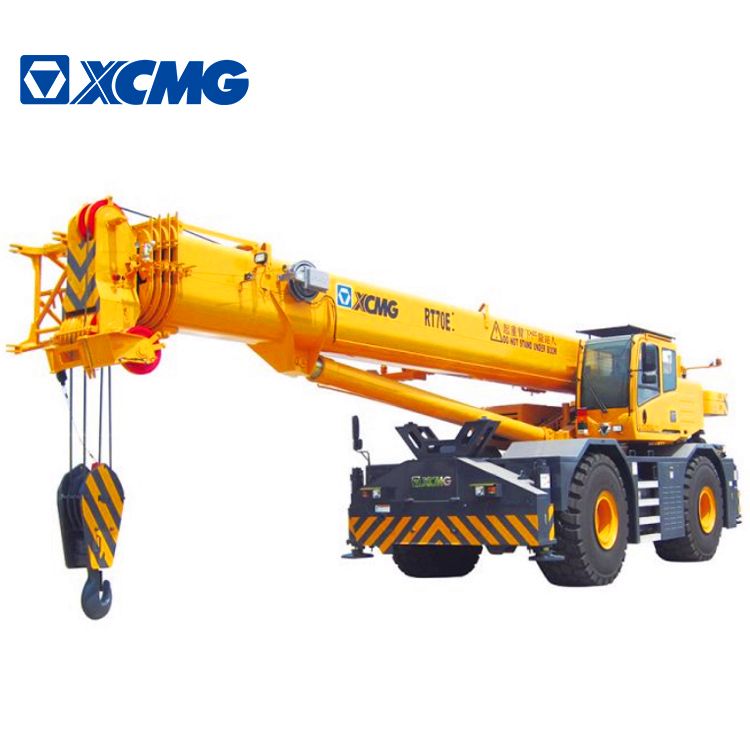

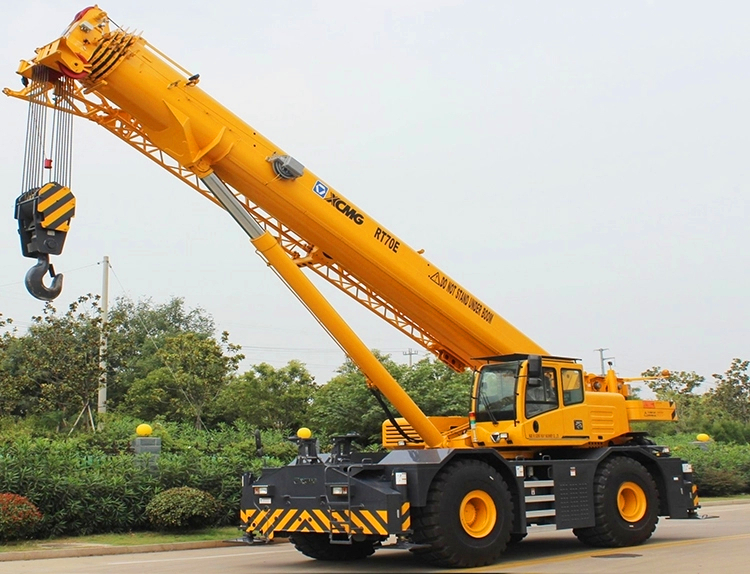

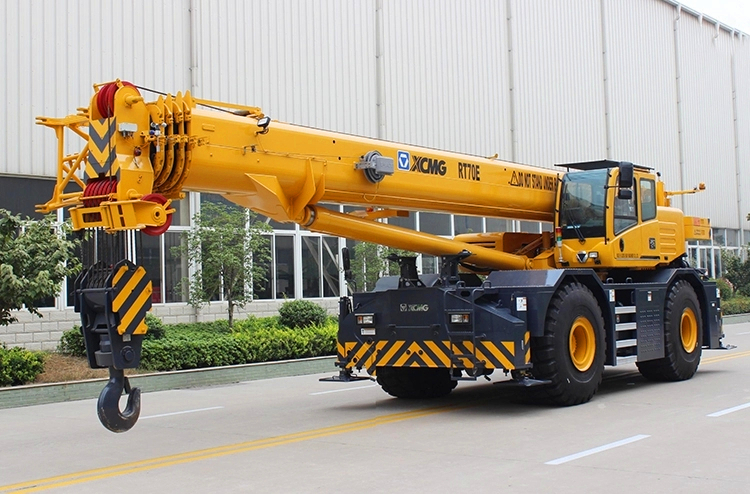

XCMG Official 70 Ton New Off Road Mobile Rough Terrain Cranes RT70E for Sale
.jpg)
Summary
- Model Number:RT70E
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
- Max. Lifting Height:58.1m
- Rated Lifting Moment:2033kN.m
- Rated Loading Capacity:70t
- Application:Construction
- Certification:CE/ISO9001
Specifications
- weight:70000.000kg
- Condition:New
- Moving Type:Wheel
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG Official 70 Ton New Off Road Mobile
Rough Terrain Cranes RT70E.

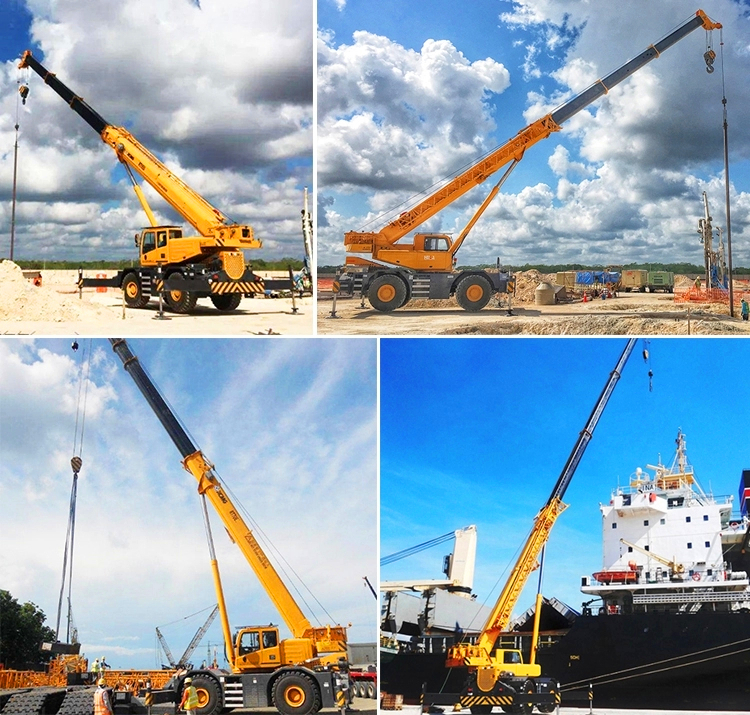

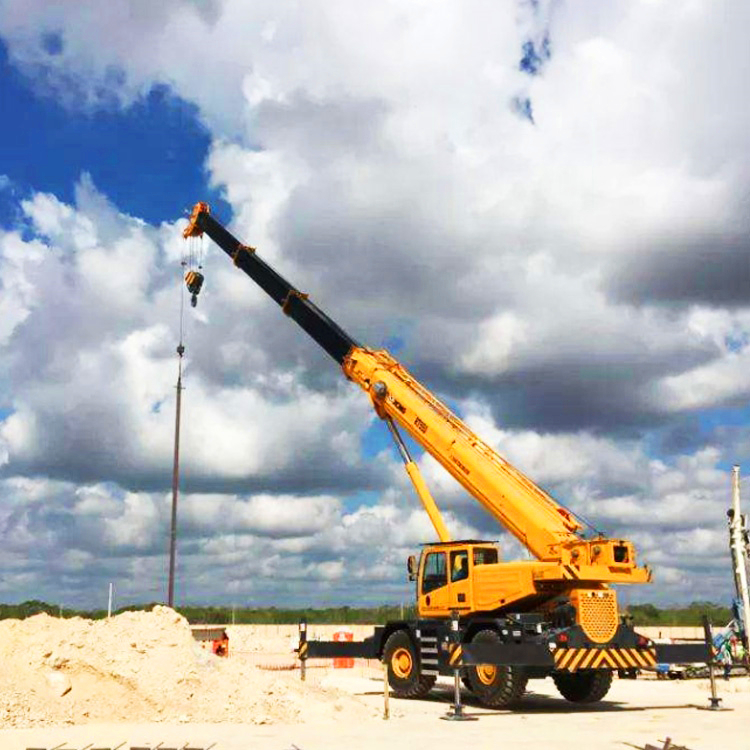

RT70E is suitable for lifting
operation in oilfields, mines, road and bridge construction, etc.
1. Energy-saving and
environment friendly *
Specialized energy-saving hydraulic system. * The torque converter with lockout
function has features of large torque at low speeds and high efficiency at high
speeds. * Elevating control system for freefall, without additional power
needed.
2. High mobility and
efficiency *
Two driving types of 4×2 and 4×4 are adopted with forwards and backwards
driving function. * Four steering modes are adopted, and the min. turning
radius is 6.1m with better job site adaptability.
3. Powerful lifting capacity * Double-cylinder plus ropes
telescoping system, stable and reliable * 5-section boom of 43.2m and jib of
17.5m with wide operation range.
|
Project |
Unit |
Parameter |
|
Length of Entire Vehicle |
(mm) |
13135 |
|
Width of Entire Vehicle |
(mm) |
3180 |
|
Height of Entire Vehicle |
(mm) |
3750 |
|
Wheel Base |
(mm) |
4000 |
|
Wheel Track |
(mm) |
2400 |
|
Weight Parameters |
||
|
Gross Vehicle Weight When Driving |
(kg) |
49065 |
|
Axle Load |
(kg) |
(Front Axle)25032/(Rear Axle)24033 |
|
Kinetic Paremeter |
||
|
Engine Type |
- |
QSB6.7 |
|
Engine Rated Power |
(kw/(r/min)) |
194 |
|
Engine Max Torque |
(N.m/(r/min)) |
987 |
|
Driving Parameters |
||
|
Max Travel Speed |
(km/h) |
25 |
|
Min Travel Speed |
(km/h) |
2 |
|
Swerve |
||
|
Min Turning Radius |
(m) |
12.2 |
|
Head Min. Turning Diameter |
(m) |
- |
|
Max Gradeability |
(%) |
65 |
|
Min. Ground Clearance of Machine |
(mm) |
467 |
|
Approach Angle |
(°) |
20 |
|
Departure Angle |
(°) |
17.5 |
|
Braking Distance |
(m) |
9 |
|
Fuel Consumption per 100kms |
(L) |
- |
|
Major Performance Parameters |
||
|
Max. Rated Lifting Capacity |
(t) |
70 |
|
Min. Rated Range |
(m) |
2.5 |
|
Max. Load Moment of Basic Jib |
(kN·m) |
2033 |
|
Radius of Gyration of Turntable Tail |
(mm) |
4220 |
|
Outrigger |
||
|
Longitudinal |
(m) |
7.3 |
|
Horizontal |
(m) |
7.2/5.6 |
|
Max. Lifting Height |
||
|
Basic Boom |
(m) |
11.3 |
|
Longest Main Boom |
(m) |
43.3 |
|
Longest Main Boom + Auxiliary Boom |
(m) |
58.1 |
|
Boom Length of Crane |
||
|
Basic Boom |
(m) |
11.32 |
|
Longest Main Boom |
(m) |
43.2 |
|
Longest Main Boom + Auxiliary Boom |
(m) |
60.7 |
