XCMG 8M Electric Self Propelled Scissor Lift XG0807DC For Sale

  • XCMG 8M Electric Self Propelled Scissor Lift XG0807DC For Sale
  • XCMG 8M Electric Self Propelled Scissor Lift XG0807DC For Sale
  • XCMG 8M Electric Self Propelled Scissor Lift XG0807DC For Sale
  • XCMG 8M Electric Self Propelled Scissor Lift XG0807DC For Sale
  • XCMG 8M Electric Self Propelled Scissor Lift XG0807DC For Sale
  • XCMG 8M Electric Self Propelled Scissor Lift XG0807DC For Sale

Share:
XCMG 8M Electric Self Propelled Scissor Lift XG0807DC For Sale
FOB for OEM Reference Price:Get Latest Price
Chat Now 1 / EA (Min. Order)
Model: XG0807DC
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
XCMG 8M Electric Self Propelled Scissor Lift XG0807DC For Sale
XCMG 8M Electric Self Propelled Scissor Lift XG0807DC For Sale
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Details
  • Product Brochure
Summary
  • Weight:1580kg
  • Overall Dimension:1900*810*2160mm
  • Table Size:1670*740*1235mm
  • Max Lifting Height:7.8m
  • Min Lifting Height:2.1m
  • Rated Loading Capacity:230kg
  • Power:3.3/0.75kw
  • Lift Drive / Actuation:Electric
  • Lift Mechanism:Scissor Lift
  • Model Number:XG0807DC
  • Brand Name:XCMG
  • Place of Origin:Xuzhou, Jiangsu, China
  • Certification:CE/ISO9001
Details
  • weight:1580.000kg
  • Condition:New
  • Moving Type:Wheel
  • Max. gradeability:25%
  • Drive speed(lowered):4.5km/h
  • Drive speed(elevated):0.8km/h

XCMG 8M Electric Self Propelled Scissor Lift XG0807DC For Sale

XCMG 8M Electric Self Propelled Scissor Lift XG0807DC

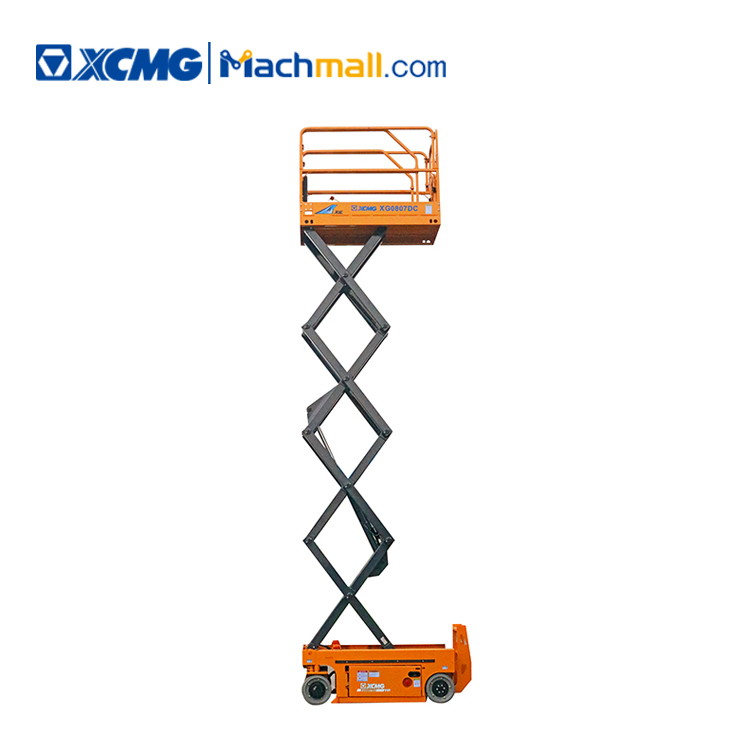

XCMG scissor lift XG0807DCW developed by XCMG has the work height at 8m, the vehicle width at 0.81m, the rated load at 230kg, max. gradeability at 25%. XCMG scissor lift XG0807DCW features compact structure, advanced performance, completed safety devices, specially suitable for construction.

In addition. XCMG scissor lift XG0807DCW is free of any pollution, with steady lifting / lowering, easy control and maintenance. Therefore, XCMG scissor lift XG0807DCW are widely applied to warehouses, factories, airports, and train stations, especially the narrow work sites.



Advantages and features:



1.Effective and energy-saving electric-drive system features zero emission and low noise.

2.Active protective mechanism such as pothole protective mechanism and the self-developed safety control system meeting the customer needing for safety, reliability and intelligence.

3.Narrow- structure design enables the complete vehicle to easily pass through a single gateway; foldable fence could make the transportation easier. “Zero Turning Radius ”is unique and enable machine to corner in narrow room.

4.Max. payload at 230kg, leading the industry.Maximum traveling speed 4.5 km/h and 25% gradeability make the driving easier.

XCMG 8M Electric Self Propelled Scissor Lift XG0807DC For Sale

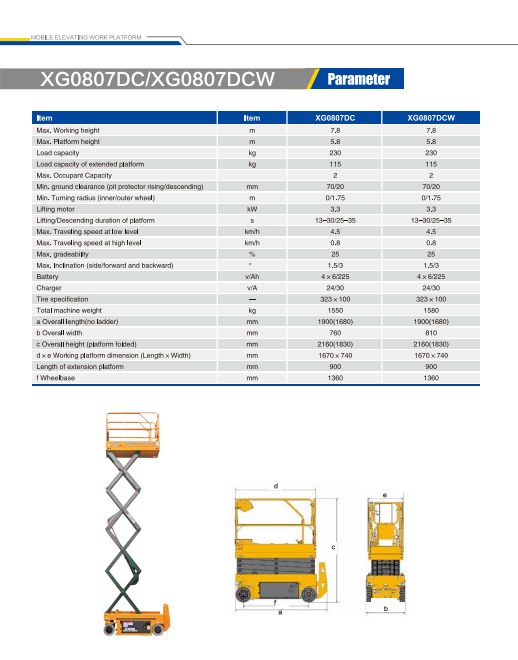

Item

Unit

XG0807DCW

Dimension of machine(LxWxH)

mm

1900x830x2160

Wheelbase

mm

1360

Wheel track

mm

710

Min. ground clearance (Pit protector ascending/descending)

mm

70/20

Dimension of working platform (LxWxH)

mm

1670x740x1235

Centroid position of machine Horizontal distance to front shaft

mm

750

Centroid position of machine Height of centroid

mm

570

Total mass of machine

kg

1580

Max. height of platform

m

5.8

Min. height of platform

m

1.05

Max. working height

m

7.8

Minimum turning radius (inner wheel/outer wheel)

m

0/1.75

Rated load

kg

230

Payload of extended platform

kg

115

Lifting time

s

13-30

Lowering time

s

25-35

Drive speed(lowered)

km/h

4.5

Drive speed(elevated)

km/h

0.8

Max. gradeability

%

25

Tilt warning angle (side/forward and backward)

°

1.5/3

Lifting / traveling motor Rated power

kW

3.3/0.75

Battery Voltage

v

24

Battery Capacity

Ah

225

Battery Manufacturer

Trojan/Leoch

XCMG 8M Electric Self Propelled Scissor Lift XG0807DC For SaleXCMG 8M Electric Self Propelled Scissor Lift XG0807DC For SaleXCMG 8M Electric Self Propelled Scissor Lift XG0807DC For SaleXCMG 8M Electric Self Propelled Scissor Lift XG0807DC For SaleXCMG 8M Electric Self Propelled Scissor Lift XG0807DC For SaleXCMG 8M Electric Self Propelled Scissor Lift XG0807DC For Sale
