- Brand Name:XCMG
- Place of Origin:China
- Product Name:G5BEF78A2892B2
- Display online time:2019-11-11
- After-sales Service Provided:Engineers available to service machinery overseas
- Warranty:3 Months
- Moving Type:other
- Max. rated lifting capacity:180t
- Length of fully-extended boom:64m
- Max. travel speed:80km/h
- Max. grade ability:65%
- Engine rated power:356/1900kW /(r/min)
The global first all terrain crane, which has a weight of 55 t with main parts on board and 180 t capacity. Six-section boom of 64 m, 103.5 m maximum length of boom plus jib, leading working range and lifting capacity in its class; excellent off-road passing ability due to innovative heavy-duty single-transverse arm independent suspension system, and four-axle drive; overall optimized design and new single engine system contribute to a GVW of 55 t with main parts on board, making it economical and convenient to use.
(1)Super long combined boom, best performance
Innovative single-cylinder pinning telescoping system, six-section telescopic boom of 64 m, max. combined boom length of 103.5 m, leading working range and best lifting capacity in its class.
(2)Compact structure, off-road pioneer

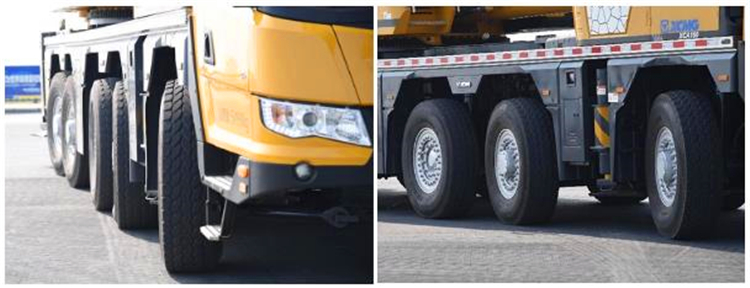

Excellent off-road passing ability due to innovative heavy-duty single-transverse arm independent suspension system, min. ground clearance of 500 mm, min. turning radius of 9.5 m, which are absolute advantages when handling narrow job sites and bad road conditions;
Free-switching of three or four-axle drive. The three-axle drive is used for highway driving, high driving economy and the four-axle drive is applicable to off-road terrain driving. Grade ability of 65%, best in the industry.
(3)Efficient job site transfer, convenient operation
Overall optimized design and new single engine system, maximize the lifting performance, and enable a GVW of 55 t with main parts on board, economical and convenient to use;
Various modes for job site transfer: driving with jib or counterweight of 3.6 t carried on board at axle load of 12 t; driving with jib and counterweight of 23.2 t carried on board at axle load of 16.5 t; and driving with full counterweight of 54 t attached during short-distance job site transfer, convenient and efficient to use.
(4)Precise lifting, intelligent control
Innovative fully closed hydraulic system and its control technology contribute to smooth operation and prominent fine-control performance, leading to min. stable hoisting speed of 0.8-1 m/min and min. stable slewing speed of 0.1°/s.
With functions, such as automatic planning of working conditions, automatic elevating compensation and automatic spooling in/out of winch rope integrated into one, the traditional crane control concept is broken through, comfortable and intelligent operation experience is offered!
Note: due to the continuous modification and improvement of products, we reserve the rights to modify product model, parameters and configuration without any notice.
|Max. rated lifting capacity||t||180|
|Length of fully-extended boom||m||64|
|Max. travel speed||km/h||80|
|Max. grade ability||%||65|
|Engine rated power||kW /(r/min)||356/1900|
